Product information "Funk Tonstudiotechnik AMX-V"

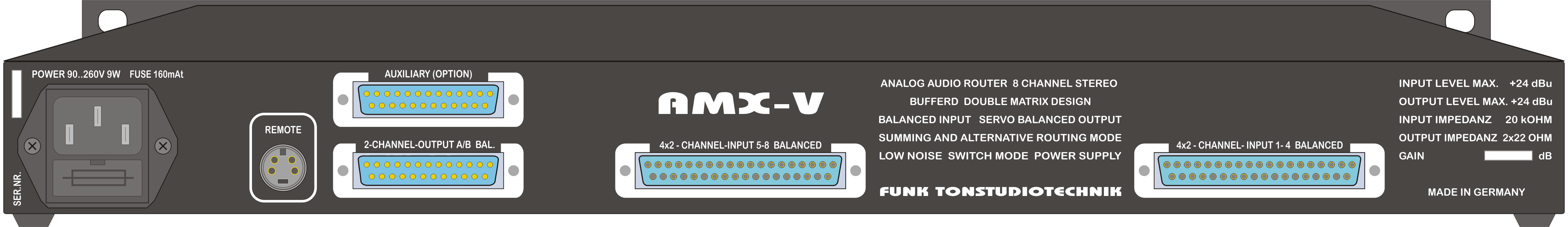

The AMX-V is a professional, active audio signal switcher and level controller for analog stereo signals with balanced circuitry.
In terms of signal purity, the AMX-V series ranks among the most neutral and precise active audio summing mixers, routers, and monitor controllers on the market, offering unparalleled sonic characteristics and technical specifications that push the boundaries of what is possible today.
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Funk Tonstudiotechnik
FUNK TONSTUDIOTECHNIK
GERMANY · 10318 BERLIN · BLOCKDAMMWEG 39-59 Tor 2
funk@funk-tonstudiotechnik.de
https://funk-tonstudiotechnik.de/
- Max. Input Level: +24.5 dBu
- Input Impedance: 20 kΩ balanced
- Common Mode Rejection Ratio (CMRR) of balanced inputs at 1 kHz/10 kHz: > 60 dB/60 dB (typ. ≥70 dB)
- Max. Output Level: +24.5 dBu into 10 kΩ
- Max. Output Load (balanced outputs): +24 dBu into 600 Ω / +22 dBu into 300 Ω
- Output Impedance: 25 Ω
- Output Voltage Symmetry: ≥75 dB/1 kHz, ≥75 dB/10 kHz
- Output Impedance Symmetry: ≥70 dB/1 kHz, ≥65 dB/10 kHz
- Frequency Response: 10 Hz ... 20 kHz < ±0.01 dB, 5 Hz ... 200 kHz < ±0.1 dB
- Large Signal Bandwidth: 160 kHz
- Absolute Phase Response: 20 Hz ... 20 kHz < ±2.0°
- Relative Phase Response (left < > right): 20 Hz ... 20 kHz <; ±0.5°

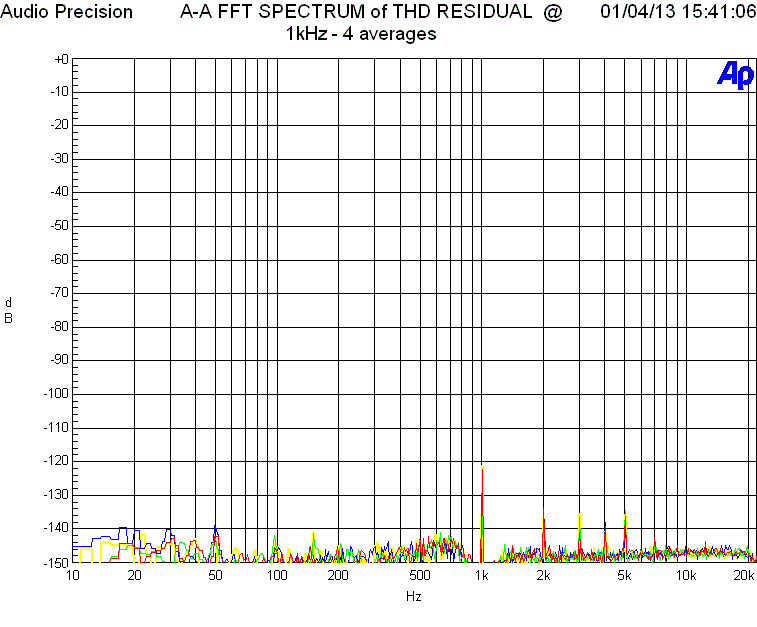

- THD Nonlinear Distortion 1 kHz: < 0.00007% (+18 dBu < 0.00006%) Bw 22 kHz
- THD Nonlinear Distortion 10 kHz: < 0.00008% (+18 dBu < 0.0003%) Bw 80 kHz
- THD+N Nonlinear Distortion + Noise 1 kHz: ≤0.00036% (+18 dBu < 0.00016%) Bw 22 kHz
- THD+N Nonlinear Distortion + Noise 10 kHz: < 0.0007% (+18 dBu < 0.0004%) Bw 80 kHz
- Second-Order Distortion (IEC268) 10.5 kHz ∆f 1 kHz: < 0.00005% (<0.00005%)
- Intermodulation 60 Hz/8 kHz 4:1: < 0.00055% (< 0.00055%)
- Dynamic Intermodulation DIM100 f = 3.15 kHz / 15 kHz: < 0.0002% (< 0.00035%)
- Crosstalk Attenuation Input/Input: 1 kHz > 130 dB, 10 kHz > 115 dB
- Crosstalk Attenuation Matrix A < > Matrix B: 1 kHz > 128 dB, 10 kHz > 112 dB
- Crosstalk Attenuation Left < > Right: 1 kHz > 95 dB, typically > 100 dB
- Gain Input > Output: +0.0 dB (additionally adjustable 0...+24 dB internally)
- Gain Deviation Input/Input: < ±0.02 dB, typically < 0.01 dB
- Residual Noise at Output Unweighted 20 Hz...22 kHz RMS: -103.0 dBu, -109.0 dB (Ref. +6 dBu)
- Noise Voltage at Output A-Weighted RMS: -105.5 dBu, -111.5 dB (Ref. +6 dBu)
- Noise Voltage at Output CCIR 4684 QP: -92.0 dBu, -98.0 dB (Ref. +6 dBu)
- Residual Noise MIX Mode 2/4/6/8 Inputs Summed Unweighted: -100.5 / -97.8 / -96.1 / -95.0 dBu, 20 Hz...20 kHz RMS
- Noise Voltage MIX Mode 2/4/6/8 Inputs Summed A-Weighted: -103.0 / -100.5 / -98.8 / -97.6 dBu A-weighted
- Noise Voltage MIX Mode 2/4/6/8 Inputs Summed CCIR 4684 QP: -89.4 / -86.6 / -85.0 / -83.7 dBu
- Dynamic Range: 127.5 dB unweighted 20 Hz...22 kHz RMS, 130.0 dB A-weighted RMS
- Clipping Indicator Threshold: +24.0 dBu
- Power Supply: 90...260V / 45...400 Hz
- Power Consumption (typical): 6.5 W, max. 12 W
- Protection Class: 1
- Dimensions of Main Unit: 19 inches/1U, 483 x 44 x 250 mm, Weight: 3.5 kg
