The AC 3200-II is an active 8-channel transmitter combiner for bundling the antenna signals in large wireless monitoring systems. Designed for the 2000 Series rack-mount monitor transmitters, it is ideal for large productions where reliable transmission and long reach are key. The AC 3200-II allows up to eight signals to be transmitted from a single antenna. In multi-channel systems it is an indispensable tool for efficiently reducing intermodulation between transmission channels. Linear power amplifiers handle up to 100 mW per channel without loss, and LEDs for each channel provide the user with a reliable system overview.

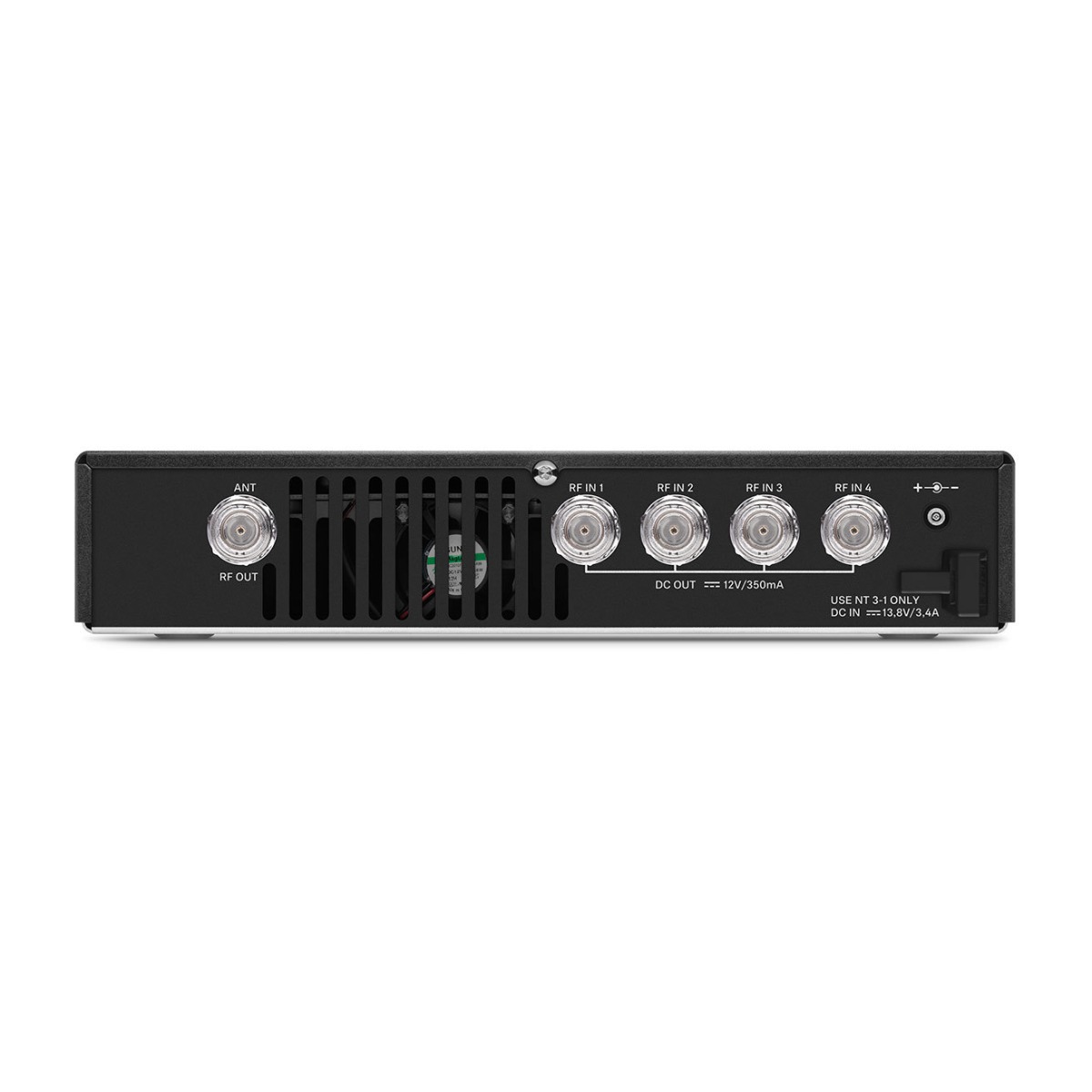

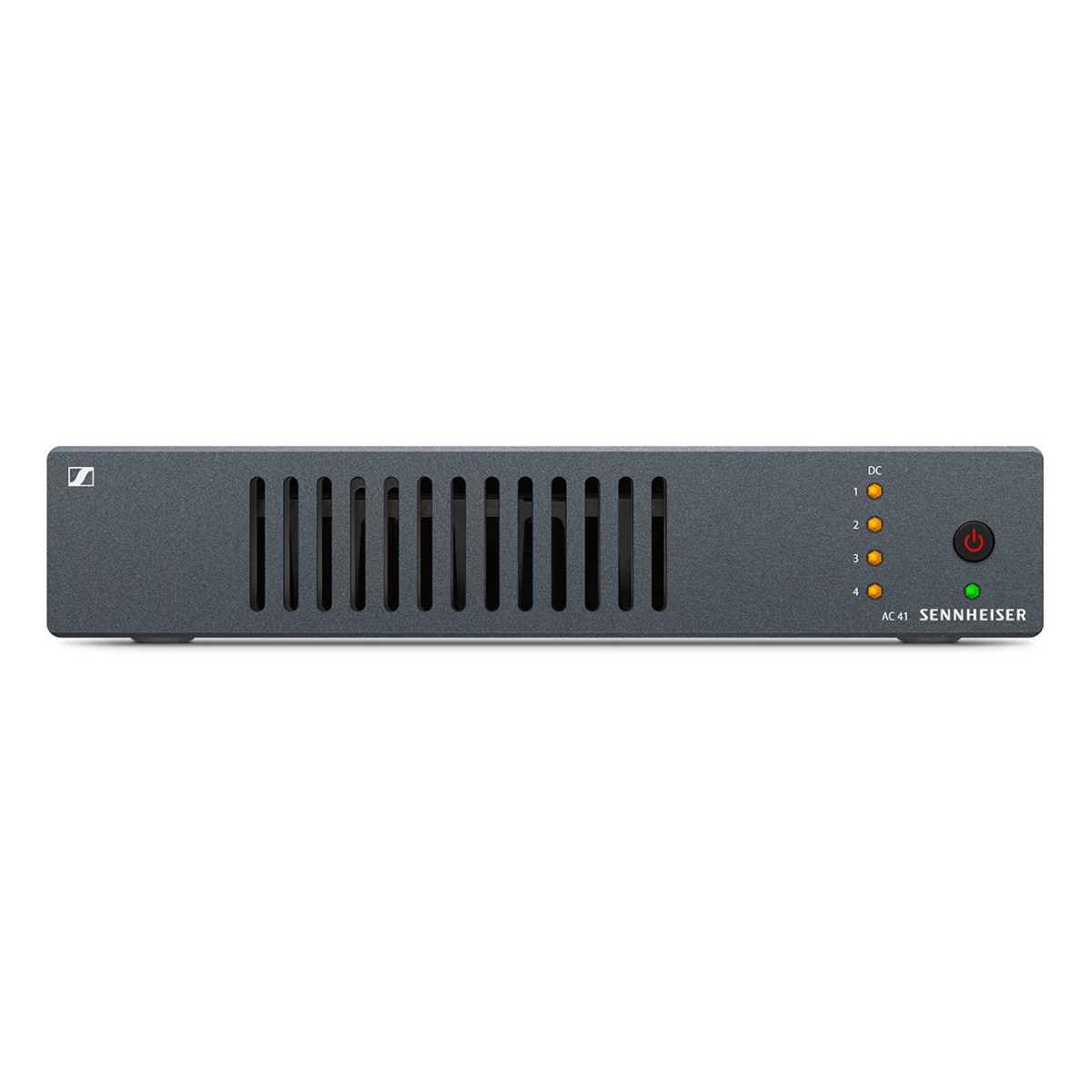

Active antenna combiner for evolution wireless G4 systems. The AC 41 operates up to four wireless stereo transmitters from the ew series using one shared antenna. Power is supplied to the SR IEM G4 transmitters over the BNC cables via NT 3-1 power supply (included with the AC 41), making separate power supplies for the transmitters obsolete.

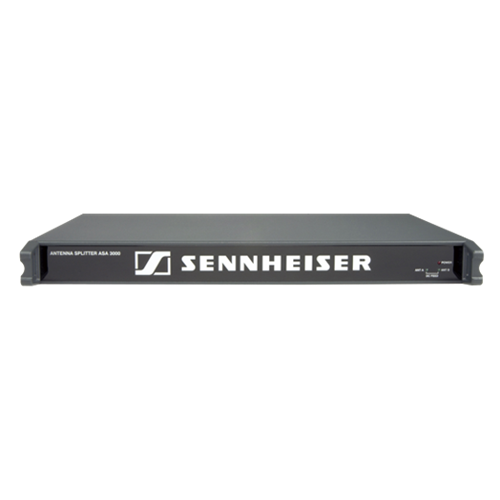

Active wideband antenna splitter for up to 16 channels (8 dual receivers), may be made narrowband with optional IM3000 selective RF input modules - cables not included

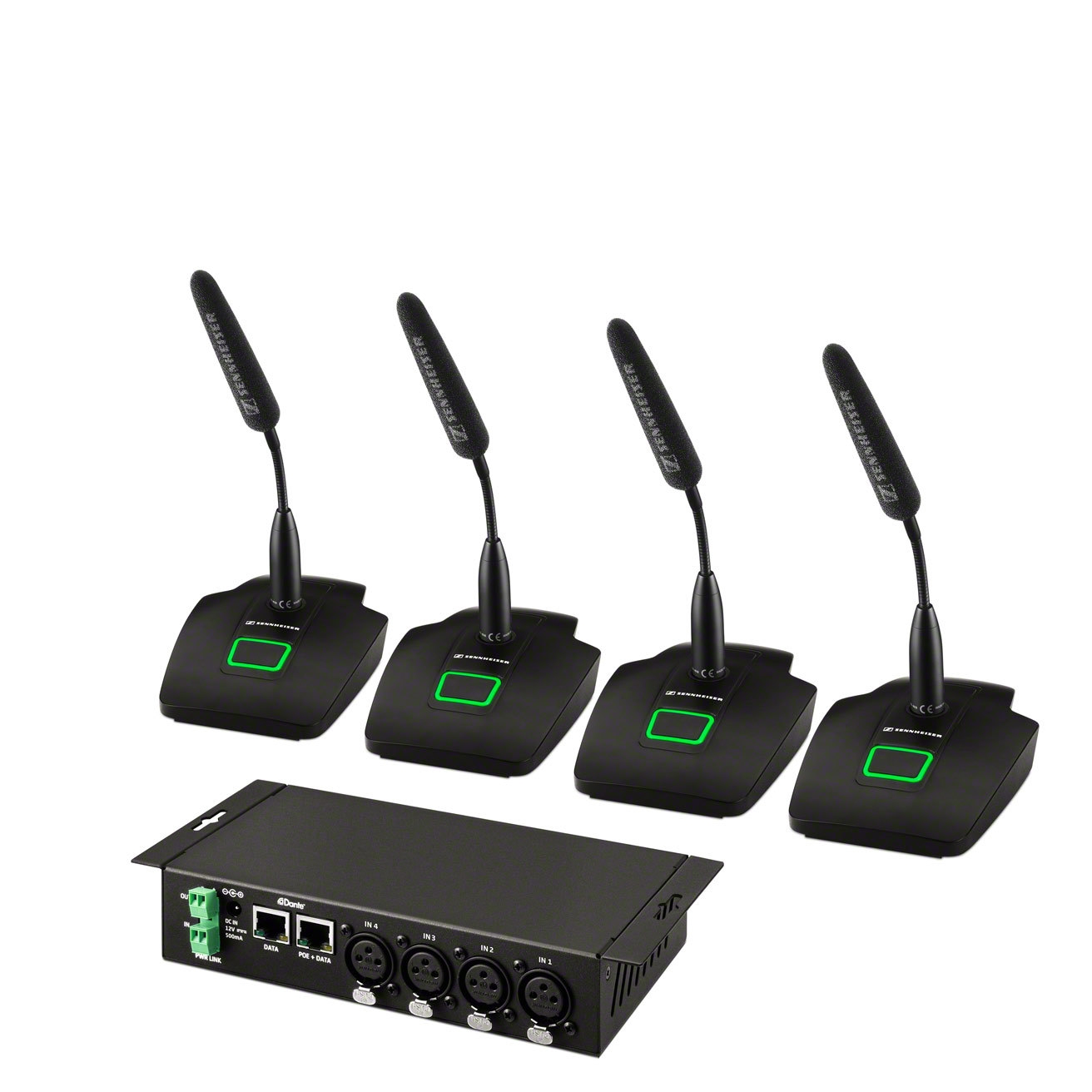

Overview The MAT 133-S is a rugged and unobtrusively designed table stand. It provides a stable ground for the metal gooseneck MZH 3015 with a length of 150 mm for use with the ME 34, ME 35 and ME 36 microphone heads. The rugged gooseneck is fitted with a balanced, floating XLR-3 output, enabling the microphone to be powered by the SL DI 4 XLR.The ME 36 is a condenser microphone capsule. This mini shotgun microphone features for an outstanding background noise rejection.The SL DI 4 XLR four input Dante-preamp is the ideal interface for wireless microphone receivers. As analog to digital audio converter, it allows for adding analog microphone systems to a Dante system. All Sennheiser XLR microphones and all wireless microphone receivers as well as all SpeechLine Wired installation microphones are compatible with the SL DI 4 XLR. Features Highest speech-intelliibility Phantom power via PoE Remote controllable gain level Daisy-chaining possible What's in the box? 1 SLDI 4 XLR 4 MAT 133-S 4 MZH 3015 4 ME 36

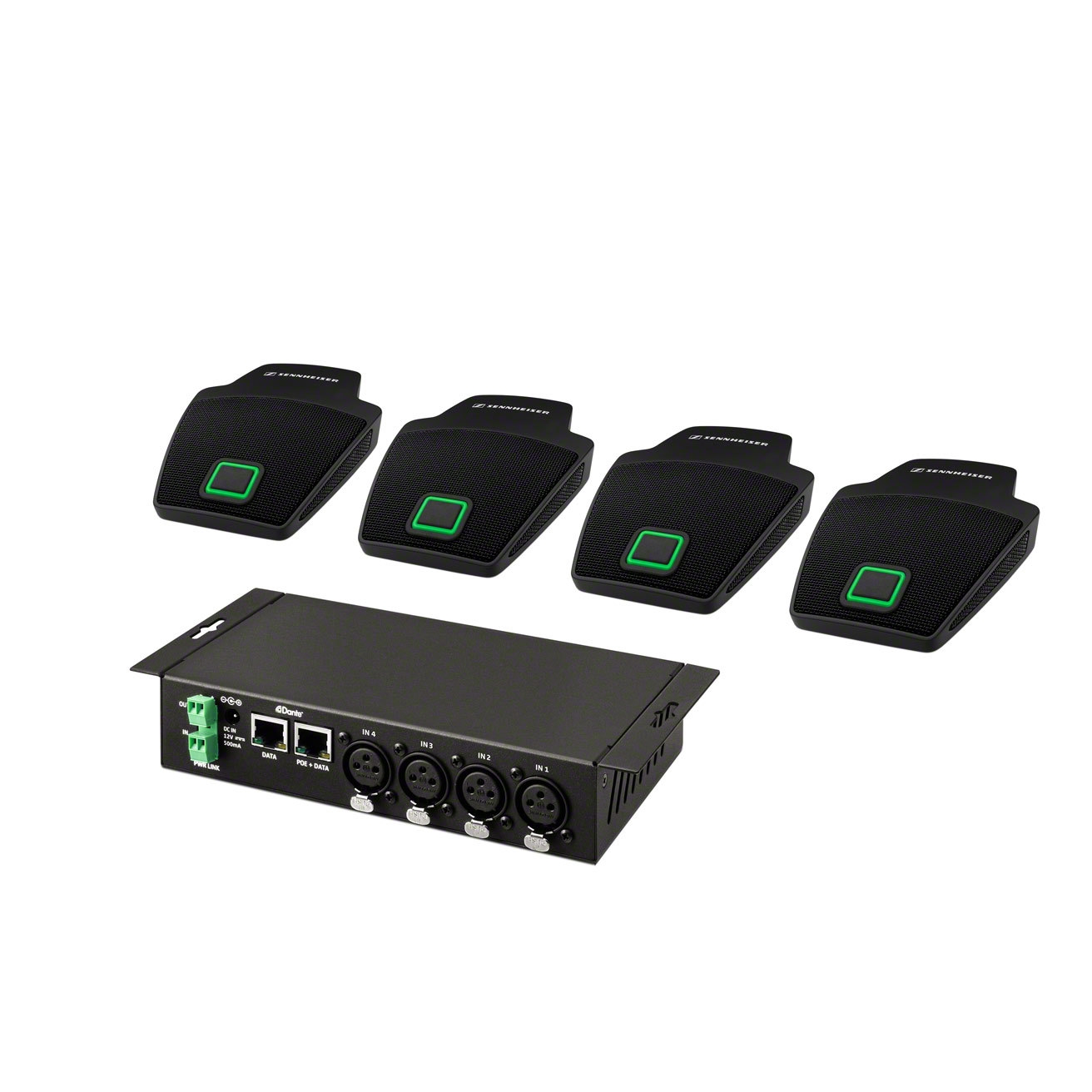

Overview The MEB 114-S is a sturdy on-table boundary layer microphone that constitutes an improvement for any conferencing system. It features a programmable microphone button and a bi-color LED ring for status indication. Thanks to its rugged housing and its high-quality microphone capsule the MEB 114-S ensures the best speech intelligibility.The SL DI 4 XLR four input Dante™ preamp is the ideal interface for wireless microphone receivers. As analog to digital audio converter, it allows for adding analog microphone systems to a Dante™ system. All Sennheiser XLR microphones and all wireless microphone receivers as well as all SpeechLine Wired installation microphones are compatible with the SL DI 4 XLR. Features Great speech-intelliibility Phantom power via PoE Remote controllable gain level Daisy-chaining possible What's in the box? 1 SLDI 4 XLR 4 MEB 114-S

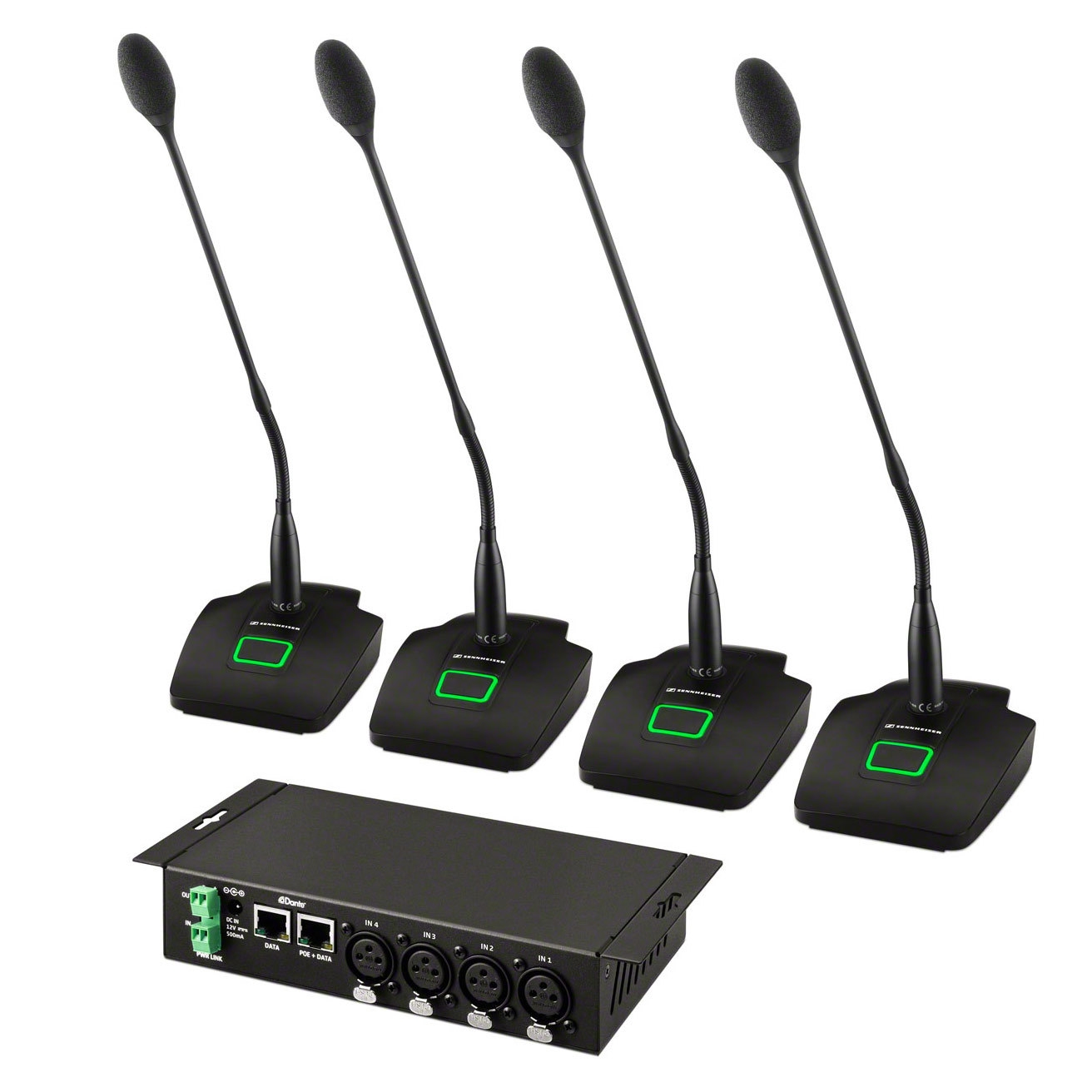

Overview: The MAT 133-S with the MEG 14-40 is as versatile as it is easy to operate. Experience clearly structured meetings and discussions as the intuitive handling will lead the focus on the content – not the technology. The proven Sennheiser KE 10 capsule provides best speech intelligibility.Powered by the SL DI 4 XLR with just a standard XLR 3 cable, the microphone is integrated in a bigger setup with a finger snap and makes even spontaneous discussion setups possible.The SL DI 4 XLR four input Dante™ preamp is the ideal interface for wireless microphone receivers. As analog to digital audio converter, it allows for adding analog microphone systems to a Dante™ system. All Sennheiser XLR microphones and all wireless microphone receivers as well as all SpeechLine Wired installation microphones are compatible with the SL DI 4 XLR. Features: Great speech-intellibility Phantom power via PoE Remote controllable gain level Daisy-chaining possible What's in the box? 1 SL DI 4 XLR 4 MAT 133-S 4 MEG 14-40

Overview The MAT 133-S with the MEG 14-40 is as versatile as it is easy to operate. Experience clearly structured meetings and discussions as the intuitive handling will lead the focus on the content – not the technology. The proven Sennheiser KE 10 capsule provides best speech intelligibility.Powered by the SL DI 4 XLR with just a standard XLR 3 cable, the microphone is integrated in a bigger setup with a finger snap and makes even spontaneous discussion setups possible.The SL DI 4 XLR four input Dante™ preamp is the ideal interface for wireless microphone receivers. As analog to digital audio converter, it allows for adding analog microphone systems to a Dante™ system. All Sennheiser XLR microphones and all wireless microphone receivers as well as all SpeechLine Wired installation microphones are compatible with the SL DI 4 XLR. Features Great speech-intellibility Phantom power via PoE Remote controllable gain level Daisy-chaining possible What's in the box? 1 SL DI 4 XLR 4 MAT 133-S 4 MEG 14-40

General DescriptionRound off your Sennheiser Tourguide System with the EK 2020-D receiver. Whether conferences, guided tours or hearing assistance: this extremely sturdy and versatile bodypack receiver provides excellent audio and ease of use for your guests. The EK 2020-D can be used with headphones or an induction neckloop for transmitting the sound to hearing aids equipped with a T coil. Digital transmission ensures optimum reception quality, with a range of up to 100 metres outdoors and around 50 metres indoors. The backlit receiver display shows all settings at a glance. Of course, the bodypack receiver can be used in mixed systems with stethoset receivers. EK 2020-D: just right for everyone. All your guests need to do is connect their headphones or induction neckloop to the receiver. That’s it! The receiver can conveniently be clipped to the shirt pocket or worn on a lanyard. When no signal is received, or when the headphones or neckloop are disconnected, the receiver will automatically switch off to save battery life. The operating time is up to 16 hours.Features Digital RF signal transmission Intuitive operating concept 16 hours battery life Free choice of headphones or induction loop Backlit LC display Sturdy housing Technical Data Modulation    2 FSK RF frequency range    863 - 865 MHz Tourguide mode    6 channels in parallel Conference mode    8 channels in parallel THD, total harmonic distortion    < 1 % at 10 mW Headphone connector    Max. 10 mW /32 Ohm Akkudaten    1500 mAh, Lithium-Polymer Operating time (Accupack)    approx. 16 h Operating temperature    0…50°C Dimensions    98 x 61 x 24 mm Weight incl. Accu    approx. 78 g

General DescriptionRound off your Sennheiser Tourguide System with the EK 2020-D receiver. Whether conferences, guided tours or hearing assistance: this extremely sturdy and versatile bodypack receiver provides excellent audio and ease of use for your guests. The EK 2020-D can be used with headphones or an induction neckloop for transmitting the sound to hearing aids equipped with a T coil. Digital transmission ensures optimum reception quality, with a range of up to 100 metres outdoors and around 50 metres indoors. The backlit receiver display shows all settings at a glance. Of course, the bodypack receiver can be used in mixed systems with stethoset receivers. EK 2020-D: just right for everyone. All your guests need to do is connect their headphones or induction neckloop to the receiver. That’s it! The receiver can conveniently be clipped to the shirt pocket or worn on a lanyard. When no signal is received, or when the headphones or neckloop are disconnected, the receiver will automatically switch off to save battery life. The operating time is up to 16 hours.Features Digital RF signal transmission Intuitive operating concept 16 hours battery life Free choice of headphones or induction loop Backlit LC display Sturdy housing Technical Data Modulation    2 FSK RF frequency range    926 - 928 MHz Tourguide mode    6 channels in parallel Conference mode    8 channels in parallel THD, total harmonic distortion    < 1 % at 10 mW Headphone connector    max. 10 mW /32 Ohm Impedance    min. 32 Ohm Operating time (Accupack)    ca. 16 h Akkudaten    1500 mAh, Lithium-Polymer Operating temperature    0…50°C Dimensions    98 x 61 x 24 mm Weight incl. Accu    78 g

General Description The EM 3731/3732-II series is characterized by high transmission reliability, exceptional audio quality and simple operation. A switching bandwidth of up to 184 MHz, more than double that of its predecessors, combined with a range of connection options guarantee optimal flexibility for daily use. The integrated Ethernet connection means that the receivers can be linked into any network. The AES3/EBU digital audio interface facilitates a direct connection to digital mixing consoles. Sennheiser's "Wireless Systems Manager" (WSM) software allows you to monitor and control all receiver operating statuses remotely. In addition, this versatile software now lets you reset the channel allocation at any time and store it as a "Scene". A new innovative WSM feature for multi-channel operation is the immediate identification of the channel allocated to each receiver at the press of a button. A high-contrast display and intuitive user interface complete the scope of features of this high-quality receiver. The EM 3732-II is available in L, N and P frequency variants. Features Up to 184 MHz switching bandwidth Digital AES 3 audio output with external word clock synchronisation Integrated antenna splitter for daisy-chaining up to eight devices Intuitive user interface with OLED display Network integration via ethernet for use of the WSM software on Macs and PCs DSP-based HiDyn plus and HDX expander Transformer balanced audio outputs Scanning function Frequencies adjustable in steps of 5 kHz Squelch setting displayed continously Command audio output ( EM 3732 COM-II only) Delivery Includes EM 3731-II or EM 3732-II or EM 3732 COM-II 3 mains cables (with EU, UK and US plugs) 2 BNC antenna cables (50 Ω) for daisy-chaining 1 BNC word clock cable (75 Ω) for daisy-chaining 4 rubber feet 1 RJ 45 ethernet cable 2 antennas 1 instruction manual 1 CD-ROM with the Sennheiser Wireless Systems Manager Software 1 frequency table Technical Data RF frequency range    L: 470 – 638 MHz, N: 614 – 798 MHz, P: 776 – 960 MHz Switching bandwidth    Up to 184 MHz Receiving frequency    6 frequency banks with up to 59 factory-preset frequencies each, 1 frequency bank with up to 60 freely selectable frequencies (tunable in steps of 5 kHz) Adjacent channel rejection    typ. 75 dB / +-400 kHz, typ. 80 dB /+-800 kHz Squelch threshold    13 steps (0 ... 30 μV) Intermodulation spacing    >= 80 dB Antenna connector    2 BNC connectors (50 Ω) Cascadable    2 BNC connectors (50 Ω) Gain    0 dB ±0,5 dB (ref. to antenna input) Compander    Sennheiser HiDyn plus emulated by DSP, Latency <= 1.9 ms Frequency response    40...20000 Hz Nominal deviation    +-40 kHz Peak deviation    +-56 kHz Signal-to-noise ratio    ≥ 118 dB(A) (analogue AF OUT), 140 dB (AES3 audio out) THD, total harmonic distortion    ≤ 0,3 % Output voltage    +18 dBu to –10 dBu, adjustable in steps of 1 dB (transformer balanced) Audio-XLR connector    analogue: XLR-3, digital AES3: XLR-3 Sample Rates: 44.1, 48, 88.2, 96 kHz, 24 Bit Booster    12 V DC, 2 x 200 mA, short-circuit-proof Power supply    100 - 240 V AC, 50/60 Hz Power consumption    max. 50VA, 20 W (AC) Operating temperature    –10 °C ... +55 °C Storage temperature    -25 °C ... +70 °C Dimensions    436 x 44 x 250 mm Weight    ca. 4080 g

760 - 960 MHz36 MHz Schaltbandbreite16 schaltbare Frequenzen  Für weitere Informationen, besuchen Sie bitte die Homepage zu diesem Produkt.

General Description Great technology throughout the microphone system make this system the ideal singing partner. The feedback-resistant, super-cardioid microphone capsule reproduces vocals prominently and with a smooth response. The powerful hand-held transmitter shows all important information on its large graphic display. Its optional rechargeable batteries can be recharged just by placing the handheld in the optional charging station. Features Sturdy metal housing (transmitter and receiver 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception Enhanced frequency bank system with up to 32 compatible frequencies Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems High-quality true diversity reception Pilot tone squelch for eliminating RF interference when transmitter is turned off Automatic frequency scan feature searches for available frequencies Enhanced AF frequency range Increased range for audio sensitivity Wireless synchronization of transmitter parameter from receiver User-friendly menu operation with more control options Illuminated graphic display, receiver also shows transmitter settings Auto-Lock function avoids accidental changing of settings HDX compander for crystal-clear sound Transmitter feature battery indicatation in 4 steps, also shown on receiver display Easy-exchangeable microphone modules from evolution series Integrated Equalizer and Soundcheck mode Contacts for recharging BA 2015 accupack directly in the transmitter Wide range of accessories adapts the system to any requirement Delivery Includes 1 EM 500 G3 rack-mount receiver 1 SKM 500-945 G3 handheld transmitter (super-cardioid, dynamic) 1 MZQ 1 microphone clip 1 GA 3 rack mount 1 NT 2 power supply unit 2 antennas 2 AA size batteries Operating instructions Technical Data RF frequency range    516 ..... 865 MHz Transmission/receiving frequencies    1680 Presets    32 Switching bandwidth    42 MHz Peak deviation    +/- 48 kHz Compander    HDX Frequency response (microphone)    80.....18000 Hz Signal-to-noise ratio    > 115 dB(A) THD, total harmonic distortion    < 0,9 % In compliance with    ETS 300422 , ETS 300445 , CE , FCC Antenna connector    2 BNC, 50 Ohm Audio-XLR connector    6,3 mm Audio output level (balanced)    XLR: +18 dBu max Audio output level (unbalanced)    Jack: +10 dBu max Dimensions (Receiver)    212 x 202 x 43 mm Weight (Receiver)    980 g RF output power    10/30 mW Operating time (transmitter)    >8 h Dimensions (Transmitter)    d= 50 mm, l= 265 mm Weight (Transmitter)    450 g Transducer; Microphone type    dynamic AF sensitivity    1,6 mV/Pa Sound pressure level (SPL)    154 dB(SPL) max. Pick-up pattern    super-cardioid Varients: EW 500-945 G3-A:Frequency range 516...558 MHz EW 500-945 G3-G:Frequency range 566...608 MHz EW 500-945 G3-B:Frequency range 626...668 MHz EW 500-945 G3-C:Frequency range 734...776 MHz EW 500-945 G3-D:Frequency range 780...822 MHz EW 500-945 G3-E:Frequency range 823...865 MHz

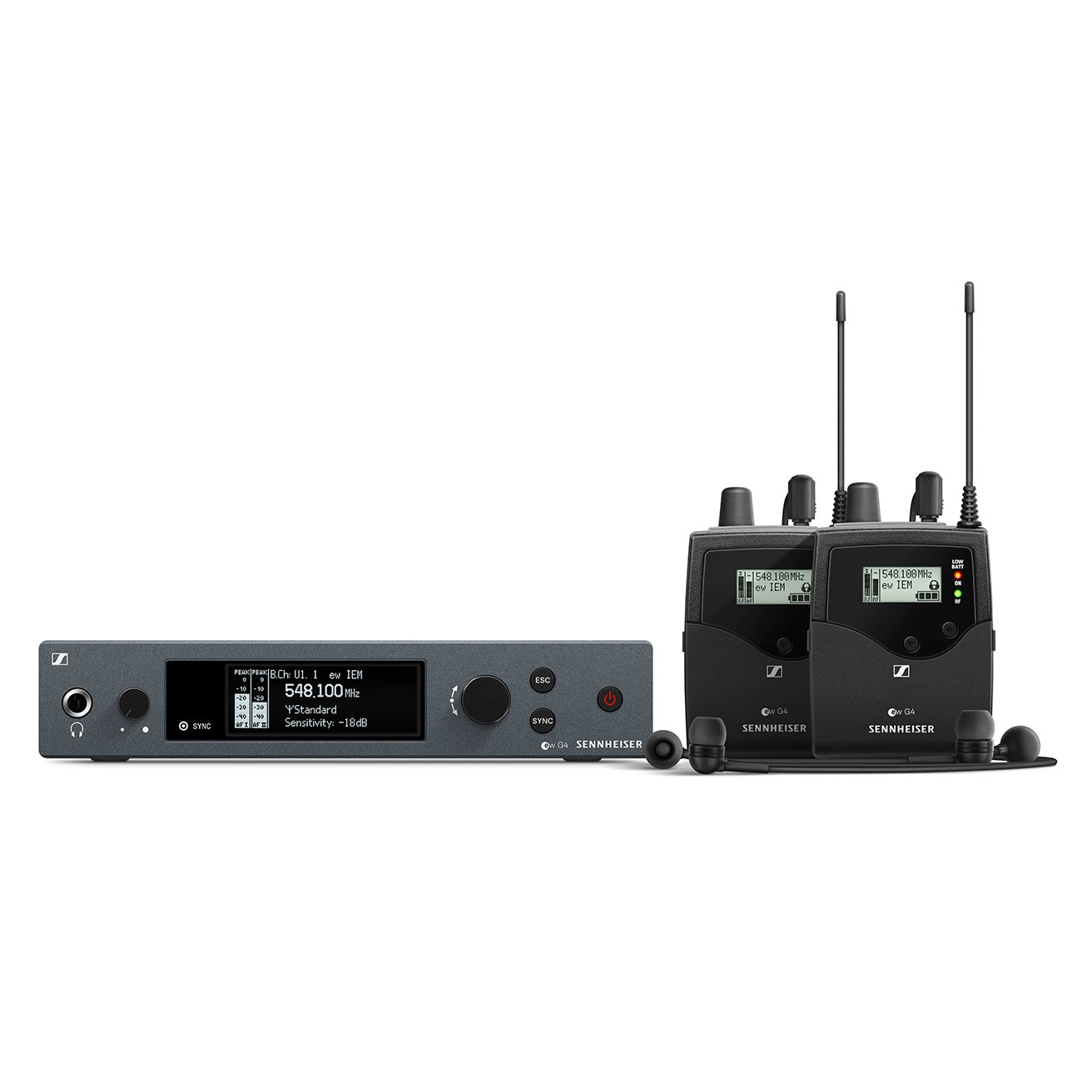

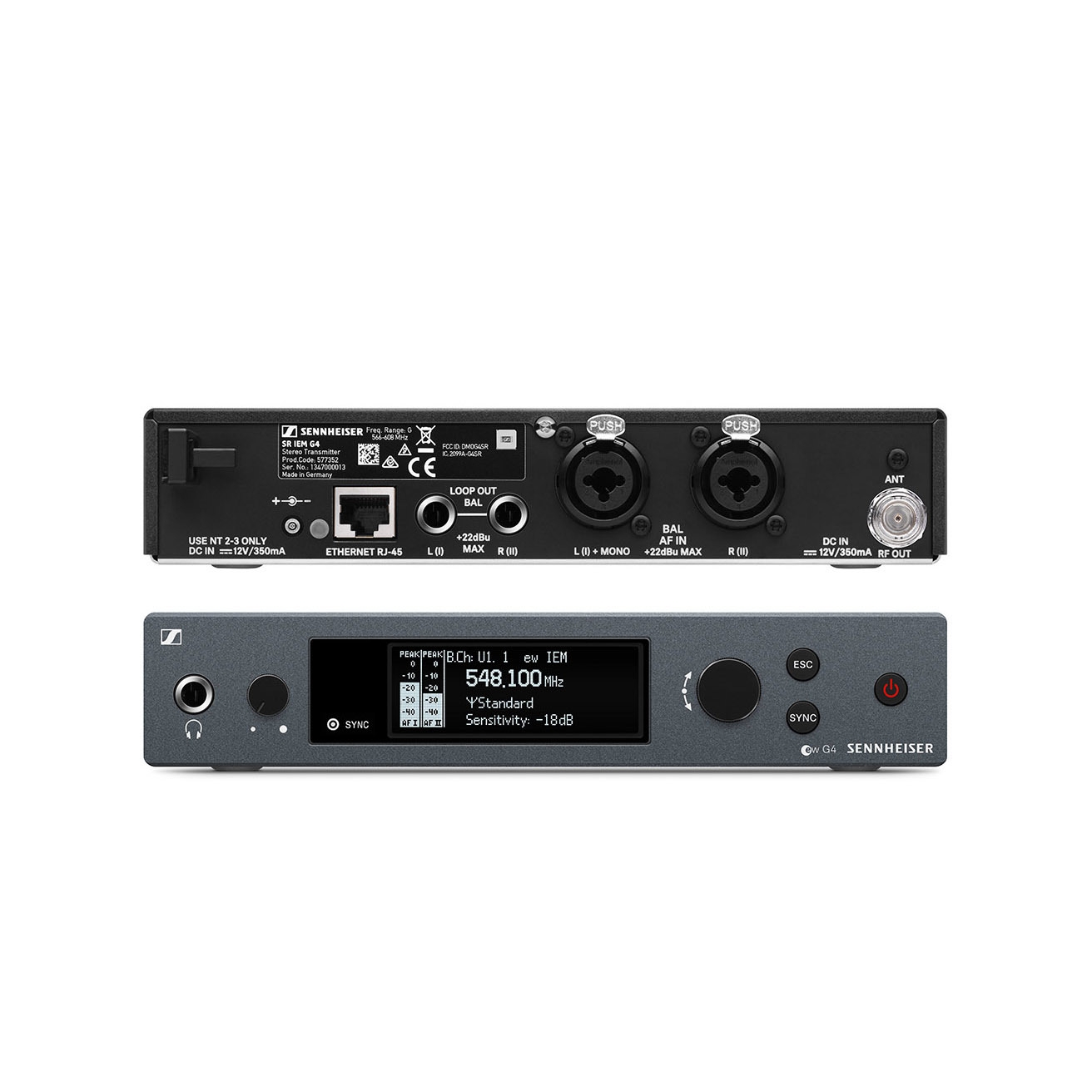

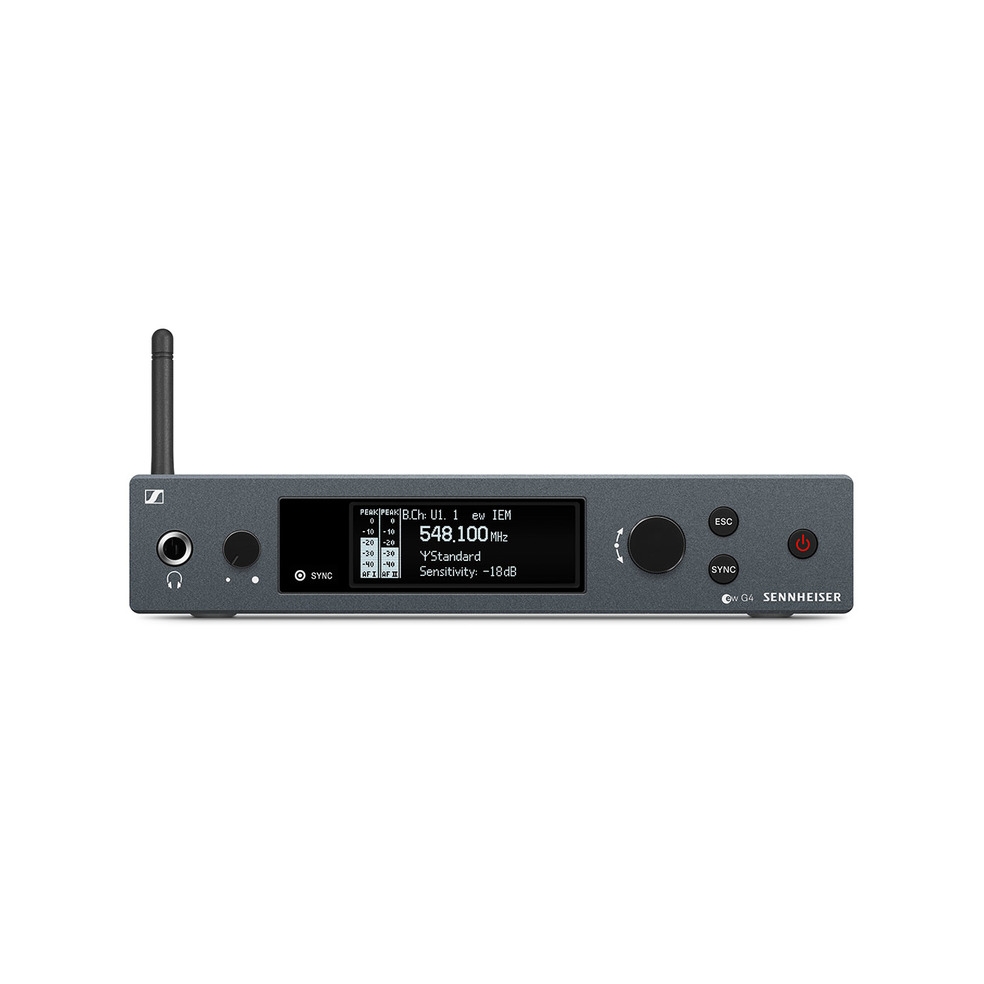

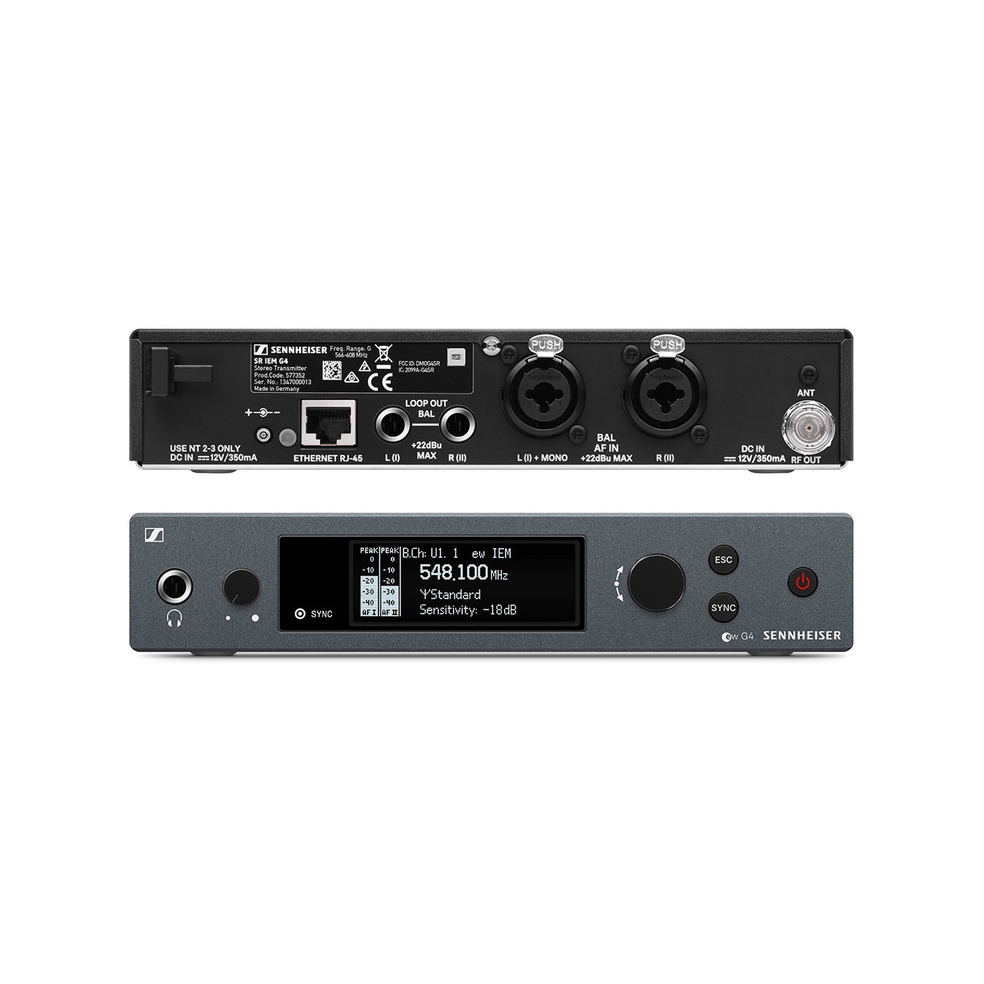

Volle Kontrolle über Ihre Leistung - überall und jeden Tag. Die G4 In-Ear Monitoring Sets machen Ihren Auftritt zu einem außergewöhnlichen Erlebnis - nicht nur für Ihr Publikum, sondern auch für Sie! Features: Entwickelt für professionellen Live-Sound: Robustes drahtloses All-in-One-System für In-Earm Anwendungen Robuster Taschenempfänger und verlässliche In-Ear-Monitoring IE 4 Ohrhörer liefern Klarheit über das gesamte Frequenzspektrum für den täglichen Nutzen auf der Bühne Stereo-Sender in halber Rackbreite in einem Vollmetallgehäuse mit kontrastreichem OLED-Display Leichte und flexible drahtlose Synchronisation zwischen Sender und Empfänger über Infrarot Kompatibel mit der Sennheiser Steuerungssoftware WSM für flexible Frequenzzuweisung und -überwachung Bis zu 16 kompatible Kanäle Bis zu 42 MHz Bandbreite mit 1680 wählbaren Frequenzen, voll abstimmbar im UHF-Bereich Reichweite: bis zu 100 Meter Hohe Sendeleistung (bis zu 50 mW), abhängig von länderspezifischen Vorschriften

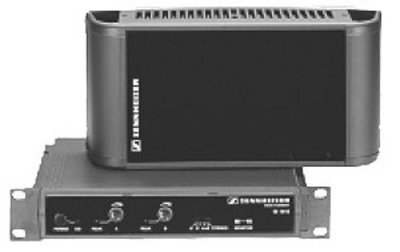

Sennheiser SI 1015The SI 1015 wideband modulator uses the new extremely reliable carrier frequencies 2.3 and 2.8 MHz and can be operated in single-channel, two-channel and stereo modes. The modulator is fitted with two balanced XLR-3 audio inputs and IR monitoring diodes. It can be used with SZI 1015 and SZI 1029 radiators, the signals for the radiators are available at two RF sockets, or, alternatively, at a barrier strip. (N.B.: The barrier strip – which also powers the connected radiators – can only be used with SZI 1015 and SZI 1029-24 radiators.)Features:2-Watt radiator and modulator for the new carrier frequencies 2.3 and 2.8 MHz2-Watt radiator with a maximum coverage area of 400 m²chaining the signal to additional radiatorsModulator for single-channel, two-channel or stereo operation, features monitoring diodes and a separate barrier strip with RF and DC outputs for connecting radiatorsWide range of mounting accessories for the radiator, modulator comes complete with rack-mount earsTechnical Specifications:Modulation    FMNominal deviation    +/- 40 kHzCarrier frequencies    2,3 MHz / 2,8 MHzImpedance    600 OhmOperating voltage (mains)    24-30 V DCCurrent consumption    <140 mADimensions    1/2 19", 1 U (224x44x173 mm)Weight    800 gAudio-XLR connector    2 x XLR-3 symet.RF output    2 x BNCPeak deviation    +/- 56 kHzInput voltage range    10 mV.....5 V (Line)

SR 2000 IEM CWFrequency range 718 ... 790 MHz General Description Rugged, reliable, and flexible – in short: professional. With SR 2000, you can choose from 26 frequency banks with up to 32 channels. The channels can be user-programmed six of the frequency banks. Three switchable RF output powers (10, 30, and 50 mW – additionally 100 mW in the US version) provide greatest artistic and technical freedom. A 5-band equalizer makes it possible to individually influence the audio output signal. Features Rugged 19" all-metal housing with integrated power supply unit Up to 3000 frequencies in up to 75 MHz switching bandwidth 20 fixed frequency banks with up to 32 compatible presets 6 banks each with up to 32 tunable channels Frequency setting in 25 kHz steps Switchable RF output power for versatile use Enhanced audio frequency response in bass range Integrated 5-band graphic equalizer Receivers can be configured from the transmitter menu Can be synchronized with the receiver using infrared interface Wide range of accessories for virtually any use Monitoring and control using Sennheiser WSM PC software User-friendly menu interface with two-color backlit graphic display (red as a warning) Pilot tone transmission for interference-free operation Adjustable headphone connection Wide range of accessories for virtually any use Delivery Includes 1 SR 2000 IEM transmitter 3 mains cables (EU, UK, and US) 1 rod antenna 1 instruction manual 1 supplementary frequency sheet 1 supplementary RF license sheet 4 device feet Technical Data Modulation    FM, MPX-Stereo RF frequency range    516....865 MHz Carrier frequencies    max. 3000 Presets    max. 32 Switching bandwidth    max. 75 MHz RF output power    10, 30, 50 mW (US: 100 mW) switchable Nominal deviation    ±24 kHz Peak deviation    ±48 kHz Compander    HDX Signal-to-noise ratio    > 90 dB(A) THD, total harmonic distortion    < 0,9% Antenna connector    2x BNC In compliance with    CE, FCC, IC Frequency response    25....15000 Audio-XLR connector    2x XLR, 2x 6,5mm Jack Input voltage range    + 22 dBu max Headphone connector    > 100 mW (32 Ohm) Power supply    100 - 240 V AC, 50/60 Hz Current consumption    0,1 A Dimensions    436 x 215 x 43 mm Weight    2600 g

General DescriptionSR 2020-D, multiply gifted! For each of your productions, the compact high-tech transmitter SR 2020-D will provide perfect audio in exactly the right way. It allows for conferences or presentations to be interpreted simultaneously in up to 8 languages. Other audio content can be selected from CD, DVD or your IT network. Of course, you can connect microphones for announcements, and the system will even follow you on bus or boat tours.The transmitter is operated very easily and comfortably. Important parameters such as channel selection and line/mic input levels can be checked on the back-lit display. Features 6 - 8 channels in the licence-free range Europe: 863-865 MHz Digital RF-transmission 19" rack-mount kit included Very easy configuration and usage Balanced XLR-3F-Input with switchable phantom-power (48V) 6,3mm jack-plug headphones connection for monitoring Backlit display shows: - Channel selection - Mic.-/Line-Input level Technical Data Modulation    2-FSK RF frequency range    863 - 865 MHz Number of channels    6 / 8 RF output power    10 mW Signal-to-noise ratio    > 70 dB(A) THD, total harmonic distortion    ≤ 1% Input voltage range    160 mV - 2.5 V (Line), 2 mV - 125 mV (Mic) Phantom powering    48 V Current consumption    max 300 mA Operating temperature    0 - 50 °C Range    50m/100m Indoor/Outdoor Weight    1100 g Dimensions    212 x 145 x 38 mm

SR 2020-D-U Stationary rack-transmitter in the license-free frequency range US 926 - 928 MHz (with NT 2-1-US)General DescriptionSR 2020-D, multiply gifted! For each of your productions, the compact high-tech transmitter SR 2020-D will provide perfect audio in exactly the right way. It allows for conferences or presentations to be interpreted simultaneously in up to 8 languages. Other audio content can be selected from CD, DVD or your IT network. Of course, you can connect microphones for announcements, and the system will even follow you on bus or boat tours.The transmitter is operated very easily and comfortably. Important parameters such as channel selection and line/mic input levels can be checked on the back-lit display. Features 6 - 8 channels in the licence-free range Europe: 863-865 MHz Digital RF-transmission 19" rack-mount kit included Very easy configuration and usage Balanced XLR-3F-Input with switchable phantom-power (48V) 6,3mm jack-plug headphones connection for monitoring Backlit display shows: - Channel selection - Mic.-/Line-Input level Technical Data Modulation    2-FSK RF frequency range    863 - 865 MHz Number of channels    6 / 8 RF output power    10 mW Signal-to-noise ratio    > 70 dB(A) THD, total harmonic distortion    ≤ 1% Input voltage range    160 mV - 2.5 V (Line), 2 mV - 125 mV (Mic) Phantom powering    48 V Current consumption    max 300 mA Operating temperature    0 - 50 °C Range    50m/100m Indoor/Outdoor Weight    1100 g Dimensions    212 x 145 x 38 mm
