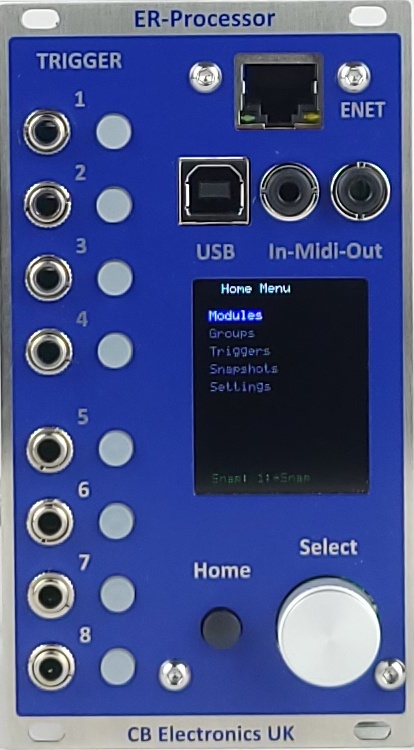

ER-ProcessorThe processor module provides computer interface via USB Midi and Ethernet, Midi Snapshot automation, Serial (5pin DIN) Midi interface to Midi foot Switch or Keyboards. A Trigger Section with eight 3.5mm Jacks and Switches which may be used as control or Record and Playback Trigger or Gate signals via Midi. The processor includes a 128 snapshot store which holds the parameters for up to 16 modules. All functions may be controlled using the color TFT display and encoder or from the XPatch5 Win/Mac program. Features at a glance:· USB Midi for Computer Control or DAW Interface· Ethernet for Computer Control and RTPmidi· Control of up to 16 modules· 3.5mm Jack Serial Midi in and out for Keyboard or Midi Foot Switch· 1.8" Color TFT Display, Configuration and Control of modules · Encoder with Push Switch, Configuration and Control· Home Switch - Return to Home Menu· Snapshot Automation (128 point)· Interfaces with XPatch5 Windows/Mac program· A select switch on Modules for immediate control

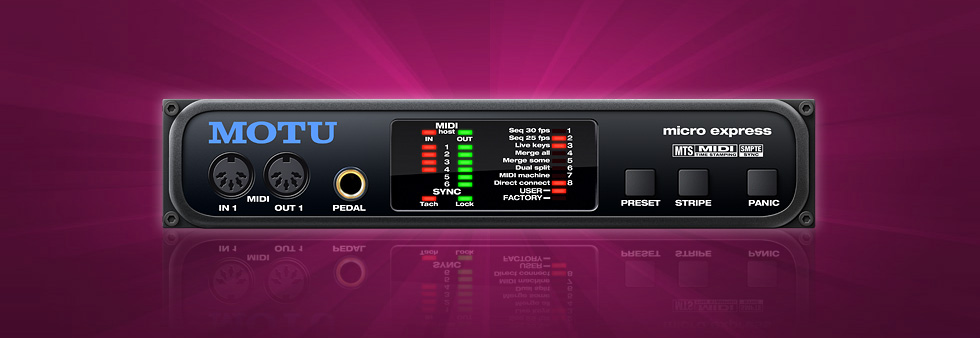

micro express Overviewmicro express is a 4-in/6-out MIDI interface with SMPTE synchronization ($295, compatible with Mac OS X and Windows).Built with MOTU’s award-winning MIDI interface technology, the micro express is a compact, bus-powered MIDI interface and time code synchronizer that provides expandable, plug-and-play connectivity to any USB-equipped Mac or Windows computerProfessional time code syncAs a professional-grade SMPTE time code synchronizer, the micro express converts and stripes time code in all frame formats (23.976, 24, 25, 29.97 drop and non-drop, and 30). SMPTE “jam sync” with adjustable freewheeling provides glitch-free sync.The micro express also supports MIDI Machine Control (MMC), with the ability to serve as either an MMC master or slave. The micro express can distribute MMC transport commands to all other connected MMC devices.Foot switch supportConnect a foot switch to the convenient front-panel pedal input and then program it to generate MIDI data when pressed. Send the data to any connected devices. For example, you could send MIDI patch changes to synths and sound modules during live performance.Expandable, plug-and-play bus-powered USB operationThe micro express takes full advantage of USB, giving you high-speed MIDI throughput, sub-millisecond timing accuracy, support for “hot-swapping” and plug-and-play expansion. Need to connect another sound module or synth? No problem. Just add another MOTU USB MIDI interface via any available USB port. Because it's bus--powered, you can take the micro express anywhere. THE MICRO EXPRESS NOW INCLUDES: Support for 23.976 time code Update ClockWorks software Feature: USB MIDI interface for Mac and Windows Stand-alone MIDI patchbay/merger/processor (when powered via USB) SMPTE time code sync in all formats (includes new support for 23.976 fps time code) 4x6 MIDI merge matrix: connects any device to any other 16 front panel presets 4 independent MIDI IN 6 independent MIDI OUT 96 MIDI channels Supports MIDI Machine Control transport messages Pedal input for momentary foot switch 16 presets with 8 programmable, battery-backed memory MIDI Time Stamping (MTS) for sub-millisecond timing accuracy Includes updated drivers and ClockWorks™ software for Mac and Windows USB bus-powered Specifications Custom-designed VLSI technology Front panel buttons and LED's for choosing presets (8 factory, 8 user) Front panel SMPTE stripe button Front panel SMPTE lock and tach LED's Status lights for MIDI IN/OUT and computers Front panel MIDI IN and OUT ports Panic button 10 MIDI connectors 2 SMPTE quarter-inch phone (line level) 1 pedal quarter-inch phone input Includes software console for Mac and Windows, USB cable Chassis dimensions, excluding rack ears: 9.5 x 7 x 1.75 inches (24.13 x 17.78 x 4.45 cm). With rack ears attached, fits one half of a standard 19 inch (48.26 cm) rack at 1U high.

Mit der selben Technologie ausgestattet, wie MotU's Flaggschiff MIDI Timepiece, ist das micro lite ein professionelles tragbares MIDI-Interface, das Plug-and-Play-Verbindungen zu jedem mit USB ausgestattetem Macintosh- oder Windows-Rechner herstellt.Das micro lite verfügt über 5 MIDI Eingänge, 5 MIDI Ausgänge, 80 MIDI Kanäle. Es ist kompatibel zu jeglicher Macintosh- und Windowssoftware.Das micro lite nutzt alle Vorteile von USB, bietet Ihnen schnelle MIDI- Verbindungen mit einer Genauigkeit von unter einer Millisekunde.Das micro lite unterstützt „hot-swapping“, d. h. man kann es im laufenden Betrieb an den Computer anschließen. Möchten Sie andere Soundmodule oder Synthesizer anschließen? Kein Problem. Schließen Sie einfach ein anderes MOTU USB-MIDI-Interface über einen freien USB Port an.Die Stromversorgung des micro lite läuft über USB, ein Netzteil oder Netzkabel ist nicht notwendig.Kein anderes MIDI- Interface bietet Ihnen so viele Vorteile, Möglichkeiten und Mobilität, zu einem derart erschwinglichen Preis.

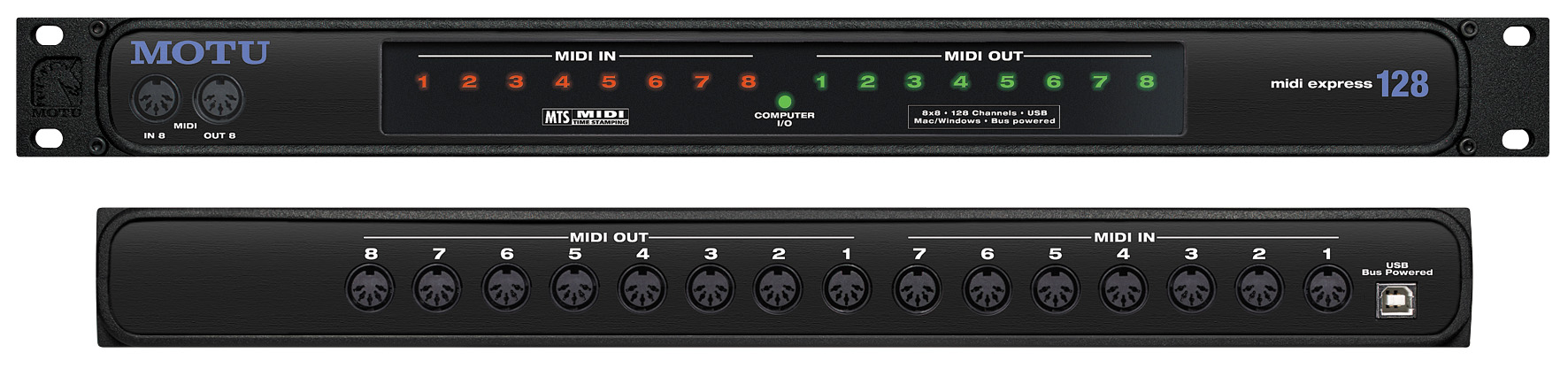

MIDI Express 128 is a 8-in/9-out MIDI interface compatible with Macintosh and Windows.Built from the same technology found in MOTU's flagship MIDI Timepiece, the MIDI Express 128 is a professional MIDI interface that provides plug-and-play connectivity to any USB-equipped Mac or Windows computer. The Express 128 provides 8 MIDI IN, 9 MIDI OUT, 128 MIDI channels and compatibility with all Macintosh and Windows software.The MIDI Express 128 takes full advantage of USB, giving you high-speed MIDI throughput, sub-millisecond timing accuracy, support for "hot-swapping" and plug-and-play expansion. Need to connect another sound module or synth? No problem. Just add another MOTU USB MIDI interface via any available USB port. And the Express 128 is powered by USB – no wall wart or AC plug.No other MIDI interface offers this much value and performance at such an affordable price.Features MIDI connectivity - Provides eight independent MIDI inputs and outputs for a total of 128 MIDI channels. Expansion - MOTU MIDI interfaces grow with you. Expansion is simple. Add additional MIDI ports by plugging in another MOTU MIDI interface. Compatibility - Works with your favorite software. Includes drivers for Mac OS X and Windows. High-speed USB connection. USB-Powered - Bus-powered from USB connection. No additional power necessary. Rack mountable - With rack ears attached, fits standard 19 inch (48.26 cm) rack at 1U high. Excluding rack ears, chassis dimensions are 19 × 7 × 1.75 inches (48.26 × 17.78 × 4.45 cm).

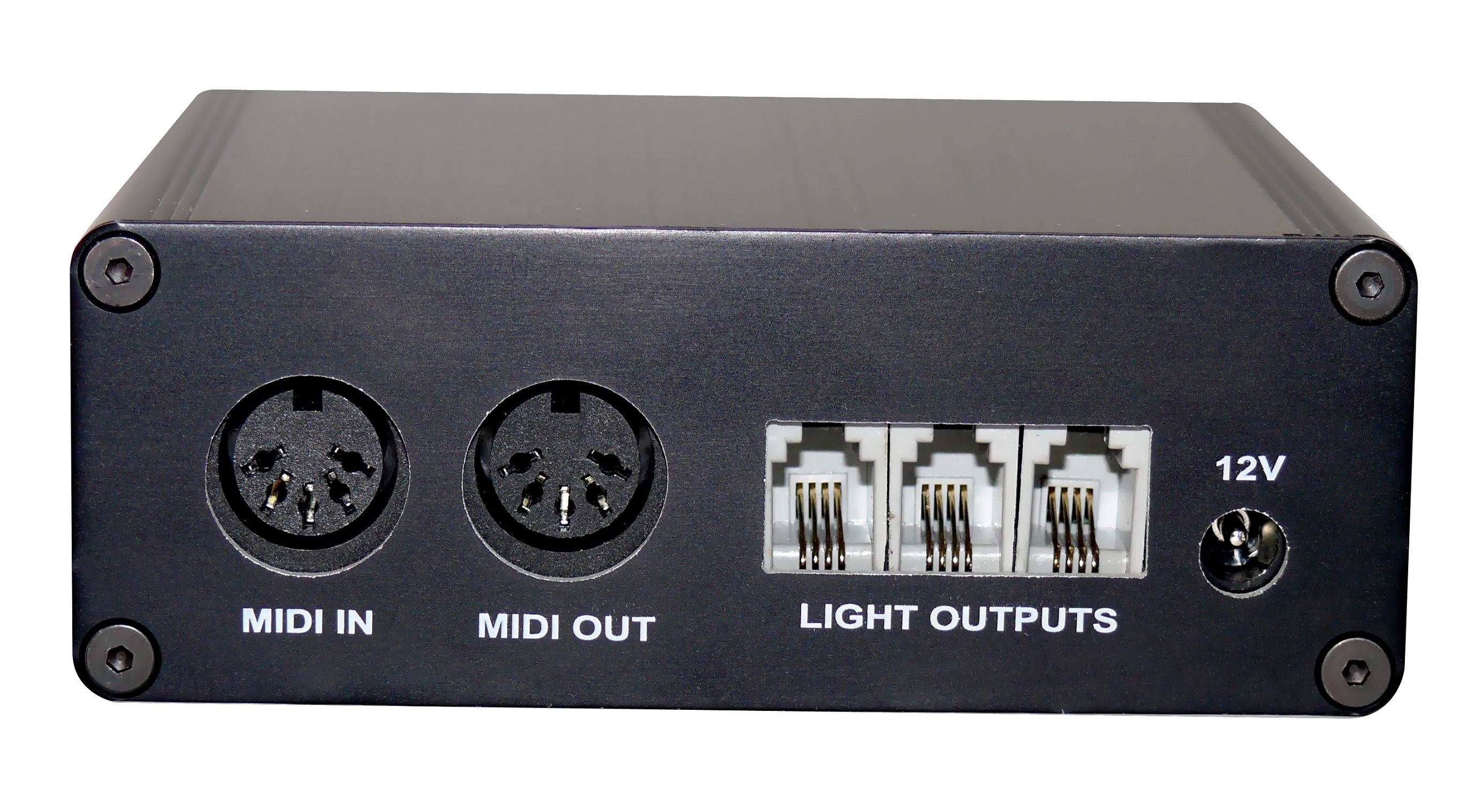

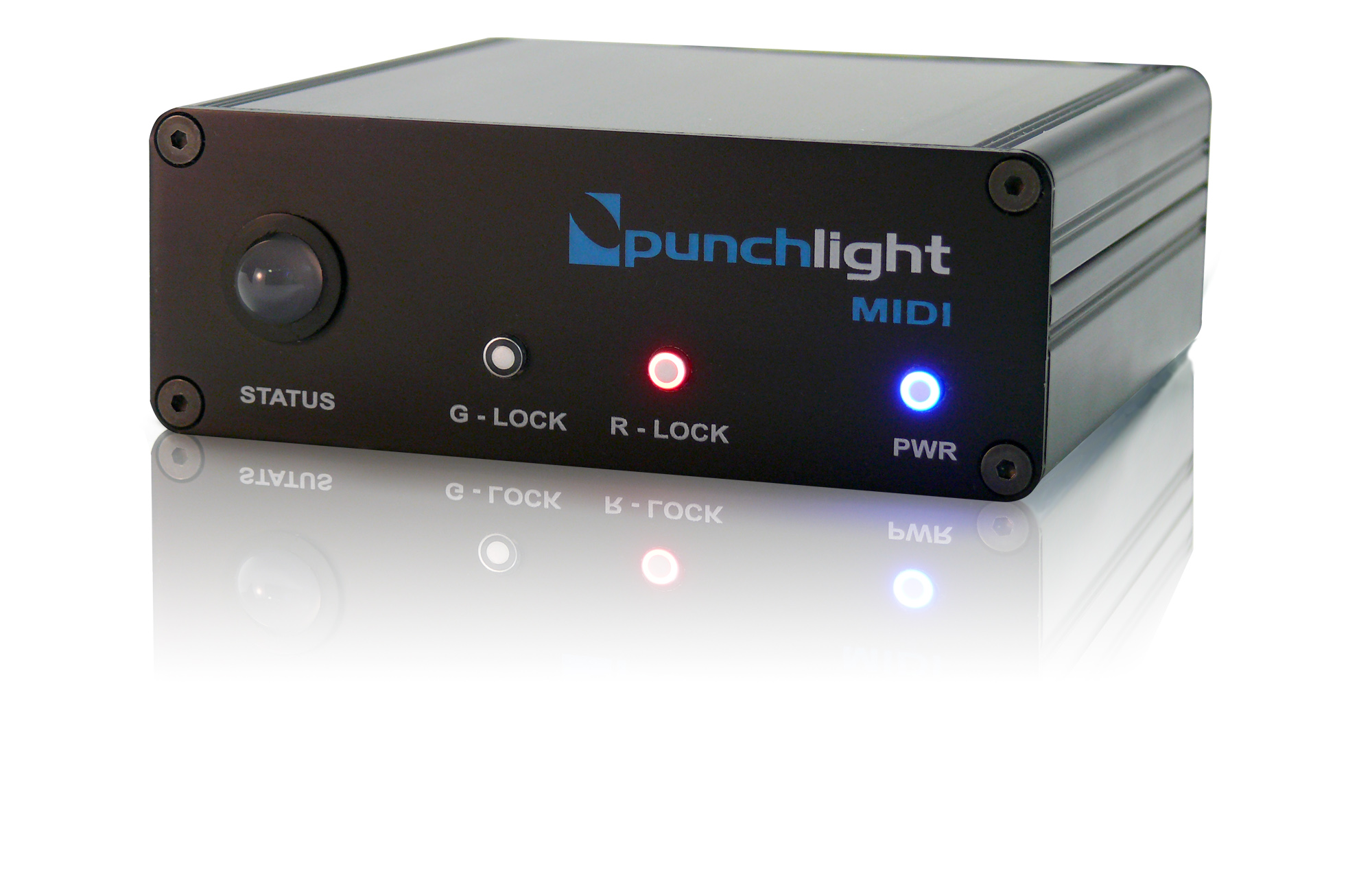

The PunchLight recording indicators are designed for anybody working on projects, dubbing, or postproduction studios who needs visual confirmation of when a recording begins or ends. This simple, precise and easy to use device is perfect for musicians and sound engineers as well as film, TV and video editors.The PunchLight Midi is a switcher interface to connect up to three of the light units such as the RECORDING Display, PlexSign, Ring, Strip or Studio Warning Lamp via a MIDI interface. It works with Pro Tools or in Cubase, Nuendo, Logic Pro, Samplitude, Digital Performer and others. A 12V PSU is included.PunchLight Midi uses MIDI data transmitted by Pro Tools or another DAW. It also has a ‘record-ready‘ mode which is useful for actors in a dubbing studio and for larger groups of musicians. The device has its own visual signaling system as well as the ability to control any signaling systems already installed in the studio. PunchLight Midi is easy to install and use in any studio environment.
