Die Cortex 10 ist für mittlere Raumgrößen bis ca. 25m² eine vollwertige Fullrangelösung. Wie alle Lautsprecher der Serie kann der Frequenzgang im Bass dank Dolifet-Technik bis 16Hz entzerrt werden. Der 6,5“-Tieftöner macht dabei sogar beachtliche Abhörpegel möglich. Aufgrund ihres kompakten Aufbaus und ihrer neutralen Abstimmung eignet sie sich sowohl für platzsparende HiFi- und Heimkino-Lösungen, als auch für Nah- bis Mittelnahe Anwendungen im Tonstudio.

Aktiver 3-Wege Midfield- /Mainmonitor mit Dolifet-Verstärkertechnik Geschlossenes Gehäuse, elektronisch entzerrter Tiefbass Mittel-Hochton-Einheit in 30°-Schritten drehbar für aufrechte oder liegende Anordnung Dafür auch Bohrungen für die Gummifüße in den Seiten (und natürlich unten) 3-Wege Dolibox-Plateamp mit wahlweise analoger oder DSP-basierter Signalverarbeitung (Modularer Plate Amp - Youtube) Brückenendstufe für den Tieftöner (Gebrückter Verstärker - Youtube) Großer Kalottenhochtöner aus der Mirra-Serie 15cm-Mitteltöner mit Phaseplug für optimiertes Abstrahlverhalten 30cm (12“) Tieftöner vom deutschen PA-Spezialisten BMS mit tiefer Resonanz und großem Hub, trotz hohem Wirkungsgrad und harter Aufhängung Lackierung standardmäßig in Strukturlack schwarzgrau oder verkehrsweiß Paarpreis 9.900,- €,  8.900,- € bei Vorbestellung und Anzahlung der Hälfte bis Ende Juni 2022, Auslieferung in der Reihenfolge der Bestellungen

Der A77H ist ein echter Midfield-Monitor in 3-Wege-Ausführung und damit die konsequente Weiterentwicklung des A77X. Dank neuester ADAM Audio-Technologie setzt auch er neue Maßstäbe hinsichtlich Detailreichtum und räumlicher Darstellung. Zwei 7-Zoll-Tieftöner, ein Mitteltöner und ADAM Audios X-ART Hochtöner sorgen für den umfangreichsten Frequenzbereich innerhalb der A-Serie Lautsprecher. Der zusätzliche Mitteltöner sorgt für eine präzise Wiedergabe des für das menschliche Gehör besonders sensiblen mittleren Frequenzbereichs. Der drehbare HPS-Waveguide und der integrierte DSP ermöglichen auch dem A77H eine präzise Anpassung an individuelle akustische Anforderungen.

The S3H builds on the successes of ADAM Audio’s most popular studio monitors, the S3A and S3X-H, and, like its predecessors, sets new standards in terms of technical innovation and design. The dual 7-inch bass drivers, each powered by separate 500 W Class D amplifiers, offer flawless reproduction of frequencies all the way down to 30 Hz. ADAM Audio’s newly developed DCH, a 4-inch hybrid dome/cone mid-range driver, is powered by a 300 W Class D amplifier and handles audio above 250 Hz and below 3 kHz, its leading-edge hybrid design offering the sonic advantages of both cone and soft-dome drivers in a single, one-piece unit. Frequencies above 3 kHz are routed to the innovative combination of the S-ART treble driver (each handmade at ADAM Audio’s Berlin factory), the new precision HPS waveguide, and a 50 W Class A/B amplifier. The result of all this innovation is a beautifully transparent three-dimensional soundscape, with an extensive sweet spot. The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. A unique feature of the S3H’s DSP options is a built-in factory EQ preset that emulates the response of ADAM Audio’s legendary S3A monitor. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end. With its massively powerful amplification and three-way design (optimally configured for use horizontally), the S3H was conceived as a midfield monitor, but can be employed equally well in more compact listening environments. As with all ADAM Audio designs, the sound is punchy but musical, with crystal-clear reproduction of the all-important mid-range. The S3H’s wide-ranging frequency response, its power amps’ instantly available, plentiful headroom, and the lack of need for additional subwoofers should appeal to any audio professional looking for a stand-alone, full-frequency active solution for their recording studio, one which provides equally detailed audio information at any volume setting, loud or quiet. Whatever your preferred output level, the S3H’s vibrant authenticity is a spur to creativity for producers, engineers and musicians everywhere, and its sound remains remarkably unfatiguing, even when working uninterrupted for extended periods.

The S3V is a three-way studio monitor optimized for vertical use and designed primarily for midfield applications, although it may also be used in more compact listening environments. Bass frequencies from 32 Hz to 250 Hz are handled by ADAM Audio’s entirely new 9-inch Extended Linear Excursion (ELE) LF driver, which incorporates the company’s equally groundbreaking Symmetrical Magnet Assembly (SMA) and delivers a powerful, extremely accurate low end extending right down into the sub-bass region. Mid-range and HF information is reproduced with equally analytical precision thanks to the combination of ADAM Audio’s newly developed 4-inch DCH mid-range driver and the highly refined S-ART folded-ribbon HF driver. Together with the brand-new HPS waveguide, the latter offers high-frequency reproduction with an extremely broad sweet spot with fine, highly detailed imaging and a natural-sounding sense of depth. The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end. The S3V’s built-in amplification is generously specified, comprising Class D units for the bass and mid-range drivers (500 W and 300W RMS respectively) and a 50 W Class A/B amplifier for the S-ART tweeter. Offering flawless reproduction of audio frequencies between 32 Hz and 50 kHz, the S3V is a standout offering for anyone demanding highly accurate imaging and localization from their reference monitors.

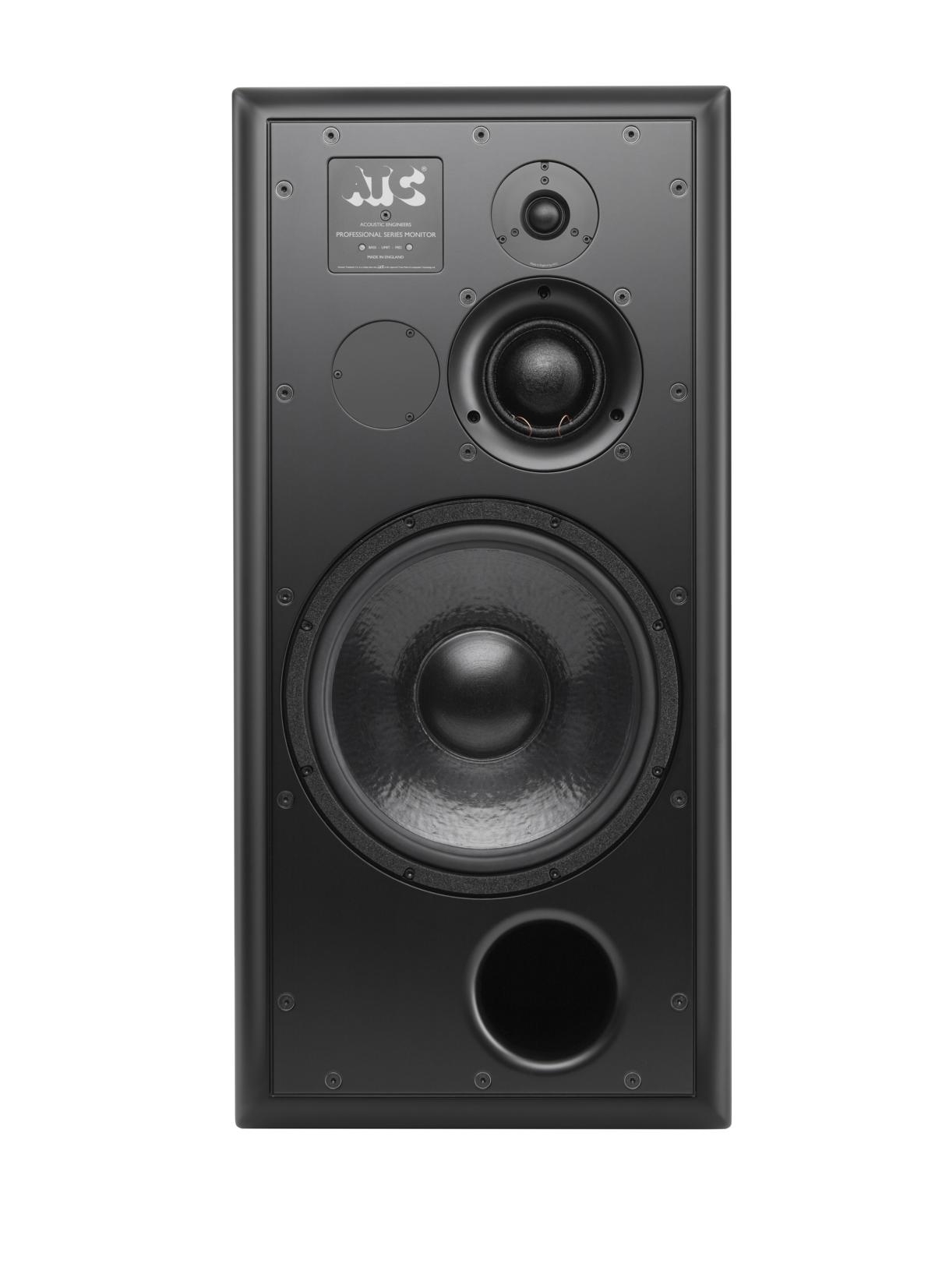

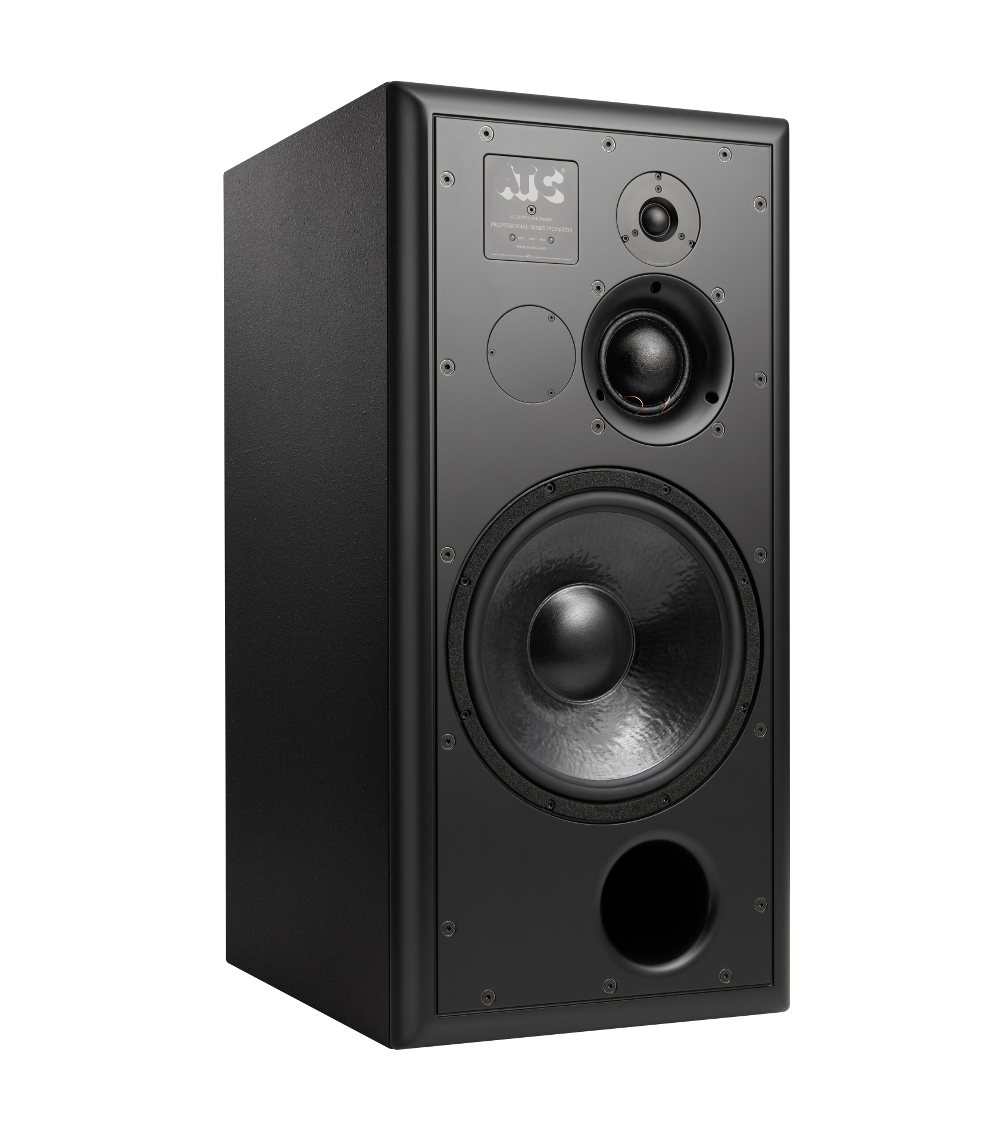

SCM100ASL Pro: 3-way ActiveFeatures25mm soft dome tweeter.Full "SL" spec 12"/314mm bass driver.ATC 75mm "Super Dome" mid driver.On board ATC grounded plane 350W Tri-amplifier.LF contour control.Clip indication.6 year warranty. SpecificationsDrivers :HF 25mm, Mid 75mm, LF 314mmAmplitude Linearity (±2dB) :65Hz-17kHzCut-off Frequencies (-6dB, free-standing) :32Hz, 22kHzHorizontal Dispersion :±80°, CoherentVertical Dispersion :±10°, CoherentMax. Continuous SPL (1 metre) :115dBCrossover Frequencies :380Hz, 3.5kHzInput Connectors :Male XLRInput Sensitivity :1VInput Sensitivity Trim :±6dBInput Impedance :Balanced > 10kΩAmplifier Output :Bass 200W, Mid 100W, High 50WFilters :Even Order Critically DampedOverload Protection :Active FET momentary gain reduction plus thermal tweeter protectionFront Panel Indicators :Power On indicator, Gain Reduction warningLF EQ :+6dB @ 40HzDimensions (HxWxD) :832 x 398 x 581mm (32.8" x 15.7" x 22.9") Depth with amplifier at rear adds 3"Weight :65kg / 143lbs

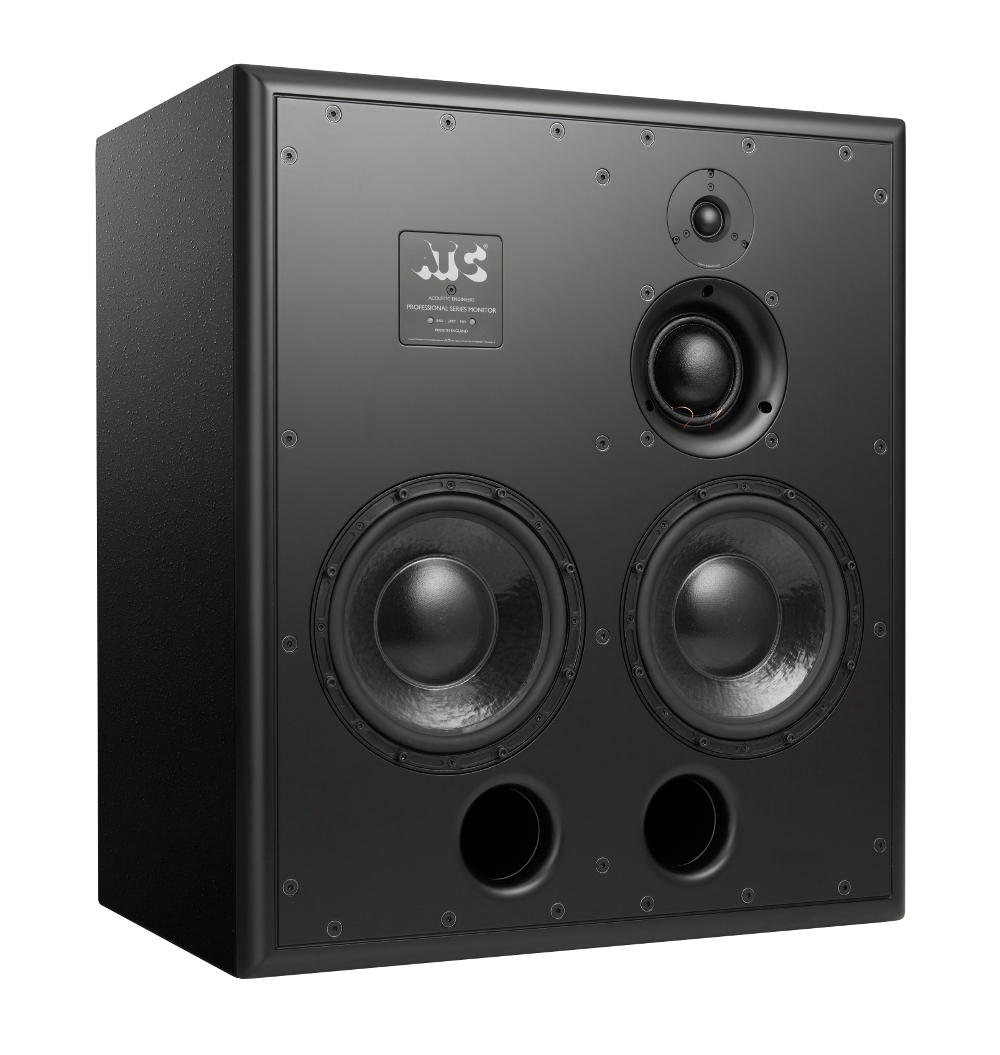

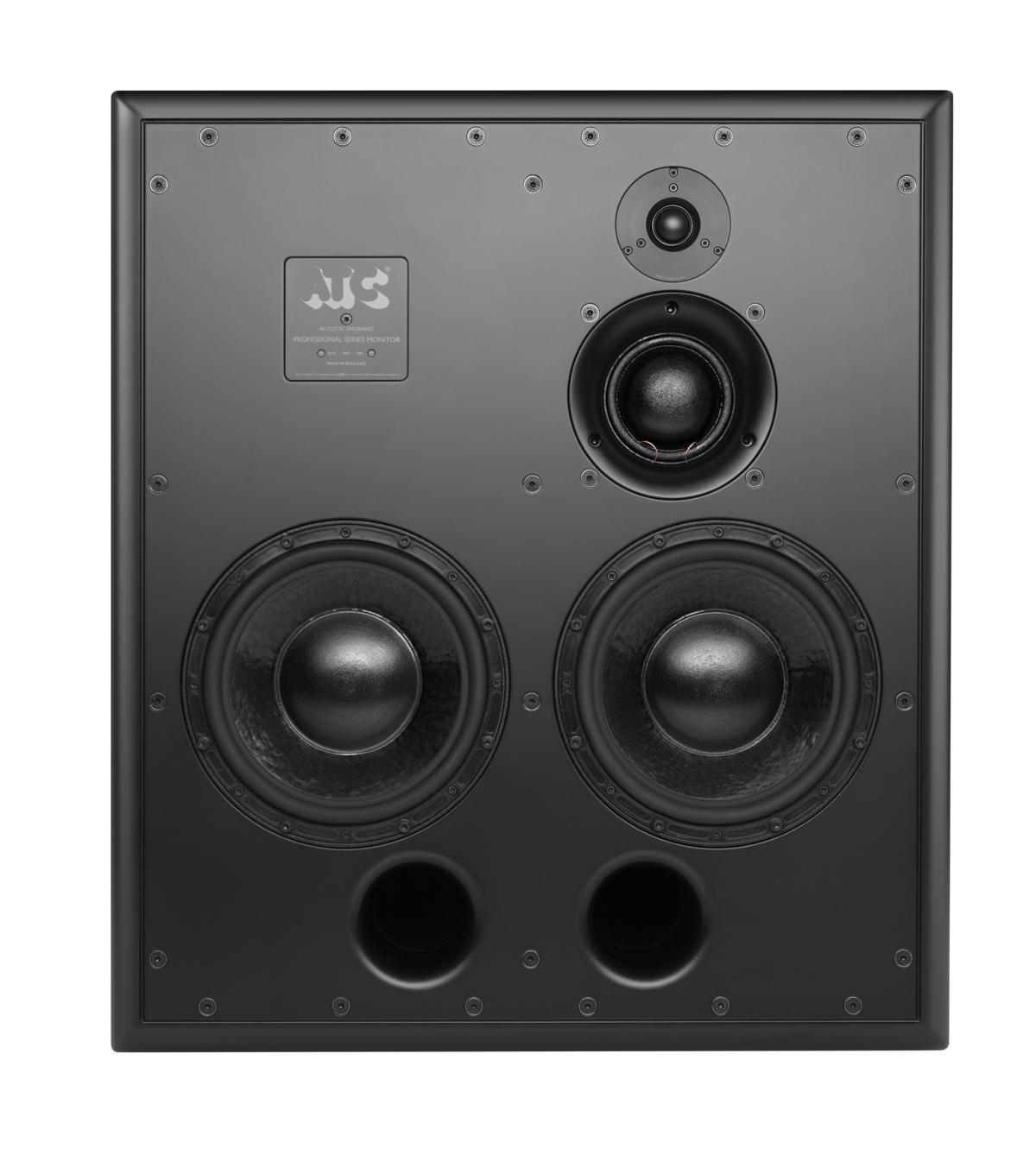

SCM110ASL Pro: 3-way ActiveFeatures25mm soft dome tweeter.Twin full "SL" spec 9"/234mm bass driver.ATC 75mm "Super Dome" mid driver.On board ATC grounded plane 350W Tri-amplifier.LF contour control.Clip indication.6 year warranty. SpecificationsDrivers :HF 25mm, Mid 75mm, LF 2x234mmAmplitude Linearity (±2dB) :50Hz-17kHzCut-off Frequencies (-6dB, free-standing) :30Hz, 22kHzHorizontal Dispersion :±80°, CoherentVertical Dispersion :±10°, CoherentMax. Continuous SPL (1 metre) :115dBCrossover Frequencies :380Hz, 3.5kHzInput Connectors :Male XLRInput Sensitivity :1VInput Sensitivity Trim :±6dBInput Impedance :Balanced > 10kΩAmplifier Output :Bass 200W, Mid 100W, High 50WFilters :Even Order Critically DampedOverload Protection :Active FET momentary gain reduction plus thermal tweeter protectionFront Panel Indicators :Power On indicator, Gain Reduction warningLF EQ :+6dB @ 40HzDimensions (HxWxD) :715 x 625 x 420mm (28.2" x 24.5" x 16.5") Depth with amplifier at rear adds 3"Weight :73kg / 160.6lbs

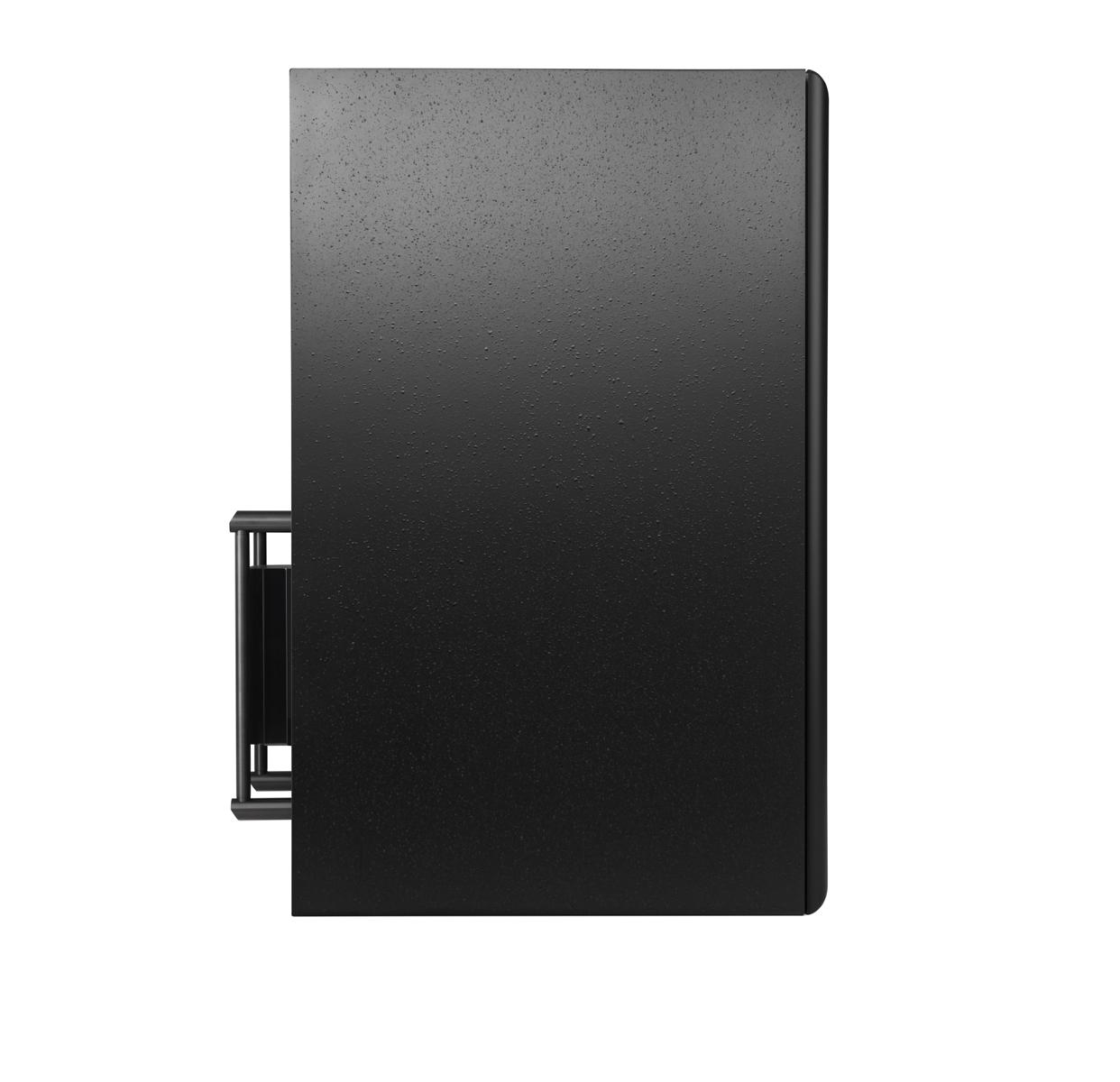

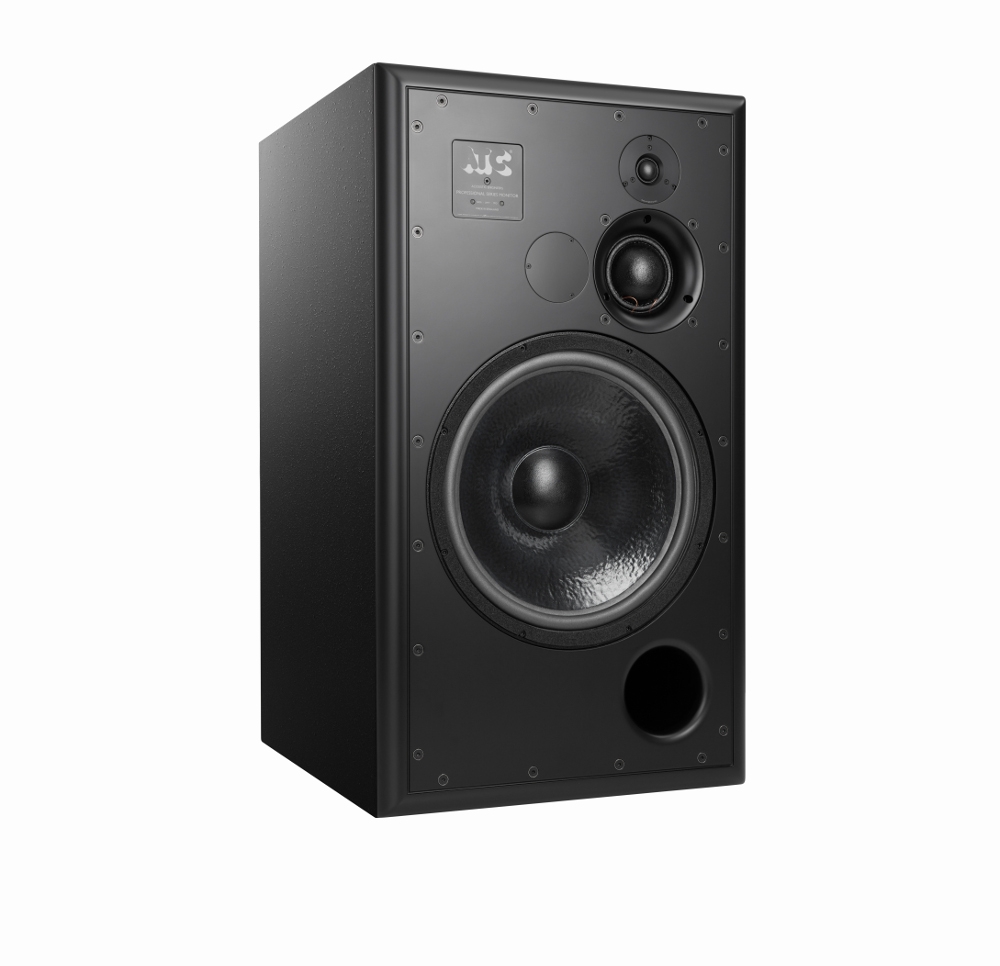

SCM150ASL Pro: 3-way ActiveFeatures25mm soft dome tweeter.Full "SL" spec 15"/375mm bass driver.ATC 75mm "Super Dome" mid driver.On board ATC grounded plane 350W Tri-amplifier.LF contour control.Clip indication.6 year warranty. SpecificationsDrivers :HF 25mm, Mid 75mm, LF 375mmAmplitude Linearity (±2dB) :60Hz-17kHzCut-off Frequencies (-6dB, free-standing) :25Hz, 22kHzHorizontal Dispersion :±80°, CoherentVertical Dispersion :±10°, CoherentMax. Continuous SPL (1 metre) :117dBCrossover Frequencies :380Hz, 3.5kHzInput Connectors :Male XLRInput Sensitivity :1VInput Sensitivity Trim :±6dBInput Impedance :Balanced > 10kΩAmplifier Output :Bass 200W, Mid 100W, High 50WFilters :Even Order Critically DampedOverload Protection :Active FET momentary gain reduction plus thermal tweeter protectionFront Panel Indicators :Power On indicator, Gain Reduction warningLF EQ :+6dB @ 40HzDimensions (HxWxD) :884 x 498 x 568mm (34.8" x 19.6" x 25.5") Depth with amplifier at rear adds 3"Weight :75kg / 165lbs

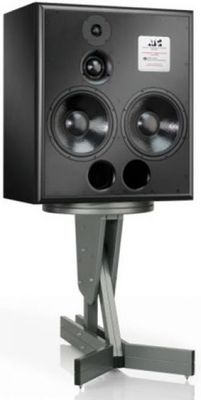

SCM200ASL Pro: 3-way ActiveFeatures34mm soft dome tweeter.Twin full spec "SL" 12"/314mm bass drivers.ATC 75mm "Super Dome" mid driver.Rack-mount ATC 4 way grounded plane 850W amplifier.Clip indication.6 year warranty. SpecificationsDrivers :HF 34mm, Mid 75mm, LF 2 x 314mmAmplitude Linearity (±2dB) :60Hz-12kHzCut-off Frequencies (-6dB, free-standing) :32Hz, 20kHz (free standing) 25Hz, 20kHz (soffit mounted)Horizontal Dispersion :±80°, CoherentVertical Dispersion :±10°, CoherentMax. Continuous SPL (1 metre) :118dBCrossover Frequencies :380Hz, 3.5kHzInput Connectors :Male XLRInput Sensitivity :2VInput Impedance :Balanced > 10kΩAmplifier Output :Bass 275+275W, Mid 200W, High 100WFilters :Even Order Critically DampedOverload Protection :Active FET momentary gain reduction plus thermal tweeter protectionFront Panel Indicators :Power On indicator, Gain Reduction warningLF EQ :+6dB @ 40HzDimensions (HxWxD) :830 x 730 x 440mm (32.7" x 28.7" x 17.3")Weight :116kg / 255.2lbs

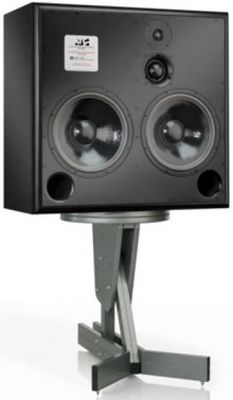

SCM300ASL Pro: 3-way ActiveFeatures34mm soft dome tweeter.Twin full spec "SL" 15"/375mm bass drivers.ATC 75mm "Super Dome" mid driver.Rack-mount ATC 4 way grounded plane 850W amplifier.Clip indication.6 year warranty. SpecificationsDrivers :HF 34mm, Mid 75mm, LF 2 x 375mmAmplitude Linearity (±2dB) :50Hz-12kHzCut-off Frequencies (-6dB, free-standing) :25Hz, 20kHz (free standing) 20Hz, 20kHz (soffit mounted)Horizontal Dispersion :±80°, CoherentVertical Dispersion :±10°, CoherentMax. Continuous SPL (1 metre) :121dBCrossover Frequencies :380Hz, 3.5kHzInput Connectors :Male XLRInput Sensitivity :2VInput Impedance :Balanced > 10kΩAmplifier Output :Bass 275+275W, Mid 200W, High 100WFilters :Even Order Critically DampedOverload Protection :Active FET momentary gain reduction plus thermal tweeter protectionFront Panel Indicators :Power On indicator, Gain Reduction warningDimensions (HxWxD) :884 x 925 x 460mm (34.8" x 36.4" x 18.7")Weight :140kg / 308lbs

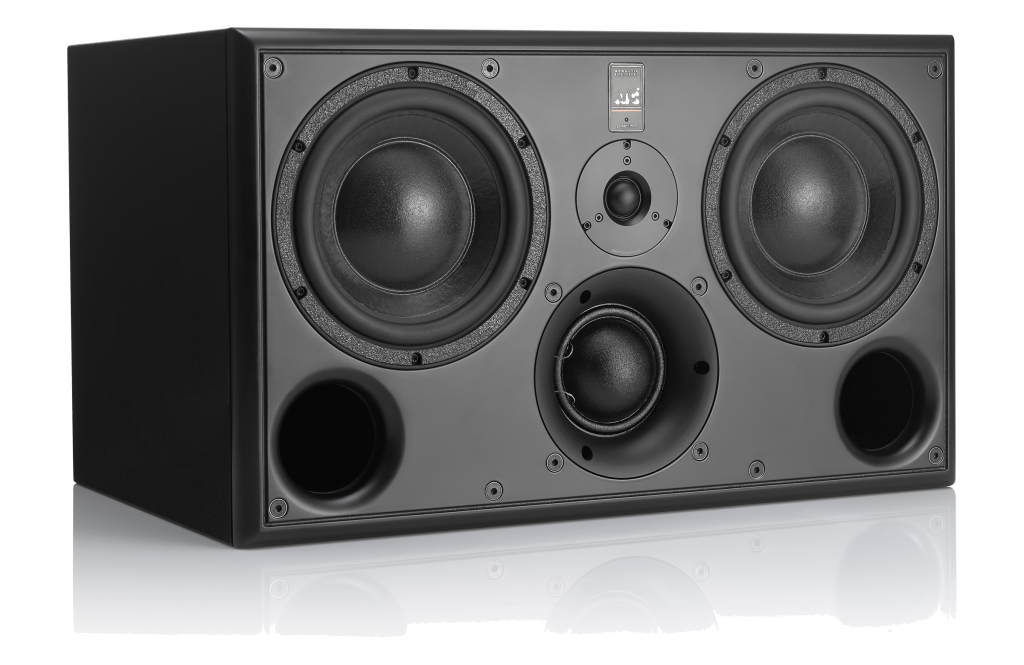

Overview Mid-size very high performance  active 3-way studio monitor Ideally suited to: - critical near-field listening applications in all control rooms - LCR surround monitoring in medium control rooms - surround channels in medium-to-large contol rooms ATC hand built 6.5˝/164mm carbon-paper cone bass driver. ATC 25mm/1” Dual Suspension Super Tweeter Discrete MOSFET class A/B bi-amp pack with 150W/60W/25W continuous power output

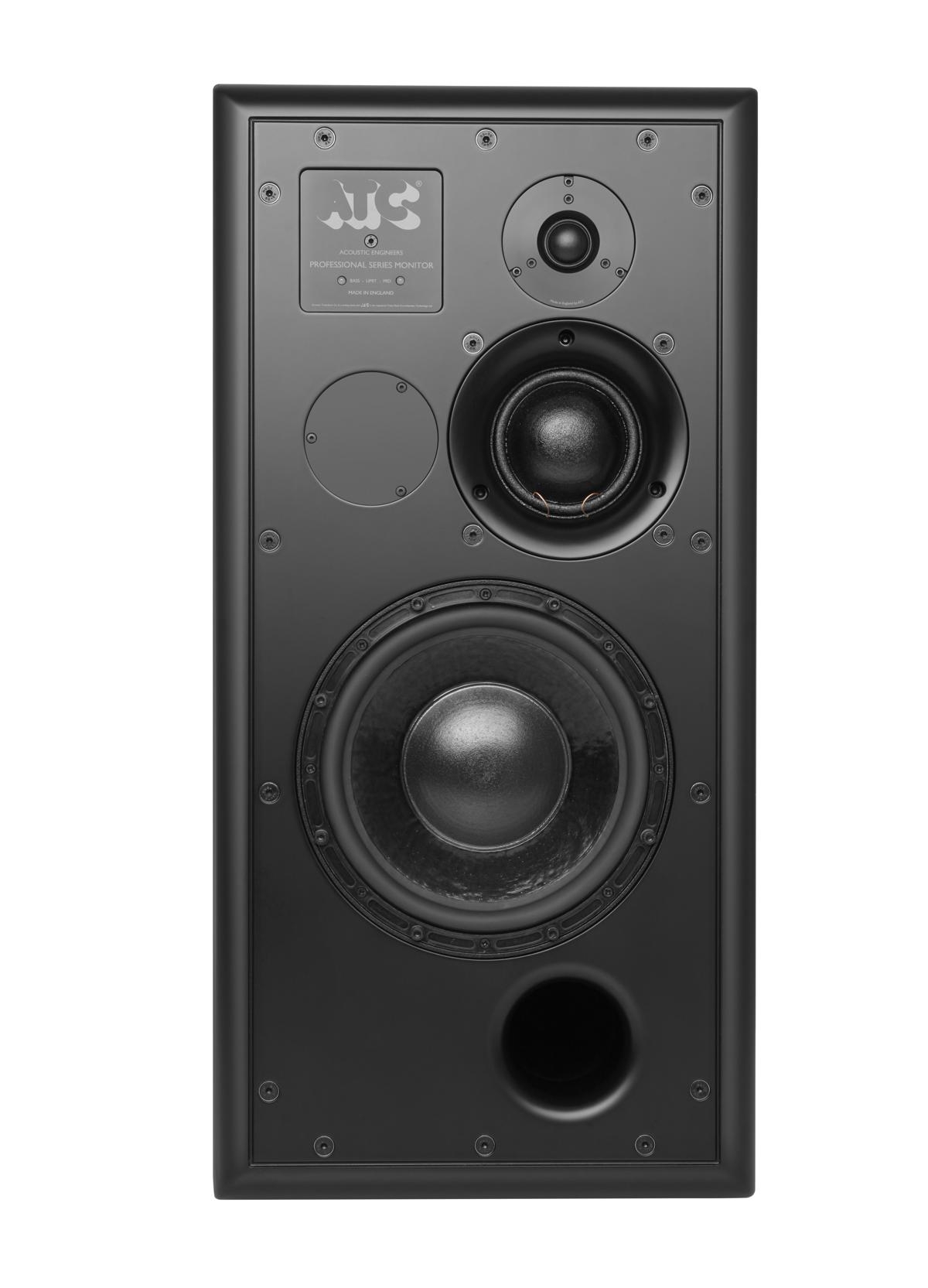

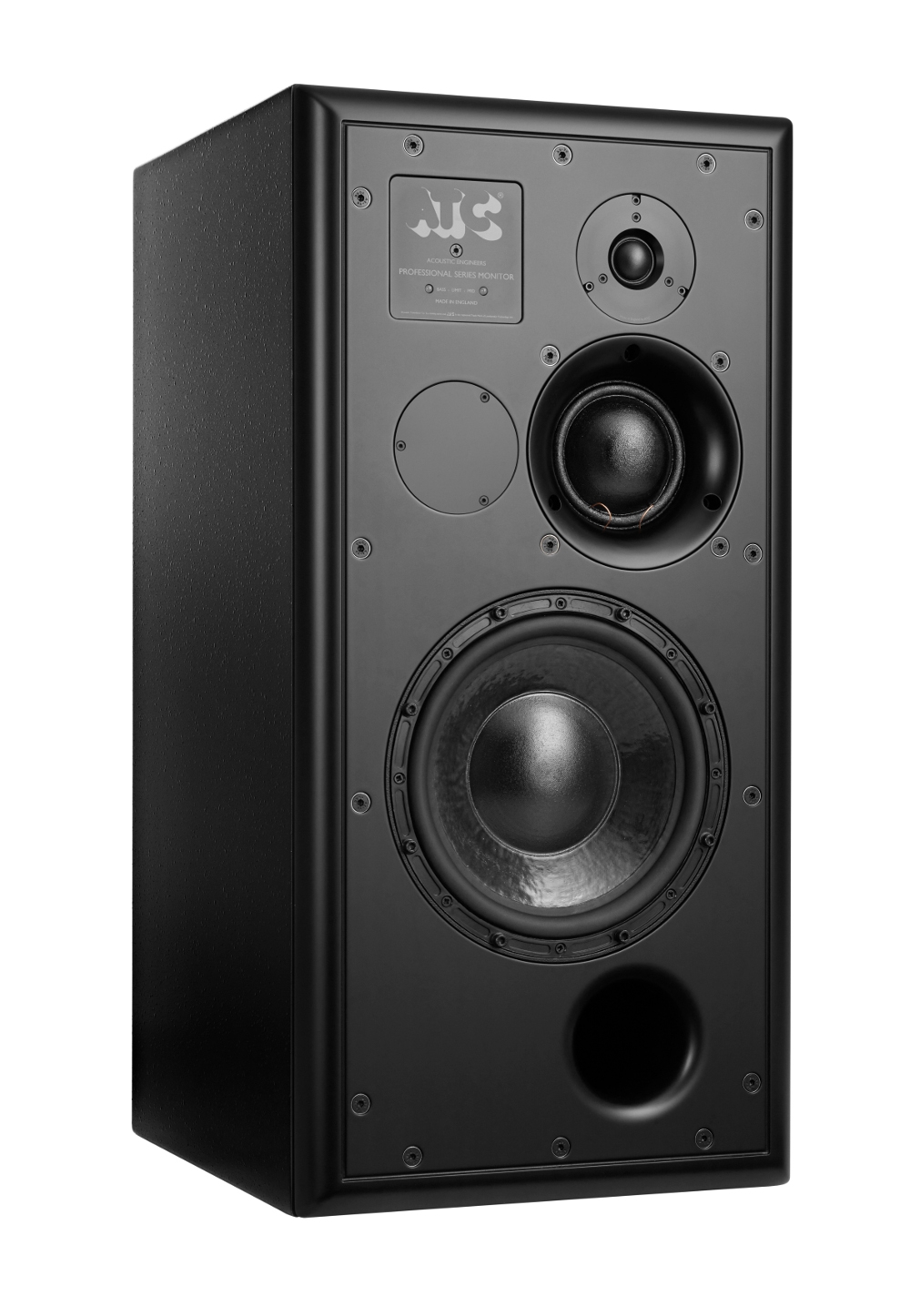

SCM50ASL Pro: 3-way ActiveFeatures25mm soft dome tweeter.Full "SL" spec 9"/234mm bass driver.ATC 75mm "Super Dome" mid driver.On board ATC grounded plane 350W Tri-amplifier.LF contour control.Clip indication.6 year warranty. SpecificationsDrivers :HF 25mm, Mid 75mm, LF 234mmAmplitude Linearity (±2dB) :70Hz-17kHzCut-off Frequencies (-6dB, free-standing) :38Hz, 22kHzHorizontal Dispersion :±80°, CoherentVertical Dispersion :±10°, CoherentMax. Continuous SPL (1 metre) :112dBCrossover Frequencies :380Hz, 3.5kHzInput Connectors :Male XLRInput Sensitivity :1VInput Sensitivity Trim :±6dBInput Impedance :Balanced > 10kΩAmplifier Output :Bass 200W, Mid 100W, High 50WFilters :Even Order Critically DampedOverload Protection :Active FET momentary gain reduction plus thermal tweeter protectionFront Panel Indicators :Power On indicator, Gain Reduction warningLF EQ :+6dB @ 40HzDimensions (HxWxD) :716 x 351 x 400mm (28.2" x 13.8" x 18.8") Depth with amplifier at rear adds 3"Weight :49kg / 107.8lbs

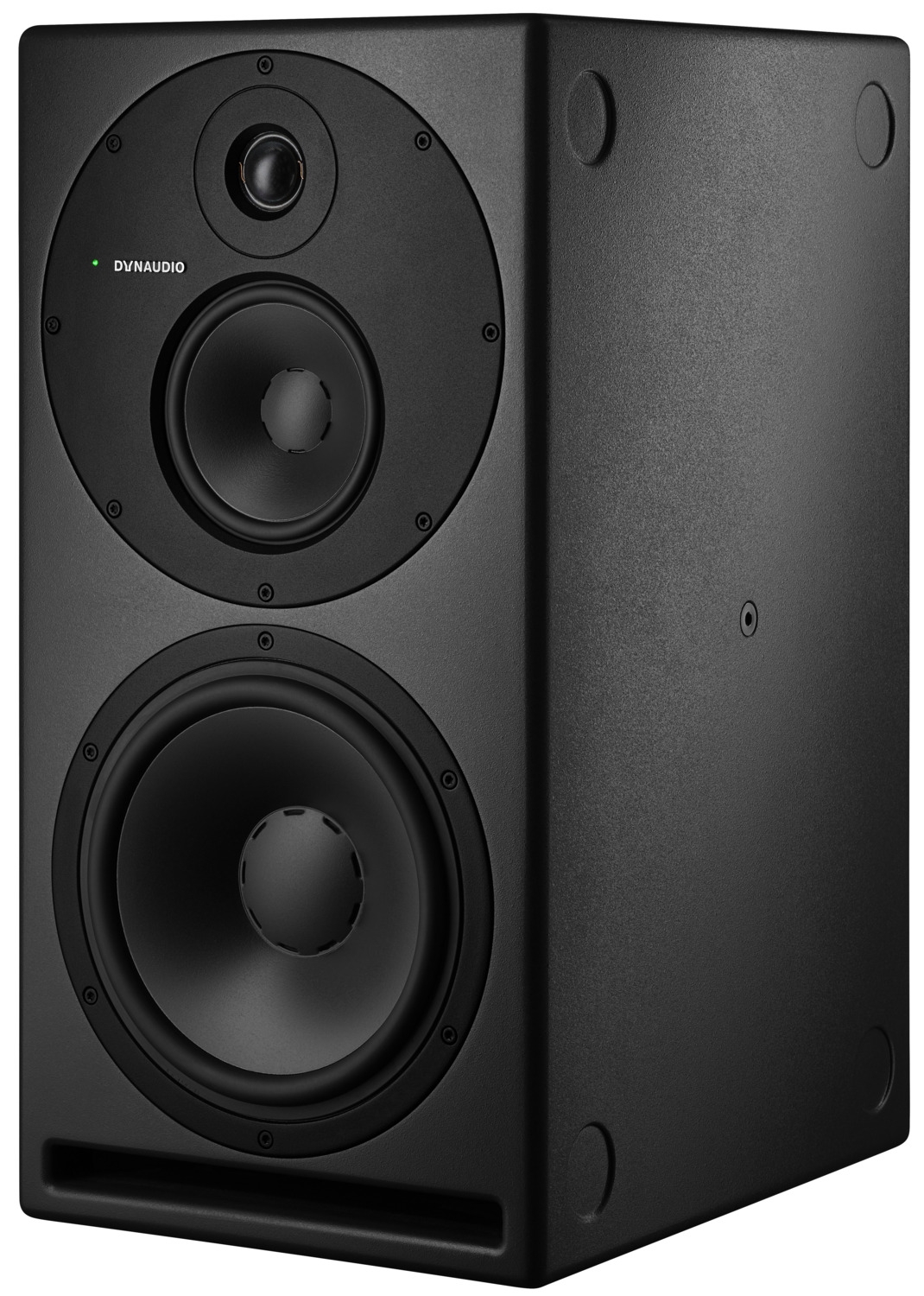

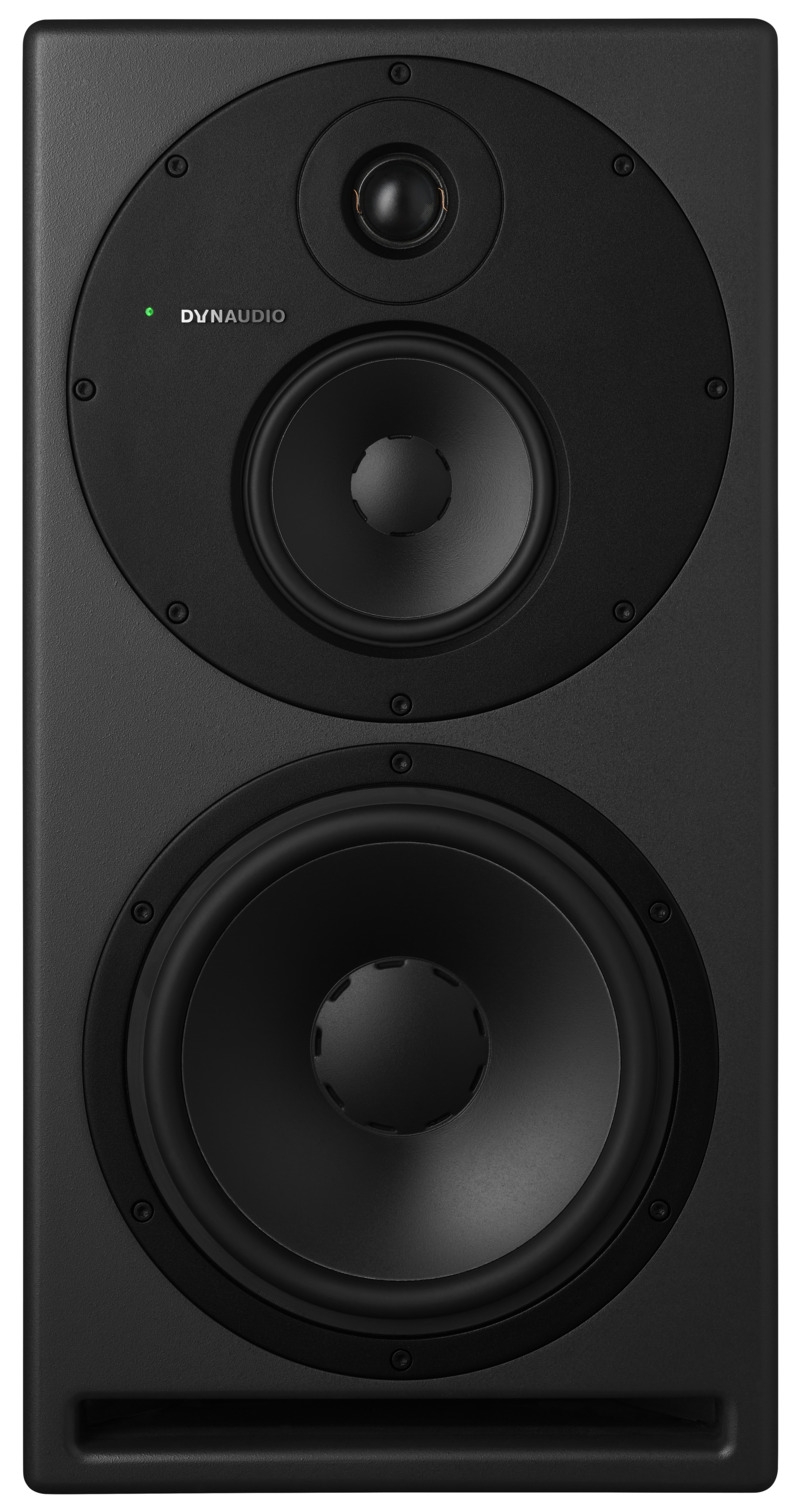

When you’re working with art – whether it’s someone else’s or your own – you need equipment you can trust. A professional producer or engineer is part of the creative process, and his or her ears are the most trustworthy tools they have. They know what sounds good, and they know that a good reference monitor can help them make a good performance great. Features: Hand-crafted Designed, developed, tested and made in Denmark. All the drivers are hand-made at Dynaudio HQ, and each speaker is individually calibrated before it leaves our factory Advanced DSP Simple to use, but incredibly powerful, it lets you tailor Core 59 for any listening environment Core’s DSP optimises performance for positioning, sound balance and bass extension Power to spare Each driver has its own dedicated Pascal Class-D amplifier: 500 W each for the woofer and midrange drivers and a 150W amp for the tweeter. That’s some serious headroom Esotar Pro tweeter Dynaudio’s already legendary high-frequency driver has been redesigned and re-engineered for high-performance professional use All-new drivers Designed and made in Denmark using our world-class Jupiter measuring facility Tweeter - 1” Midrange - 5” Woofer - 9.5” • Extreme consistency All Core speakers are within 0.2dB of each other for multi-speaker set-ups you can trust Flexible cabinet placement Use it on all four sides and rotate the mid/tweeter baffle for even more options Easy to fit Use standard VESA mounts or install in soffit walls to tailor it to your studio Connectivity Analogue and AES3 digital inputs Maximum 24-bit/192 kHz Depending on input signal Maximum SPL * 112 dB @ 1 m anechoic, 118 dB half space Crossover frequency 312.5 Hz (LF/MF) / 5100 Hz (MF/HF) • Frequency response * 36 Hz – 24 kHz - 6 dB 42 Hz – 21 kHz +/- 3 dB Principle Front-loaded bass reflex * Maximum SPL measured using band-limited pink noise, 6 dB crest factor, 80 Hz – 8 kHz in Jupiter (our state-of-the-art measuring room)

Eigenschaften Ausgezeichnete Dynamik Breites Abstrahlverhalten, so dass im gesamten Raum derselbe Klang erreicht wird Schieferfaser-Membran aus französischer Fertigung sorgen für Klangneutralität und keine Verzerrungen Identische Klangbalance bei niedriger und hoher Lautstärke Anschluss von bis zu 3 Audioquellen Inklusive Schutzgitter für die Chassis

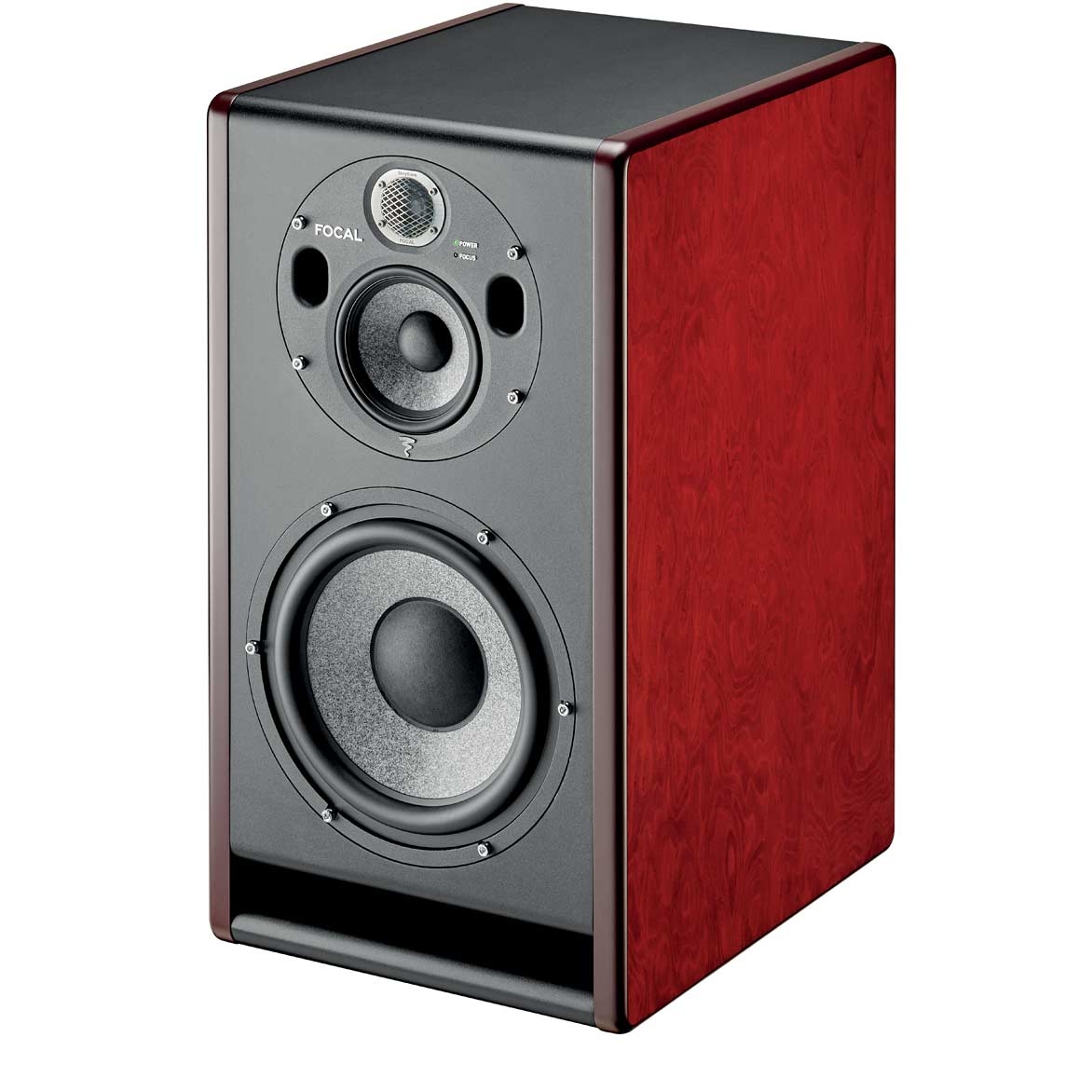

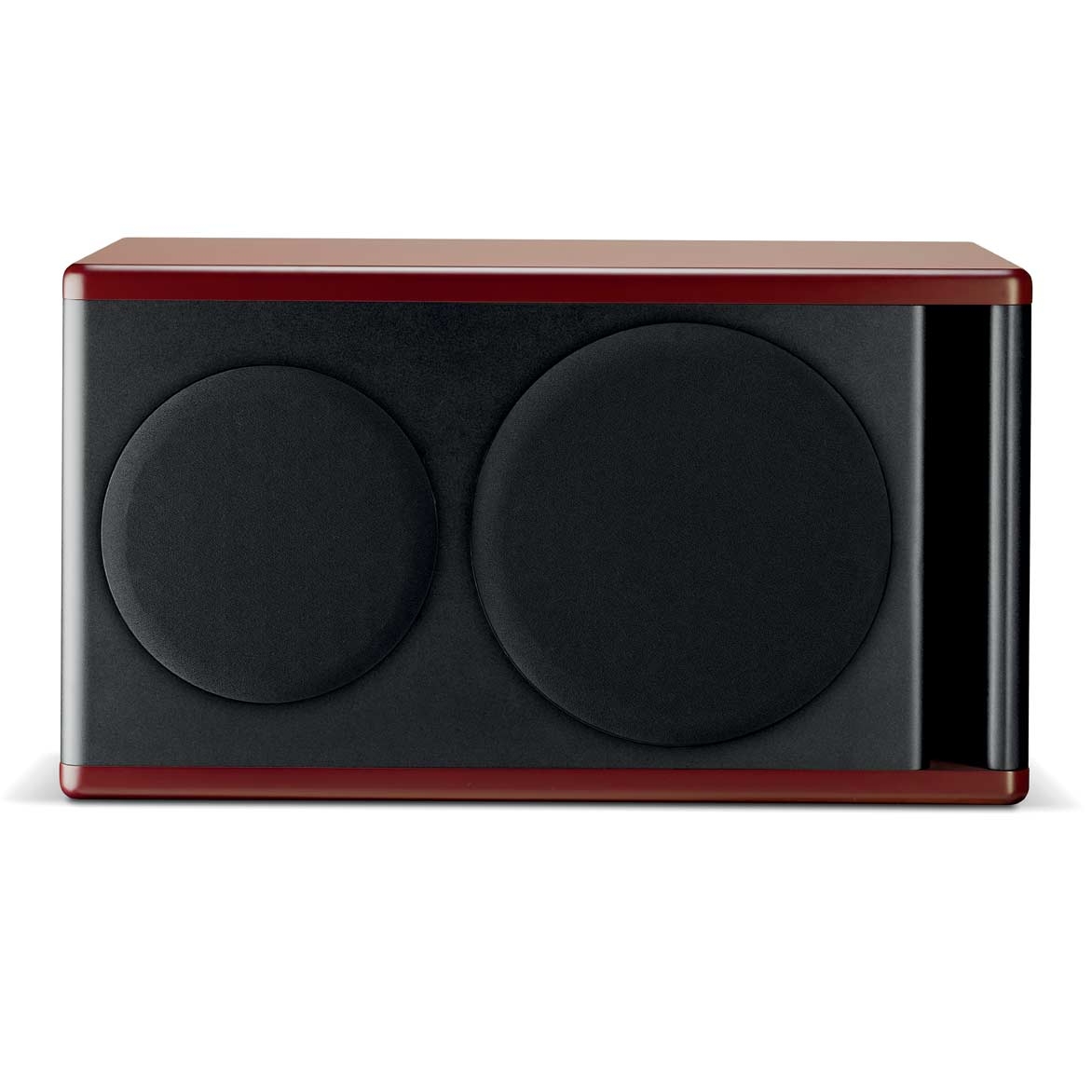

THE LOUDSPEAKER DEDICATED TO NEARFIELD AND MIDFIELD As well as new speaker drivers (a 5” midrange and a 10” subwoofer) with high efficiency and power handling, the Trio11 Be monitor enjoys all of Focal's very latest technologies when it comes to acoustics and electronics: TMD and NIC technologies; optimised vents that promote dynamic control and perfect bass definition; high excursion, enabling even more linearity of the subwoofer...  Thanks to its class G amplification, Trio11 Be delivers a high SPL (118dB at 1m) and offers a great versatility of use and installation configurations in nearfield AND midfield applications. A key asset, always coming along with an extremely precise sound reproduction and stereo image. With an extended bandwidth (30 Hz-40 kHz), this loudspeaker is also composed of a 3-way monitor and a 2-way monitor, just like Trio6 Be, which lets you check the mix transfer sound quality thanks to FOCUS mode.  Features: High SPL: 118 dB @ 393/8'' (1m). FOCUS Mode: two monitors in one with remote switchover. Pure Beryllium inverted dome tweeter: very low directivity, linearity, dynamics. ‘W’ composite sandwich cone on woofer and subwoofer: neutral sound, no distortion. Bass, mid-bass and treble settings on rear panel: optimum acoustical integration. Optimised decoupling of the midrange speaker driver thanks to silent blocks. Ultra-low distortion and noise.

Features •         Beryllium inverted dome tweeter: very low directionality, excellent linearity and dynamics •         Optimised baffle tweeter: excellent dispersion control •         Composite sandwich ‘W’-cone: sound neutrality, no distortion •         Focus mode: two monitors in one; 2-way monitor and 1-way full-range monitor (woofer alone) •         Large laminar port: no port noises or distortion •         Automatic disengageable stand-by mode •         Settings: activatable/deactivatable, LF shelving, HF shelving, LPF @ 160Hz
