The S5H is a powerful main monitor custom-designed for the demanding rigours of reference listening in the world’s most expansive studios and control rooms. The three-way S5H was conceived, as its name suggests, to be used in a horizontal orientation and features two 10-inch Extended Linear Excursion (ELE) bass drivers, newly designed by ADAM expressly for the S Series. Like the LF ELE units on all the other members of the range, the S5H’s woofers feature ADAM Audio’s proprietary Symmetrical Magnet Assembly (SMA) guaranteeing that low-frequency audio remains tightly controlled and free of distortion at all times. The all-important mid-range frequencies are handled by ADAM Audio’s new hybrid DCH. This innovative 4-inch MF driver was also newly developed by ADAM Audio exclusively for the S Series and combines the sonic advantages of cone and dome drivers in a single, one-piece unit. Together with the S-ART treble driver — the latest iteration of ADAM Audio’s widely respected folded-ribbon tweeter, now produced to tighter tolerances than ever before — the resulting combination produces a powerful but unfatiguing sound, with a palpable sense of depth: the last word in high-resolution, natural-sounding audio reproduction. The off-axis responses of the treble and mid drivers remain extremely accurate thanks to the addition of high- and mid-frequency waveguides milled from solid aluminum: ADAM Audio’s newly developed Mid-range and High-frequency Propagation Systems (MPS and HPS). The resultant stable, wide-ranging dispersion ensures that teams of more than one person can work in the loudspeakers’ sweet spot simultaneously, as is often necessary in larger control rooms. The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end. No fewer than three separate amplifiers power the drivers: a 700 W Class D design for the bass drivers, a 300 W Class D for the mid range and a 100 W Class D unit for the S-ART tweeter. With its innovative features, advanced design, generous headroom and enormous dynamic range, the S5H takes its rightful place as ADAM Audio’s flagship reference monitor: an extraordinary loudspeaker offering audio reproduction to the very highest standards of fidelity.

Designed for medium-sized and larger studio control rooms, the S5V main monitor offers all the raw power studio professionals would expect from a reference speaker of its class, but also reproduces full-bandwidth, high-resolution audio with complete accuracy and clarity. ADAM Audio’s Extended Linear Excursion (ELE) bass drivers and Symmetrical Magnet Assembly (SMA) technology were developed especially for the S Series, and the 12-inch bass driver on the S5V benefits from both concepts, offering a quality of reproduction without equal in terms of accuracy, dynamic range and freedom from coloration. The 4-inch DCH MF driver, with its unique hybrid dome/cone construction, handles the important mid-range information with extreme precision, while ADAM Audio’s S-ART folded-ribbon tweeter, handmade in Berlin to the tightest possible tolerances, produces breathtaking highs and ensures the soundfield is presented in all of its most delicate, filigree detail. The off-axis responses of the treble and mid drivers remain extremely accurate thanks to the addition of high- and mid-frequency waveguides milled from solid aluminum: ADAM Audio’s newly developed Mid-range and High-frequency Propagation Systems (MPS and HPS). The resultant stable, wide-ranging dispersion ensures that teams of more than one person can work in the loudspeakers’ sweet spot simultaneously, as is often necessary in larger control rooms. The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end. A Class D 700 W amplifier drives the S5V’s bass unit, with further Class D designs providing 300 W and 100 W to the DCH mid and S-ART treble drivers respectively. Combining the legendary precision of ADAM Audio’s proprietary drivers with the power of the company’s amplification, the S5V is a reference monitor for truly discerning audio professionals at work in the most expansive listening environments.

The S6X and S7A Mk2 main monitors are designed for large control rooms and film studios. They use a sym- metrical concept to increase the realistic reproduction of ADAM monitors to higher sound pressure levels. ADAM has avoided the typical overloading of the bass range that can often be found in main monitors. A wide horizontal radiation characteristic and moderate vertical beaming are crucial factors to minimize the impact of ceiling and floor reflections and achieve neutral sound reproduction at high volumes. Extended D'Appolito design A total of seven individual speakers were arrayed so that gradual transitions could be made possible given the size of the cabinet. In addition, we chose a horizontal symmetry that can be described as an extended D’Appolito configuration. This kind of design combined with suitable transition frequencies and filter slopes results in radiation patterns that lead to very consistent reproduction characteristics in the horizontal center position. At the same time, vertical dispersion is reduced so that reflections from the ceiling, floor or mixing console are greatly reduced. Thus, so called ‘early reflections’ have less chance to interfere, which leads to significantly better stereo imaging and a more three-dimensional sound. Impulse Coupling Further progress in development was achieved by the use of Alucore® panels, an extra firm component material with an aluminum honeycomb core. All drivers of the S6X and S7A Mk2 are mounted on such panels, which considerably improves mechanical coupling between the drivers and the cabinet. The S6X: accuracy and power A number of innovative approaches in conjunction with uncompromising effort in all sonically relevant areas make the S6X one of the largest and most sophisticated active monitors currently available. The horizontal symmetry design is conscious of harmonic and generous diaphragm area proportions to achieve not only a flat frequency response, but also a consistent dynamic behavior within the entire frequency range. Complex orchestral structures can be easily analyzed and spatially arranged on the S6X. Extensive control options on the front panel allow for adjusting to different acoustic situations or personal taste. Amplification The built-in amplifiers are coupled to the respective drivers as directly as possible so that remote amplifier units do not compromise the advantages of active technology. One 500 Watt amplifier is assigned to each of the 12" woofers, while 250 Watt units are used the other bands of the frequency range. This main monitor combines very high accuracy exceptional power: SPL peaks far beyond 130 dB are produced without any compression or harshness. The S6X is an excellent choice for large control rooms and film or sound studios. Control panel In addition to the input sensitivity that can be adapted in the range of ±10 dB, there are four other level controls that affect the individual amplifier modules. Shelving filters at both ends of the frequency spectrum and three fully parametric equalizers help compensate for standing waves in the control room. The EQs can be inserted separately or grouped so their effect can be directly evaluated. In large film score mixing rooms, there may be a need to simulate theater sound. Based on the ISO 2969 standard, the Dolby® X-Curve is used to achieve this. This filter engages a 3 dB per octave roll-off starting at 2 kHz. Below the front input jack is a selector switch that activates this filter, eliminating the need for external processing during the film mix. In addition to the rear input there is an additional switchable XLR input on the front panel, allowing work with the monitor regardless of set-up.

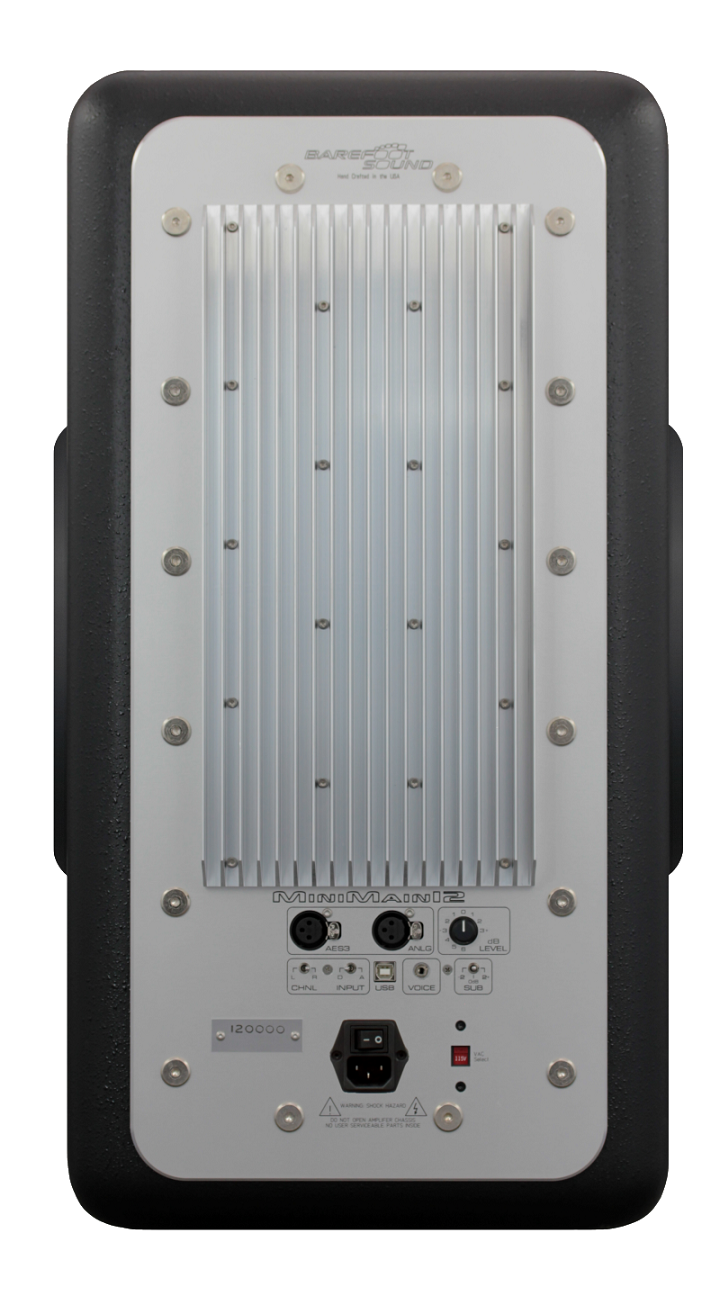

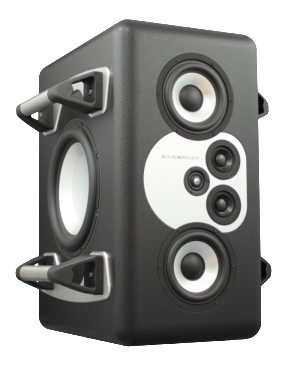

The MiniMain12 is a 4-way active system with 7 drive units housed in sealed enclosures spanning 20Hz to 40kHz with vanishingly low distortion, breathtaking dynamic range and ultra-fast transient response. Every driver has an under-hung voice coil moving inside an advanced geometry motor that enables it make extremely long linear excursions. The ring radiator tweeter is incredibly detailed and produces very wide dispersion out to its highest frequencies. The aluminum cone subwoofers, woofers and midranges radiate as perfect pistons to at least 2.5 octaves beyond their respective bandwidths. Barefoot has teamed up with the brilliant Bruno Putzeys of Hypex to develop the powerful and completely transparent amplifier stage of the MM12. Melding the system together is a groundbreaking DSP crossover that has taken Thomas Barefoot more than 4 years to develop. With beautifully designed high end converts and cutting edge proprietary filtering techniques the MiniMain12 produces such a seamless and coherent wavefront that, if you dare, you can actually listen to this speaker from less than 3 feet away with no sonic compromise. And yes, the MM12 works perfectly out to far field distances as well, producing SPLs equivalent to big mains. If all this weren’t enough, the MiniMain12 brings yet another revolutionary feature into the mix - MEME™(Multi Emphasis Monitor Emulation™) technology. While no other monitor in the world can match the MM12′s linearity and transparency, the MM12 actually has the capability to emulate other speakers! Despite the advantages of high resolution monitors, Thomas Barefoot realizes that many engineers still use their NS10M’s † and mix cubes as secondary references. These speakers have long traditions and people find them familiar and useful for focusing in on certain aspects of their mix. However, crowding one’s console with those extra boxes degrades the sound field of the primary reference monitors. Not to mention, they are no longer manufactured, they need amplifiers, cable runs, and they consume more studio space. So why not make the MM12 sound and translate like those speakers as well? With the turn of a knob one can switch from the MiniMain12′s brutally revealing “Flat” response to the warmer and sweeter “Hi-Fi” setting, generically emulating the sound of some high end consumer audio gear. More specifically the “Old School” setting closely emulates the sound of the NS10M nearfield, while the “Cube” setting emulates the mid-centric sound of classic mix cubes The idea is not to perfectly replicate every subtle quirk of these venerable old speakers. That would be impossible. But the MiniMain12 can capture the essence of how they behave and translate, modeling their frequency, phase and transient responses, dynamic compression and even some of their distortion components. If you know how to work on these speaker you will feel very comfortable working on the MM12′s emulation settings. So there you have it: The Barefoot Sound MiniMain12, a monitor like no other. † NS10M is a trademark of Yamaha Corp. and has no affiliation with Barefoot Sound.

The MiniMain12 is a 4-way active system with 7 drive units housed in sealed enclosures spanning 20Hz to 40kHz with vanishingly low distortion, breathtaking dynamic range and ultra-fast transient response. Every driver has an under-hung voice coil moving inside an advanced geometry motor that enables it make extremely long linear excursions. The ring radiator tweeter is incredibly detailed and produces very wide dispersion out to its highest frequencies. The aluminum cone subwoofers, woofers and midranges radiate as perfect pistons to at least 2.5 octaves beyond their respective bandwidths. Barefoot has teamed up with the brilliant Bruno Putzeys of Hypex to develop the powerful and completely transparent amplifier stage of the MM12. Melding the system together is a groundbreaking DSP crossover that has taken Thomas Barefoot more than 4 years to develop. With beautifully designed high end converts and cutting edge proprietary filtering techniques the MiniMain12 produces such a seamless and coherent wavefront that, if you dare, you can actually listen to this speaker from less than 3 feet away with no sonic compromise. And yes, the MM12 works perfectly out to far field distances as well, producing SPLs equivalent to big mains. If all this weren’t enough, the MiniMain12 brings yet another revolutionary feature into the mix - MEME™(Multi Emphasis Monitor Emulation™) technology. While no other monitor in the world can match the MM12′s linearity and transparency, the MM12 actually has the capability to emulate other speakers! Despite the advantages of high resolution monitors, Thomas Barefoot realizes that many engineers still use their NS10M’s † and mix cubes as secondary references. These speakers have long traditions and people find them familiar and useful for focusing in on certain aspects of their mix. However, crowding one’s console with those extra boxes degrades the sound field of the primary reference monitors. Not to mention, they are no longer manufactured, they need amplifiers, cable runs, and they consume more studio space. So why not make the MM12 sound and translate like those speakers as well? With the turn of a knob one can switch from the MiniMain12′s brutally revealing “Flat” response to the warmer and sweeter “Hi-Fi” setting, generically emulating the sound of some high end consumer audio gear. More specifically the “Old School” setting closely emulates the sound of the NS10M nearfield, while the “Cube” setting emulates the mid-centric sound of classic mix cubes The idea is not to perfectly replicate every subtle quirk of these venerable old speakers. That would be impossible. But the MiniMain12 can capture the essence of how they behave and translate, modeling their frequency, phase and transient responses, dynamic compression and even some of their distortion components. If you know how to work on these speaker you will feel very comfortable working on the MM12′s emulation settings. So there you have it: The Barefoot Sound MiniMain12, a monitor like no other. † NS10M is a trademark of Yamaha Corp. and has no affiliation with Barefoot Sound.

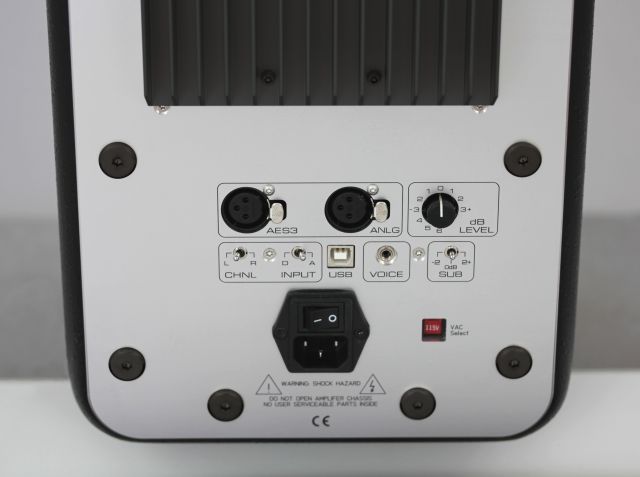

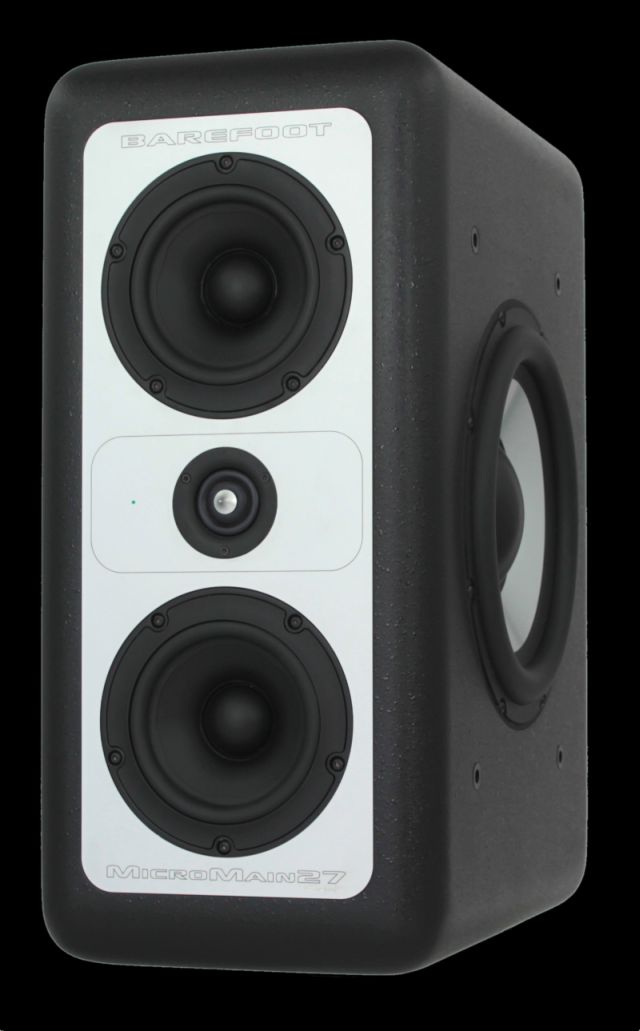

The Barefoot Sound MicroMain27 Gen2 takes Barefoot’s all-in-one monitoring concept to new heights. Unwilling to rest on his laurels, Thomas Barefoot has spent years further refining one of the most revered recording studio monitors in the world. These refinements preserve the effortless translation Barefoot Sound is known for, but are an evolution, yielding even greater transparency and inner detail. Barefoot Sound is proud to introduce the second generation MM27. Now featuring our amazing Speaker Emulation technology, the MicroMain27 Gen2 precisely models the essential response and translation characteristics of other classic studio monitors, simply with turn of a knob. If this weren't enough, the renowned MM27 is augmented with advanced new electronics and drivers giving it even greater dimension and transparency across the entire audio spectrum. Speaker Emulation Technology The MM27 Gen2 also adds Speaker Emulation Technology to its list of features. Barefoot has gone to great lengths to utilize DSP processing to model the voicing characteristics and responses of classic studio nearfield monitors. A four-position wired remote allows users to quickly switch through different voices to preview mixes on other types of speakers without having the clutter of multiple speaker systems. Hi-Fi sweetens the high end and warms mid-range to behave much like consumer hi-fi systems. Flat is the default voicing, offering the true Barefoot Sound. The response is even and very revealing. OldScl captures the essence of the ubiquitous NS10M. The setting rolls off sub-bass and top-end information while pulling forward mid-range presence. Cube is a nod to the “aura” of the classic full-range micro monitors of yesterday. This is a valuable setting in the age of laptops, tablets and ear buds.   MicroMain27 Gen2 Features and Specs 3.5-way active studio monitor with integral subwoofers 4 setting DSP voice emulation Analog and AES3 digital inputs Hypex amplification Tweeter - 1" ring radiator with Advanced neodymium motor Rear waveguide chamber. Amplifier: 250W Midbass 1 - 5.25" poly/paper cone with Advanced neodymium motor +/- 5 mm linear excursion. Amplifier: 250W Midbass 2 - 5.25" poly/paper cone with Advanced neodymium motor +/- 5 mm linear excursion. Amplifier: 250W Subwoofers - 2 x 10" aluminum cone with high linearity motor +/- 13 mm linear excursion. Amplifier: 500W Crossover Frequencies: 100 / 600 / 3000 Hz

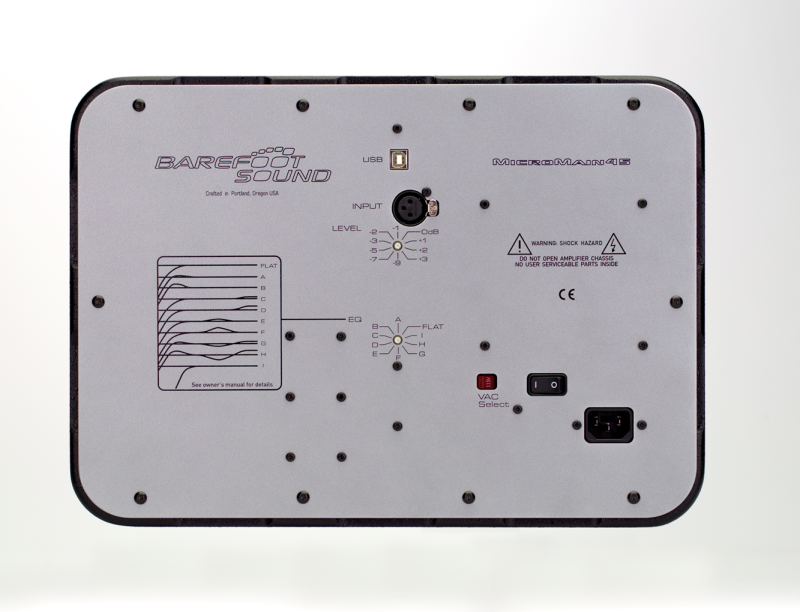

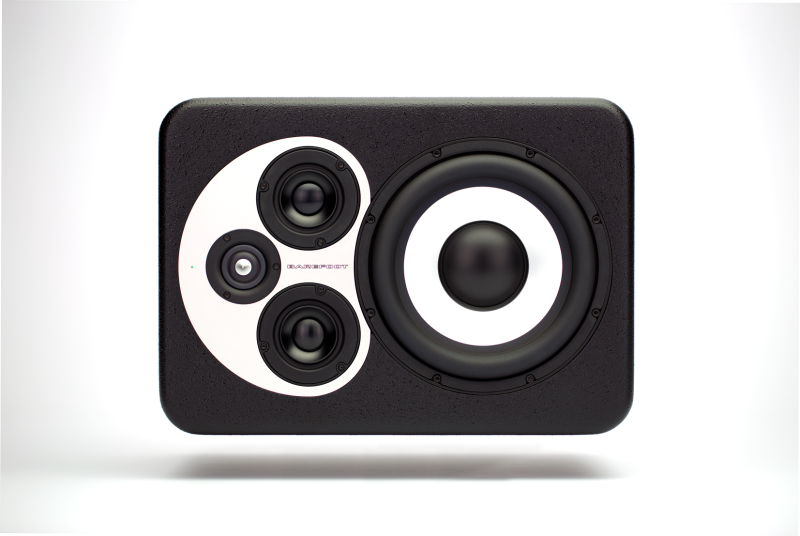

Barefoot Sound is proud to introduce our newest studio monitor, the MicroMain45.  Featuring the same signal path, amplifier and driver technologies as our flagship MiniMain12, the MicroMain45 is stripped down to the bare essentials in order to deliver renowned Barefoot resolution and translation at a more affordable price.   Prepare yourself for the next Barefoot revolution!

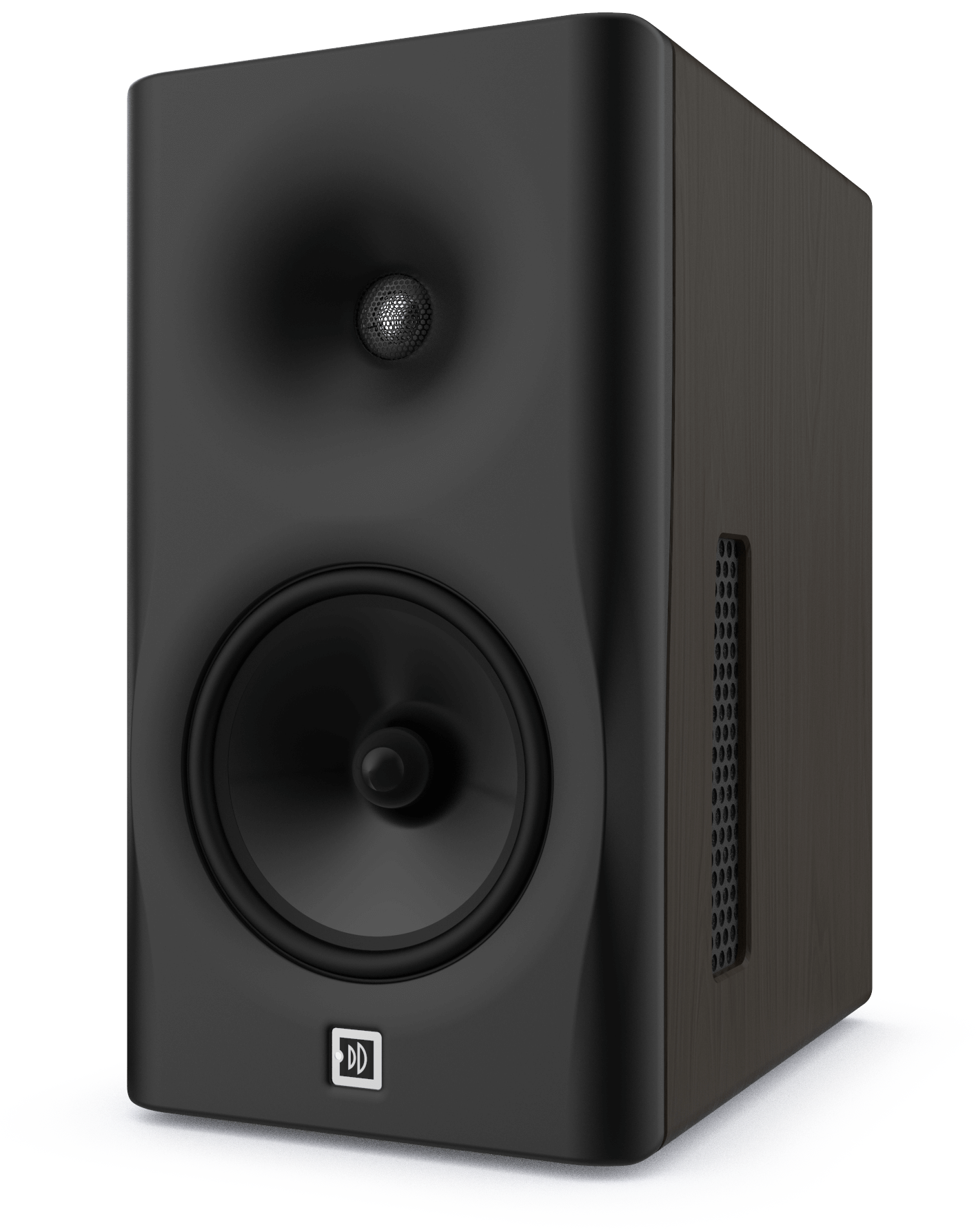

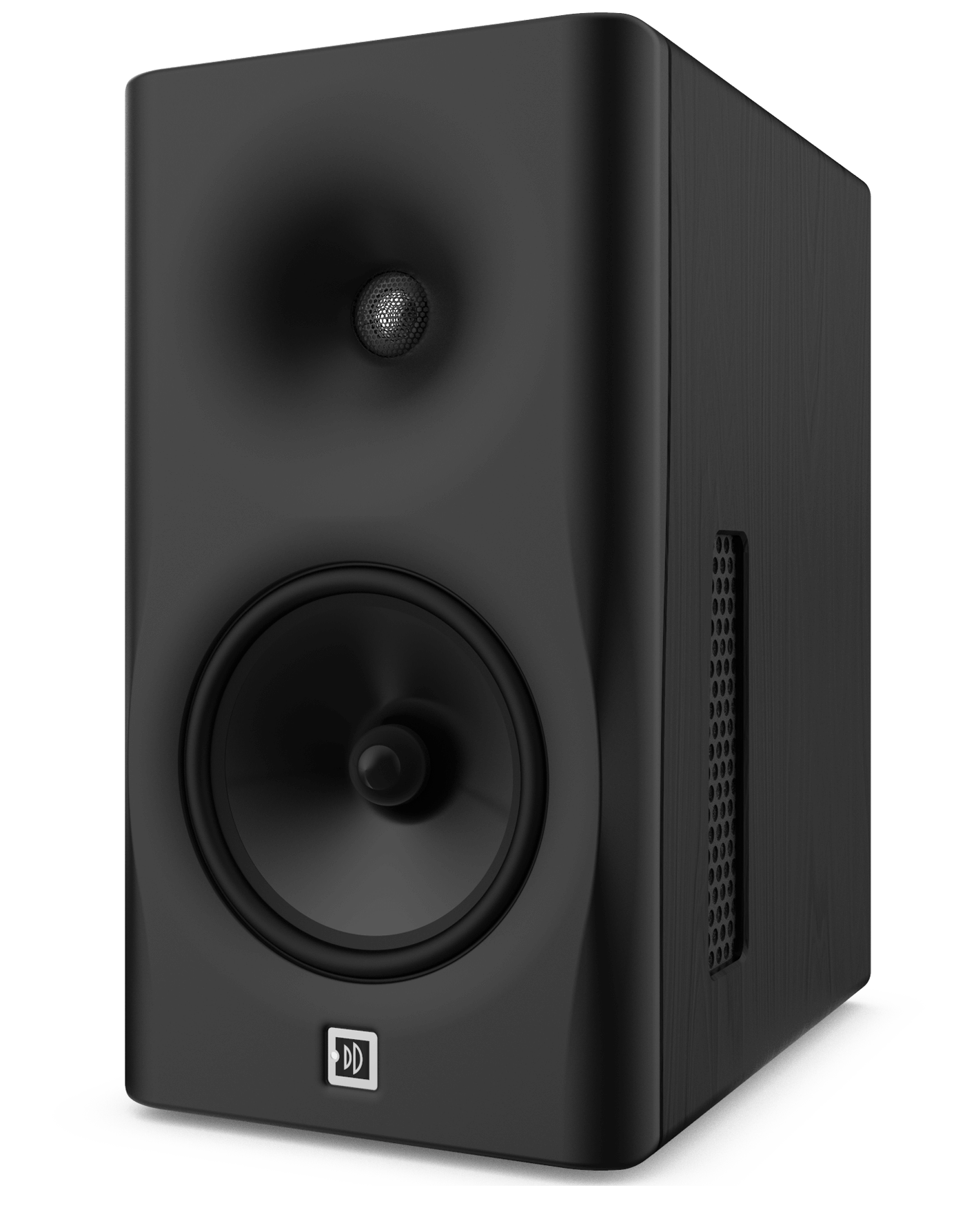

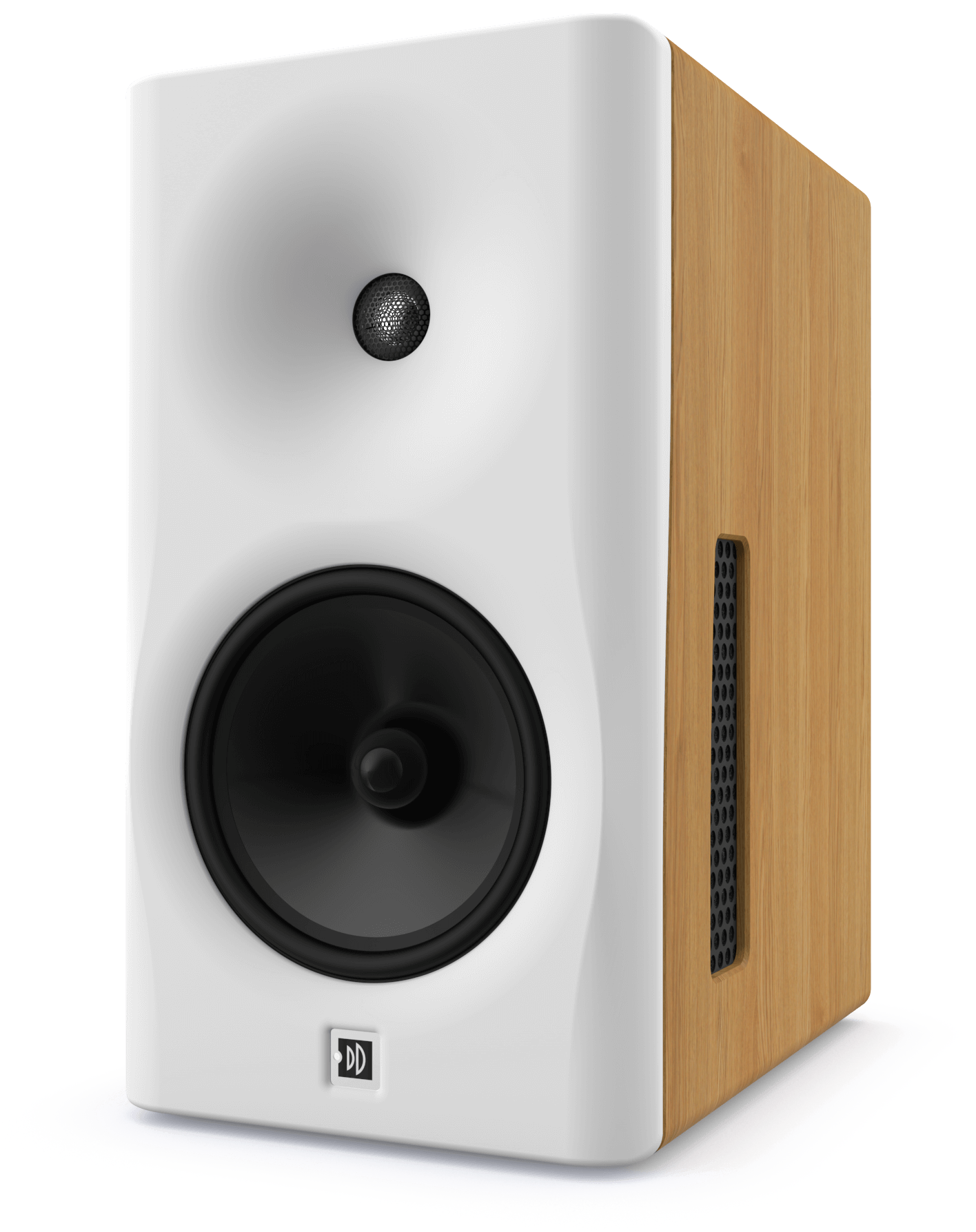

Overview. Completely accurate music reproduction requires more than a thoroughly optimized speaker. It requires a speaker that works together with the acoustics of the listening room. The 8c is more than just a loudspeaker. It is a unique acoustic concept, because its revolutionary design provides constant directivity from 100 Hz upwards. As a result, the 8c is above and beyond any other system in terms of neutrality, precision, and in-room tonal balance. Accurate. The 8c represents our commitment to accuracy and clarity. With its constant directivity from 100Hz upwards and +/-0.5dB frequency response from 35Hz upwards, music can now be experienced exactly as it was intended. Nothing is added, nothing left out. Experience the sensation of truly accurate music reproduction, hear truth in audio like never before. Adaptive. Tune the system to the room, not the room to the system. 8c’s adapt to the room they are in and can be placed (very) close to room boundaries without losing performance. To achieve this, 8c’s combine a proprietary waveguide tweeter with an acoustic cardioid midrange, boundary-coupled bass drivers and active room matching. The result: superb acoustical reproduction in any room. All-in-one. Besides drivers, the 8c’s small footprint presence holds high-end DACs, amps, subwoofers and a DSP. The system also comes with room matching and streaming capabilities out-of-the-box. All components match each other perfectly and together deliver a “big sound” at 106 dB continuously from 35 Hz upwards, while keeping the signal-to-noise ratio very high. Design. From the smooth baffle to the solid oak cabinet, the 8c’s construction is designed to look as clean as it sounds. Intuitive controls. After the 8c’s are automatically discovered on your LAN, you’ll have full control of settings like gain, distance to front and side walls, updates and many parametric filters. Internet connectivity is not required. Multi-room streaming. Besides balanced analogue or AES3 input, you can stream digital music directly to your 8c’s. Setup left and right position using your mobile device and the rest is done automatically. Within your LAN, 8c’s can be grouped into multiple zones. Perfectly synchronized music can then be played effortlessly in those zones. Effortless updates. Automatic updates can keep your 8c’s up-to-date with industry standards and trends. After extensive testing periods, new firmware versions are made available from our cloud based software platform. If so desired and set up, 8c’s will download and install these updates automatically, adding new features overnight.

Overview. Completely accurate music reproduction requires more than a thoroughly optimized speaker. It requires a speaker that works together with the acoustics of the listening room. The 8c is more than just a loudspeaker. It is a unique acoustic concept, because its revolutionary design provides constant directivity from 100 Hz upwards. As a result, the 8c is above and beyond any other system in terms of neutrality, precision, and in-room tonal balance. Accurate. The 8c represents our commitment to accuracy and clarity. With its constant directivity from 100Hz upwards and +/-0.5dB frequency response from 35Hz upwards, music can now be experienced exactly as it was intended. Nothing is added, nothing left out. Experience the sensation of truly accurate music reproduction, hear truth in audio like never before. Adaptive. Tune the system to the room, not the room to the system. 8c’s adapt to the room they are in and can be placed (very) close to room boundaries without losing performance. To achieve this, 8c’s combine a proprietary waveguide tweeter with an acoustic cardioid midrange, boundary-coupled bass drivers and active room matching. The result: superb acoustical reproduction in any room. All-in-one. Besides drivers, the 8c’s small footprint presence holds high-end DACs, amps, subwoofers and a DSP. The system also comes with room matching and streaming capabilities out-of-the-box. All components match each other perfectly and together deliver a “big sound” at 106 dB continuously from 35 Hz upwards, while keeping the signal-to-noise ratio very high. Design. From the smooth baffle to the solid oak cabinet, the 8c’s construction is designed to look as clean as it sounds. Intuitive controls. After the 8c’s are automatically discovered on your LAN, you’ll have full control of settings like gain, distance to front and side walls, updates and many parametric filters. Internet connectivity is not required. Multi-room streaming. Besides balanced analogue or AES3 input, you can stream digital music directly to your 8c’s. Setup left and right position using your mobile device and the rest is done automatically. Within your LAN, 8c’s can be grouped into multiple zones. Perfectly synchronized music can then be played effortlessly in those zones. Effortless updates. Automatic updates can keep your 8c’s up-to-date with industry standards and trends. After extensive testing periods, new firmware versions are made available from our cloud based software platform. If so desired and set up, 8c’s will download and install these updates automatically, adding new features overnight.

The 8c studio shares the same dimensions, components and specs as the 8c but is built into a MDF wood based cabinet as opposed to our solid Oak 8c cabinets.To clearly distinguish between the two products the 8c studio will besides the different cabinet material have to do without streaming audio over ethernet capabilities.  The 8c studio will be able to handle 192 kHz on the AES/EBU input similar to the 8c.  We have incorporated M10 threads in the sides of the 8c studio to cope with the demand of being able to fly or pole mount the cabinets for surround, Dolby Atmos and similar install applications.U bracket and accessories to deal with the above will become available shortly.For the time being the 8c studio will be made in Black only.

The 8c studio shares the same dimensions, components and specs as the 8c but is built into a MDF wood based cabinet as opposed to our solid Oak 8c cabinets.To clearly distinguish between the two products the 8c studio will besides the different cabinet material have to do without streaming audio over ethernet capabilities.  The 8c studio will be able to handle 192 kHz on the AES/EBU input similar to the 8c.  We have incorporated M10 threads in the sides of the 8c studio to cope with the demand of being able to fly or pole mount the cabinets for surround, Dolby Atmos and similar install applications.U bracket and accessories to deal with the above will become available shortly.For the time being the 8c studio will be made in Black only.

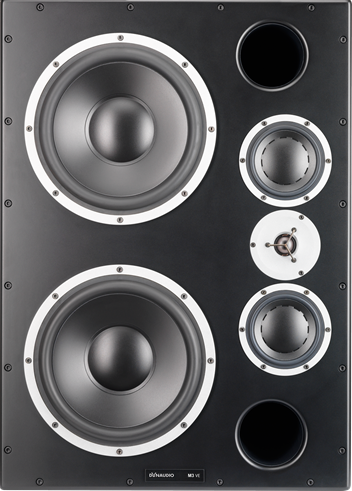

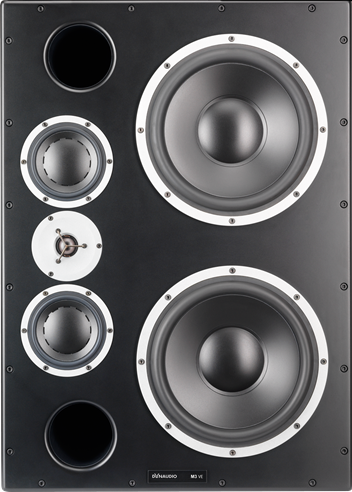

M3VE is the ultimate main monitoring solution, combining world-class driver and cabinet technology from Dynaudio Professional with cutting-edge signal processing and amplification from Lab.gruppen and Lake. The Dynaudio Professional M3VE monitor system that takes monitoring to a whole new level with a significant upgrade from its predecessor - the renowned M3A 3-way monitor. To top it off, the speakers are powered by the four channel Lab.gruppen PLM10000Q amplifier, using the integrated Lake active cross-over between LF and MF, while passively filtering the MF/HF cross-over point. Sporting the newest and most pristine Dynaudio ESOTAR² driver technology, M3VE takes over where most other monitor systems give up. With unsurpassed attention to detail, underpinned by an impressive 22Hz - 21kHz frequency response and beyond 133dB SPL, M3VE leaves no room for desire in terms of resolution, range or sheer power. Different from its sister monitor M3XE, a set of M3VE's is powered by a single PLM10000Q Lab.gruppen four channel amplifier, using the integrated Lake active cross-over between LF and MF, while passively filtering the MF/HF cross-over point. The cutting-edge combination of Lab.gruppen and Lake processing technology forms the ultimate backing for M3VE and ensures unlimited power and the tools for optimizing any room to become the perfect listening environment. In short, M3VE surpasses any and all main monitor expectations! M3VE Monitor Features Unique linear phase frequency response Frequency Response: 20Hz - 25kHz Dual 12" ESOTAR² Woofers, aluminum voice coil Dual 6" Midrange drivers, MSP cone, 75mm aluminum voice coil 1.1" (28mm) ESOTAR² Soft-dome tweeter, aluminum voice coil Max. SPL (short term peak @ 1m): 133 SPL Heavy internal damping for minimum cabinet resonance Dimensions: 555mm (W) x 775mm (H) x 505mm (D) Weight:  143 lbs./ 65 kg.   Lab.gruppen PLM 10000Q  The PLM 10000Q amplifier is based on technology from Lab.gruppen's highly acclaimed and road-proven FP+ series, but goes the extra mile for even greater sustained output power: an impressive 4 x 2,300 watts! Basically, the power amplifier technology is Lab.gruppen's patented Class TD amplifier design that offers the proven efficiency of Class D amplification with the amazing, sonic purity of Class B designs, but that is not all. A new circuit provides substantially greater current-carrying capabilities, and the Regulated Switch Mode Power Supply (R.SMPS) is optimized to deliver full power during long low-frequency bursts as well as maintain stable rail voltages despite fluctuating line voltage. Further, PLM 10000Q offers extreme power density, patented intercooler cooling, a full suite of protection features and a Power Average Limiter (PAL) that prevents tripping of mains breakers. Finally, advanced cross-overs inside the PLM 10000Q feed its four output stages, allowing for optimized RMS and true-peak limiter settings for the lo and mid/hi drivers.  In other words, the PLM 10000Q amplifier delivers exactly the kind of pure and reliable power that is worthy of a set of high-end monitors such as Dynaudio Acoustic's M3A.  Lab.gruppen PLM 10000Q main features and specifications  2350 W per channel @ 2 ohms, 2300 W per channel @ 4 ohms, 1300 W per channel @ 8 ohms** 2 unit 19" chassis weighing only 13.5 kg Input connection: Analog, Digital, Dante Class TD® output stage Regulated Switch Mode Power Supply (R.SMPS™) Copper-finned Intercooler® with transverse-mounted output devices Full suite of protection and fault monitoring features Digitally controlled 'amplifier gain' adjustable in 0.1 dB steps from 22 to 44 dB Digital output attenuation in 0. 25 dB steps from -inf to 0 dB Digitally implemented, zero-overshoot Inter-Sample Voltage Peak Limiting (ISVPL™) adjustable in 0.1 V steps from 17.8 to 153 V Power Average Limiter (PAL) Lake processing Having the perfect monitors and amplifier is one thing. Making them deliver divine audio quality in any room is another - and this is where unique Lake processing makes all the difference. Lab-gruppen's PLM 10000Q amplifers holds two full-featured Lake Processor modules, each offering precise settings for gain, delay, crossover slope, equalization and limiting that provide you with unparalleled power to correct, shape and optimize your sound in any control room.  Exclusive Lake Processing algorithms are included for Raised Cosine Equalization, linear phase crossovers, LimiterMax loudspeaker protection, and Iso-Float ground isolation. Raised Cosine Equalization is the foundation for the Lake Mesa EQ and the Ideal Graphic EQ, the two revolutionary EQ interfaces used by the Dolby Lake Processor. Mesa EQ offers asymmetric filtering to match the asymmetric responses of many loudspeaker systems while the Ideal Graphic EQ offers true sum-to-flat response, so the adjustments provide uniform boost and cut along with greater selectivity.  Lake processing main features and specifications  Raised Cosine Equalization™ Linear phase and classical crossovers LimiterMax™ - peak and RMS limiters Iso-Float™ ground isolation Super Module capability Integration of third-party frequency measurement and analysis via Lake Analyzer Bridge

M3VE is the ultimate main monitoring solution, combining world-class driver and cabinet technology from Dynaudio Professional with cutting-edge signal processing and amplification from Lab.gruppen and Lake. The Dynaudio Professional M3VE monitor system that takes monitoring to a whole new level with a significant upgrade from its predecessor - the renowned M3A 3-way monitor. To top it off, the speakers are powered by the four channel Lab.gruppen PLM10000Q amplifier, using the integrated Lake active cross-over between LF and MF, while passively filtering the MF/HF cross-over point. Sporting the newest and most pristine Dynaudio ESOTAR² driver technology, M3VE takes over where most other monitor systems give up. With unsurpassed attention to detail, underpinned by an impressive 22Hz - 21kHz frequency response and beyond 133dB SPL, M3VE leaves no room for desire in terms of resolution, range or sheer power. Different from its sister monitor M3XE, a set of M3VE's is powered by a single PLM10000Q Lab.gruppen four channel amplifier, using the integrated Lake active cross-over between LF and MF, while passively filtering the MF/HF cross-over point. The cutting-edge combination of Lab.gruppen and Lake processing technology forms the ultimate backing for M3VE and ensures unlimited power and the tools for optimizing any room to become the perfect listening environment. In short, M3VE surpasses any and all main monitor expectations! M3VE Monitor Features Unique linear phase frequency response Frequency Response: 20Hz - 25kHz Dual 12" ESOTAR² Woofers, aluminum voice coil Dual 6" Midrange drivers, MSP cone, 75mm aluminum voice coil 1.1" (28mm) ESOTAR² Soft-dome tweeter, aluminum voice coil Max. SPL (short term peak @ 1m): 133 SPL Heavy internal damping for minimum cabinet resonance Dimensions: 555mm (W) x 775mm (H) x 505mm (D) Weight:  143 lbs./ 65 kg.   Lab.gruppen PLM 10000Q  The PLM 10000Q amplifier is based on technology from Lab.gruppen's highly acclaimed and road-proven FP+ series, but goes the extra mile for even greater sustained output power: an impressive 4 x 2,300 watts! Basically, the power amplifier technology is Lab.gruppen's patented Class TD amplifier design that offers the proven efficiency of Class D amplification with the amazing, sonic purity of Class B designs, but that is not all. A new circuit provides substantially greater current-carrying capabilities, and the Regulated Switch Mode Power Supply (R.SMPS) is optimized to deliver full power during long low-frequency bursts as well as maintain stable rail voltages despite fluctuating line voltage. Further, PLM 10000Q offers extreme power density, patented intercooler cooling, a full suite of protection features and a Power Average Limiter (PAL) that prevents tripping of mains breakers. Finally, advanced cross-overs inside the PLM 10000Q feed its four output stages, allowing for optimized RMS and true-peak limiter settings for the lo and mid/hi drivers.  In other words, the PLM 10000Q amplifier delivers exactly the kind of pure and reliable power that is worthy of a set of high-end monitors such as Dynaudio Acoustic's M3A.  Lab.gruppen PLM 10000Q main features and specifications  2350 W per channel @ 2 ohms, 2300 W per channel @ 4 ohms, 1300 W per channel @ 8 ohms** 2 unit 19" chassis weighing only 13.5 kg Input connection: Analog, Digital, Dante Class TD® output stage Regulated Switch Mode Power Supply (R.SMPS™) Copper-finned Intercooler® with transverse-mounted output devices Full suite of protection and fault monitoring features Digitally controlled 'amplifier gain' adjustable in 0.1 dB steps from 22 to 44 dB Digital output attenuation in 0. 25 dB steps from -inf to 0 dB Digitally implemented, zero-overshoot Inter-Sample Voltage Peak Limiting (ISVPL™) adjustable in 0.1 V steps from 17.8 to 153 V Power Average Limiter (PAL) Lake processing Having the perfect monitors and amplifier is one thing. Making them deliver divine audio quality in any room is another - and this is where unique Lake processing makes all the difference. Lab-gruppen's PLM 10000Q amplifers holds two full-featured Lake Processor modules, each offering precise settings for gain, delay, crossover slope, equalization and limiting that provide you with unparalleled power to correct, shape and optimize your sound in any control room.  Exclusive Lake Processing algorithms are included for Raised Cosine Equalization, linear phase crossovers, LimiterMax loudspeaker protection, and Iso-Float ground isolation. Raised Cosine Equalization is the foundation for the Lake Mesa EQ and the Ideal Graphic EQ, the two revolutionary EQ interfaces used by the Dolby Lake Processor. Mesa EQ offers asymmetric filtering to match the asymmetric responses of many loudspeaker systems while the Ideal Graphic EQ offers true sum-to-flat response, so the adjustments provide uniform boost and cut along with greater selectivity.  Lake processing main features and specifications  Raised Cosine Equalization™ Linear phase and classical crossovers LimiterMax™ - peak and RMS limiters Iso-Float™ ground isolation Super Module capability Integration of third-party frequency measurement and analysis via Lake Analyzer Bridge

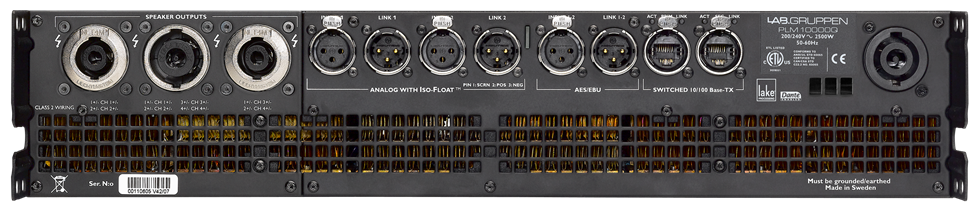

M3XE is the ultimate main monitoring solution, combining world-class driver and cabinet technology from Dynaudio Professional with cutting-edge signal processing and amplification from Lab.gruppen and Lake. The Dynaudio Professional M3XE monitor system that takes monitoring to a whole new level with a significant upgrade from its predecessor - the renowned M3A 3-way monitor. To top it off, the speakers are powered by two of Lab.gruppen's highly esteemed PLM10000Q amplifiers. Sporting the newest and most pristine Dynaudio ESOTAR² driver technology, M3XE takes over where most other monitor systems give up. With unsurpassed attention to detail, underpinned by an impressive 22Hz - 21kHz frequency response and beyond 135dB SPL, M3XE leaves no room for desire in terms of resolution, range or sheer power. Different from its sister monitor M3VE, a set of M3XE's is powered by not one, but two PLM10000Q Lab.gruppen amplifiers, using the integrated Lake active cross-over processing as well as powering the HF, MF and dual LF woofers by the four independent amplifier channels of the PLM10000Q. The cutting-edge combination of Lab.gruppen and Lake processing technology forms the ultimate backing for M3XE and ensures unlimited power and the tools for optimizing any room to become the perfect listening environment. In short, M3XE surpasses any and all main monitor expectations! M3XE Monitor Features Unique linear phase frequency response Frequency Response: 20Hz - 22kHz Dual 12" ESOTAR Woofers, aluminum voice coil Dual 6" Midrange drivers, MSP cone, 75mm aluminum voice coil 1.1" (28mm) ESOTAR² Soft-dome tweeter, aluminum voice coil Max. SPL (short term peak @ 1m): 133 SPL Heavy internal damping for minimum cabinet resonance Lab.gruppen PLM 10000Q  The PLM 10000Q amplifier is based on technology from Lab.gruppen's highly acclaimed and road-proven FP+ series, but goes the extra mile for even greater sustained output power: an impressive 4 x 2,300 watts! Basically, the power amplifier technology is Lab.gruppen's patented Class TD amplifier design that offers the proven efficiency of Class D amplification with the amazing, sonic purity of Class B designs, but that is not all. A new circuit provides substantially greater current-carrying capabilities, and the Regulated Switch Mode Power Supply (R.SMPS) is optimized to deliver full power during long low-frequency bursts as well as maintain stable rail voltages despite fluctuating line voltage. Further, PLM 10000Q offers extreme power density, patented intercooler cooling, a full suite of protection features and a Power Average Limiter (PAL) that prevents tripping of mains breakers. Finally, advanced cross-overs inside the PLM 10000Q feed its four output stages, allowing for optimized RMS and true-peak limiter settings for the lo and mid/hi drivers.  In other words, the PLM 10000Q amplifier delivers exactly the kind of pure and reliable power that is worthy of a set of high-end monitors such as Dynaudio Acoustic's M3A.

M3XE is the ultimate main monitoring solution, combining world-class driver and cabinet technology from Dynaudio Professional with cutting-edge signal processing and amplification from Lab.gruppen and Lake. The Dynaudio Professional M3XE monitor system that takes monitoring to a whole new level with a significant upgrade from its predecessor - the renowned M3A 3-way monitor. To top it off, the speakers are powered by two of Lab.gruppen's highly esteemed PLM10000Q amplifiers. Sporting the newest and most pristine Dynaudio ESOTAR² driver technology, M3XE takes over where most other monitor systems give up. With unsurpassed attention to detail, underpinned by an impressive 22Hz - 21kHz frequency response and beyond 135dB SPL, M3XE leaves no room for desire in terms of resolution, range or sheer power. Different from its sister monitor M3VE, a set of M3XE's is powered by not one, but two PLM10000Q Lab.gruppen amplifiers, using the integrated Lake active cross-over processing as well as powering the HF, MF and dual LF woofers by the four independent amplifier channels of the PLM10000Q. The cutting-edge combination of Lab.gruppen and Lake processing technology forms the ultimate backing for M3XE and ensures unlimited power and the tools for optimizing any room to become the perfect listening environment. In short, M3XE surpasses any and all main monitor expectations! M3XE Monitor Features Unique linear phase frequency response Frequency Response: 20Hz - 22kHz Dual 12" ESOTAR Woofers, aluminum voice coil Dual 6" Midrange drivers, MSP cone, 75mm aluminum voice coil 1.1" (28mm) ESOTAR² Soft-dome tweeter, aluminum voice coil Max. SPL (short term peak @ 1m): 133 SPL Heavy internal damping for minimum cabinet resonance Lab.gruppen PLM 10000Q  The PLM 10000Q amplifier is based on technology from Lab.gruppen's highly acclaimed and road-proven FP+ series, but goes the extra mile for even greater sustained output power: an impressive 4 x 2,300 watts! Basically, the power amplifier technology is Lab.gruppen's patented Class TD amplifier design that offers the proven efficiency of Class D amplification with the amazing, sonic purity of Class B designs, but that is not all. A new circuit provides substantially greater current-carrying capabilities, and the Regulated Switch Mode Power Supply (R.SMPS) is optimized to deliver full power during long low-frequency bursts as well as maintain stable rail voltages despite fluctuating line voltage. Further, PLM 10000Q offers extreme power density, patented intercooler cooling, a full suite of protection features and a Power Average Limiter (PAL) that prevents tripping of mains breakers. Finally, advanced cross-overs inside the PLM 10000Q feed its four output stages, allowing for optimized RMS and true-peak limiter settings for the lo and mid/hi drivers.  In other words, the PLM 10000Q amplifier delivers exactly the kind of pure and reliable power that is worthy of a set of high-end monitors such as Dynaudio Acoustic's M3A.
