Chameleon Labs 7721 Stereo VCA Compressor
Product information "Chameleon Labs 7721 Stereo VCA Compressor"
The Chameleon Labs 7721 Stereo VCA compressor is a powerful analog processor designed to make your tracks sound more compact and powerful.
7721 Features
- Stereo compressor with VCA-based signal detection
- Super low noise, IC based input section
- Side chain input allows a separate source to be used as the compression trigger
- IC based, ultra-low noise output stage
- VU meter for Input / Output Level and Gain Reduction monitoring
- Super low noise internal power supply
- Selectable high pass filter
- Threshold, Attack, Release and Ratio controls
- Selectable detection type Peak or RMS
- Selectable compression types: Soft or Hard Knee
- Blend control allows you to mix the compressed audio signal with the original signal
Specifications
User Controlled Functions:
- On Switch:
Turn Pre Amp On - VU Meter Light
- Compression:
Insert compression circuit or bypass
- Side Chain:
Use Side Chain input for triggering
- Compression:
Soft or Hard Knee compression type
- Detection:
Peak or RMS
- High Pass Filter:
60, 90, 130 or 200 Hz high pass filter applied to Side Chain detection signal
- Threshold:
Applied between -15dB and +15dB
- Attack:
Attack time in milli seconds - .1 / .3 / 1 / 3 / 10 / 30
- Release:
Release time in seconds - .1 / .3 / .6 / 1.2 / 1.5
- Ratio:
Compression ratio selection 1.5 / 2 / 4 / 8 / 10
- Blend:
Full Dry equivalent to 0% compression, Full Wet equivalent to 100% compression
- Output Gain:
-60dB to +20dB Output Level control
- VU Meter controls (L&R):
In - Input / Out - Output / GR - Gain Reduction

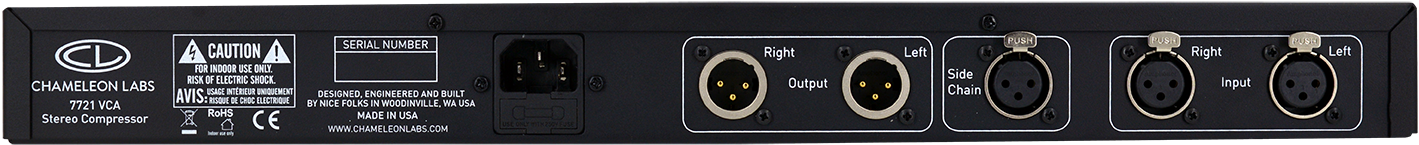

Input Connectors:
- Input (Female XLR):
50 kΩ
- Side Chain Input (Female XLR):
50 kΩ
- Output (Male XLR):
200 Ω
Audio Specifications:
- Noise Specification:
<-100dBu Input Terminated with 600 Ω, compressor ON and Output Gain set to 0dB
- Frequency Response:
20Hz - 20kHz +/- 0.25dB
- Headroom:
> 20dB output level
- Dynamic Range:
100 dB per AES17 Standard
- Common Mode Rejection:
100Hz - 10kHz >90dB
- Input and Output Impedance:
>10kΩ / <50 Ω
Indicators:
- Red Input Gain:
Input Overload
- Red Output Gain:
Output Overload
Power Supply:
- 100V - 240V (50/60Hz):
Switch mode power supply, fully shielded 3 amp peak output capability, quiescent consumption 0.5 Watts
Mechanical:
