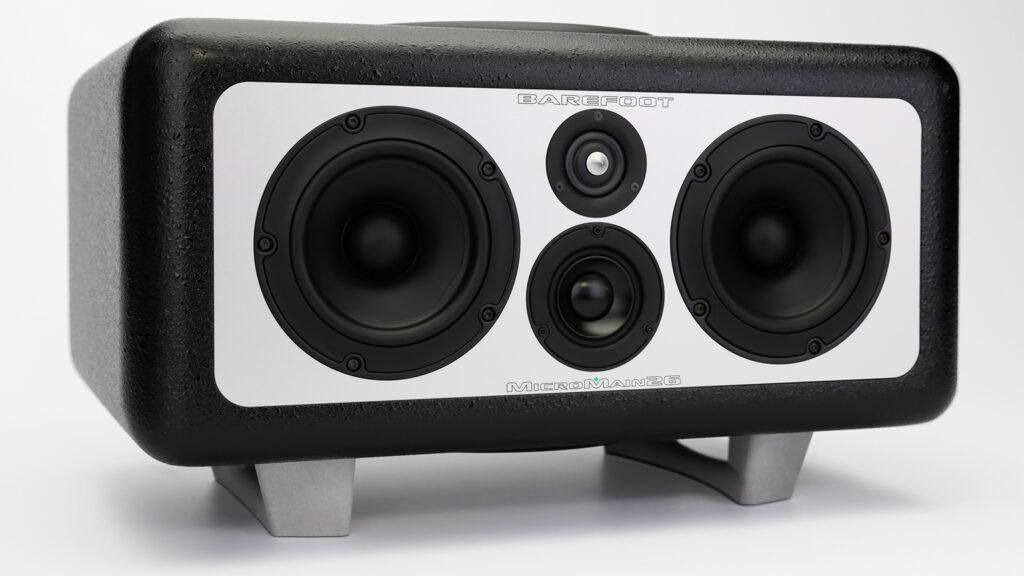

Barefoot Sound MM 26
Product information "Barefoot Sound MM 26"
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Barefoot Sound
Barefoot Sound
1710 NW Upshur St, Portland, OR 97209, United States
questions@barefootsound.com
https://barefootsound.com/
ES-ProAudio
Narzissenstr.9, 85055 Ingolstadt
contact@es-proaudio.de
|
Description: |
4-way active monitor with Dual-Force™ and MEME™ Technologies |
|
Controls: |
Analog/AES3 input select, AES3 L/R channels select, Input level stepped attenuator, Subwoofer level, Emulation voice select |
|
Input Impedance: |
50k Ohm |
|
Frequency Response: |
30Hz – 45kHz (±3dB) |
|
Bass Response: |
-3 dB @
30Hz, Q = 0.707 |
|
Cabinet: |
32 liters total internal volume, Sealed subwoofer, woofer and mid enclosures, Machined aluminum baffle plate, Aluminum subwoofer frames function as lateral cabinet bracing, Long fiber wool acoustic damping throughout |
|
Crossover Frequencies: |
100 / 800 / 4000 Hz |
|
Tweeter: |
1″ ring
radiator, Advanced geometry motor, Rear waveguide chamber |
|
Midrange: |
2.5″
aluminum cone, Advanced geometry motor, +/- 2 mm linear excursion |
|
Midbass 1: |
5.25″
poly/paper cone, Advanced geometry neodymium motor, +/- 5 mm linear excursion |
|
Midbass 2: |
5.25″
poly/paper cone, Advanced geometry neodymium motor, +/- 5 mm linear excursion |
|
Subwoofers: |
2 x 10″
Dual-Force™ aluminum cone with high linearity motor, +/- 13 mm linear
excursion |
|
MAX SPL: |
Single: 116 dB |
|
AC Power Input: |
Nominal 115 VAC or 230 VAC selectable |
|
Power Consumption: |
Idle: 30W, Maximum: 650W |
|
Weight: |
Weight:
Speaker: 71 lbs each (32 kg) |
|
Dimensions HxWxD: |
Dimensions
HxWxD: Cabinet: 20.5 x 9.5 x 15.5 inches (521 x 241 x 394 mm) |
