Vertigo Sound VSC-3 QUAD DISCRETE COMPRESSOR
Enhance Ihre Studio-Kompositionen mit dem Vertigo Sound VSC-3 QUAD DISCRETE COMPRESSOR – erleben Sie exzellente VCA-Technologie und neue Features!

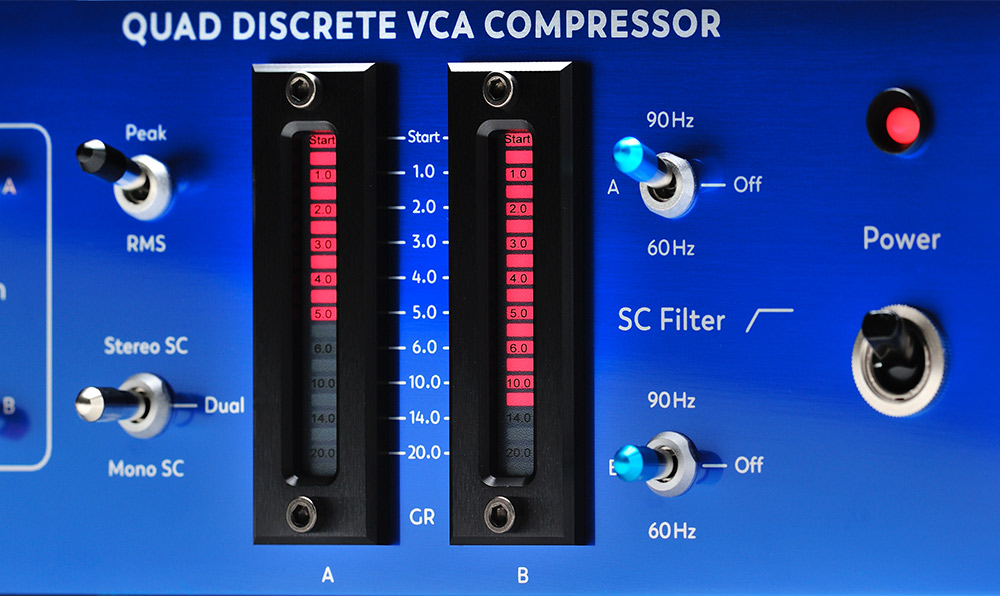

Features
- Dual Mono, True Stereo SC & Mono summed SC functionality
- switchable to RMS or PEAK Detection
- Dual - Mono, no shared contols - Mid side capability
- Stereo and Mono SC Mode Channel A controls become master
- The Stereo signal is phase coherent under all settings
- No phase shift or L-R problems can occur due to the innovative SC design
Product information "Vertigo Sound VSC-3 QUAD DISCRETE COMPRESSOR"
The VSC-3 is the legal successor of the VSC-2, which now is a modern classic and can be found in many top class studios around the world.
Vertigo Sound spent a lot of effort making a good product even better. The VSC-3 can do all the tricks the VSC-2 is known and loved for plus a bunch of new features and options.
The VSC-3 is still named QUAD DISCRETE COMPRESSOR because it`s topology stays the same.
It is so named, because it uses 4 VCAs built using only discrete components. It’s design is a nod toward the best VCA based compressors of the 70s and 80s.
The Vertigo VCA is in fact named 1979. Some of the best features of these classic Compressors have been complimented in the VSC.
This classic based topology is combined with a modern mastering grade signal path. Some unique and innovative features lie beneath the bonnet, such as the ratio which increases with level in ‘Soft’ mode.
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Vertigo Sound
Mustang Sound GmbH
Zenettistr. 11 80337 München Germany
contact@mustangsound.com
Technical Specifications
- True Stereo SC /Mono summed SC/ Dual Mono switchable
- Cinemag Balanced In. That 1646 out
- Dynamic Range: 115 db Frequency response: 10 Hz … 70 kHz at -3dB gainreduction
- Max. Output Level: + 27 dBu / 600 Ohm balanced floating
- Signal to Noise Ratio at + 6 dBu = 97 db (20..20 kHz, unweighted, RMS)
- Noise: – 91 dBu (20 Hz – 22 khz – unweighted, RMS) @ 0 db Unity Gain
- Crosstalk between channels: > 100 db at any frequency
- Power consumption: max 12 Watts
