TK Audio TEQ

€2,279.00*

Availability: Please contact us in urgent cases.

Manufacturer: TK Audio

Product information "TK Audio TEQ"

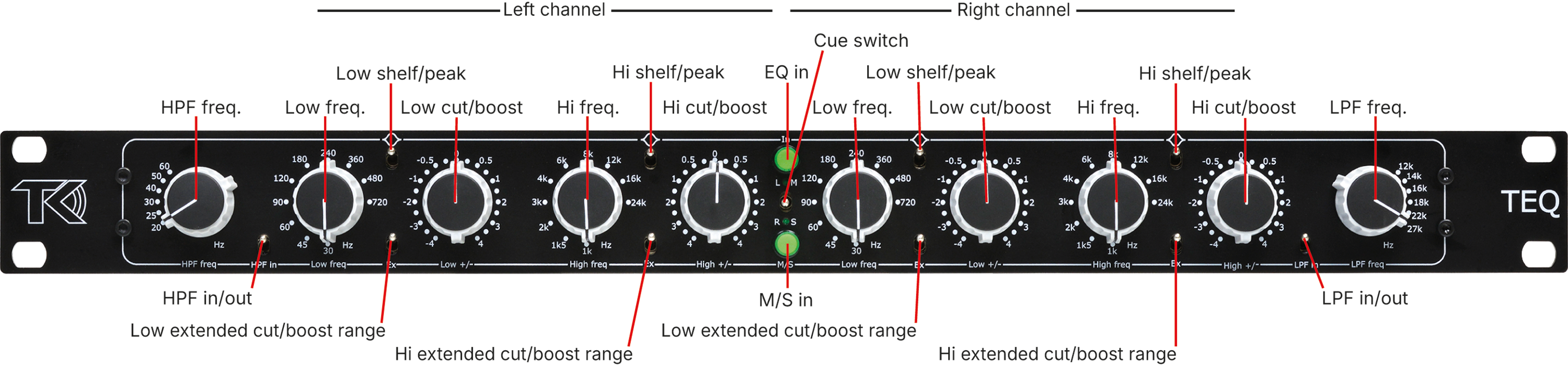

TEQ is a dual-band EQ based on the classic Baxandall circuit from the 1950s, loved by engineers for its smooth and natural sound. The 10 frequencies on each band extends from 30Hz to 720Hz and 1kHz to 24kHz and both bands can be switched between shelf or peak. The cut/boost range starts with 0.25dB steps up to 1dB, then continues with 0.5dB steps up to 4dB and for more cut or boost the Ex switch extend the range up to +/-8dB. TEQ has a low Q (0.5) for gentle tone shaping and musical adjustments. With the HPF removing unwanted low-end rumble, mud and bass build-up from the mix is easy, and the LPF removes harshness and smooths the high-end. HPF and LPF have 6 frequencies each. To make the TEQ even more useful it has a built-in M/S function to effortless adjust the mid and side channel separately. TEQ also has a cue function to monitor left or right channel separately or mid side channel if M/S mode is active.

Safety Warnings:	Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt.

TK Audio

Musikverkstan i Halmstad AB Falkenbergsgatan 10 302 33 Halmstad Sweden

https://tkaudio.se/

All products

· Two bands with 10 frequencies each

· Peak/ Shelving selectable on each band

· Cut/boost with up to 0.25dB resolution

· Selectable extended cut/boost range up to +/-8dB

· HPF and LPF with 6 frequencies each

· M-S function for separate processing of mid and side channels

· Cue switch for monitoring of left/right or mid/side channels

· All rotary controls stepped
