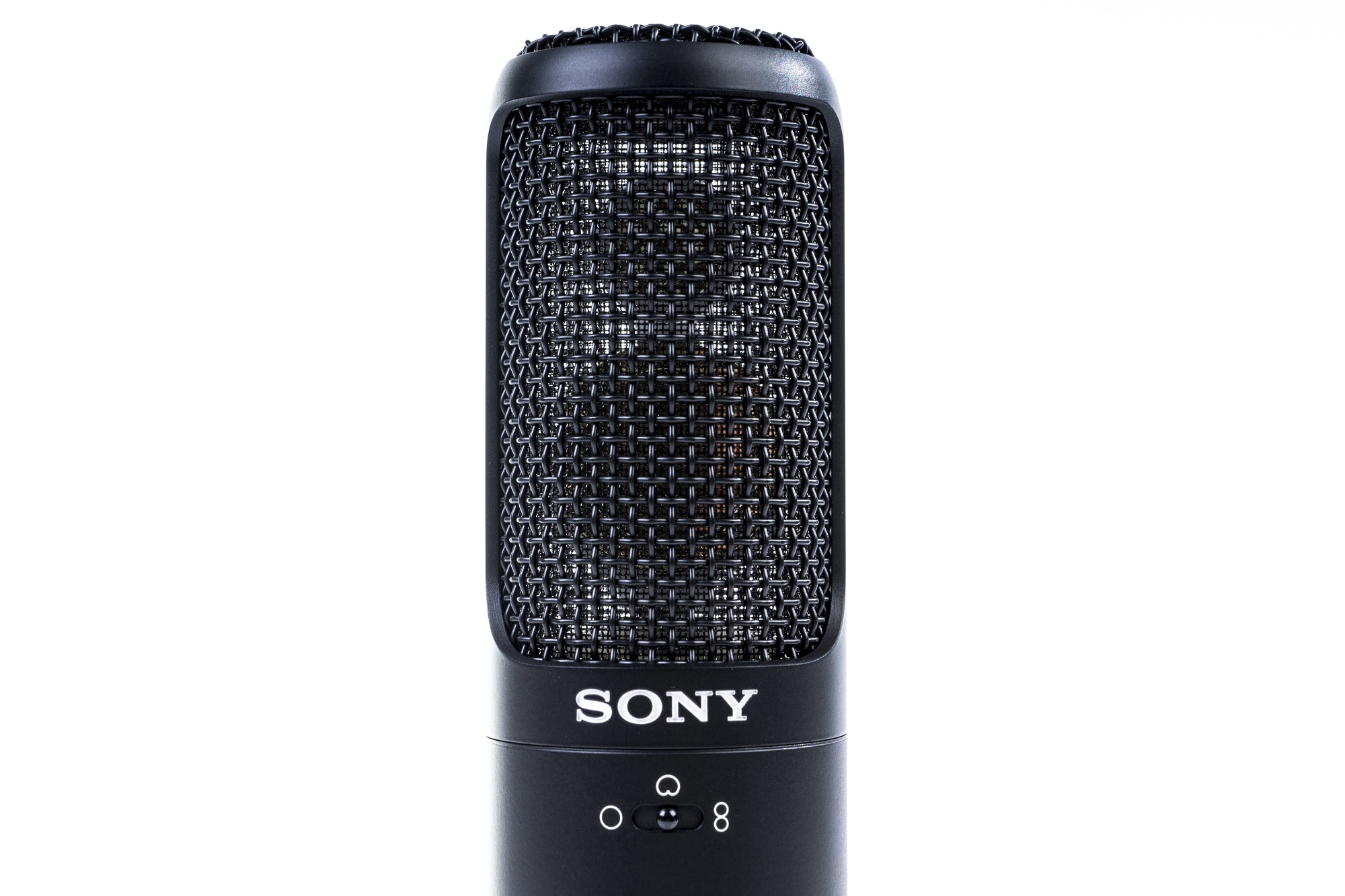

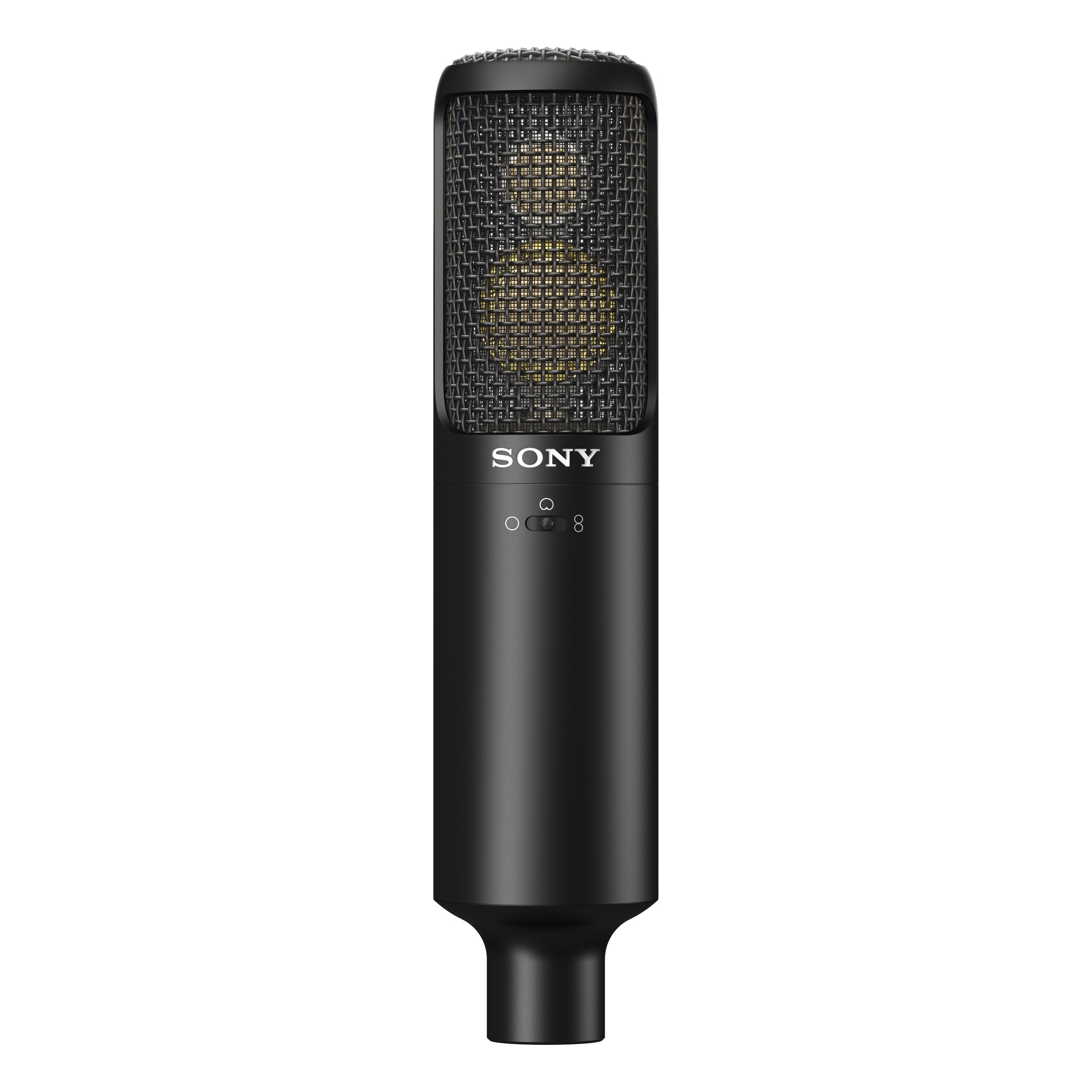

Sony C-100
Entdecken Sie das Sony C-100 Mikrofon mit exzellenter Klangqualität, breitem Frequenzbereich und niedrigem Rauschen. Ideal für vielseitige Aufnahmeanwendungen!
Manufacturer:
Sony
Description
Product information "Sony C-100"
Features:
- Excellent Sound Quality: Two-way diaphragm structure realizes both broad high range and resonant mid-low range and gives great vocal presence.
- Wide Frequency Response: The C-100 microphone has a broad frequency response (20 Hz to 50kHz) and provides superb sound reproduction quality for High-Resolution Audio.
- Noise Elimination Construction: Two-part metallic body structure succeeded from C-800G microphone prevents acoustic vibration resulting in low noise and clear sound.
- Switchable Polar Patterns: The C-100 microphone features switchable uni-directional, omni-directional and Figure-8 ploar patterns for various recording applications.
- Low-Cut Filter: Low-Cut filter switch helps eliminate low-frequency noise and proximity effect.
- Pad Switch: An -10dB pad switch on C-100 microphone provides added headroom and minimizes distortion caused by transient peaks.
Safety Warnings
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Manufacturer information
Sony
Sony Europe B.V., Zweigniederlassung Deutschland
Kemperplatz 1
10785 Berlin
Deutschland
https://www.sony.de/
Tech-Info
| Audio Section | |
| Capsule Type | 2 Way Microphone (Condenser + Back electret condenser) |
| Frequency Response | 20 Hz to 50 kHz |
| Directivity | Cardioid/Omni directional/Bi directional |
| Sensitivity *[1] | -36 dB |
| Output Impedance *[2] | 90Ω±15%, Balanced |
| Dynamic Range | (Cardioid) 113 dB or more |
| (Omni directional) 114dB or more | |
| (Bi directional) 114dB or more | |
| Signal-to-Noise Ratio *[3] | (Cardioid) 76 dB or more |
| (Omni directional) 71 dB or more | |
| (Bi directional) 73 dB or more | |
| Inherent Noise *[4] | (Cardioid) 18 dB SPL or less |
| (Omni directional) 23 dB SPL or less | |
| (Bi directional) 21 dB SPL or less | |
| Wind Noise *[5] | 50 dB SPL or less (with supplied windscreen) |
| Maximum Input Sound Pressure Level *[6] | (Cardioid) 131 dB SPL |
| (Omni directional) 137 dB SPL | |
| (Bi directional) 135 dB SPL | |
| General Section | |
| Connector | XLR-3-12C (male) |
| Mic Cable | XLR 3-pin Cable Required (Not Supplied) |
| Power Requirements | +48 V phantom power |
| Dimensions *[7] | 40dia.×175mm (1.57dia.×6.89in.) |
| Mass | Approx. 290g (10.2oz.) |

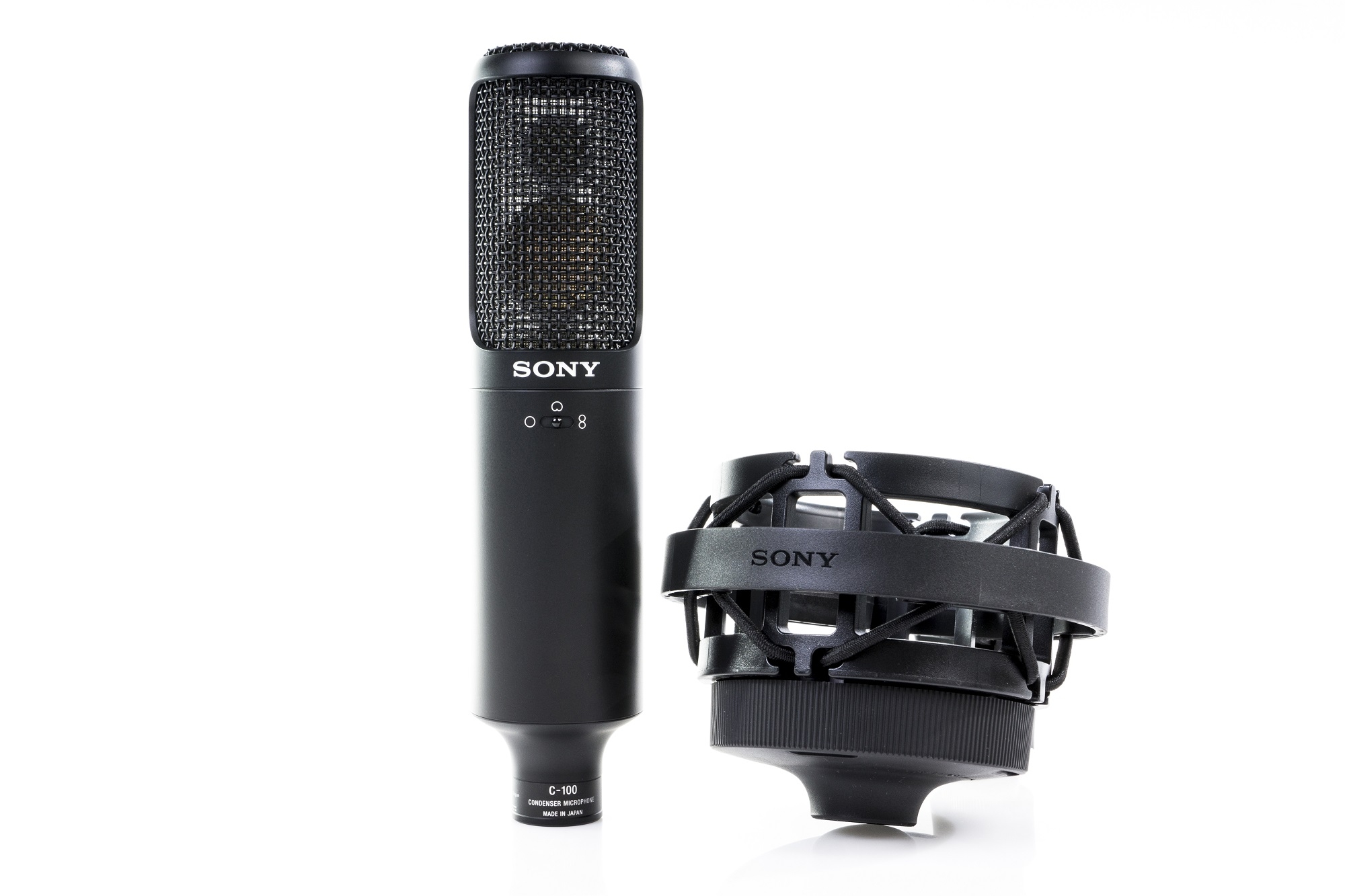

| Supplied Accessories | Cradle suspention (1) |
| Wind screen (1) | |
| Stand screw adaptor (W3/8 to NS5/8) (1) | |
| Operating instructions (1) | |

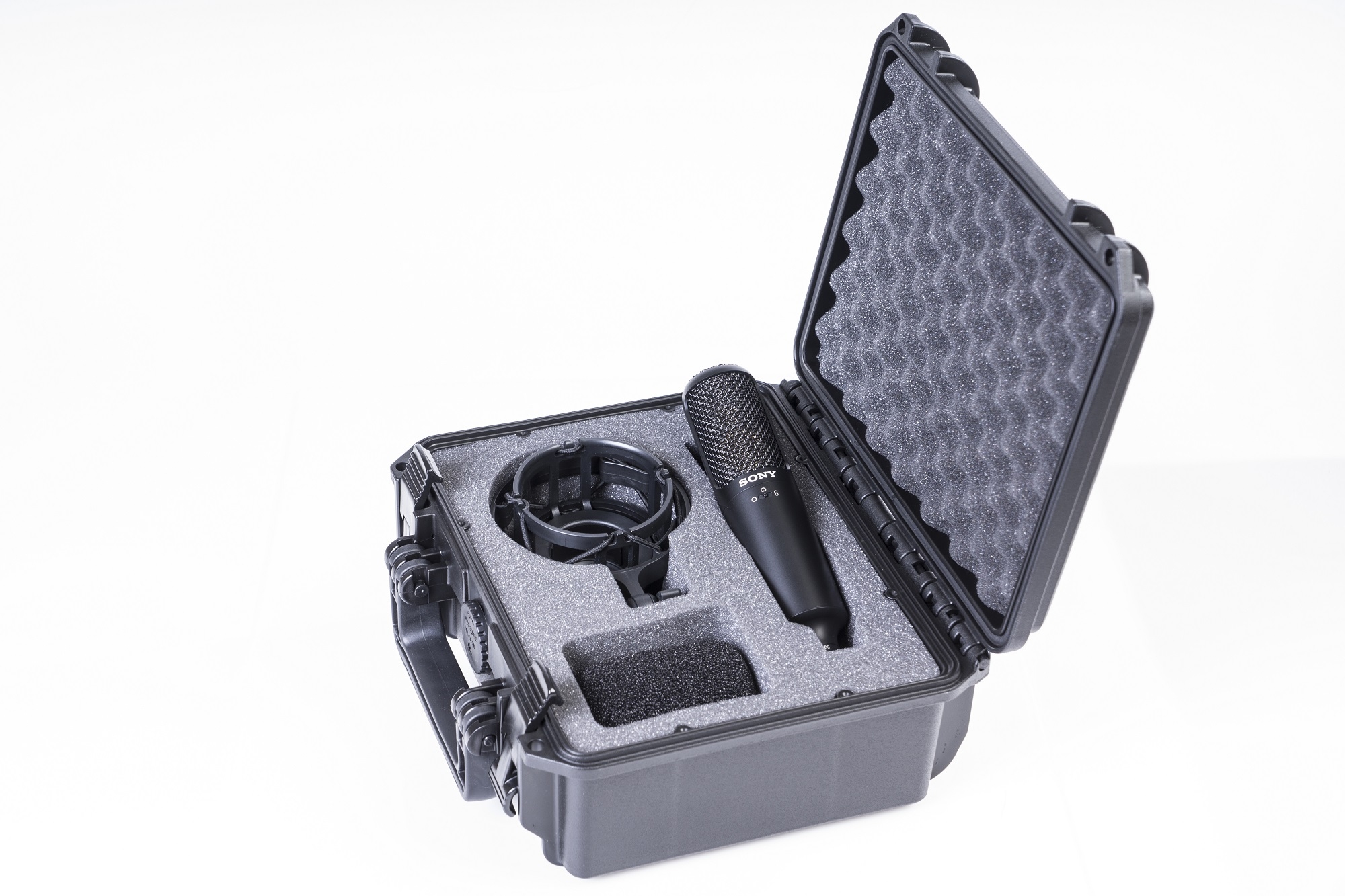

| Carrying case (1) | |
| Optional Accessories | |
| Notes | |
| Note | *[1] 0 dB = 1 V/Pa, at 1 kHz |
| *[2] Output impedance at 1 kHz | |
| *[3] A-weighted, 1 kHz, 1 Pa. | |
| *[4] 0dB SPL = 20μPa. | |
| *[5] Wind noise at 2m/s (0 dB SPL = 20μPa.) | |
| *[6] 0 dB SPL = 20μPa. | |
| *[7] The values for dimensions are approximate. |
