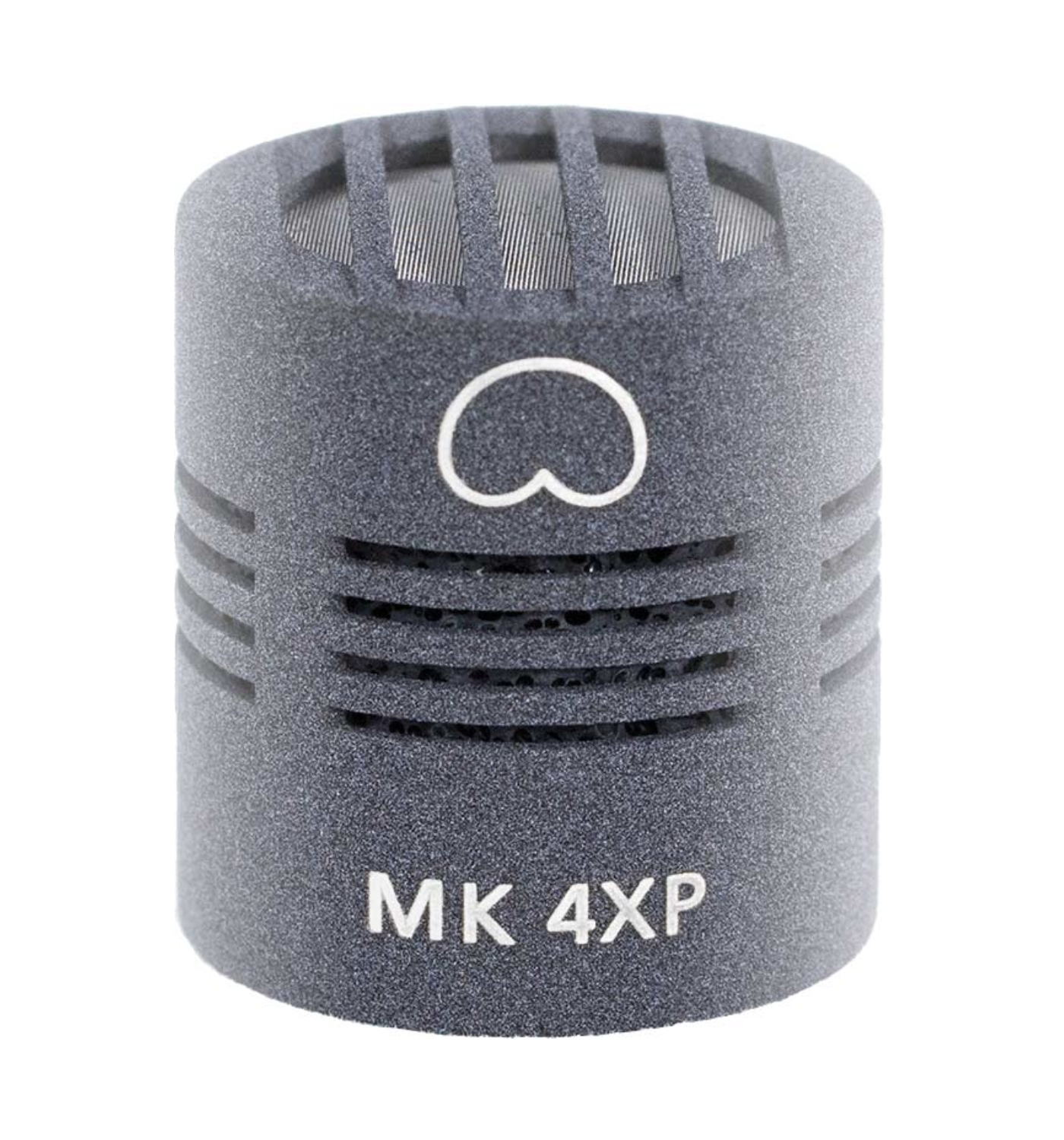

Schoeps MK 4XP

Perfektes Klangbild mit dem Schoeps MK 4XP. Ideal für nahe Sprachaufnahmen (

€828.00*

Prices incl. VAT plus shipping costs

Availability: Please contact us in urgent cases.

Manufacturer: SCHOEPS

Product information "Schoeps MK 4XP"

Cardioid for very close speech pickup (<10 cm)

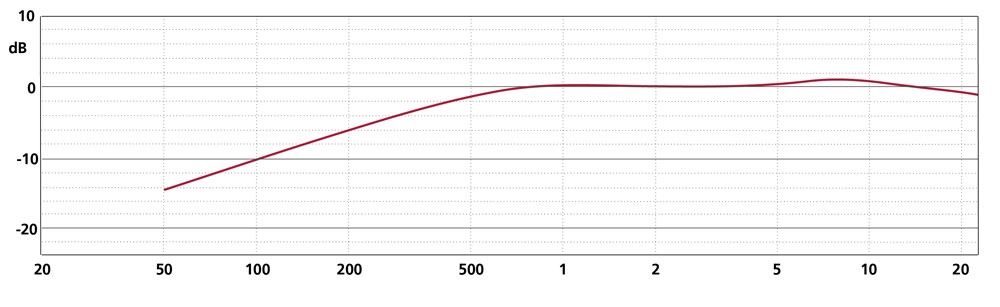

Low-frequency response rolloff (-10 dB at 100 Hz)

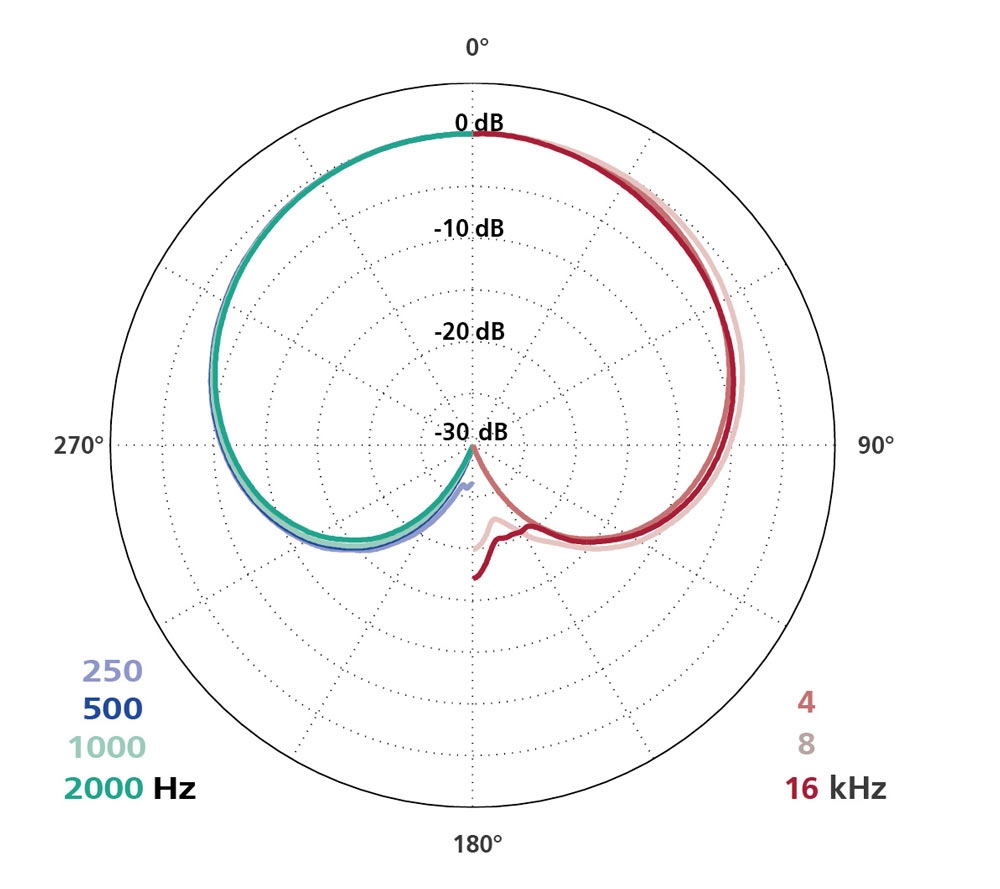

Polar diagram identical as the MK 4
Preferred applications: close speech pickup, public address systems

This cardioid capsule is designed for the very closest speech pickup, i.e. directly in front of the speaker’s mouth.

Its low-frequency rolloff is compensated by proximity effect. Thus it has (up to the point of its high-frequency emphasis) a flat frequency response for the speaker’s voice, while showing a rolloff at low frequencies for all sound that originates from a greater distance. As a result, background sounds are picked up less strongly than the person speaking.

Safety Warnings:	The specific safety instructions for the product are provided in its user manual.

SCHOEPS

Schalltechnik Dr. Ing. Schoeps GmbH

Spitalstr.20 76227 Karlsruhe Germany

info@schoeps.de

All products

Pickup pattern
Cardioid
---
Frequency range
40 Hz - 26 kHz with CMC 6 / CMR,
40 Hz - 42 kHz with CMC 6xt
---
Sensitivity
-37.5 dB (V/Pa), 13 mV/Pa with CMC 6
---
Equivalent noise level (A-weighted)
13 dB with CMC 6
---
Equivalent noise level (CCIR)
23 dB with CMC 6
---
Signal-to-noise ratio (A-weighted)
81 dB with CMC 6
---
Maximum sound pressure level (THD < 0.5 %)
132 dB-SPL with CMC 6
---
Length
22 mm
---
Diameter
20 mm
---
Weight
17 g
---
Surface finish
matte gray (g) or custom color
