SSL UF1

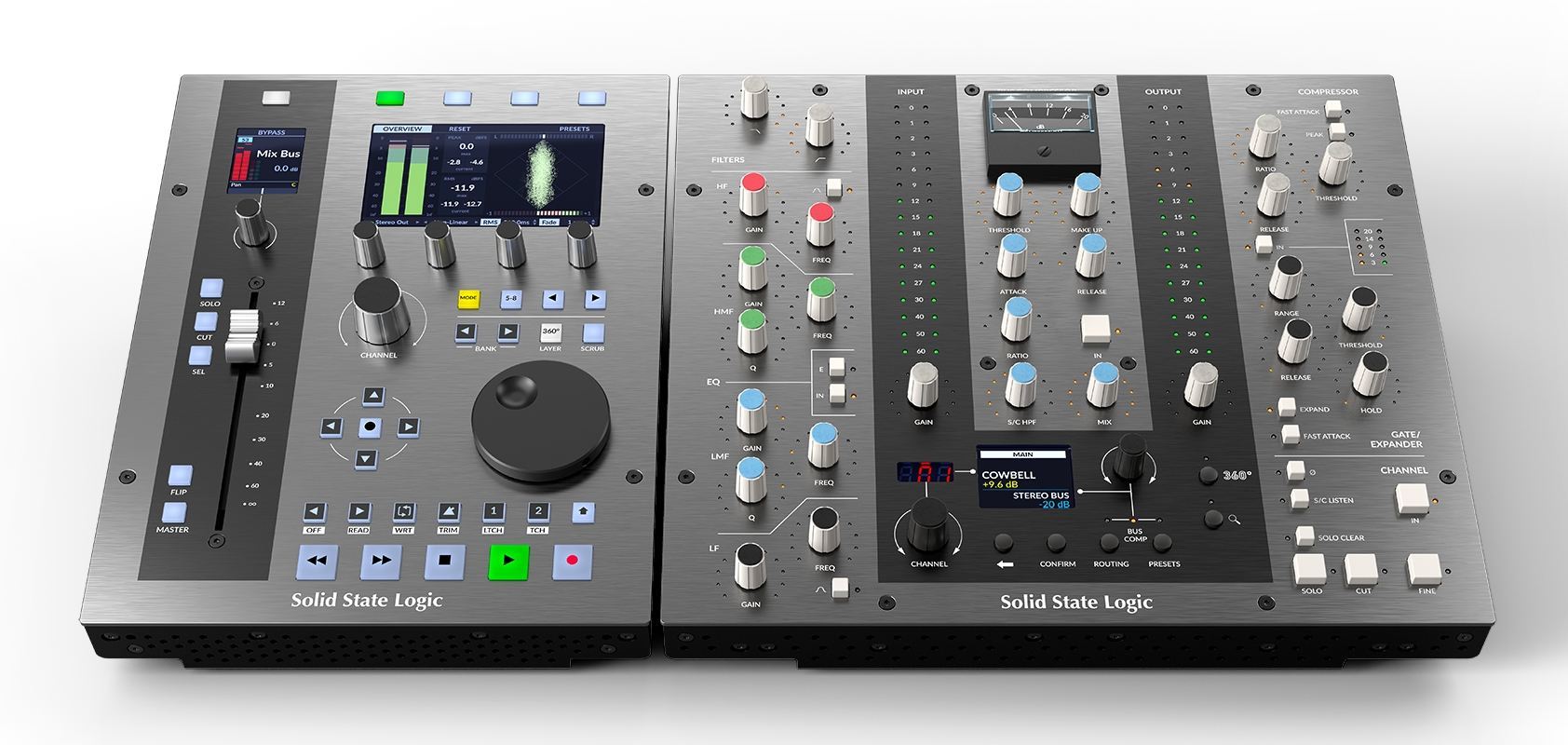

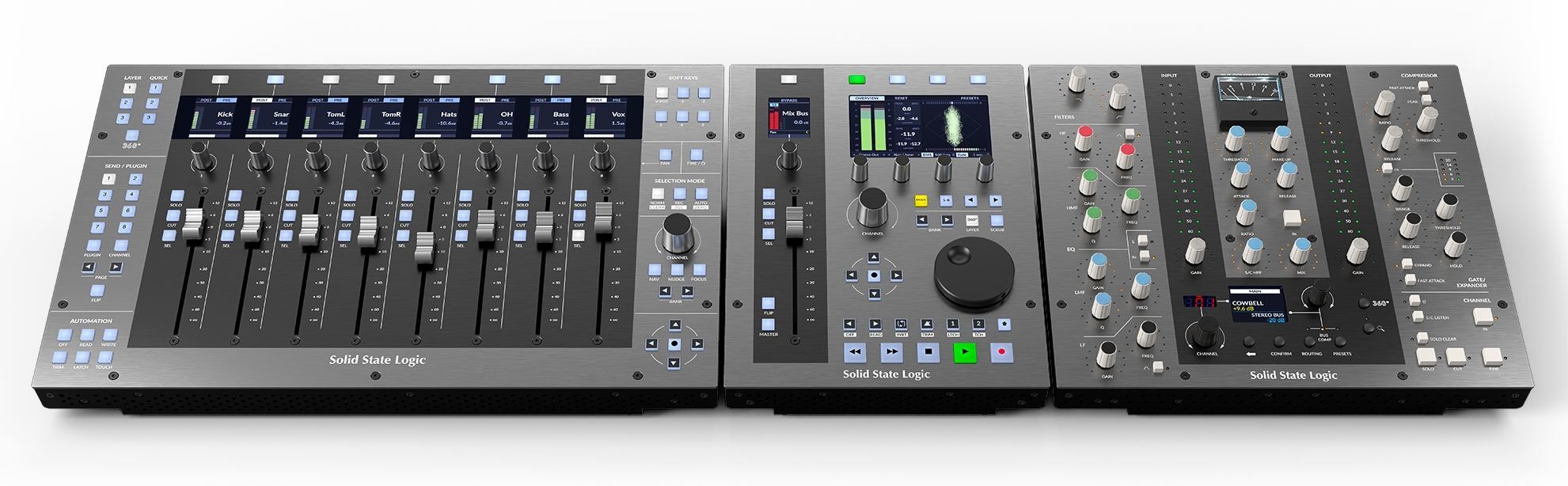

- The clever SSL Eco-System – DAW controller for stand-alone use or as a master unit in combination with up to four UF8s, one UC1 and the SSL 360° software
- Intuitive access and maximum control – touch-sensitive faders and encoders, weighted jog/scrub wheel, 46 user keys
- Perfect overview – two high-resolution color displays for showing DAW tracks, parameters such as EQ curves and gate/compressor activity, as well as the SSL Meter plug-ins (licenses included)
- All in One – support for all common formats and easy switching between three simultaneously connected DAWs (including extended SSL functionality)
- Individual scaling and configuration – different sessions, key assignments and setups can be conveniently managed for all devices via software on Mac and PC
Product information "SSL UF1"

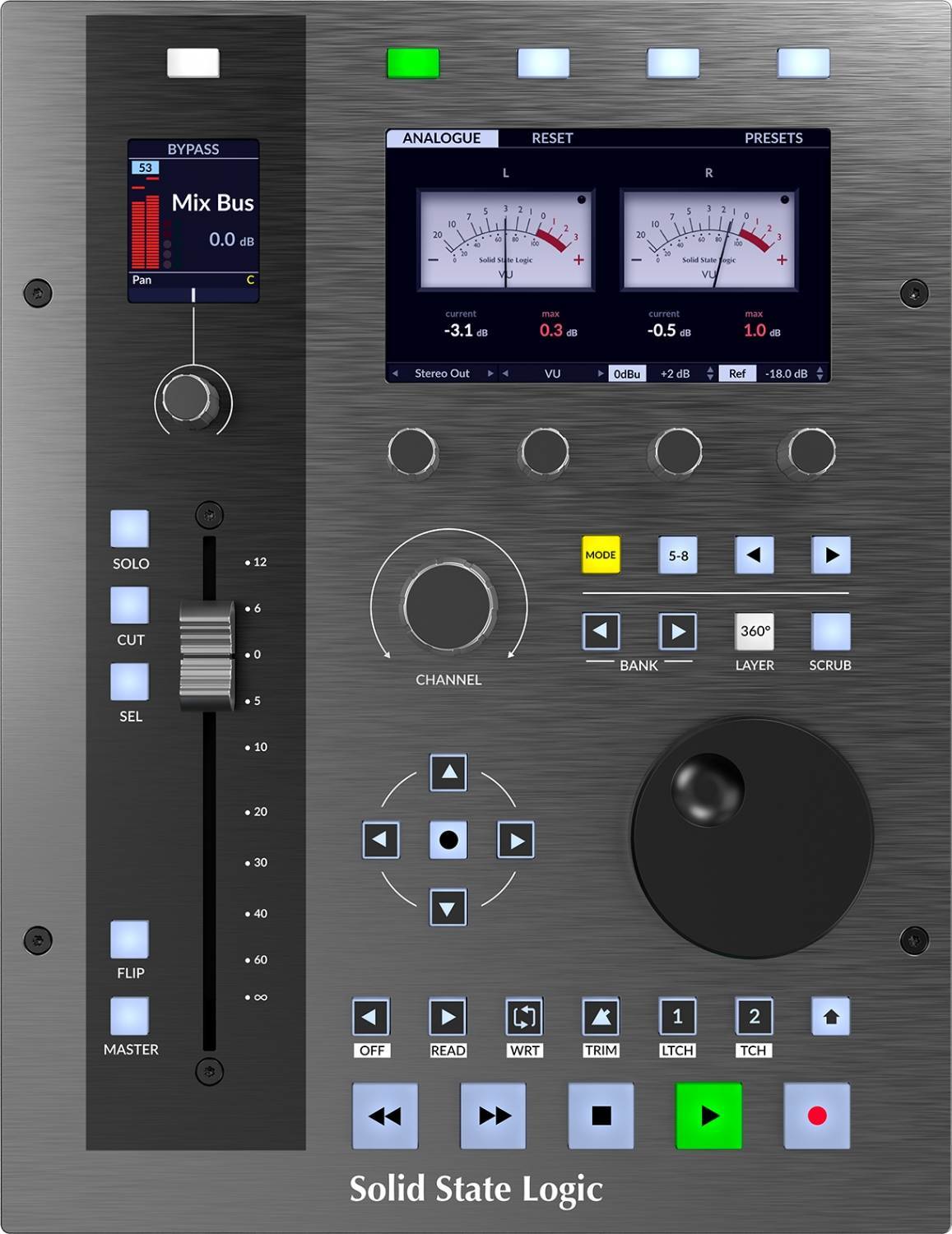

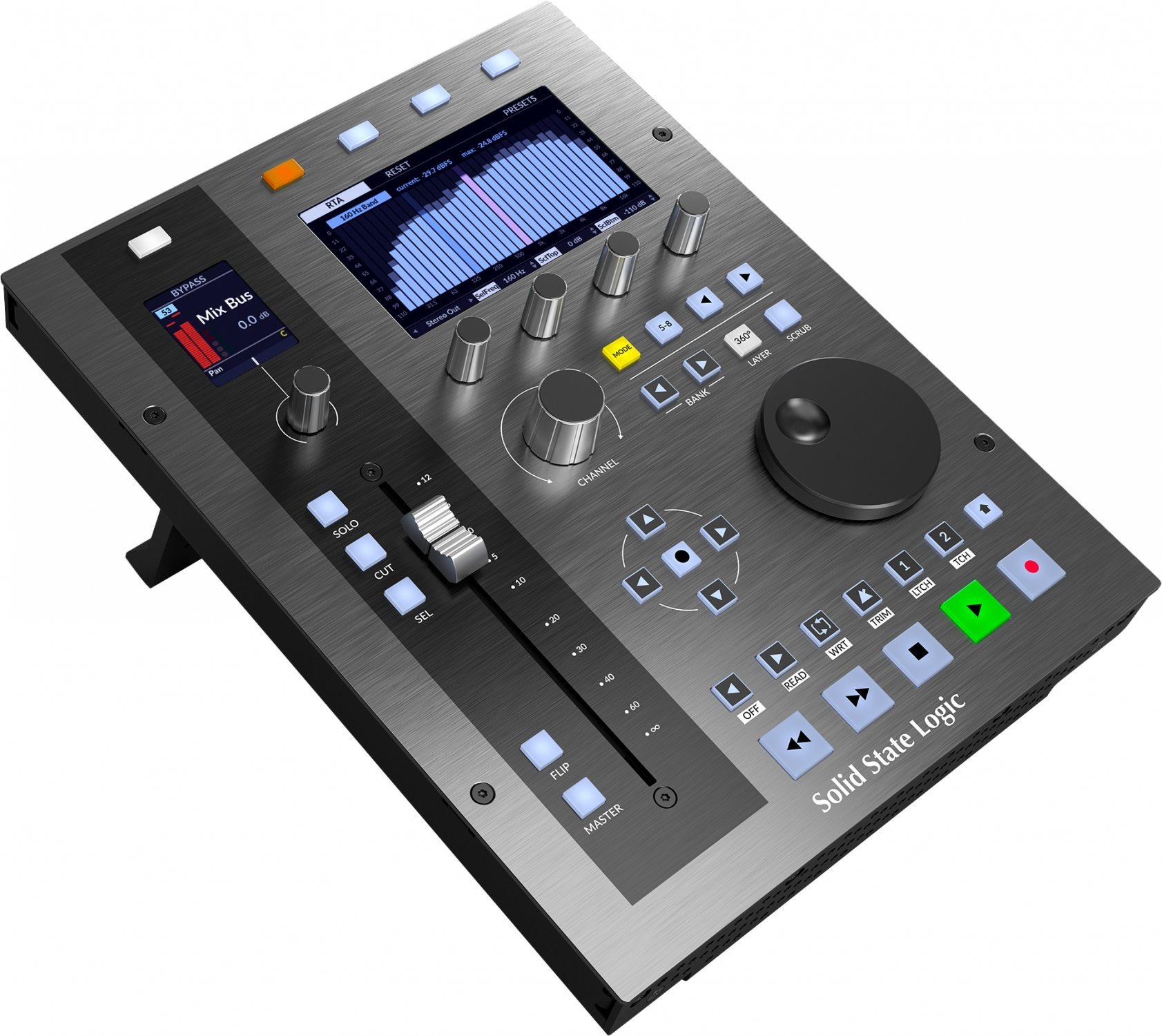

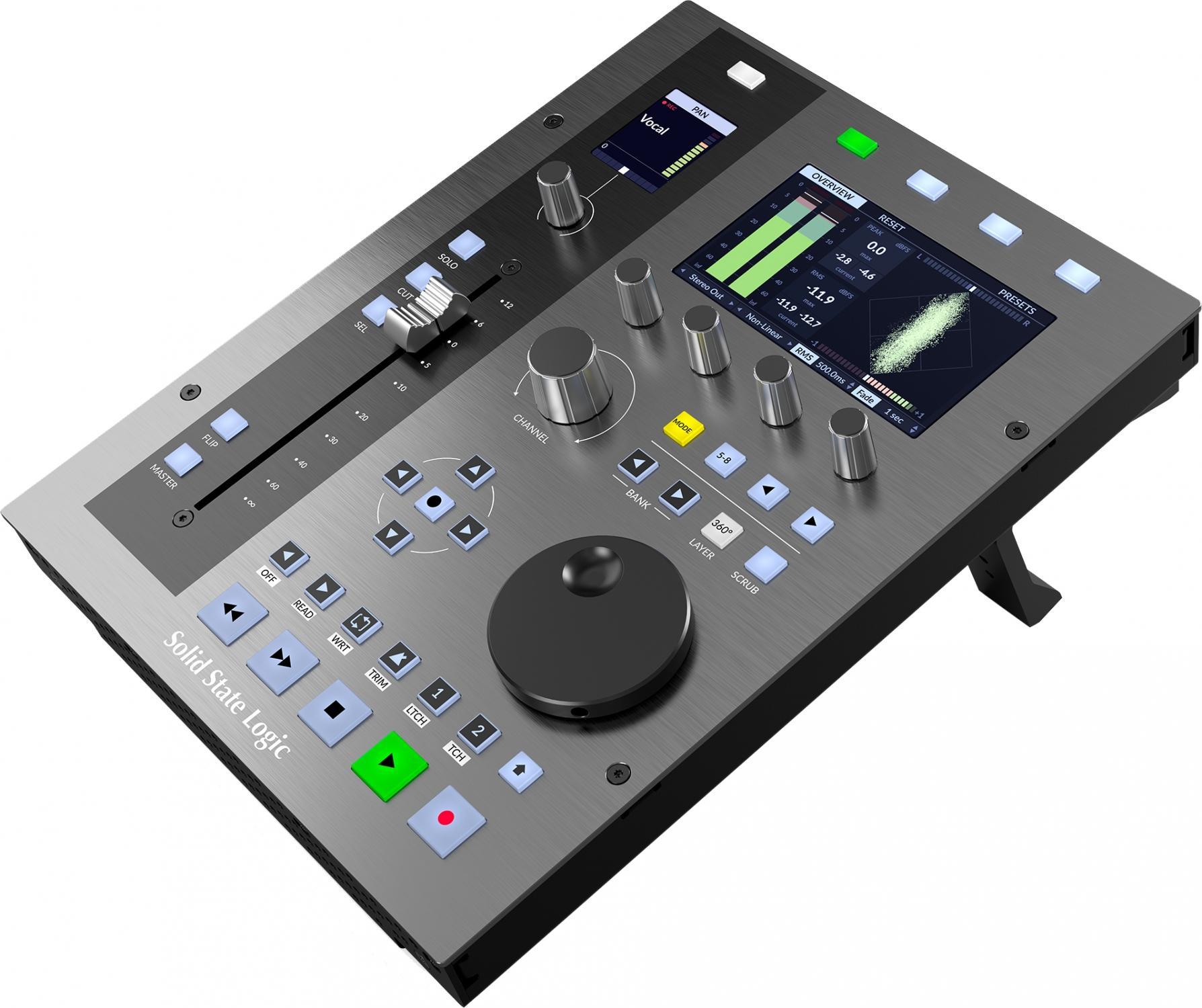

The SSL UF1 is the ultimate single-fader controller, designed to streamline your in-the-box productions with the legendary SSL workflow and premium build quality. It features a motorized 100 mm fader, two high-resolution color displays, soft-touch RGB rubber buttons, and a weighted jog wheel, all housed in a robust and elegant metal chassis.
With the UF1, you gain precise control over pans, sends, and plug-ins, while 46 customizable soft keys allow you to tailor the controller to your personal workflow. It also supports control of up to three DAWs simultaneously, making it a powerful tool for modern multi-DAW environments.
The UF1 provides clear and detailed visual feedback through its dual displays, showing track names, parameters, time information, and SSL plug-in data. Integration with the SSL Meter plug-in and SSL 360° software ensures intuitive operation and deep control over your entire session.
It supports DAW profiles for Pro Tools, Logic, Cubase, Studio One, Ableton Live, LUNA, and Pyramix. High-quality transport controls and a weighted jog wheel enable fast and efficient navigation. Additional transport buttons can be customized for workflow shortcuts or used to quickly access automation modes.
The premium motorized 100 mm fader delivers accurate automation writing and precise level control during recording and mixing. The displays also provide real-time visualization of SSL channel strip plug-ins, including EQ curves and dynamics processing activity.
Each UF1 includes a perpetual license for the SSL Meter plug-in, offering essential metering tools such as peak, RMS, K-system, stereo balance, phase correlation, Lissajous scope, and 31-band RTA, VU, and PPM metering.
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
- Technical data:
- Transport Buttons and Weighted Jog/Scrub Wheel
- Touch-Sensitive 100 mm Motor Fader
- 4 + 1 High-Quality Rotary Controls with Push Function
- Two High-Resolution TFT LCD Color Displays (4.3" / 1.77") for displaying track names, parameters, SSL Meter plug-in details, and more
- Illuminated RGB “Soft Feel” Buttons
- High-Quality Metal Housing with Brushed, Anodized Top Panel
- Control of up to 3 Different DAWs Simultaneously
- HUI and MCU DAW Profiles for Pro Tools, Logic, Cubase, Studio One, Ableton Live, LUNA, Pyramix
- Multifunctional, Detented Master Encoder for convenient DAW navigation, track banking, and mouse-wheel emulation
- 46 Individually Assignable Buttons for frequently used shortcuts/macros

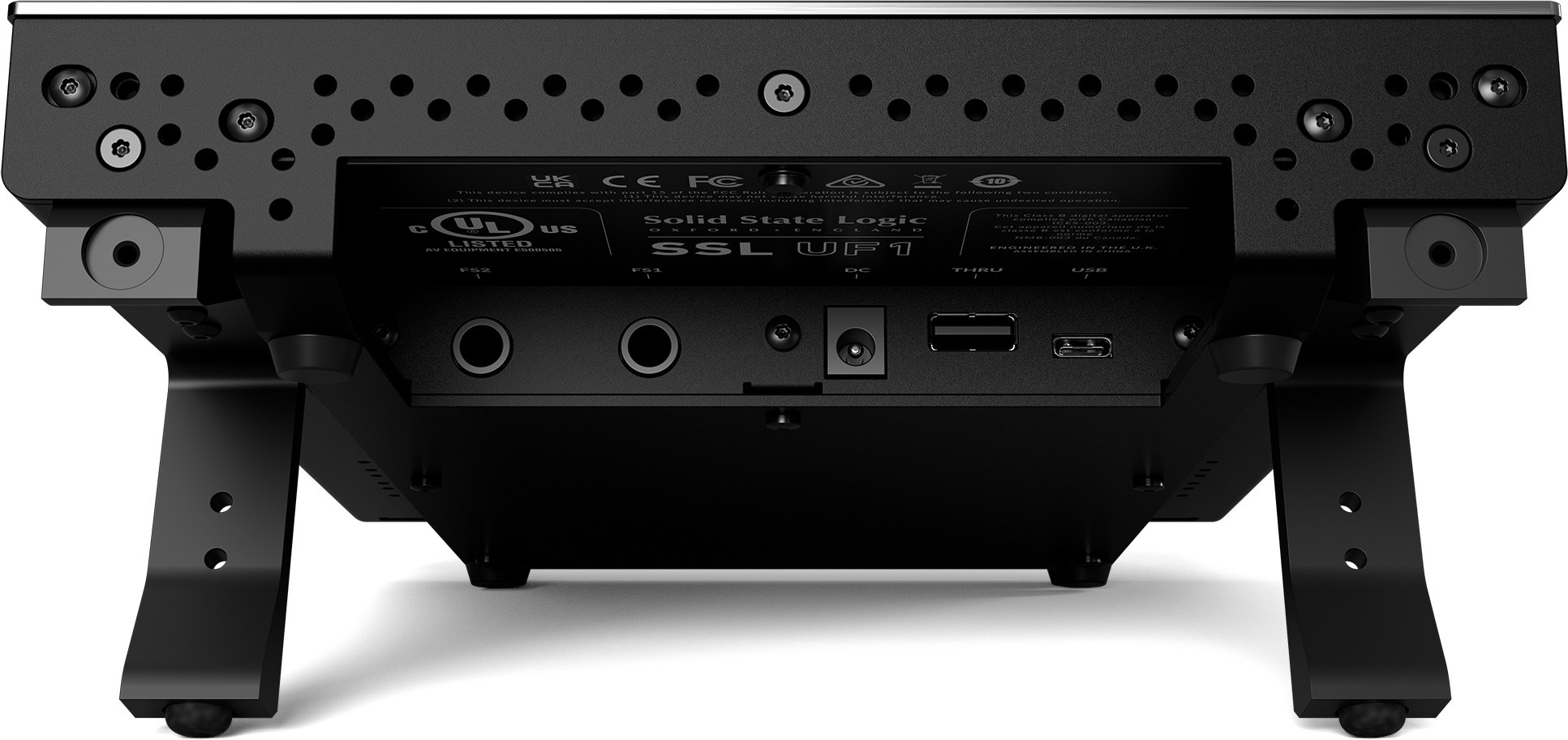

- 2 Footswitch Connections
- Stress-Free Computer Connection via High-Speed USB
- Programming via SSL 360° Software for Mac and PC
- Adjustable Feet Included
- Software License for the SSL Meter Plug-in Included
- Dimensions (W x D x H): 205 x 266 x 62.7 mm
- Weight: 2.9 kg (without packaging) / 5 kg (with packaging)
