SSL Origin

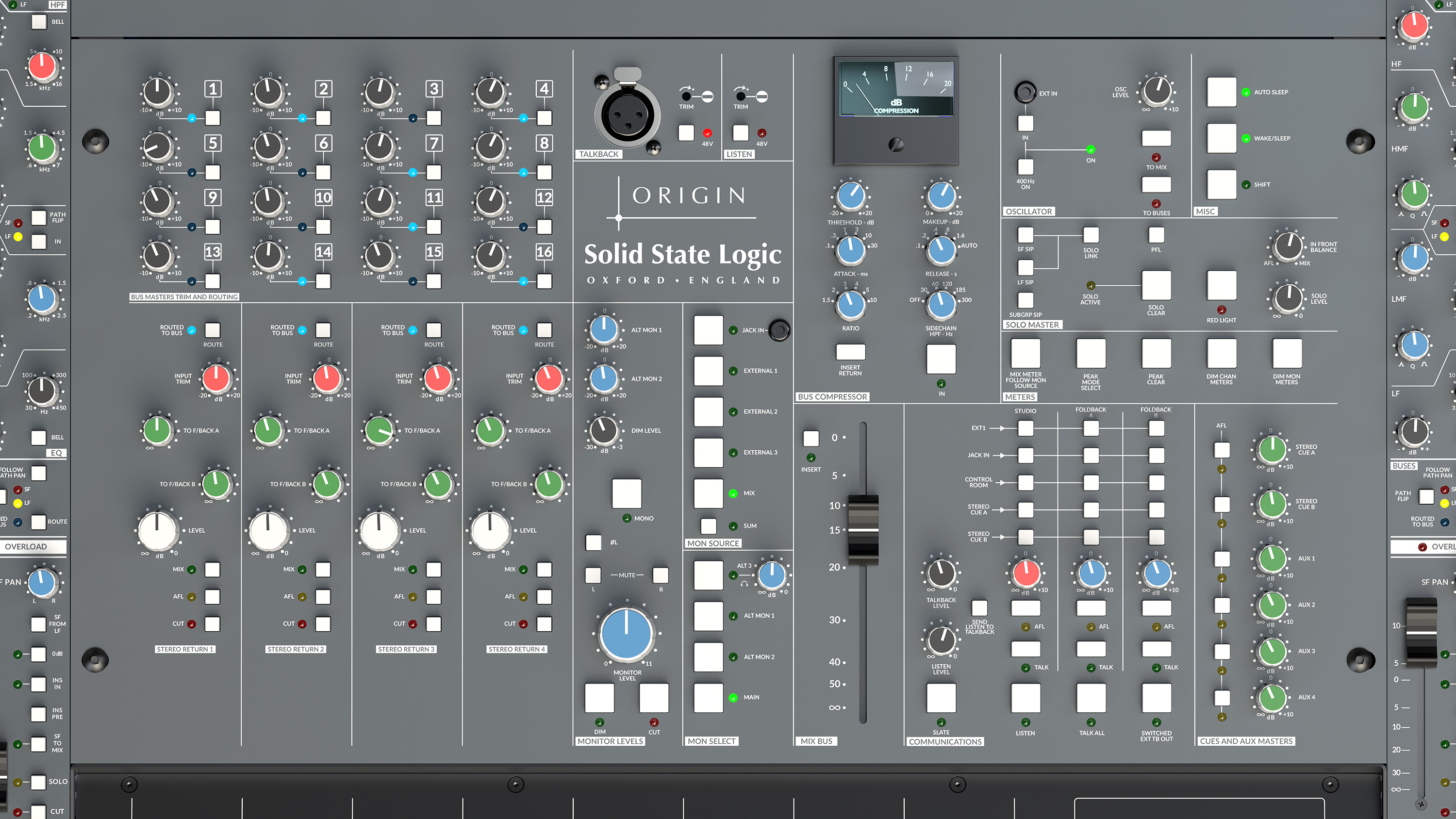

- Master Control section designed for fast and creative session workflow
- Integrated SSL Bus Compressor with new ratios, insert return, and sidechain filter
- Central bus routing matrix with sixteen ±10dB trims and assign switches
- Auto Sleep mode for reduced power consumption and improved efficiency
- Comprehensive Solo Master Section with multiple solo modes and options
- High-quality Mix Bus fader with fully balanced switched insert for outboard gear
- Flexible monitoring with independent trims, DIM level, mono and mute functions
- Four stereo return inputs with routing to Mix and Track buses
- Wide operating voltage range (100V–240V AC) for global compatibility
- Built to SSL’s legendary SuperAnalogue™ standards for durability and pristine audio quality
Product information "SSL Origin"
As the latest in a long line of SSL studio mixing consoles, ORIGIN embodies the essence of traditional analogue workflow while serving as the ideal partner for a modern, DAW-driven hybrid production environment. Its classic design draws inspiration from the very origin of in-line consoles, integrating advanced analogue developments to deliver a distinct, unmistakably SSL sonic character.
More than the culmination of four decades of technical innovation, ORIGIN reflects SSL’s deep understanding of studio workflow and integration. The console offers the immediacy, intuitive layout, and ergonomic excellence required to inspire creativity in any professional studio. Available in both 16- and 32-channel configurations, ORIGIN brings the power and sound of a true analogue SSL console to studios of all sizes, maximizing efficiency and complementing today’s digital tools and production techniques.
Solid State Logic
Solid State Logic UK Limited
Spring Hill Road Begbroke Oxford OX15 6DS
marketing@solidstatelogic.com
KLANG:TECHNOLOGIES GMBH
Wespienstraße 8-10 52062 Aachen Germany
contact@KLANG.com
Type: Analog Console
Channels: 32

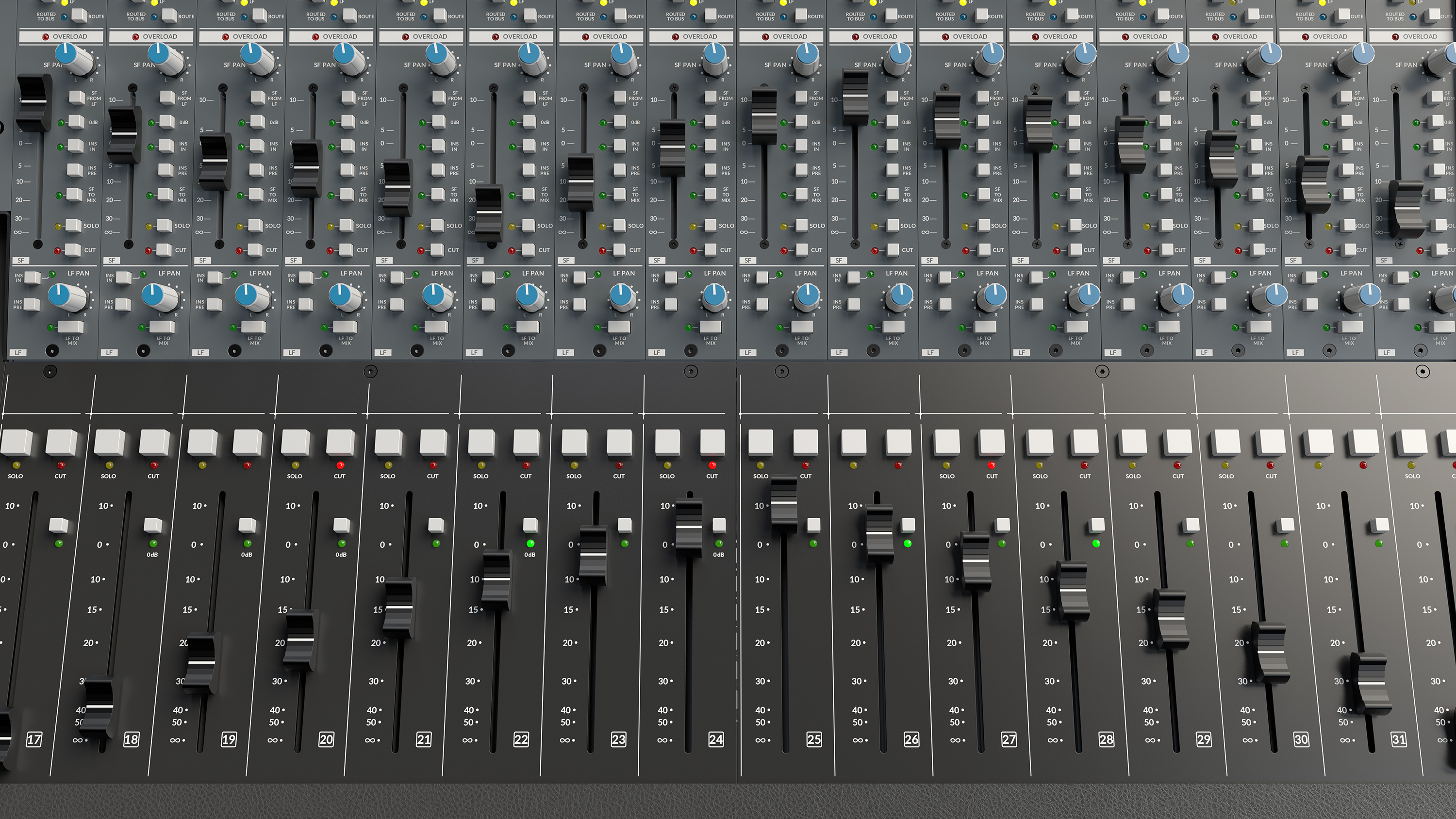

Faders: 60mm Small Fader (per channel), 100mm Large Fader (per channel)
Inputs - Mic Preamps: PureDrive Mic Preamps
Aux Sends: 2 x Stereo Cue, 4 x Mono Aux Sends
Busses/Groups: 16+2 Bus
Inserts: Balanced Inserts (per channel)
Talkback: 1 x XLR (center section), 1 x Rear Panel Listen Mic
EQ Bands: E-Series 242 EQ: 4-band Parametric EQ, High/Low Bell switch, High/Low Shelf switch, Sweepable HPF
Signal Processing: SSL Bus Compressor
Automation: Yes
DAW Control: Yes
Height: 40"
Width: 70" (including trim)
Depth: 43"
Weight: 330 lbs.
Manufacturer Part Number: 724900X2
