SPL Electronics DMC
- Dual-channel mastering console in a rugged 3RU rackmount chassis
- Four stereo inputs for multiple sources
- Three stereo and two mono speaker outputs (including sub and “radio” speaker)
- 0.25dB stepped input and insert return trims for precise control
- Phonitor direct output for accurate headphone monitoring
- 120V DC audio rail with 5G Supra op-amps for ultra-clean signal
- Two stereo recording outputs
- Expandable multichannel monitoring for complex setups
- Insert and source auto bypass for streamlined workflow
- Variable dim for loudness compensation
- Stereo and mono metering outputs for accurate monitoring
Product information "SPL Electronics DMC"
The DMC is the central hub of any mastering studio, connecting converters, players, DAWs, recorders, and speakers with unparalleled precision. Audio quality is paramount, and the DMC delivers, operating on Spectra’s renowned 120V technology. Designed for professional mastering environments, this console provides uncompromising sound integrity, flexible routing, and detailed monitoring for the most demanding audio production tasks. Its robust 3RU chassis ensures reliability while maintaining a sleek, professional appearance.

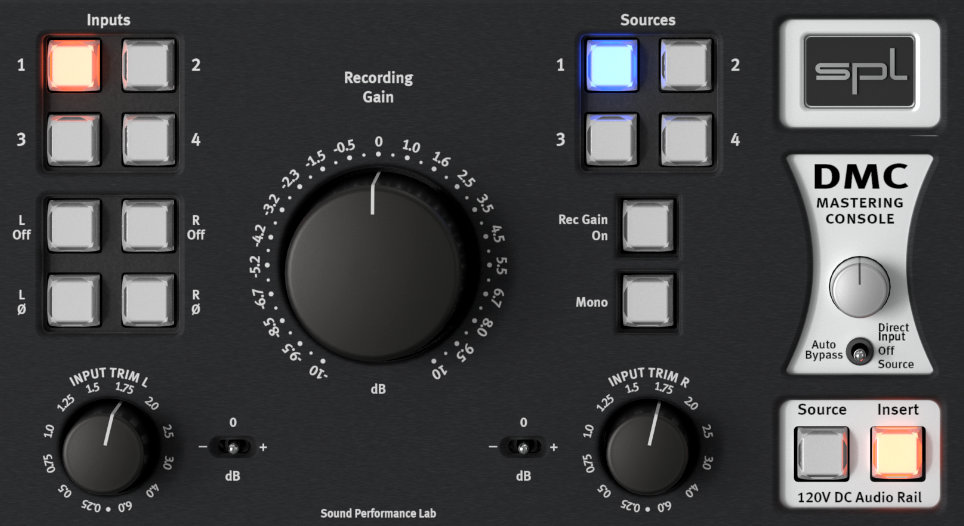

Inputs & Sources
Audio signals that shall be processed are connected to the Inputs and audio signals for comparison or playback are connected to the Sources. Four stereo input pairs are available for each.
Each input channel can be switched on/off, phase reversed and trimmed in 0.25 dB steps. A stereo input can be switched to mono.
The large potentiometer for the recording gain allows sensitive gain rides. If it is not used, it should not be activated. This keeps the entire control stage outside the signal path.
Recording Signal Flow

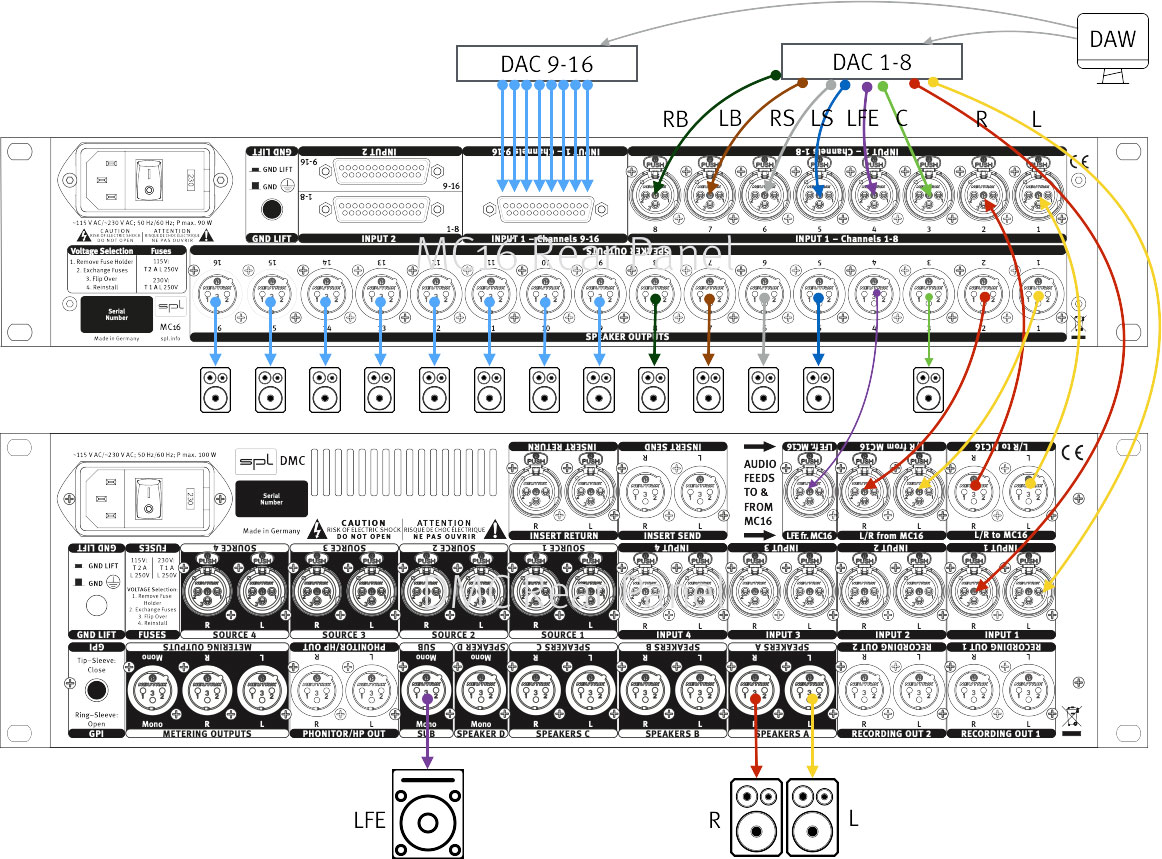

DMC & MC 16
SPL
SPL electronics GmbH
Sohlweg 80 41372 Niederkrüchten Germany
info@spl.audio
https://spl.audio
Analog Inputs & Output: XLR (balanced)
Maximum Input & Output Gain: 32.5 dB
Input Impedance: 20 kΩ
Output Impedance: 75 Ω
Common Mode Rejection: -82 dBu
Frequency Range (-3 dB): 4 Hz – 300 kHz
Noise (A-weighted, +24 dBu, Rec Out, Insert On): -101.6 dBu
Noise (A-weighted, +24 dBu, Speaker Out): -103.9 dBu
THD & N (+24 dBu, Rec Out, Insert On): > 112 dB
THD & N (+24 dBu, Speaker Out): > 108 dB
Internal Power Supply: Linear with Shielded Toroidal Transformer
Operating Voltage for Analog Audio: +/- 60 V
Operating Voltage for Relays and LEDs: +12 V
Mains Power Supply: Selectable 230 V AC / 50 Hz or 115 V AC / 60 Hz
Fuse: T 1 A (230 V), T 2 A (115 V)
Power Consumption: Max 40 VA
Dimensions (W x H x D): 482 x 132 x 300 mm / 19 x 5.2 x 11.8 inch
Unit Weight: 10.2 kg / 22.49 lbs
Shipping Weight (incl. packaging): 12.35 kg / 27.22 lbs
