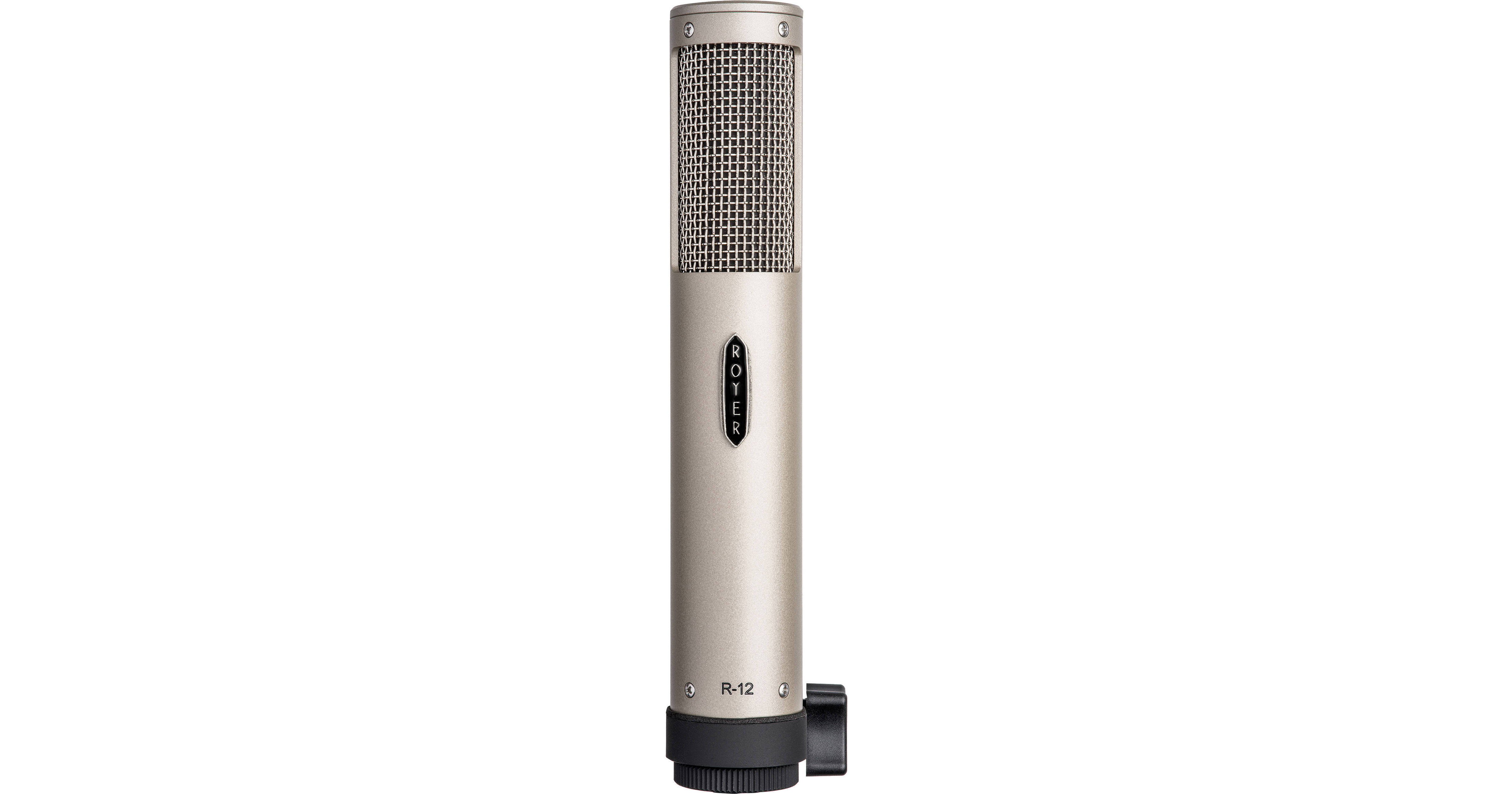

Royer Labs R12
- Ideal for vocals, brass, pianos, and drums
- 2.5-micron ribbon element from the R-121
- Handles up to 160 dB SPL
- Switchable -15 dB pad for loud sources
- Switchable 100 Hz high-pass filter
- Active circuitry optimized for quieter instruments
- Internally shock-mounted ribbon design
- Triple-layer metal windscreen for plosive protection
- Includes mic holder, mic sock, and carrying case
Product information "Royer Labs R12"
Built for outstanding performance in both studio recording and live sound environments, the Royer Labs R-12 Active Ribbon Microphone features a figure-8 pickup pattern and active circuitry that delivers high output with minimal noise. Perfect for acoustic and amplified instruments such as guitars, pianos, brass, and drums, the R-12 offers a warm, natural tone rich in detail and character.
Equipped with the same 2.5-micron ribbon element found in the legendary R-121, the R-12 achieves an impressive SPL handling of up to 160 dB when the -15 dB pad is engaged—ideal for the loudest sound sources. A switchable 100 Hz high-pass filter effectively reduces proximity effect and low-end build-up, making it ideal for close-miking applications. The internal ribbon element is shock-mounted to minimize handling noise, while the triple-layer metal mesh windscreen ensures protection against plosives. The package includes a mic holder, mic sock, and carrying case for reliable portability and protection.
Royer Labs
Royer Labs
2711 Empire Ave., Burbank CA, 91504
https://royerlabs.com
S.E.A. Vertrieb & Consulting GmbH
Zum Sunderhügel 13 48488 Emsbüren
info@sea-distribution.com
https://www.sea-distribution.com/
Microphone
- Polar Pattern: Figure-8
- Element Type: Ribbon
- Sound Field: Mono
- Diaphragm: 0.1 mil / 2.5 µm
- Orientation: Side Address

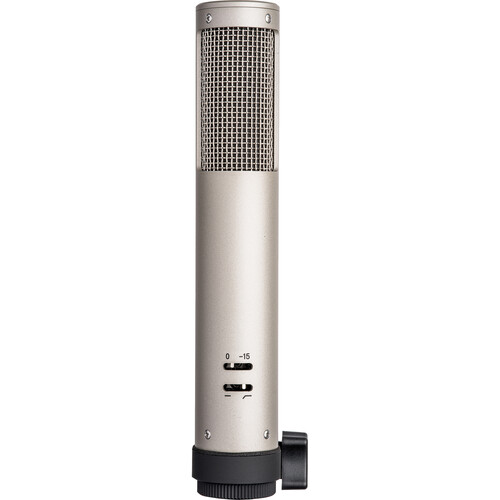

- Controls: Low Cut / HPF, Pad
- Pad: -15 dB
- Filter & EQ: Low-Cut Filter: 100 Hz, 6 dB/Octave
- Circuitry: Solid-State
Performance
- Frequency Response: 30 Hz to 15 kHz ±3 dB
- Maximum SPL: 160 dB (with Pad), 135 dB (without Pad)
- Sensitivity: -36 dB
- Equivalent Noise Level: 16 dB
Connectivity
- Analog Output: 1x XLR 3-Pin Male (Locking)
Power
- Power Source: Phantom Power
- Operating Voltage: 48 V (Phantom Power)
Physical
- Color: Silver
- Mounting Thread Size: 5/8"-27 Female
- Dimensions: H: 8.25" x W: 1.4" / H: 20.95 cm x W: 3.5 cm
- Weight: 16.3 oz / 462 g
