RTW TouchMonitor 5 RAVENNA
Features
- Network-based advanced loudness meter with 5" touch screen
- Supports 16 channels for immersive formats such as Dolby® Atmos
- Provides a comprehensive suite of measurement tools for loudness, level and phase
Product information "RTW TouchMonitor 5 RAVENNA"
The TouchMonitor 5 is our compact loudness meter designed for Audio over IP applications. Building on our proud tradition of crafting broadcast-ready metering devices, this model boasts a 5-inch intuitive touchscreen and a space-saving design, perfect for your desktop.

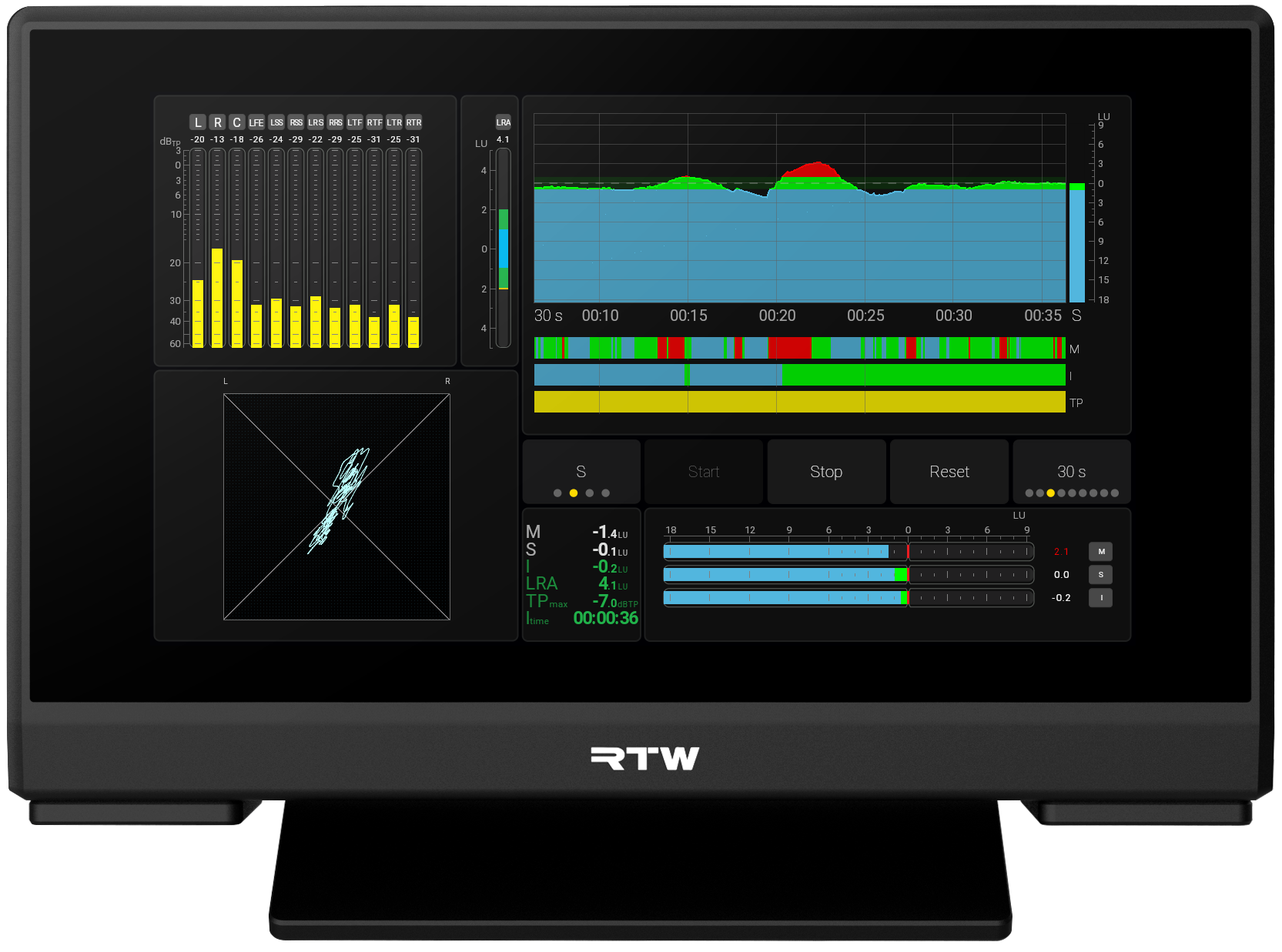

The TouchMonitor 5 delivers RTW-standard precision metering, featuring a Loudness Chart for tracking loudness over time and a Vectorscope for detecting phase issues.
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|

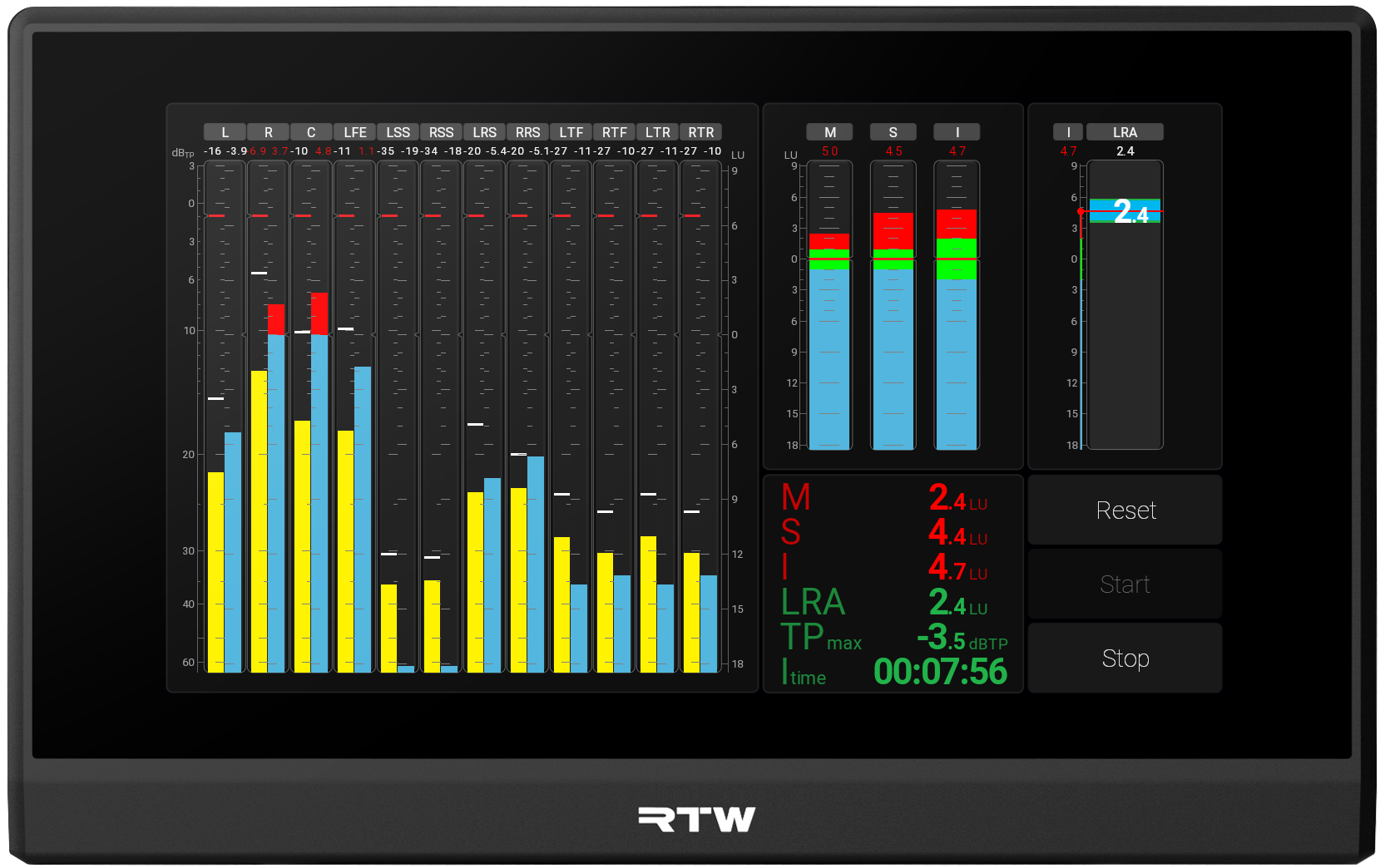

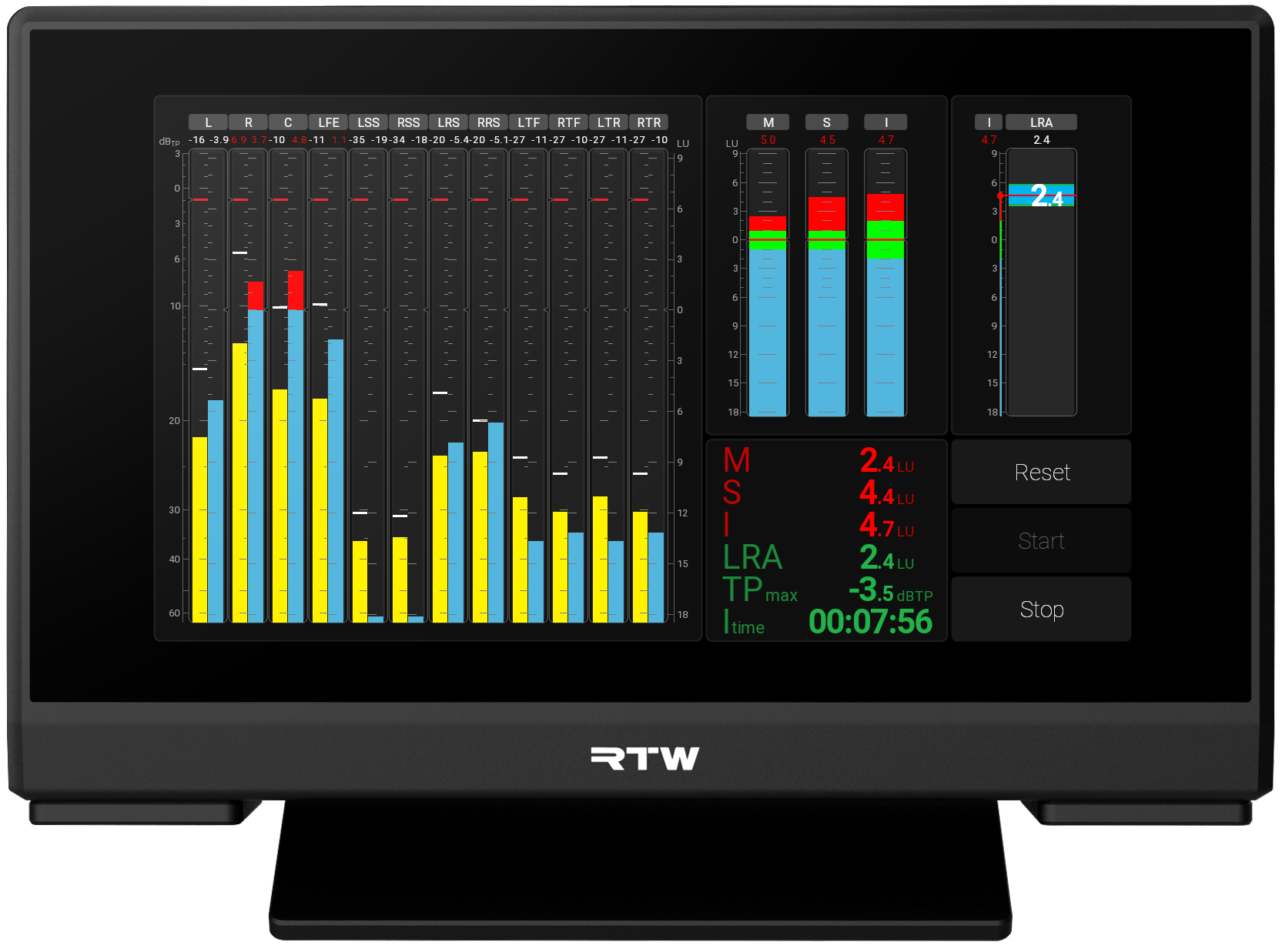

- Immersive meter with 5” touch display and 16 channels
- Support for stereo- surround and -immersive formats including 5.1 and 7.1.4
- RTW precision metering with customizable PPM and TruePeak bargraphs and Moving Coil instruments
- Audio Vectorscope and Phase Correlation Meter
- Chart instrument for the measurement of Loudness over time
- Full implementation of the latest loudness standards and recommendations including dialog gated loudness
- Bargraphs for summed Loudness with Momentary, Shortterm, Integrated values, and Loudness Range (LRA)
- Numerical display of all relevant values like M, S, I, LRA, TPmax, Mmax, Smax, Itime, Sd, Id, LRAd, D%
- LRA instrument
- Customizable view pages

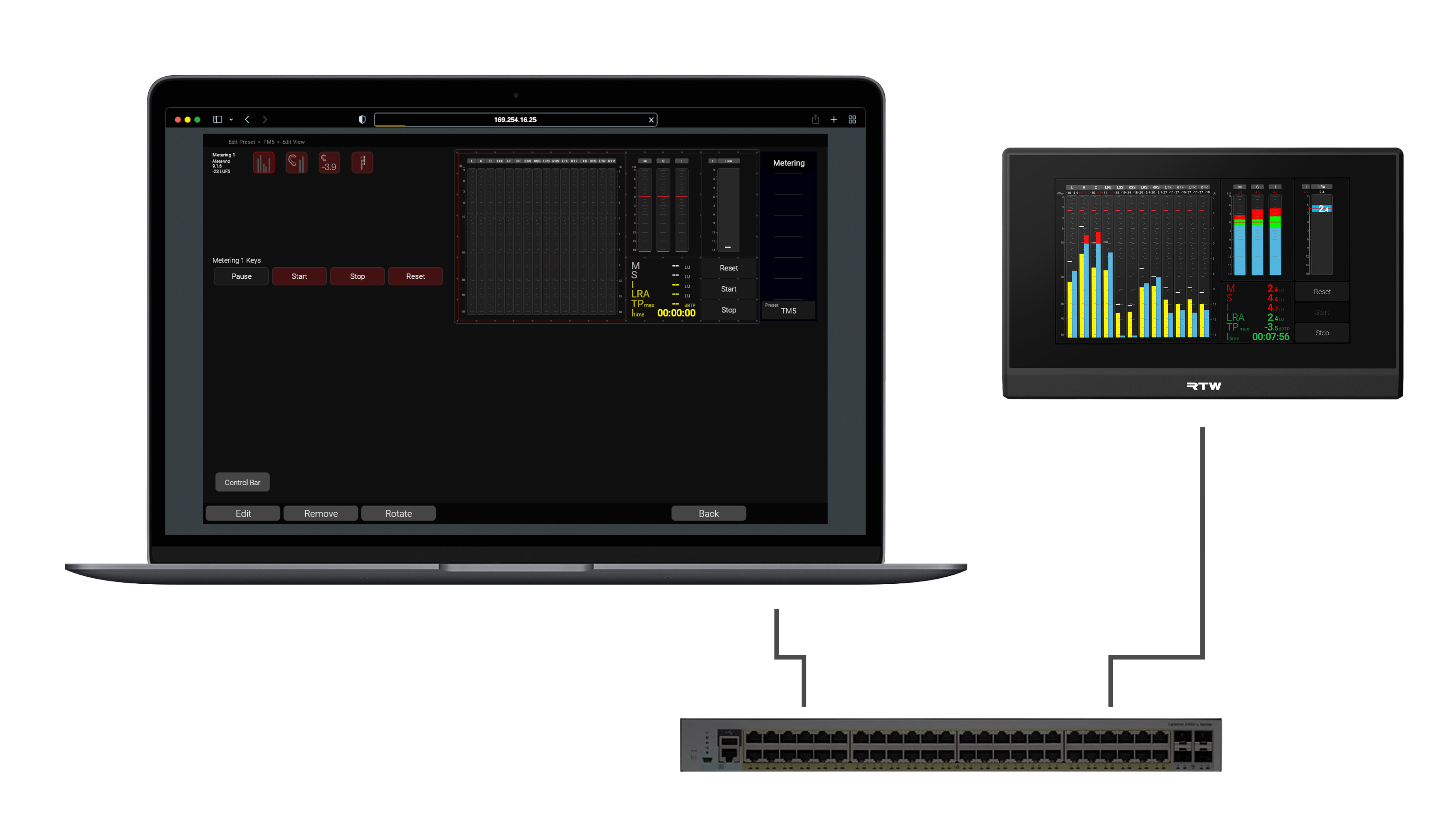

- Easy Setup with Web-based Interface

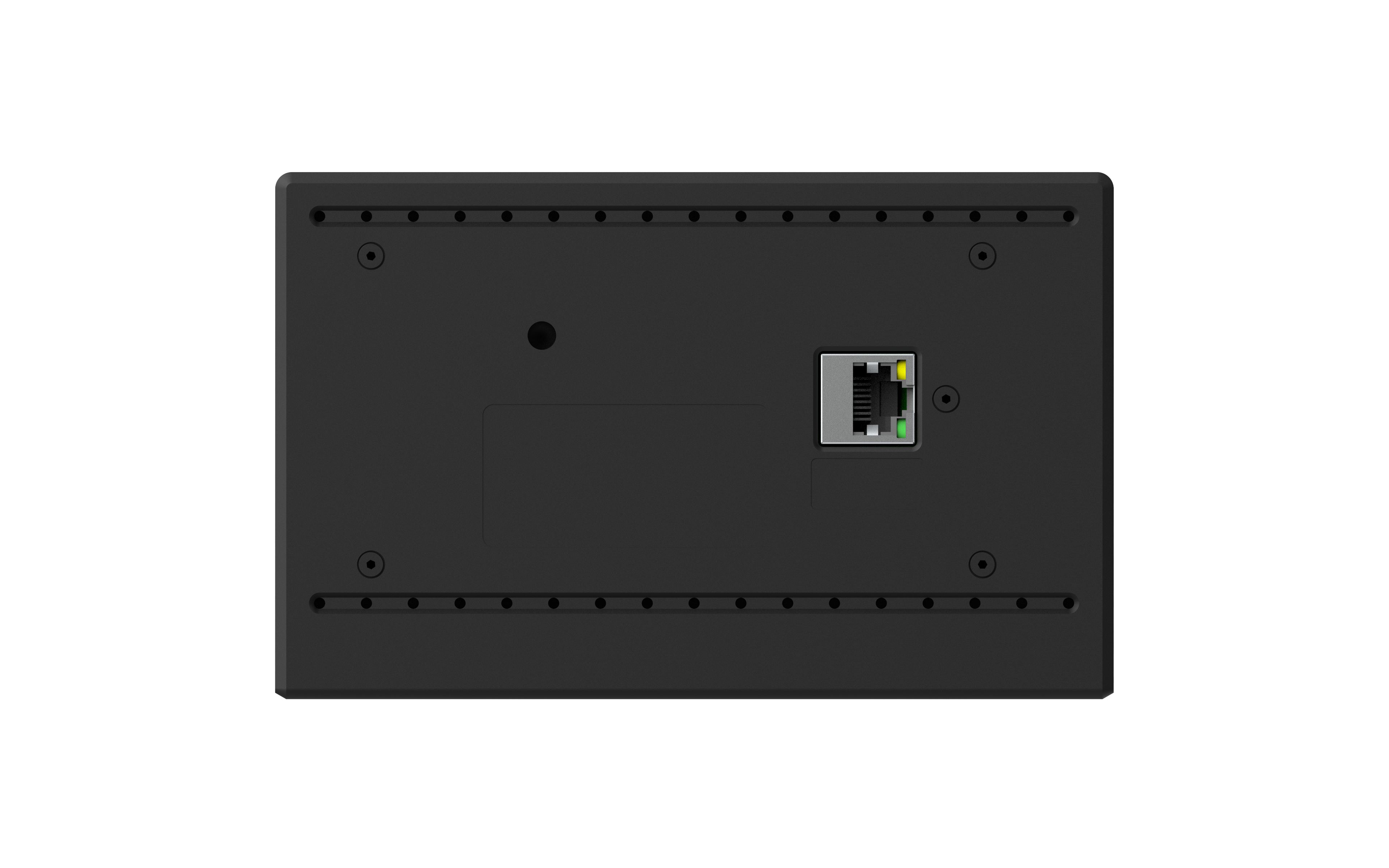

- Power over Ethernet (PoE – IEEE 802.3af compliant)
- Sample rate up to 96 kHz
- Lockable Operation Mode: Fool-proof setup with access only to relevant controls. Prevents unintentional operation during showtime
