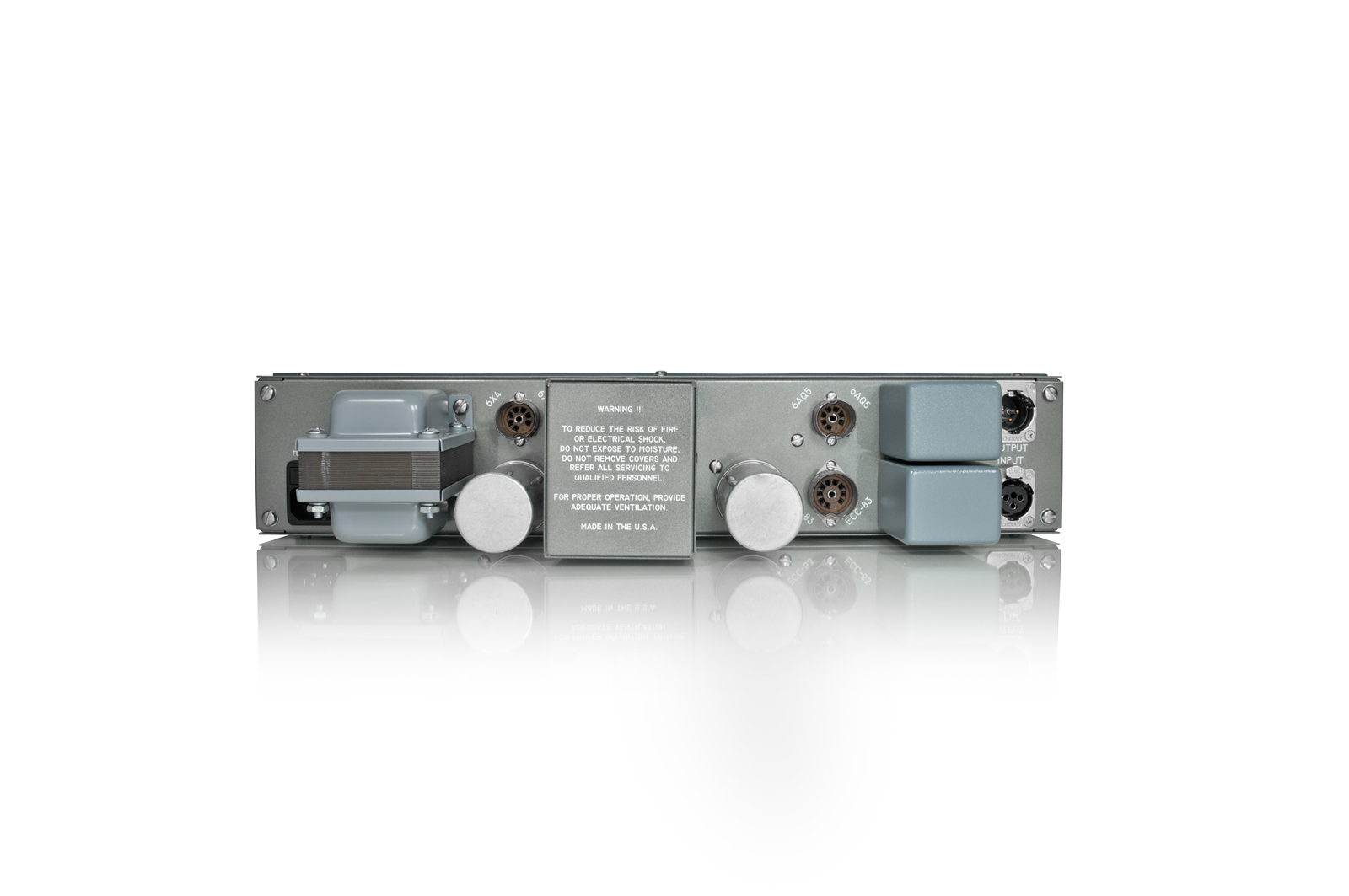

Pulse Techniques MEQM-5
Elevate your audio precision with the Pulse Techniques MEQM-5, a mastering equalizer excelling in midrange EQ and frequency control for studio acoustics.
€4,469.00*
% €5,239.00* (14.7% saved)Availability: Please contact us in urgent cases.
Product information "Pulse Techniques MEQM-5"
The MEQM-5 is the mastering version of our popular MEQ-5 midrange equalizer. Like our other mastering products, the potentiometers have been replaced with custom taper 21-position precision rotary switches providing enhanced control and reproducibility of settings.
The MEQM-5 provides exacting control of the “power region” in program material, that frequency range from about 300 Hz to 5000 Hz in which most of the sound energy is concentrated. The ear is especially sensitive to sounds in this region. In this region, even small resonances in studio acoustics and microphone and speaker responses are very evident in their effect on the listenability of the sound. Three independent sets of controls make it possible to boost on a peak curve at 200 – 1000 Hz while simultaneously boosting on a peak curve at 1.5 – 5 kHz, while simultaneously dipping at 200 – 7000 Hz. Guitars, vocals, horns, strings, keyboards, snares, toms, anything with significant midrange that requires complex contouring is a candidate for the MEQM-5.
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Pulse Techniques
PULSE TECHNIQUES, LLC
PO BOX 273046 FORT COLLINS, CO 80527
support@pultec.com
https://pulsetechniques.com/
- Low-midrange peak boost: 200, 300, 500, 700, 1000 CPS, 0 – 10 dB
- High-midrange peak boost: 1.5, 2, 3, 4, 5 KCS, 0 – 8 dB
- Dip Atten: 200, 300, 500, 700 CPS and 1, 1.5, 2, 3, 4, 5, 7 KCS, 0 – 10 dB
- Input Transformer: 600 Ohms
- Output Transformer: 600 Ohms
- Noise: Below -75 dBm
- Distortion: ≤ 0.15% at +10 dBm into 600 Ohms
- Amplifier: 20 CPS to 20 KCS, +0, -1 dB ref 1KCS
- Tubes: 1 ea 12AX7, 6AQ5, 6X4
