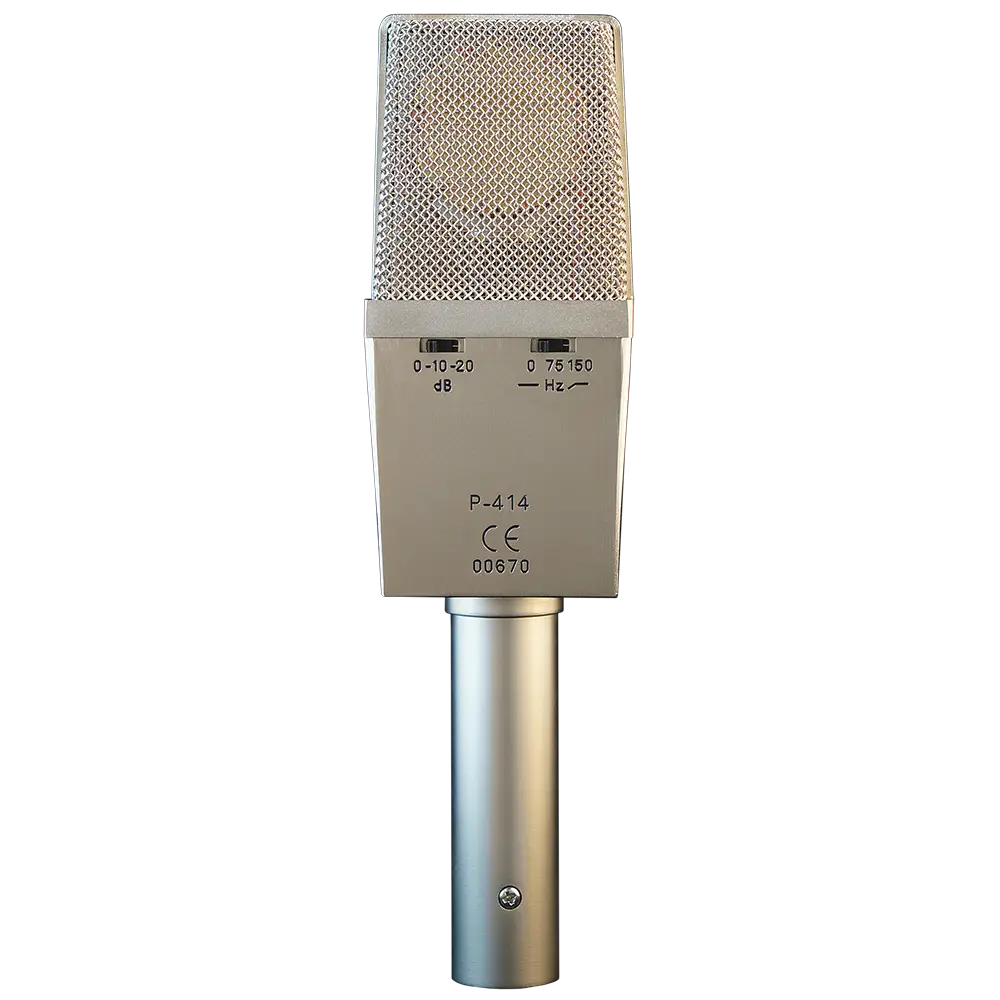

Peluso P-414
- 34 mm edge-terminated CK12-style brass condenser capsule
- Four polar patterns: hyper-cardioid, cardioid, omni, and bi-directional
- Custom-wound output transformer for clean balanced signal
- Hand-built through-hole soldered circuit board
- Durable brass and steel body with rugged head grille
- Standard 3-pin XLR connection
- Custom foam windscreen for plosive and wind noise reduction
- Packaged in a locking flight case with laser-cut foam
- Optional Peluso P-G XLR cable available in purple-green or black-red
Product information "Peluso P-414"
The Peluso P-414 pays tribute to the legendary AKG 414 lineage, drawing inspiration from the revered 1976 EB version with its original CK12-style brass capsule. This dual-backplate, edge-terminated 34 mm capsule delivers the detailed midrange and shimmering high-end air that made the 414 a studio classic. With four polar patterns, the P-414 offers outstanding versatility, while high-grade modern components ensure ultra-low self-noise. A generously sized custom transformer provides balanced output, eliminating interference and distortion. The heavy brass and steel body and grille are engineered for maximum durability, making the P-414 equally at home capturing delicate vocals or a powerful drum kit. Blending vintage character with modern reliability, the P-414 brings classic sound to today’s studios.
Peluso Microphone Lab
Peluso Microphone Lab
1778 Horse Ridge Rd NW Willis, VA 24380
https://pelusomicrophonelab.com
Capsule Type: Condenser pressure gradient with 34 mm, edge terminated
Frequency Range: 20 Hz – 20 kHz
Polar Pattern: 4 – omni, bi-directional, cardioid, and hyper-cardioid
Sensitivity: 12 mV/Pa
Impedance: 200 ohms
Maximum SPL: 162 dB with pad
Equivalent Noise: 12 dB(A)
Power Requirements: 48V Phantom Power
Connection: 3-pin XLR
Size: 114/188 mm (H) x 51 mm (W) x 38 mm (D)
Weight: 490 g
