PMC 6 XBD Pair
- 3-way active, twin cabinet, mid-field reference monitor with ATL™ bass loading
- SoundAlign™ network control interface for single or group EQ & settings
- Sophisticated DSP crossover, driver protection, EQ, and delay/polarity options
Product information "PMC 6 XBD Pair"
The PMC6 XBD is a mid-field reference monitor system that combines the PMC6 monitor with the PMC8 SUB to achieve a true three-way design. By extending the bass response from 39 Hz down to 25 Hz, it delivers deep, accurate low frequencies while reducing distortion and increasing headroom. The mid-bass driver is freed from reproducing the lowest bass frequencies, giving the midrange more clarity and realism, especially for vocals.

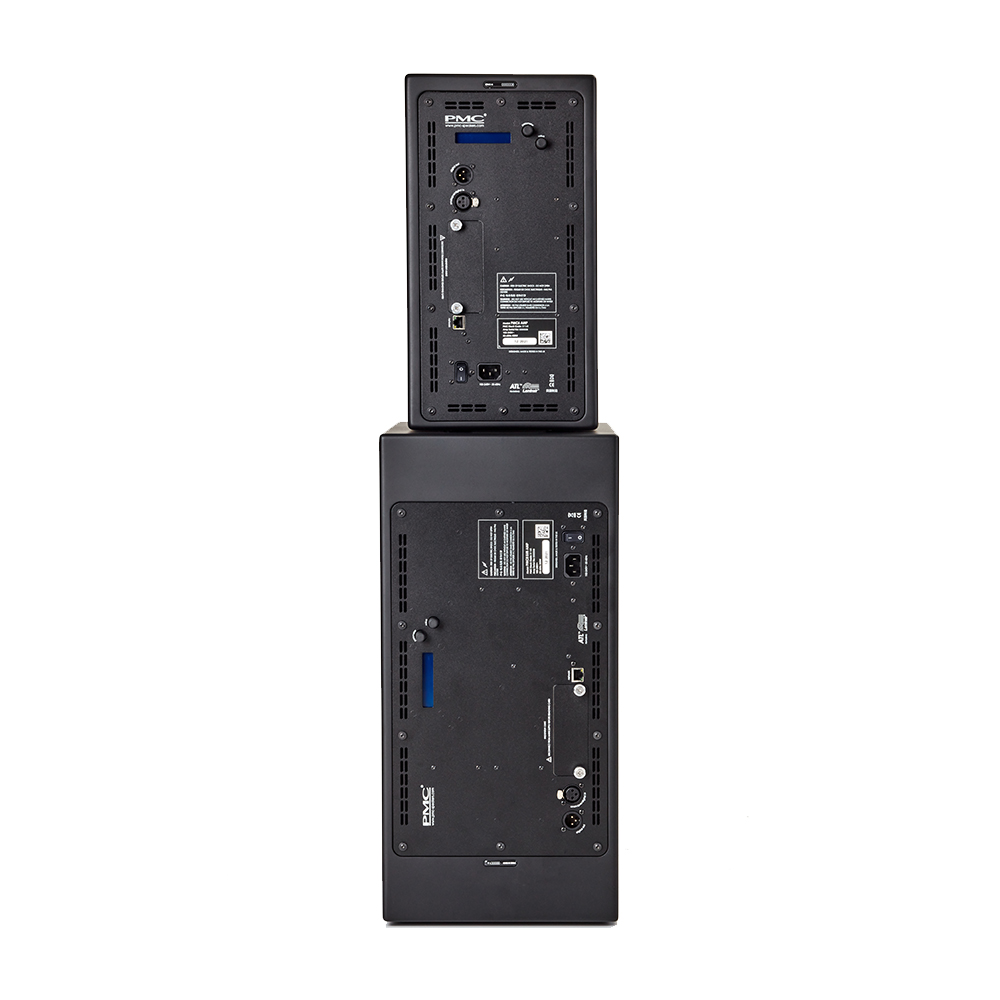

Configuring the PMC6 XBD is simple: connect the PMC6 input, then use an AES3 digital cable to carry the main monitor ‘through’ output to the PMC8 SUB. The cabinets can communicate via LAN or directly through network ports. Selecting ‘XBD’ mode seamlessly integrates both units into a single larger-scale monitor. Advanced settings can be adjusted from rear-panel controls or through the intuitive SoundAlign™ browser-based software, which displays both speakers as a single PMC6 XBD unit when linked.
PMC
The Professional Monitor Company Limited
Holme Court, Biggleswade, Bedfordshire, SG18 9ST
marketing@pmc-speakers.com
https://pmc-speakers.com
Type: Active 2-way nearfield reference monitor with ATL™ bass loading
Drive Unit Complement:
LF: PMC 150 mm (6”) Studio 6 driver
HF: PMC 27 mm (1”) soft dome tweeter
Effective ATL™ Length: 1.8 m (5.9 ft)
Frequency Response: 39 Hz – 25 kHz (-3 dB @1 m, full space, on-axis)
Sensitivity: +4 dBu input signal = 98 dB SPL @1 m
Max Continuous SPL: 106 dB @1 m
(Half space value = +3 dB from full space measurement. Unweighted input, 20–20 kHz Pink Noise (IEC) with 12 dB CF for 2 hours AES2-1984 duration)
Max Peak SPL: 118 dB @1 m
(Half space value = +3 dB from full space measurement. Unweighted input, 20–20 kHz Pink Noise (IEC) with 12 dB CF for 2 hours AES2-1984 duration)
Directivity:
Horizontal: ±60°
Vertical: +50° / -40° (-6 dB off-axis @10 kHz)
Input:
XLR switchable between analogue & digital AES3
Analogue input: +20/+24 dBu max. input level (selectable), 22 kΩ input impedance
Digital input: 16/24-bit AES3 signal (L, R or L+R), 18–192 kHz sample rate, 110 Ω input impedance
Expansion card slot: For future connectivity upgrades
Output: XLR digital AES3 (fixed 24-bit @96 kHz)
Network: RJ45 for use with PMC SoundAlign web interface
Features: Level Trim (±10 dB), Orientation (portrait/landscape/auto), High-pass filter (20–200 Hz, 12 dB/Oct), Delay (0–30 ms), Phase (normal/inverted), LF & HF shelving filters (20 Hz – 20 kHz, ±10 dB, Q 0.707), Parametric EQ (5 bands, 20 Hz – 20 kHz, ±10 dB), User presets (3 + factory defaults)
Latency: 2.4 ms
Amplifier Power per Channel:
LF: 1 × 200 W rms
HF: 1 × 200 W rms
Mains: 100–240 VAC auto-switching, 50–60 Hz (IEC C14)
Power Consumption:
Idle: 35 W
Max: 400 W
Cabinet Dimensions (Portrait):
H: 400 mm (15.7”)
W: 215 mm (8.5”)
D: 372 mm (14.6”)
Cabinet Dimensions (Landscape):
H: 215 mm (8.5”)
W: 400 mm (15.7”)
D: 372 mm (14.6”)
Weight: 11.1 kg (24.4 lbs) each
