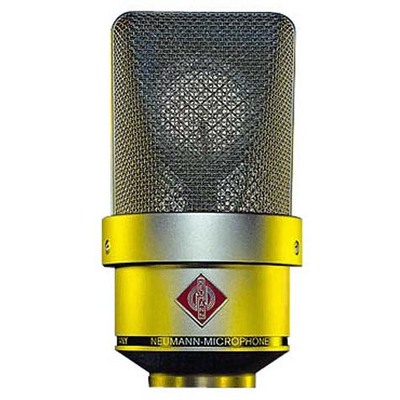

Neumann TLM 103

Derived from the famous U87, the affordable Neumann TLM103A is a large diaphragm, cardioid condenser microphone. It's well-balanced performance and extremely lowself-noise make it the mic of choice for virtually all recording, broadcast and production applications.

K 103 Capsule:The TLM103 features the K103 Capsule based on the K87, well known from the Neumann U67 and U87 microphones. The Capsule offers a flat frequency response resulting in accurate sound reproduction.

Transformer-less Circuitry:Neumann's transformer-less output stage ensures low noise on output at even the lowest of levels. Balanced output results in maximum output gain resulting in even lower noise floor.

Cardioid Polar Pattern:The cardioid polar pattern effectively isolates source signal

Technical Specifications:
Transducer     (Pressure Gradient) Condenser
Polar Pattern     Cardioid
Frequency Response     20 Hz - 20 kHz
Dynamic Range (Typical)     131 dB
Signal-to-Noise Ratio     87 dB, (A-Weighted)
Maximum Input Sound Level     138 dB, (@ 1kHz, 0.5% THD)
Power Requirements     Phantom 48v, (+/-4v)
Output Impedance     50 Ohms
Output Connectors     XLR-3M Type
Pad     None
Low Frequency Roll-Off     None
Dimensions     5.19 x 2.3" (131.83 x 58.42mm) LxDdiameter
Weight     17.6 oz. (499 g)
