Moog Labyrinth
Product information "Moog Labyrinth"

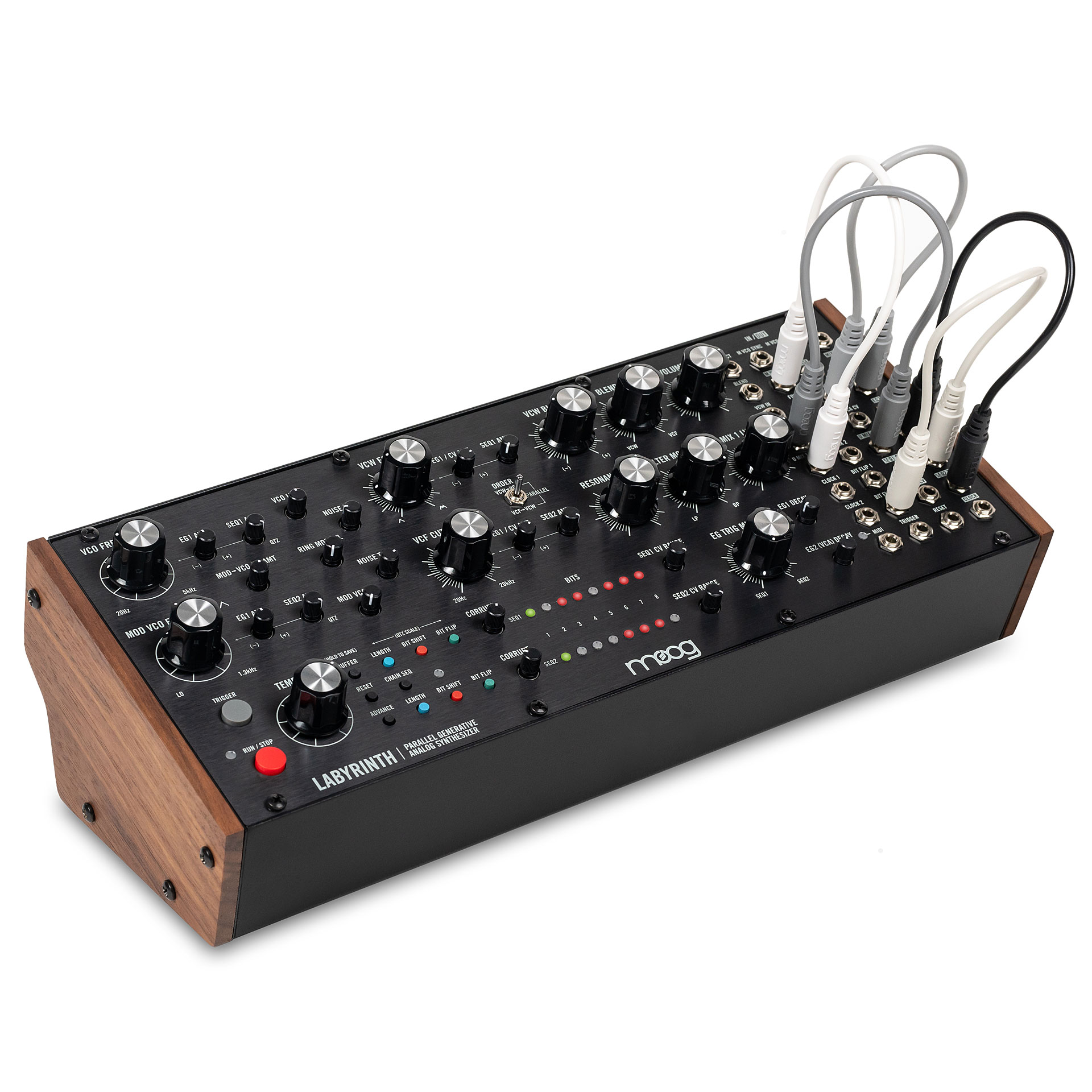

How deep does the rabbit hole go? Meet Labyrinth, an idea machine that
aims to answer that very question. Two generative sequencers bring to life
sounds that bloom over time, letting you control their evolution and scale,
then play them off of each other for striking polymetric melodies. With
parallel analog signal paths, this unique instrument shines when adding
color to the steady backdrop of a drum pattern or bassline. Fully capable
of standing on its own, or adding flavor to your existing rack, Labyrinth is
the lightning in a bottle that drives your compositions into undiscovered
creative caverns.
- Dual generative sequencers create intertwining melodies that mutate over time. It’s a fountain of inspiration that uncovers patterns you can capture, return to, and evolve.
- A fresh approach to the signature sound of classic Moog synthesizers with a smooth West Coast-style voltage-controlled wavefolder. Two oscillators drive duophonic melodic counterpoints, metallic FM tones, and analog synthetic drums.
- State variable resonant voltage-controlled filters that morph between lowpass and bandpass responses let you experiment with smooth command over complex tonal shapes.
- A parallel voice processing path with a voltage-controlled blending allows you to morph sounds over time.
- A comprehensive patch bay for integration with a wide variety of other modules in your rack and studio.
ANALOG SYNTHESIS ENGINE
- SOURCES: VCO, MOD VCO, RING MOD, NOISE Generator
- SIGNAL PROCESSORS: 1x Voltage-Controlled Wavefolder, 1x
- Voltage-Controlled State-Variable Filter, 2x Voltage-Controlled Amplifiers
- MODULATORS: 2x Decay-only envelope generators
DUAL GENERATIVE SEQUENCER
- 2x 8-step Generative Digital Sequencers
PATCH BAY
- JACKS: 32 x 3.5mm
- INPUTS: 20 Input Jacks
- OUTPUTS: 12 Output Jacks

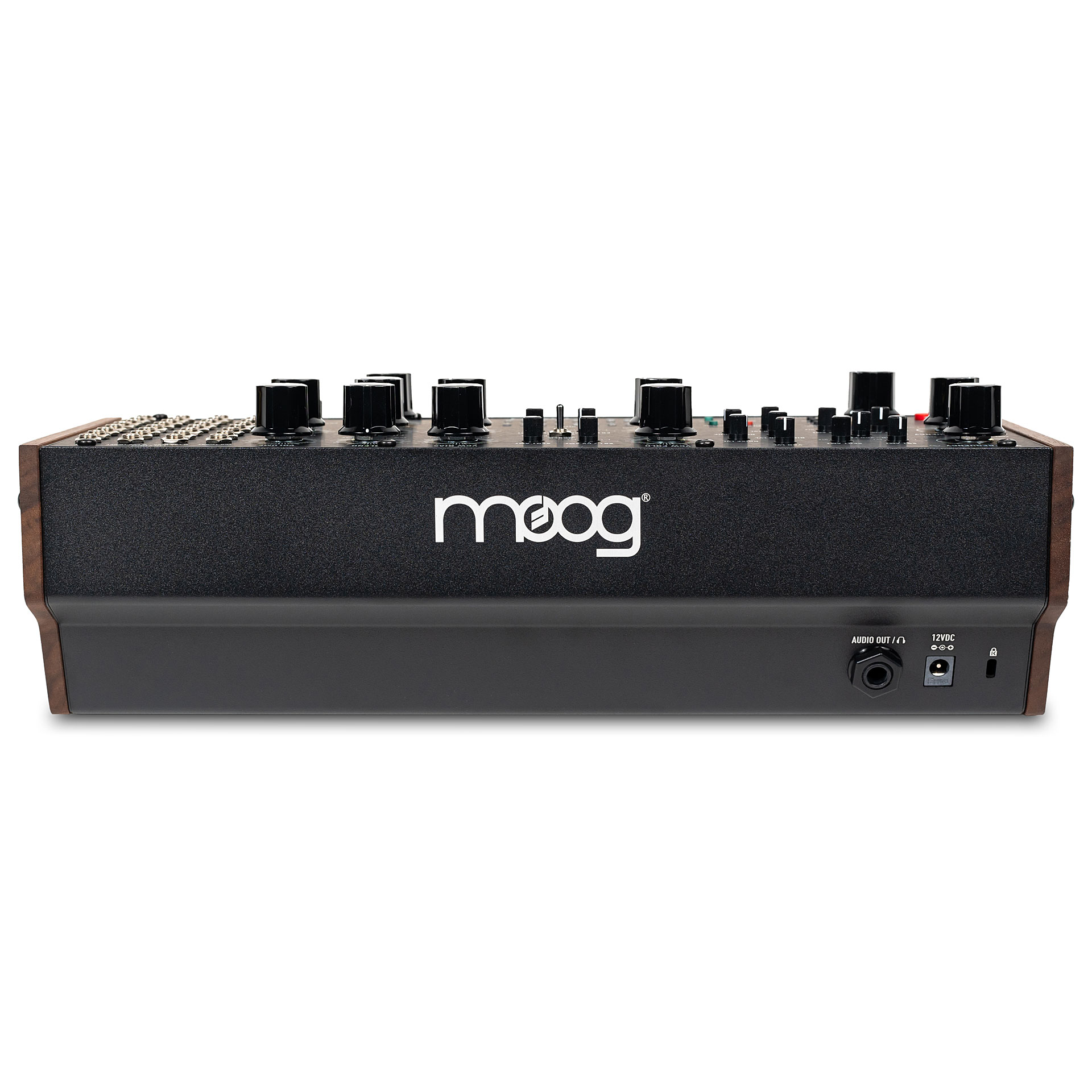

REAR PANEL
- AUDIO: 1⁄4” TRS Headphone or 1⁄4” TS Instrument
- POWER: Power Supply connection
- SECURITY: Kensington Lock slot
POWER SUPPLY (INCLUDED)
- STYLE: Wall adapter; barrel connection; center-pin positive
- INPUT: 100 – 240VAC; 50 Hz – 60 Hz
- OUTPUT: +12VDC; 1200mA
POWER CONSUMPTION
- TYPICAL: 4.0 W
EURORACK SPECS
- CURRENT DRAW: 290 mA (maximum) from +12VDC (10-pin header)
- MOUNTING DIMS: 60HP (18mm Module Depth)
IN THE BOX
Labyrinth Semi-Modular Parallel Generative Analog Synthesizer
Power Supply
Patch Sheet Overlays
Patch Cables (5x 12")
Registration Card
Quickstart Guide
Cheat Codes
Safety & Warranty Manual
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
