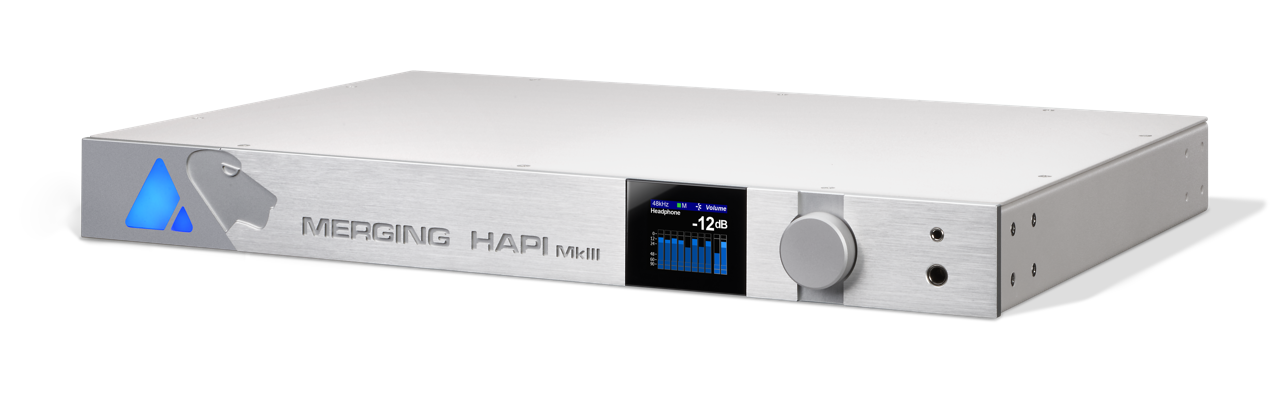

Merging Technologies HAPI MKIII
- Up to 152 input and 154 output channels, 64 streams
- ADAT, S/PDIF, AES/EBU, Wordclock
- 2 slots for optional I/O expansion
- Near-zero latency from input to output
- RAVENNA/AES67 with NMOS, ST2110 and ST2022-7 support
- Dante Ready™, optional license available from Audinate
- Standalone operation, remote control of preamps within Pro Tools, unlimited presets
- Swiss design, made to extremely tight tolerances.
Product information "Merging Technologies HAPI MKIII"
Hapi’s outstanding capabilities have been put to use by renowned broadcasters like NBC, BBC, and France TV, as well as prestigious live venues such as the LA Philharmonic and Disneyworld Paris. Grammy-winning music studios like Teldex and Soundmirror have also chosen to utilize its remarkable technology. Compared to its predecessors, Hapi Mk III adds extended AoIP capabilities. In addition to full RAVENNA/AES67 support, Hapi Mk III is Dante Ready™
Hapi Mk III is the foundation of the Merging ecosystem. Its small form factor of only 1U makes it the ideal rack unit for any application. Two slots for Merging I/O expansion cards allow you to configure Hapi Mk III to your applications. Merging A/D cards feature a unique dual gain topology, with up to 78 dB gain and an impressive dynamic range of up to 136 dB A (mic) / 139 dB A (line). Additionally, premium versions offer even higher specifications and support ultra-high resolution formats DXD, 384 kHz PCM and DSD 256 bitstream. D/A cards feature selectable roll-off filters. D/A trims level (in 0.1 dB increments) and signal polarity can be adjusted for each channel individually to ensure mastering grade precision.
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Merging Technologies
Merging Technologies S.A.
Route du Verney 4, 1070 Puidoux, Switzerland
https://www.merging.com/
Sennheiser electronic SE & Co. KG
Am Labor 1 DE - 30900 Wedemark Deutschland
contact@sennheiser.com

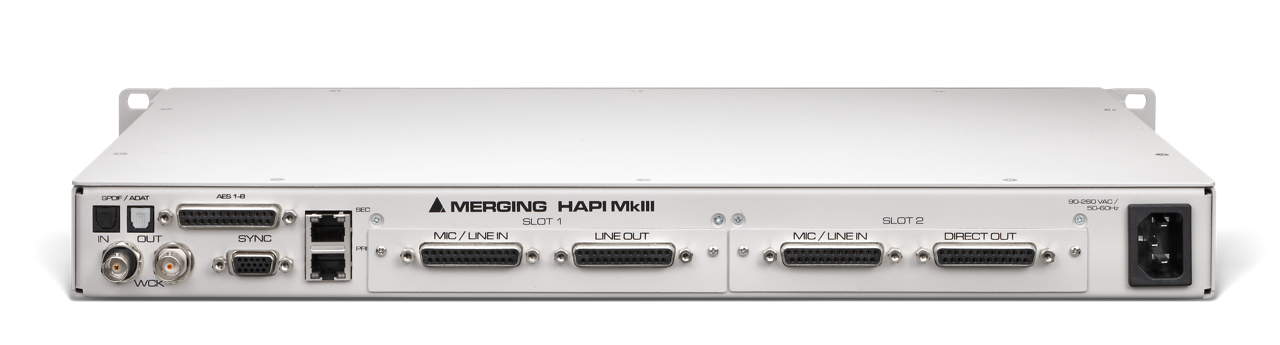

Base Unit
| Digital I/O | |
|---|---|
| AES/EBU (D-Sub) | 8 |
| ADAT / SPDIF | 8 ADAT* or 2 SPDIF (Switchable) (*@1Fs 44.1/48kHz) |
| RAVENNA/AES67 (RJ45) | Over 400 bidirectional channels @1FS |
| Word Clock I/O | BNC |
| Synchronization I/O | |
|---|---|
| LTC | Balanced XLR (via Sync Cable) |
| MIDI | 5-pin DIN (via Sync cable) |
| Video Reference | BNC (via Sync cable) |
| Sample Rate Support | |
|---|---|
| PCM Sample Rates | 44.1 – 384 kHz PCM & DXD |
| DSD Sample Rates | DSD64/128/256 |
| User Interface | |
|---|---|
| Remote control over LAN | Yes |
| Direct access on unit with rotary control | Yes |
| Option Slots | |
|---|---|
| 2 option slots | for Standard or Premium cards (can be mixed in same unit) |
| Available extension cards | ADA8V3P/S, ADO8V3P/S, DA8V3P/S, MADI128V3 |
