Marian Clara E/D+
- 24-bit / 192 kHz resolution
- Dante connectivity for up to 1024 channels
- AES67 support
- dual Ethernet port for redundancy
- 64-channel DSP mixer with EQ functions
- 1024 x 1024 channel routing matrix
Product information "Marian Clara E/D+"
The Marian Clara E brings Dante networking to professional audio systems with up to 512 bi-directional channels, support for sample rates up to 192 kHz, and long-distance connectivity via standard network cables. Its PCIe interface and dual Ethernet ports ensure ultra-low latency (around 1 ms) and reliable redundancy for stable, high-performance operation.
AES/EBU connectivity enables flexible signal conversion and independent recording/playback, while the integrated BEAST DSP mixer allows real-time routing, mixing, and processing with up to 64 channels, 8 busses, and parametric EQ on every channel. A built-in sample rate converter (SRC) ensures easy integration of digital devices without complex synchronization.

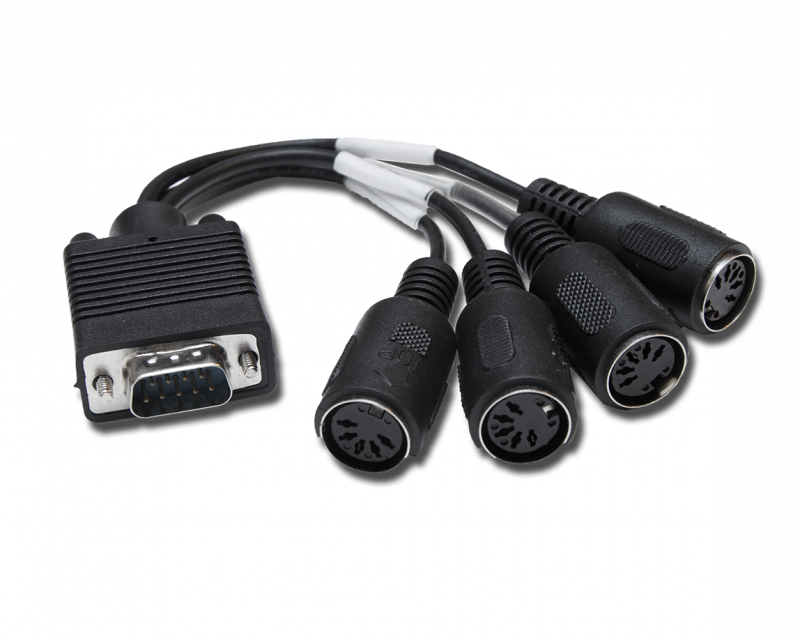

For expanded setups, multiple cards can be synchronized via TDM SyncBus and used as a single system. The optional “+” version adds word clock and MIDI I/O, while the multi-client driver supports ASIO, WDM, and WASAPI, allowing multiple applications to access the system simultaneously with consistently low latency.
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
- Technical data:
- PCIe Audio Interface / PCIe Audio-Schnittstelle
- 4 Lane (PCIe 4x) according to PCI Express Base Specification 2.1 / 4 Lanes (PCIe 4x) gemäß PCI Express Base Specification 2.1
- Power Consumption 12V: 580mA; 3,3V: 240mA / Stromverbrauch 12V: 580mA; 3,3V: 240mA
- PCIe Busmaster DMA with Direct ASIO Support / PCIe Busmaster DMA mit direkter ASIO-Unterstützung
- Up to 256 Dante AoIP channels @ 192 kHz (128 I/O) / Bis zu 256 Dante AoIP Kanäle @ 192 kHz (128 I/O)
- Up to 512 Dante AoIP Channels @ 96 kHz (256 I/O) / Bis zu 512 Dante AoIP Kanäle @ 96 kHz (256 I/O)
- Up to 1024 Dante AoIP Channels @ 48 kHz (512 I/O) / Bis zu 1024 Dante AoIP Kanäle @ 48 kHz (512 I/O)
- Sample Resolutions of 8 to 32 Bit towards the Audio Application / Sampleauflösungen von 8 bis 32 Bit zur Audio-Applikation
- Switchable Input SRC with 144 dB(A) Dynamic Range and 1:16 / 16:1 Conversion / Umschaltbare Eingangs-SRC mit 144 dB(A) Dynamikbereich und 1:16 / 16:1 Konvertierung
- Support for AES67 / Unterstützung für AES67
- Beast DSP powered / Beast DSP-basiert
- 64 Freely configurable DSP Channels: Input, TDM- and Playsignals / 64 frei konfigurierbare DSP-Kanäle: Eingang, TDM- und Playsignale
- TDM SyncBus with 32 Channels / TDM SyncBus mit 32 Kanälen
- Multi-Card Support / Multi-Karten-Unterstützung
- Clock Jitter / Clock-Jitter
- Dante™ Status LEDs and MARIAN System Status LED / Dante™ Status-LEDs und MARIAN Systemstatus-LED
- Digital inputs:
- 2x Dante RJ45 via Gigabit Ethernet (redundant)

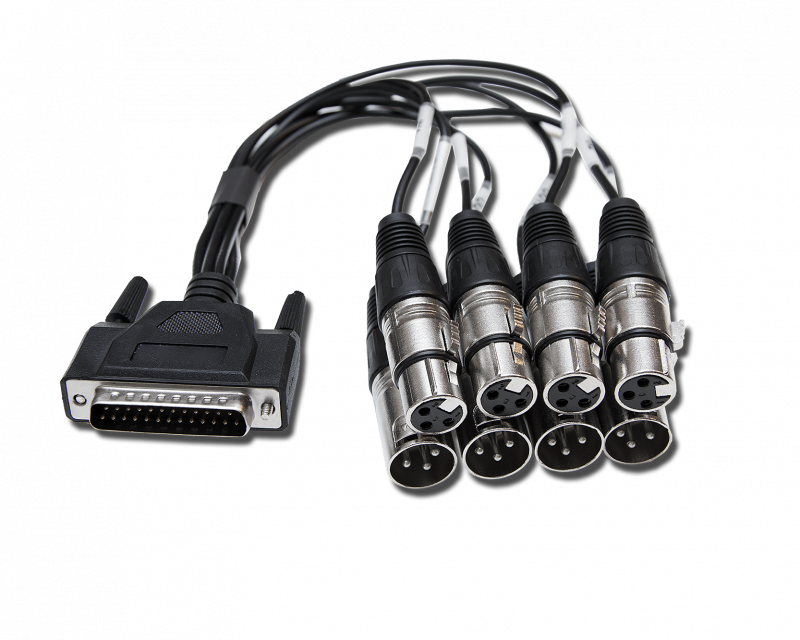

- 4 AES/EBU (8 channels) AES3 format
- Up to 32 channels via TDM SyncBus
- BNC WordClock ("+" Version)
- Digital outputs:
- 2x Dante RJ45 via Gigabit Ethernet (redundant)
- 4 AES/EBU (8 channels) AES3 format
- Up to 32 channels via TDM SyncBus
- BNC WordClock ("+" Version)
