Lehmann Audio Linear Pro schwarz

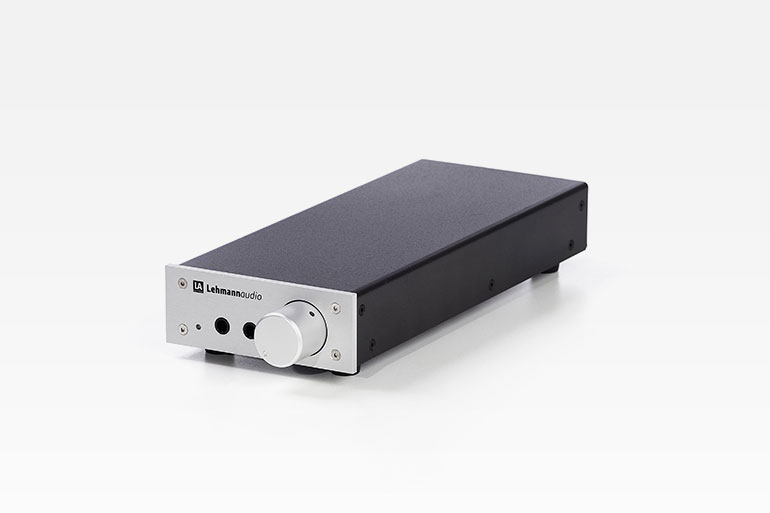

Experience pristine audio with the Lehmann Audio Linear Pro silver headphone amplifier, featuring Class A power, balanced XLR inputs, and Neutrik outputs.
Description
Product information "Lehmann Audio Linear Pro schwarz"
Professional mastering-grade headphone amplifier with a discrete Class A output stage and zero global feedback, featuring balanced XLR combo inputs and two Neutrik 6.3 mm headphone outputs. Includes EU power cable.
Safety Warnings
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Manufacturer information
Lehmann Audio
Lehmannaudio Vertriebs GmbH
Waltherstraße 49 – 51 51069 Köln Deutschland
info@lehmannaudio.com
https://www.lehmannaudio.com
Tech-Info
| Linear | |
| Input impedance | 47 kohms |
| Maximum gain | 0 dB, 10 dB, 18 dB, 20 dB selectable via DIP switches |
| Frequency response | 10 Hz (-0.3 dB) to 35 kHz (-1 dB) |
| Signal to noise ratio | > 95 dB at gain 0 dB |
| THD | < 0.001 % at 6 mW/300 ohms |
| Channel separation | > 70 dB at 10 kHz |
| Output power | 400 mW/60 ohms 200 mW/300 ohms |
| Output impedance | pre-out 50 ohms phones out 5 ohms |

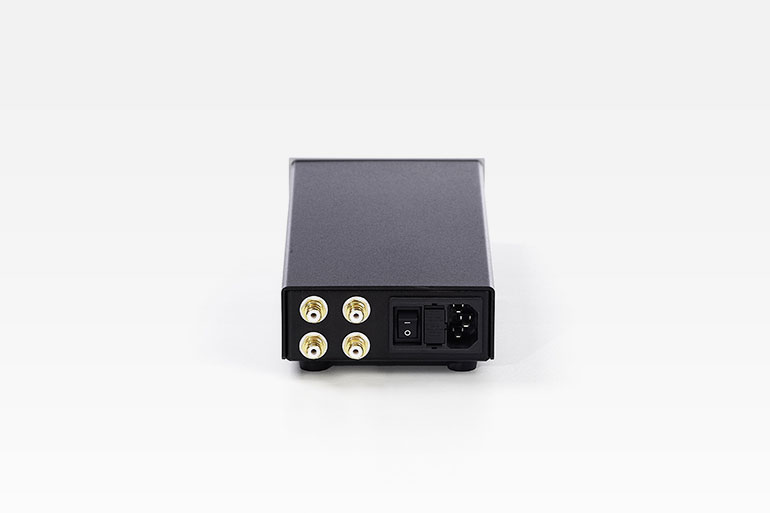

| Connectors audio | Neutrik headphone jacks with gold plated contacts 1 x pre-out 2 x phones out gold plated RCA sockets with teflon insulation |
| Power consumption | 10 W |
| Outer dimensions W x D x H | 110 mm x 280 mm x 50 mm |
| Weight | 1.5 kg netto |
