Lake People MC50
Experience precise audio control with the Lake People MC50 Monitor Controller. Features a high-quality headphone amplifier, balanced outputs, and ultra-low noise and distortion.140 Zeichen
Features
- two balanced inputs (Input 1 und 2)
- one balanced Slave output, here the activated input signals without volume control can be found
- two balanced line outputs, controlled by the volume attenuator and the settings of the monitoring section to feed power amplifiers or active speakers
Product information "Lake People MC50"
The Lake People Monitor Controller MC50 offers two inputs, a slave output, two line outputs to
connect amplifiers or active speakers, a true balanced headphone amplifier with 4 power stages
equipped with front controlled Pre-Gain and X-Feed – thus much more than conventional Monitor
Controllers in 19“, 1 U format. The complete set of stereo signal manipulation options, Solo L,
Solo R, Channel Swap, Mono, Right Channel Phase Reverse and the high-quality RK27 volume
control with 41-detent make it stand out from the crowd.
In addition, it is as low in noise and distortion as physics allows
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Lake People
Lake People electronic GmbH
Max-Stromeyer-Str. 116 78467 Konstanz
info@lake-people.de
https://www.lake-people.de
Technical Specifications MONITOR CONTROLLER MC50
(all values RMS unweighted 10 Hz – 20 kHz):
Inputs
- Analog, Stereo: 2 x balanced, XLR, gold-plated
Input Parameters
- Impedance: 10 kOhm
- Max level: +22 dBu
- Frequency response: 5 Hz – 80 kHz (-0.5 dB)
- Crosstalk: < -100 dB @ 1 / 15 kHz
- THD+N: < -100 dB
- Dynamic range: > 125 dB

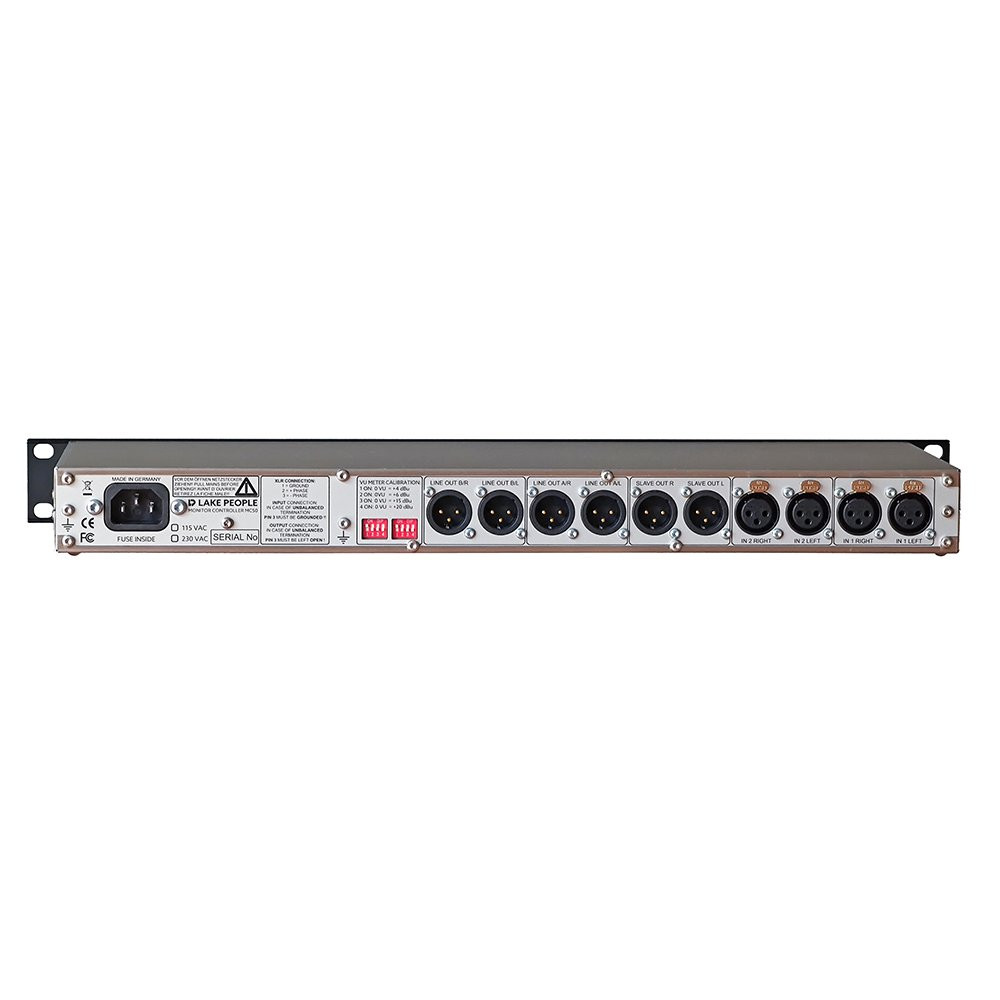

Outputs
- Slave outputs, Stereo: 1 x balanced, XLR, gold-plated
- Line (Amp) outputs, Stereo: 2 x balanced, XLR, gold-plated
Output Parameters
- Output impedance: 1 Ohm
- Max level: +26 dBu
Headphone Amplifier
- 2 x 6.3 mm, unbalanced, silver-plated
- 1 x 4-pin XLR, balanced, gold-plated
Headphone Amplifier - Max Output Level @ 1 kHz / < 0.1 % THD+N
- Both channels driven
Power Supply
- 115 / 230 V AC, max. 15 VA
Chassis
- Stainless steel
- Front: Aluminum, black anodized
Dimensions
- Chassis: 483 x 44 x 166 mm (W x H x D)
- Overall: 483 x 44 x 188 mm (W x H x D)
Unbalanced and Balanced Outputs
| Rl (Ohm) | Unbalanced Output Ua / V | Unbalanced Pa / mW / Channel | Balanced Output Ua / V | Balanced Pa / mW / Channel |
|---|---|---|---|---|
| 600 | 15.2 | 380 | 27.1 | 1200 |
| 300 | 14.7 | 720 | 26.3 | 2300 |
| 100 | 13.0 | 1700 | 18.7 | 3500 |
| 50 | 9.7 | 1900 | 10.5 | 2200 |
| 32 | 6.9 | 1500 | 6.9 | 1500 |
| 16 | 3.5 | 750 | 3.4 | 720 |
