Kali Audio SM-5
Product information "Kali Audio SM-5"
The SM-5 is an active 3-way studio monitor with a 5-inch woofer, a 4-inch midrange driver, and a 1-inch coaxial metal dome tweeter. The SM-5 features user-definable DSP parameters that allow the speaker to be fully calibrated to its environment. The DSP features 8 bands of EQ, delay, and trim controls. This allows for defining different calibration profiles, allowing for placement in different rooms and tuning to different objectives.
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Kali Audio
Kali Audio, Inc.
201 N Hollywood Way UNIT 212, Burbank, CA 91505, United States
https://www.kaliaudio.com/
customerservice@kaliaudio.com
Sonic Sales GmbH
Liebigstr. 24 33803 Steinhagen
info@sonic-sales.de
https://www.sonic-sales.de/
- 5-inch studio monitor with congruent 4-inch midrange driver and 1-inch metal dome tweeter
- 117 dB maximum sound pressure level
- 39 Hz lower frequency response (-10dB)
- App control for custom EQ, delay and trim
- Amplifier: Class D
- Amplifier power: 150W
- HF driver: 1-inch metal dome tweeter
- Midrange driver: 4-inch paper cone with optimized profile
- LF driver: Optimized 5-inch paper woofer
- Crossover LF-to-midrange: 280 Hz
- Midrange HF crossover: 2800 Hz
- Frequency response: (-10 dB) 39 Hz – 28 kHz
- Frequency range: (+/-3 dB) 47 Hz – 21 kHz
- Recommended listening distance: Up to 4 meters
- Maximum sound pressure level: (peak value at 1 meter) 117 dB
- THD of the loudspeaker: (90 dB SPL at 1 meter) <0.75% from 100-450 Hz, <0.5% above 450 Hz

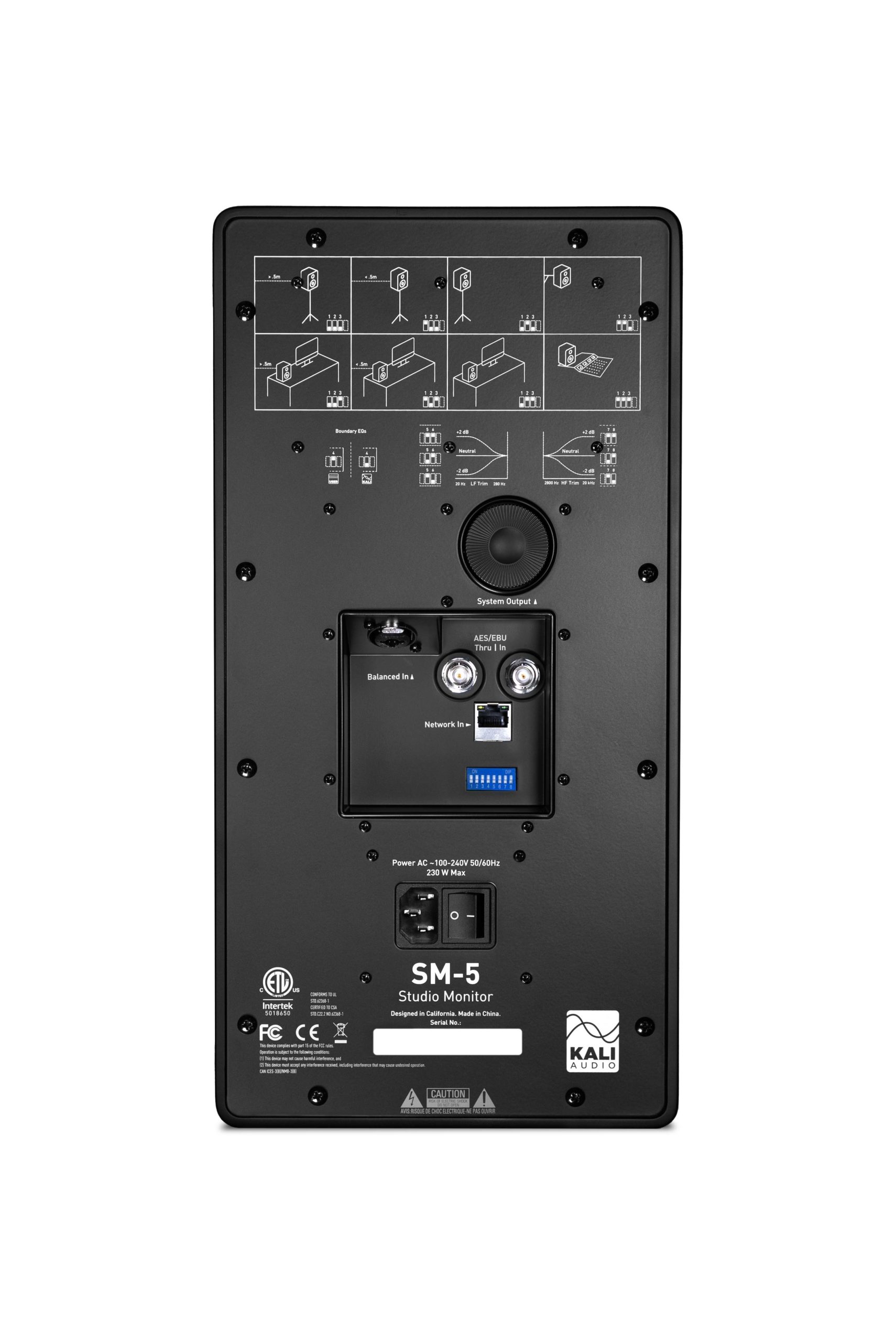

- Inputs: Symmetrical analog via XLR
- AES/EBU via BNC
- RJ45 for control
- USB-A for calibration profiles
- Outputs: AES/EBU via BNC thu
- EQs: 8 bands; assignable parametric, high/low shelf or high/low pass.
- Delay: Up to 10 ms
- Trim: -12 dB to +6 dB
- Dimensions: 39.6 x 24.8 x 20 cm
- Weight: 9.5 kg
