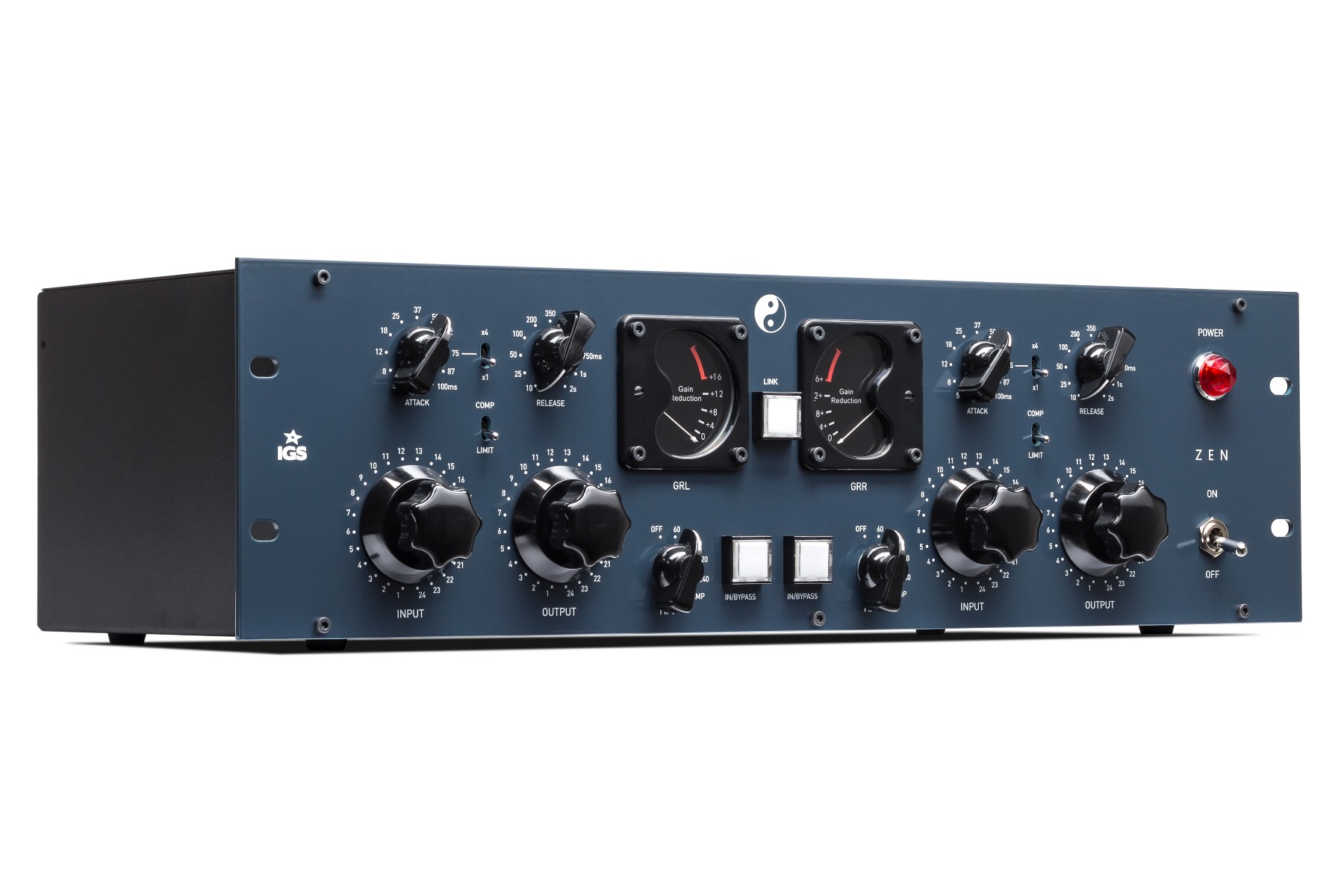

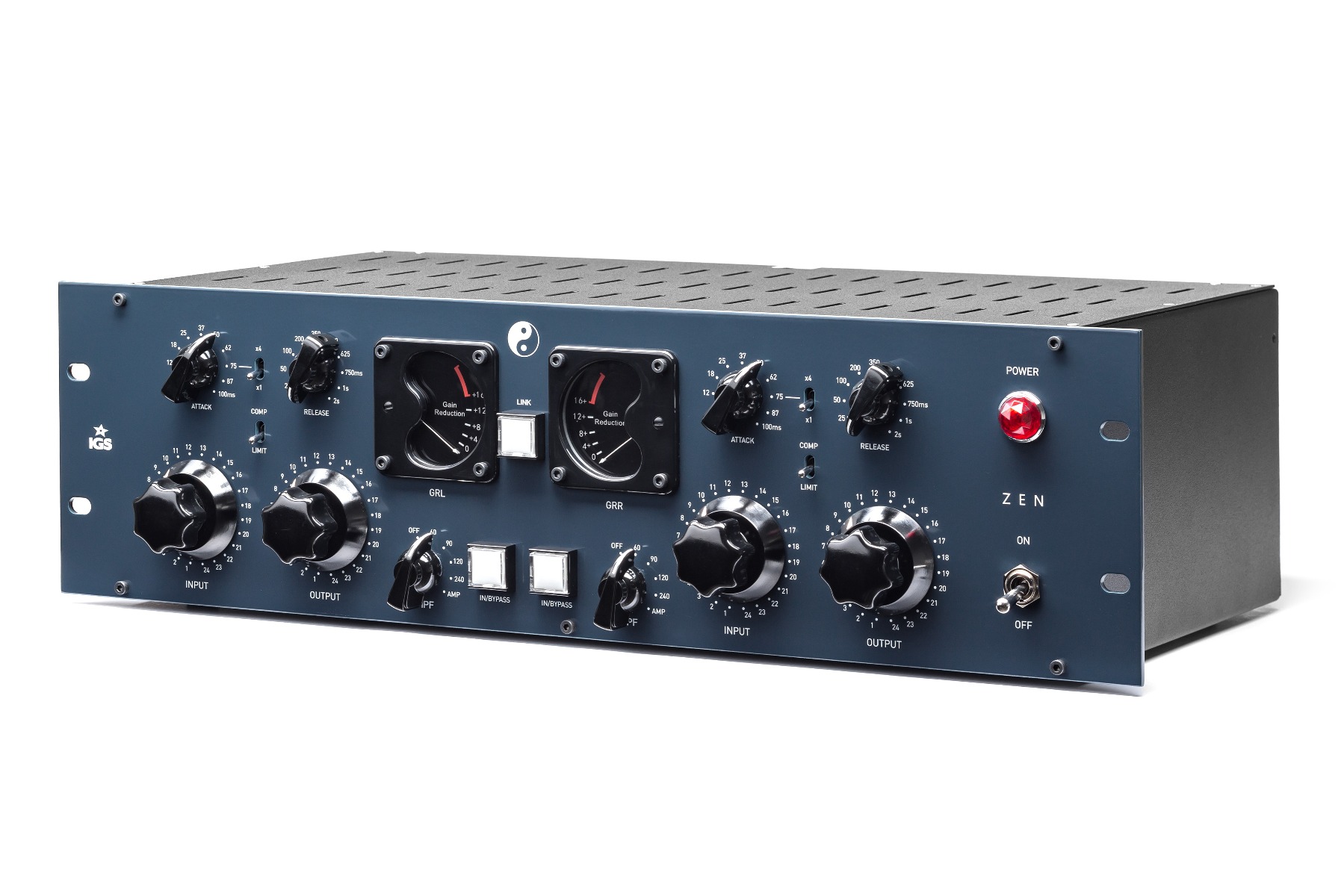

IGS Audio ZEN
Manufacturer:
IGS Audio
Description
Product information "IGS Audio ZEN"
If you want your music sounds like yin n' yang, you need a ZEN.
The ZEN is unique. The construction is based on the legendary compressors used in Abbey Road Studios. It's the musical canon of art used by The Beatles. The ZEN Compressor audio circuit is based on 14 bi-polar transistors in each channel. The compression is achieved by 8 hand-matched Zener diodes biased by a perfect feedback circuit.
Safety Warnings
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
Manufacturer information
Tech-Info
| BASIC FEATURES | |
|---|---|
| Compression type | Zener diodes |
| Stereo Link | Yes |
| HPF | Yes, 60, 90, 120, 240Hz |
| Hard wire bypass | Yes |
| All stepped manipulators | Yes |

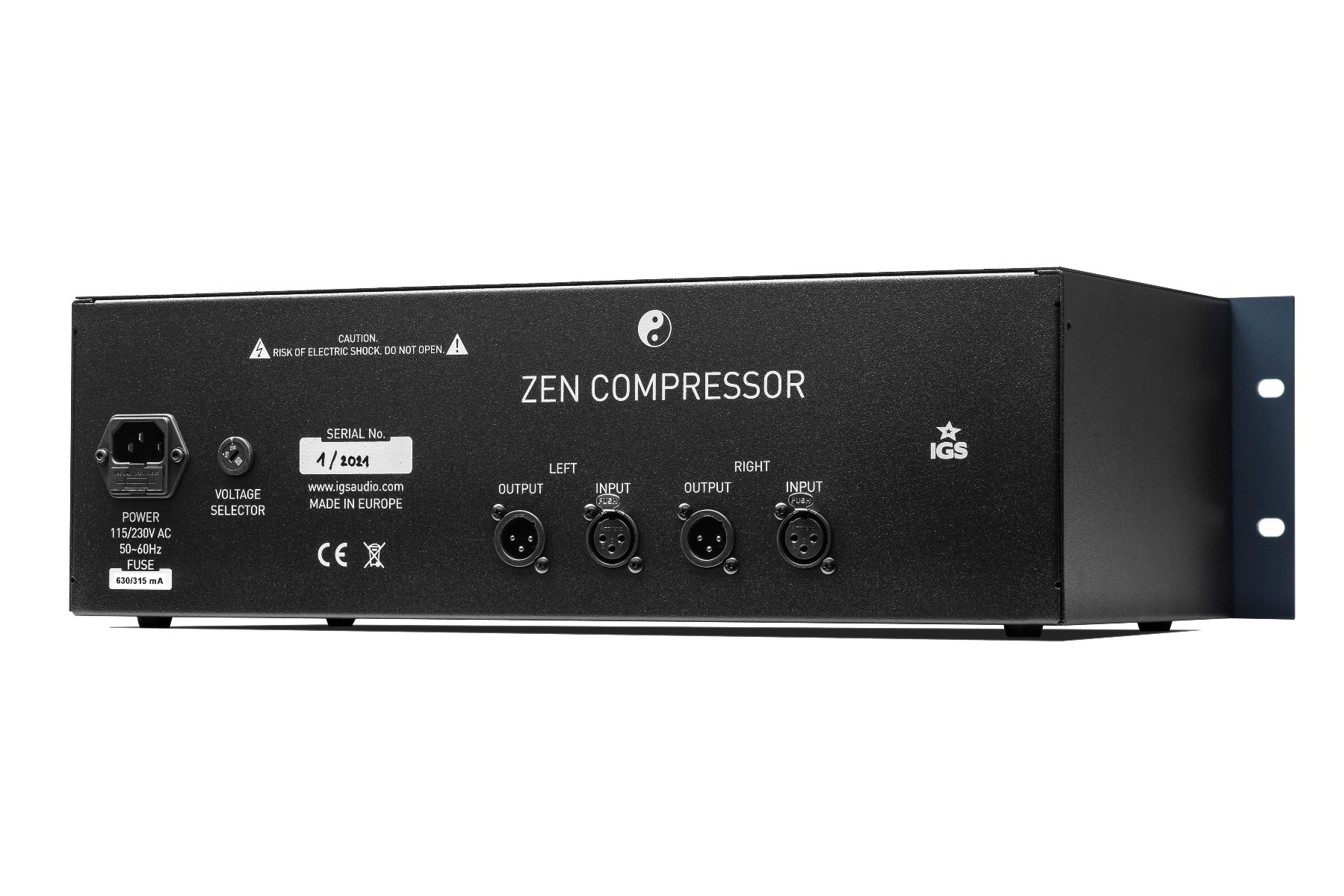

| INPUT & OUTPUT | |
|---|---|
| Input Impedance (balanced) | 10k Ohm |
| Output Impedance (balanced) | 75 Ohm |
| Audio transformers | Yes, IGS Custom, on inputs and outputs |
| LEVELS | |
|---|---|
| Operating Level | +4 dBu |
| Dynamic Range | >100dB |
| Noise Level | -99dBu |
| Max. gain | 36dB |
| Max Gain Reduction | -35dB |
| TIME CONSTANTS | |
|---|---|
| Attack: | 8 - 100 ms, x4 switchable |
| Ratio | Variable, depends on the input settings, plus Limiter |
| Release: | 10 - 2000 ms, x4 switchable |
| BANDWIDTH | |
|---|---|
| Frequency response | 20 Hz - 20 kHz, +/- 0.1dB |
| DISTORTION (@ 20 HZ - 20 KHZ) | |
|---|---|
| Signal to Noise Ratio | >90dB |
| THD+N | >86dB |
| IMD (SMPTE) | >90dB |
| Crosstalk | 80dB @ 1kHz |

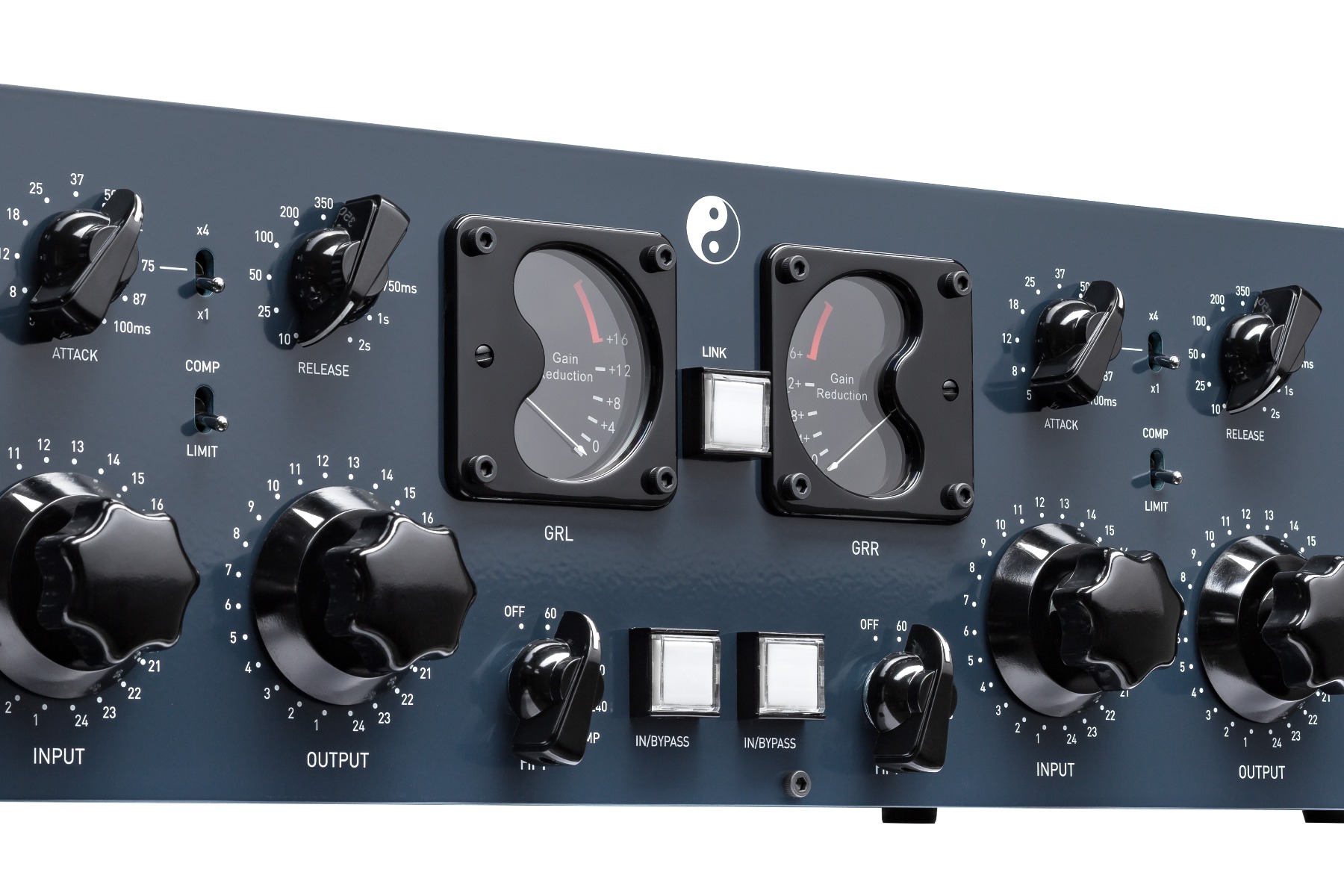

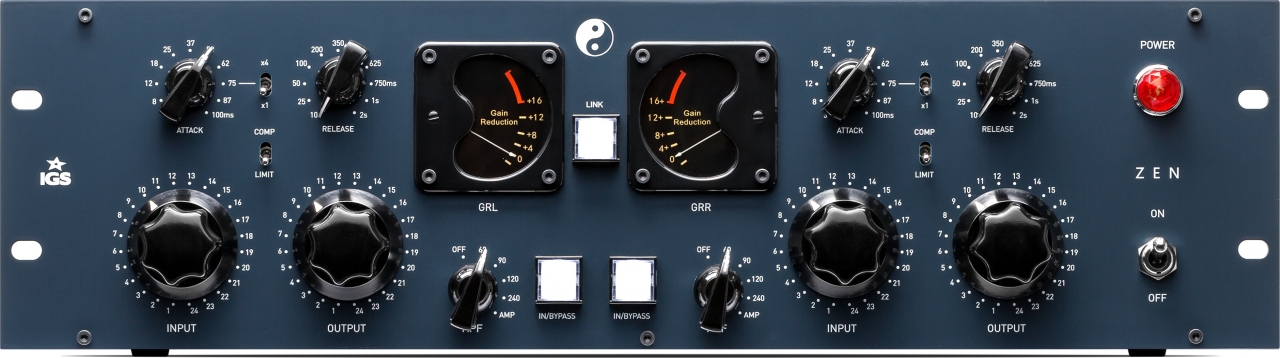

| FRONT PANEL | |
|---|---|
| VU Meters | Yes, GR in dB's, left & right, |
| POWER | |
|---|---|
| Voltage | Selectable 115/230 VAC |
| Power consumption | <30 VAC |
| Power supply | Linear, internal |
| PACKING BOX | |
|---|---|
| Dimensions | 19" unit |
| Shipping weight | 9 kg / 5 lbs |
| OTHERS | |
|---|---|
| Used for | Mastering, tracking |
