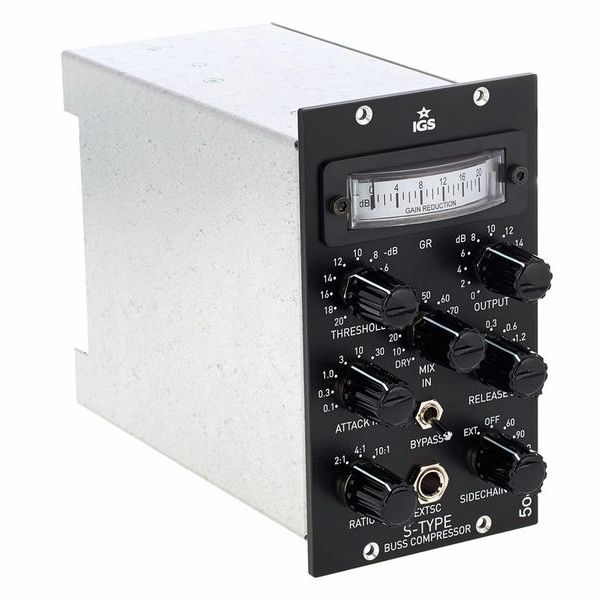

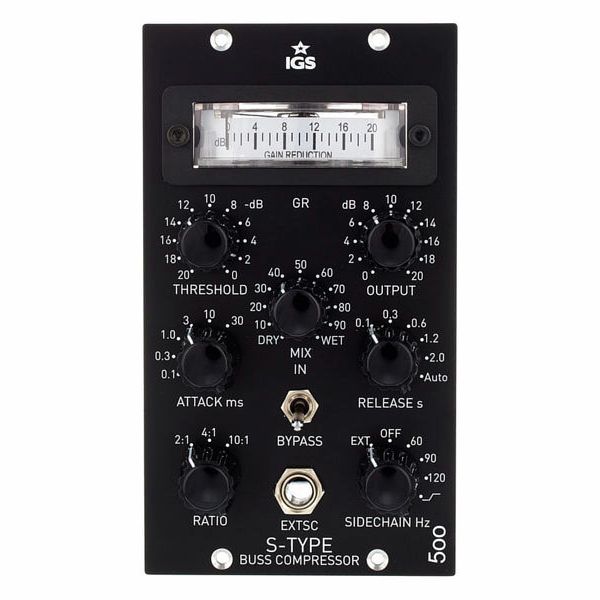

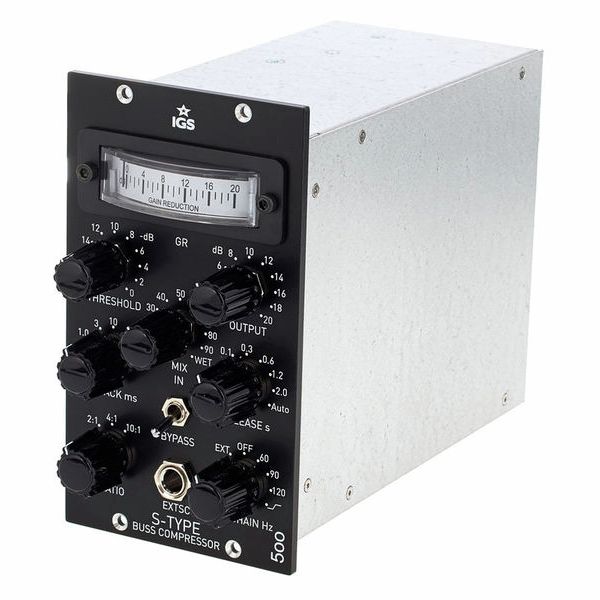

IGS Audio S-Type 500 VU
Discover the IGS Audio S-Type 500 VU, a premium stereo VCA bus compressor for 500 Series racks featuring parallel compression, sidechain HPF, external sidechain control, and legendary analog mix bus glue.
Features
- Stereo VCA bus compressor in 500 Series format
- Inspired by legendary British console bus compression
- Parallel compression with Wet/Dry mix control
- Selectable sidechain HPF with external sidechain input
- Large VU gain reduction meter
- Ultra-low noise balanced analog circuitry
- Transparent compression with punch and mix glue characteristics
Description
Product information "IGS Audio S-Type 500 VU"
The IGS Audio S-Type 500 VU is a premium stereo VCA bus compressor for the 500 Series format, inspired by the legendary British console mix bus compressor sound. Designed for professional mixing and mastering applications, the S-Type 500 VU delivers transparent compression, punch, glue, and analog warmth while maintaining exceptional clarity and low noise performance. Featuring parallel compression, selectable sidechain high-pass filters, external sidechain capability, and a large VU gain reduction meter, this compressor is ideal for stereo buses, drums, vocals, and mix processing in professional studio environments.
Safety Warnings
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
Manufacturer information
Tech-Info
- Product Type: Stereo VCA Bus Compressor
- Format: Dual-slot 500 Series Module
- Compression Type: VCA Compression
- Sidechain HPF Settings: Ext, Off, 60, 90, 120, 180, 240 Hz
- Ratio Settings: 2:1, 4:1, 10:1
- Attack Time: 0.1 – 30 ms
- Release Time: 0.1 – 2 s + Auto
- Maximum Gain Reduction: 20 dB
- Maximum Output Level: +21 dBu
- Noise Level: -102 dBA
- Frequency Response: 8 Hz – 20 kHz (±0.1 dB)
- THD+N: 0.012% @ 0 dBu
- Input Impedance: 10k Ohm
- Output Impedance: 600 Ohm
- Power Consumption: 4.5W
-
Additional Features:
- Parallel Compression
- External Sidechain
- RMS Detection
- VU Meter
