Grace Design m905 Analog
Product information "Grace Design m905 Analog"

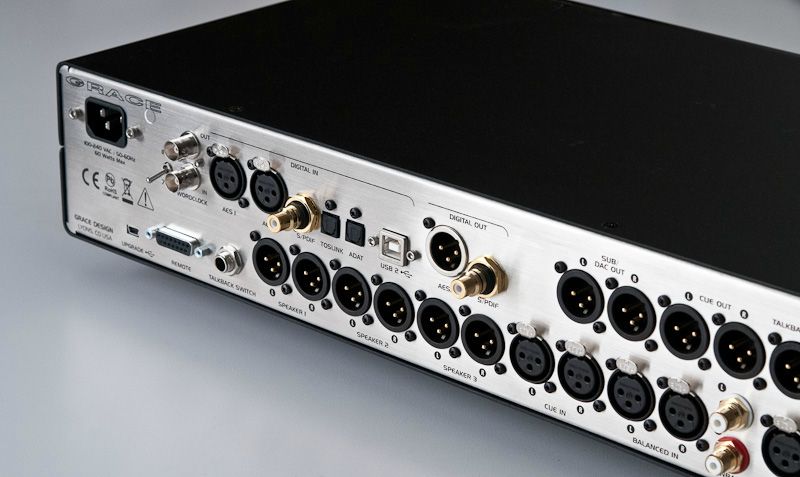

Analog inputs - unbalanced, balanced, CUE, talkback mic (additional balanced input available on the m905 Analog)
Digital inputs - 2x AES3 (Single or dual-wire), 1 S/PDIF, 1 TOSLINK, ADAT (selectable in 4 pairs, or 2 pairs in S/MUX), USB, DSD128 (5.6448MHz)
Audio circuitry designed for completely transparent and musical playback performance
Asynchronous Class 2 USB playback supports up to 24 bit/192kHz
Mastering quality DAC circuitry with configurable de-emphasis filtering
s-lock dual-stage Phase Lock Loop for ultra low jitter clock regeneration
Hybrid RCU with hardware switches, large level encoder and graphical LCD
LCD display shows input, level, output, SPL and DAC status plus a full calibration menu
RCU includes built in microphone for talkback and onboard SPL meter
SPL meter features include level, peak, fast and slow modes, A & C weighting
Precision .5 dB step level control for speakers and headphones
Reference headphone amplifier circuitry, with outputs on both the RCU and ACU
Dedicated mono, dim, mute and sub mute switches
Mono mode can be set to L+R summed, L only in both channels, or R only in both channels L solo, R solo, L-R and sub solo modes are available
3 available stereo speaker outputs, with two assignable mono sub outputs (or single stereo sub output)
Multi-mode SUB/ DAC/ METER out
SUB out mode for stereo or multiple mono subwoofer outputs
DAC out mode for a fixed DAC output fed by the selected digital input
METER out mode fed by selected input signal (digital or analog), configurable with a fixed level or to follow yhe monitor level

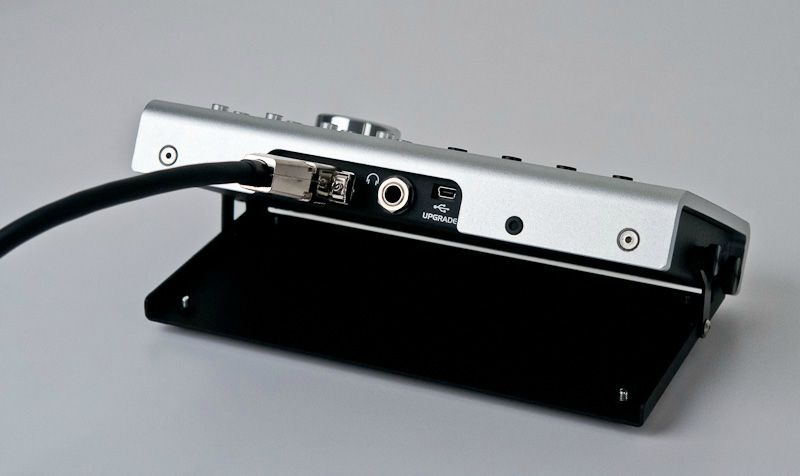

Detachable RCU tilt base
