Barefoot Sound Micro Stack 45

€13,739.00*

Availability: Please contact us in urgent cases.

Features

2220 Watts of Power
80 Hz Balanced Analog High-Pass Filter
Bass Response Down to 25 Hz
Dual-Force™ Technology
(6) 8” Aluminum Woofers
MEME™ Technology

Product information "Barefoot Sound Micro Stack 45"

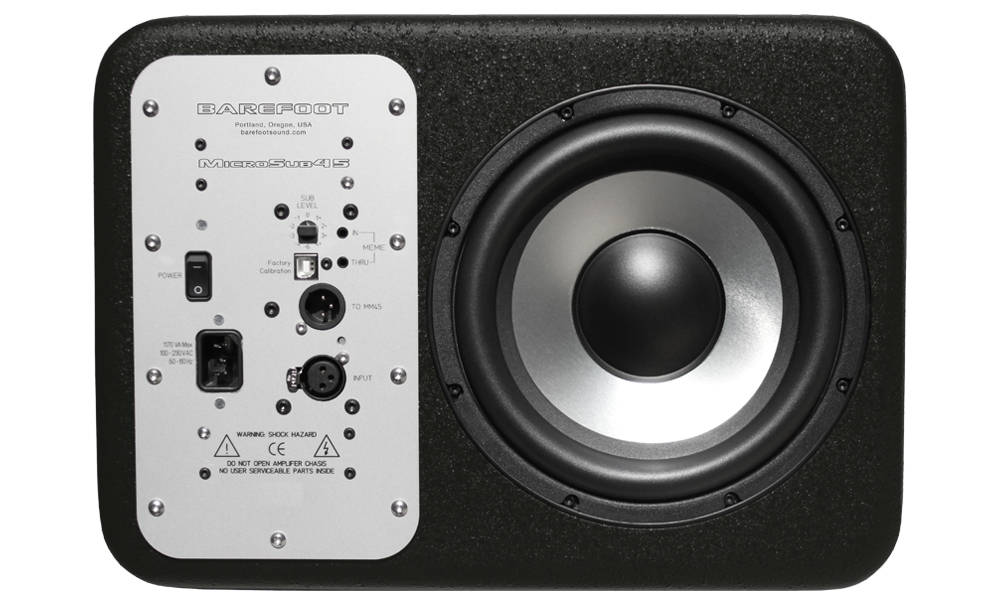

Barefoot’s compact MicroStack45 stereo system comprises two MicroMain45 3-way active nearfield reference monitors and two MicroSub45 Dual-Force™ technology subwoofers. Each system combines six high-excursion 8-inch woofers, four 2.5-inch midrange drivers and two 1-inch tweeters working seamlessly together as a single unit driven by 2220W of power.

Safety Warnings:	Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt.

Barefoot Sound

1710 NW Upshur St, Portland, OR 97209, United States

questions@barefootsound.com

https://barefootsound.com/

ES-ProAudio

Narzissenstr.9, 85055 Ingolstadt

contact@es-proaudio.de

All products

Description:	3-way Active Reference Monitors and Stereo Subwoofers with MEME™ Technology
Controls:	Input level stepped attenuator, Equalization contour
Input Impedance:	50k Ohm
Frequency Response:	MicroMain45 18Hz – 50kHz (±3dB) 26Hz – 40kHz (±1dB)
Bass Response:	-3 dB @ 25Hz, Q = 0.707 Slope = 12 dB/octave
Cabinets:	32 liters total internal volume together. Both units are sealed woofer and midrange enclosures, Machined aluminum baffle plate, Long fiber foam acoustic damping throughout
Crossover Frequencies:	80 / 600 / 3600 Hz
Tweeter:	1″ ring radiator, Advanced geometry motor, Rear waveguide chamber Amplifier: 180W Hypex
Midranges:	2 x 2.5″ aluminum cones, Advanced geometry motor, +/- 2 mm linear excursion Amplifier: 180W Hypex
Woofers:	2 x 8″ aluminum cones, Advanced geometry motor, +/- 13 mm linear excursion Amplifier: 500W
Subwoofers:	4 x 8″ aluminum cones, Advanced geometry motor, +/- 25 mm linear excursion Amplifier: 1000W
AC Power Input:	Nominal 115 VAC or 230 VAC selectable
Power Consumption:	Idle: 25W, Maximum: 1165W
Weight:	MicroMain45 Speaker: 37.5 lbs each (17 kg) Shipping: 47 lbs each (21 kg) MicroSub45 Speaker: 45 lbs each (20.5 kg) Shipping: 54.5 lbs each (25 kg)
Dimensions WxDxH:	MicroMain45 Cabinet: 15.5″ Wide x 10.88 Deep x 11.0″ Height (394 x 273 x 279 mm) Overall: 15.5″ Wide x 10.88 Deep x 11.0″ Height (394 x 273 x 279 mm) MicroSub45 Cabinet: 15.5″ Wide x 10.88 Deep x 11.0″ Height (394 x 273 x 279 mm) Overall: 15.5″ Wide x 10.88 Deep x 11.0″ Height (394 x 273 x 279 mm) Stacked 15.5″ Wide x 10.88 Deep x 22.0″ Height (394 x 273 x 558 mm)
