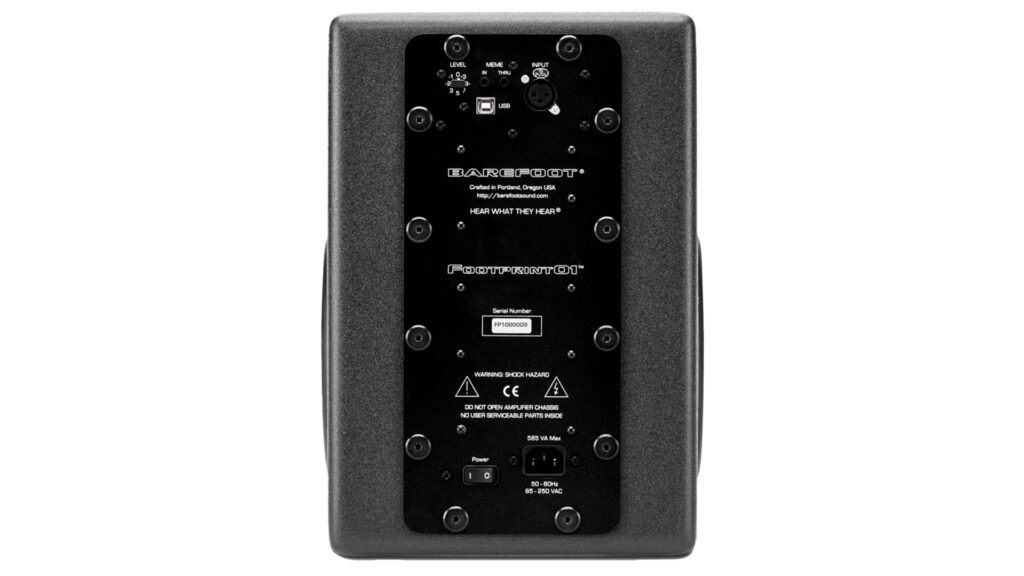

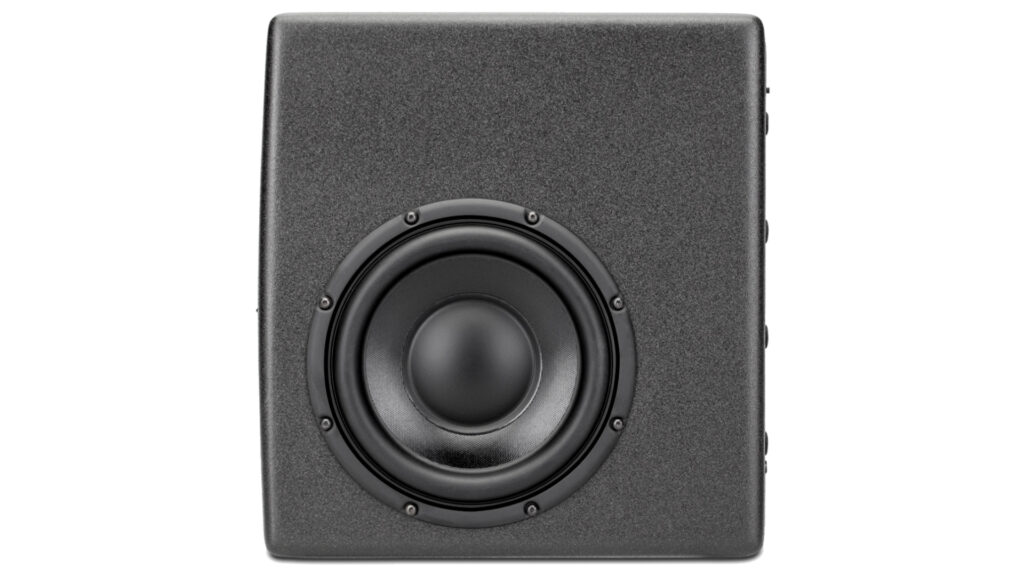

Barefoot Sound Footprint 01
- MEME™ Technology Voice Emulation
- Dual-Force™ Technology
- Dual Ring Radiator Tweeter
- 650 Watts of Power
Product information "Barefoot Sound Footprint 01"
| Safety Warnings: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Barefoot Sound
Barefoot Sound
1710 NW Upshur St, Portland, OR 97209, United States
questions@barefootsound.com
https://barefootsound.com/
ES-ProAudio
Narzissenstr.9, 85055 Ingolstadt
contact@es-proaudio.de
|
Description: |
3-way active monitor with MEME™ Technology |
|
Controls: |
Input level stepped attenuator, MEME™ voice select |
|
Input Impedance: |
Balanced XLR, 20k Ohm Impedance |
|
Sensitivity: |
90dB @ 1 meter with -15dBV input signal (Level control set to 0dB) |
|
Frequency Response: |
36Hz – 45kHz (±3dB), |
|
Bass Response: |
-3 dB @
36Hz, Q = 0.707 |
|
Cabinet: |
18 liters total internal volume, Sealed woofer and midrange enclosures, Machined aluminum baffle plate, Acoustic damping throughout |
|
Crossover Frequencies: |
250 / 3600 Hz (Passive crossover between Midrange and Tweeter) |
|
Tweeter: |
1″ ring radiator, Low distortion motor, Rear waveguide chamber |
|
Midrange: |
4.0″ aluminum cone, Aluminum phase plug, Low distortion motor |
|
Woofers: |
8″ paper composite cone, low distotion motor, Dual-Force™ |
|
High Frequency Amplifier: |
150W |
|
Low Frequency Amplifier: |
500W |
|
AC Power Input: |
85 VAC to 265 VAC |
|
Power Consumption: |
Idle: 15W, Maximum: 765W |
|
Weight: |
Speaker:
35.0 lbs each (15.9 kg) |
|
Dimensions HxWxD: |
Cabinet:
14.0 x 9.5 x 13.0 inches (356 x 241 x 330 mm) |
