Avid MBOX Studio Recording Bundle
- Four premium mic preamps – featuring variable input impedance for flexible tonal control
- Integrated DSP mixer – includes EQ, reverb, delay and soft limiter processing
- Complete recording package – bundled with the Rode NT1-A vocal microphone set
- Advanced monitor control – dual headphone outputs with integrated talkback functionality
- Software bundle included – comes with Pro Tools Studio and Ignition Pack plug-ins
Product information "Avid MBOX Studio Recording Bundle"
The Avid MBOX Studio Recording Bundle is a complete professional recording solution designed for musicians, producers, podcasters, and content creators seeking a versatile and studio-quality setup. By combining the advanced Avid MBOX Studio USB-C audio interface with the renowned Rode NT1-A Complete Vocal Recording Set, the bundle provides everything needed for high-quality vocal, instrument, and music production workflows.

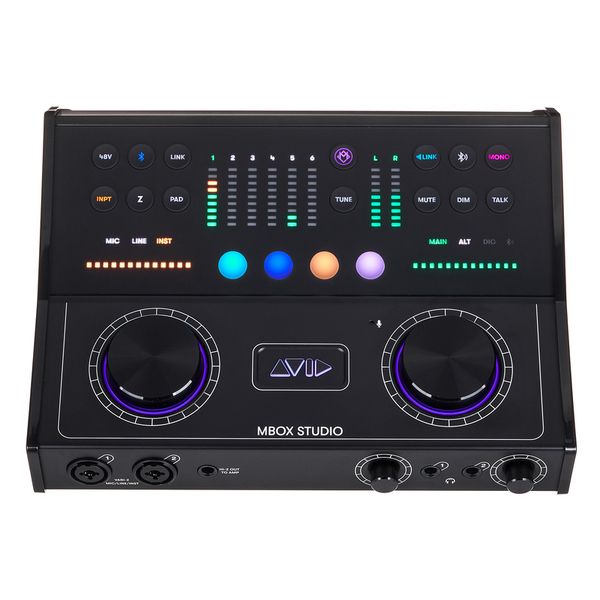

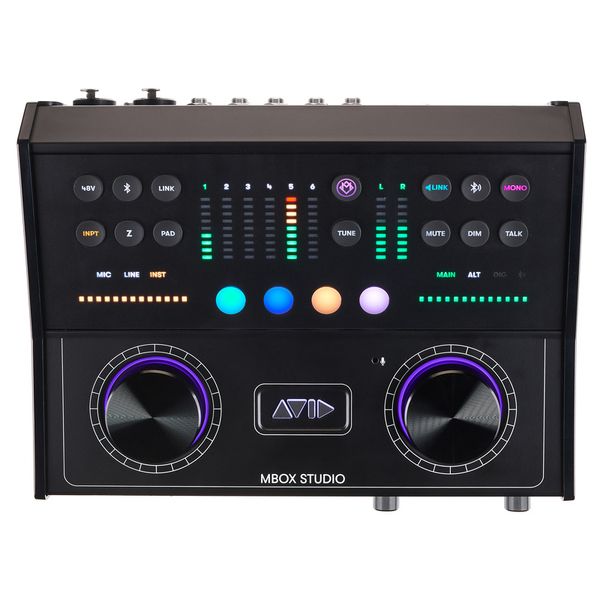

At the core of the system is the Avid MBOX Studio interface, offering up to 21 inputs and 22 outputs for flexible studio connectivity. Premium microphone preamps deliver detailed and transparent audio capture, while integrated DSP-powered low-latency monitoring ensures smooth real-time recording performance without distracting delay.
The interface also includes advanced monitor control functionality and Bluetooth audio integration, allowing users to easily manage multiple monitoring sources and wireless playback within modern production environments. Its intuitive workflow makes it equally suitable for home studios, professional production rooms, and mobile recording setups.
The included Rode NT1-A vocal recording package complements the system with a studio-grade condenser microphone well known for its clarity, low self-noise, and professional vocal performance. This makes the bundle particularly effective for vocals, podcasts, voiceovers, acoustic instruments, and streaming applications.
To complete the production environment, the package includes a comprehensive software suite featuring :contentReference[oaicite:2]{index=2}, :contentReference[oaicite:3]{index=3}, the Ignition Pack plug-ins, and the MBOX Control application. Together, these tools provide a powerful and modern platform for recording, editing, mixing, and music creation.
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
AVID
Avid Technology Europe Limited
c/o B P Collins LLP Collins House 20 Station Road Gerrards Cross Bucks SL9 8EL England
privacy@avid.com
https://www.avid.com/
- Avid MBOX Studio – Technical Data:

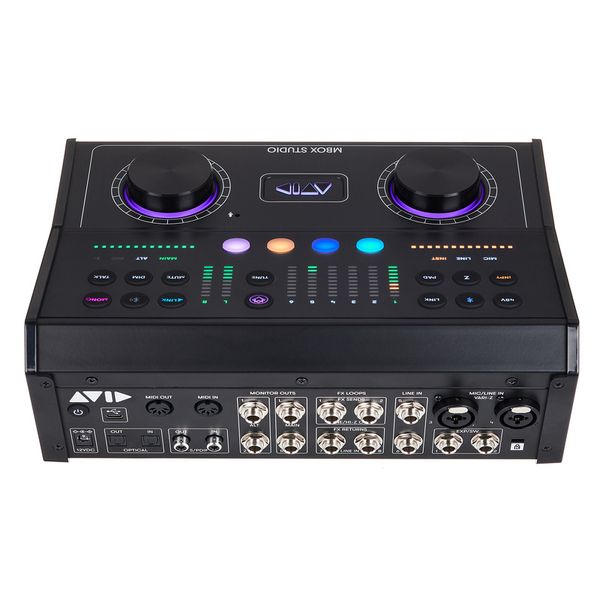

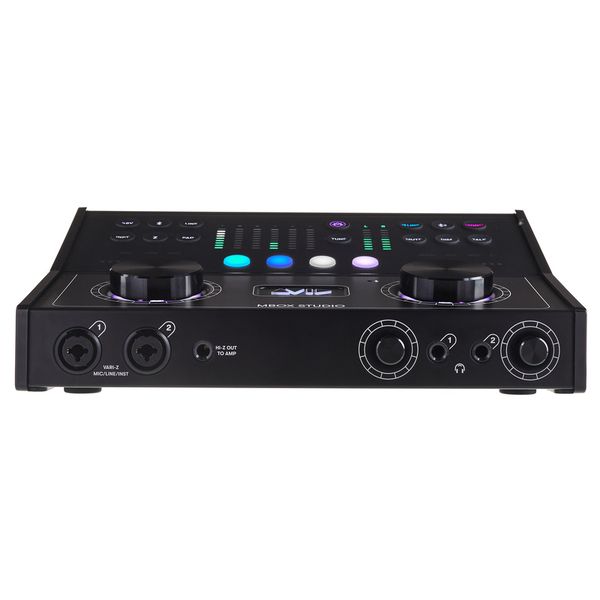

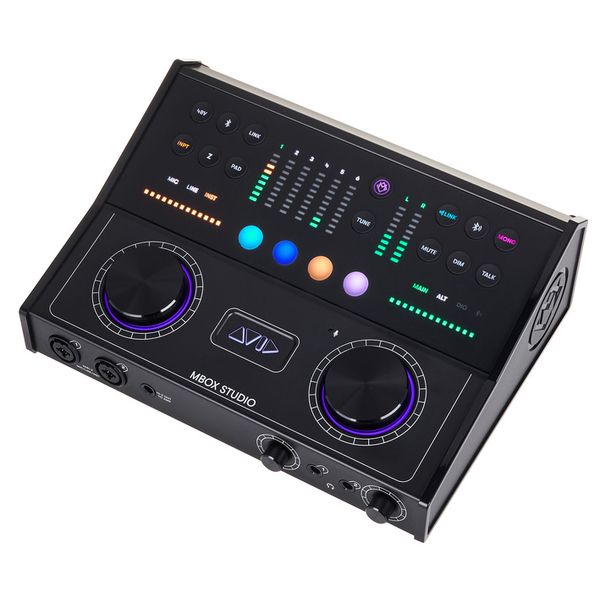

- Avid MBOX Studio USB-C 2.0 audio interface
- Integrated high-impedance re-amping output with ground lift for flexible guitar recording
- Two-channel effects loop with switchable output impedance
- Additional Bluetooth stereo input and output
- Maximum resolution: 24-bit / 192 kHz
- Up to 21 inputs and 22 outputs
- 4 high-quality combo preamps for microphone and instrument signals with variable input impedance
- Switchable +48 V phantom power, -10 dB pad, phase reverse and high-pass filter
- Complete monitor control with 2 stereo monitor paths, 2 independently adjustable stereo headphone outputs and source selection, plus integrated talkback microphone
- Two large rotary controls with push-button function for gain and volume, plus dedicated push buttons for channel and monitoring functions
- DSP-based monitor mixer with switchable soft limiter, parametric 4-band EQ per input, reverb and delay
- 4 assignable push buttons and 2 footswitch inputs for user-defined functions
- Dedicated launch button for MBOX Control application
- Ergonomic metal desktop housing with Kensington security lock
- MIDI input/output: 5-pin DIN
- 2 footswitch / expression pedal inputs: 6.3 mm TRS jack
- Dimensions (W × D × H): 288 × 225.3 × 105.2 mm
- Weight: 2.8 kg

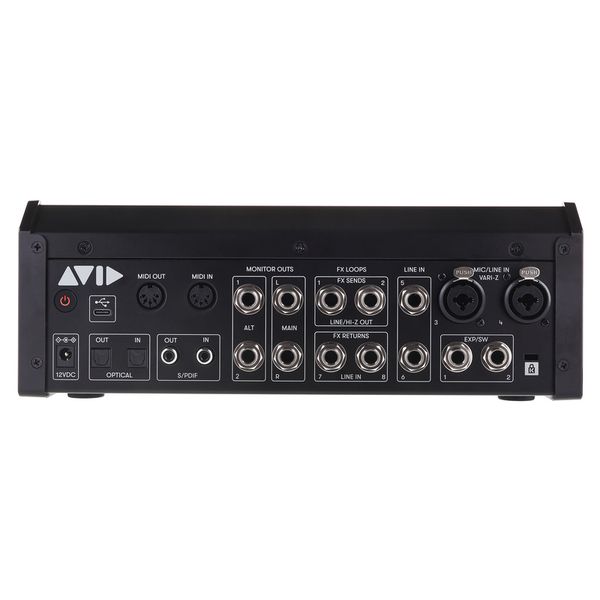

- Analog Inputs
- 4 × combo inputs (XLR / 6.3 mm balanced jack)
- 4 × line / FX return inputs (6.3 mm balanced jack)
- Maximum input level: +14 dBu
- Gain range: 60 dB
- Dynamic range: 112 dB (Mic/Line), 108 dB (Instrument)
- THD+N: 0.001% (Mic/Line), 0.004% (Instrument)
- Microphone EIN: -129 dB (A-weighted)
- Frequency response: 20 Hz – 20 kHz ±0.125 dB
- Analog Outputs
- 4 × monitor outputs (6.3 mm balanced jack)
- 2 × line / FX send outputs (6.3 mm balanced jack)
- Maximum output level: +19 dBu
- Dynamic range: 110 dB (Monitor/Line), 103 dB (Hi-Z)
- THD+N: 0.0012% (Monitor), 0.002% (Line/Hi-Z)
- Frequency response: 20 Hz – 20 kHz ±0.125 dB (Line/Monitor), ±0.3 dB (Hi-Z)
- Headphone Outputs
- 2 × 6.3 mm stereo headphone outputs
- Dynamic range: 102 dB
- Frequency response: 20 Hz – 20 kHz ±0.2 dB
- Output power: 120 mW @ >32 Ohm
- Digital Inputs
- Optical input (8-channel ADAT or 2-channel S/PDIF)
- Coaxial S/PDIF input
- Bluetooth with routing to MBOX Control
- Digital Outputs
- Optical output (8-channel ADAT or 2-channel S/PDIF)
- Coaxial S/PDIF output
- Bluetooth
- Included Software & Accessories
- MBOX Studio USB interface
- USB-C cable
- USB-C female to USB-A male adapter
- 12 V DC power adapter
- Registration card
- Pro Tools Studio perpetual license
- Sibelius Artist annual subscription
- Ignition Pack 3
- MBOX Control application
- Printed multilingual quick start guide

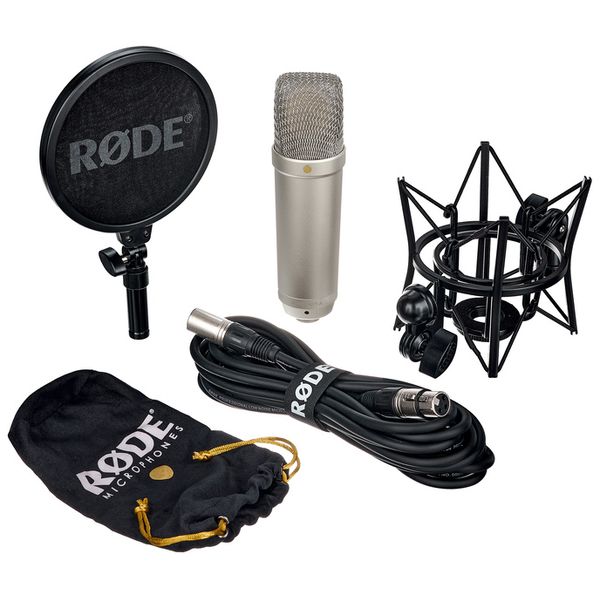

- RØDE NT1-A Complete Vocal Recording Set

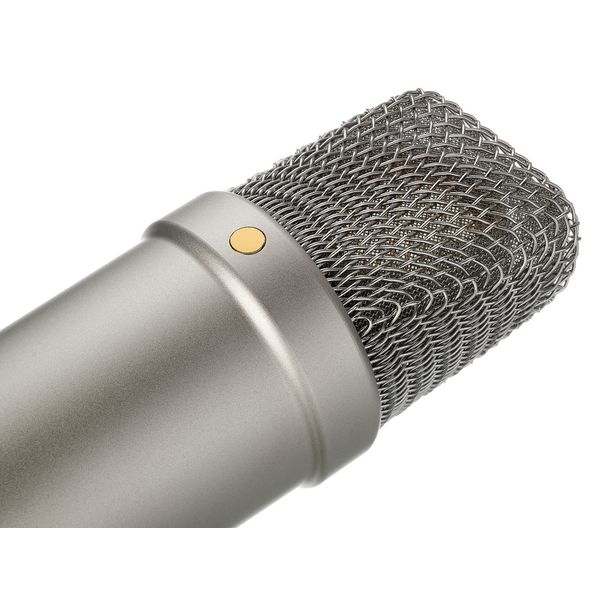

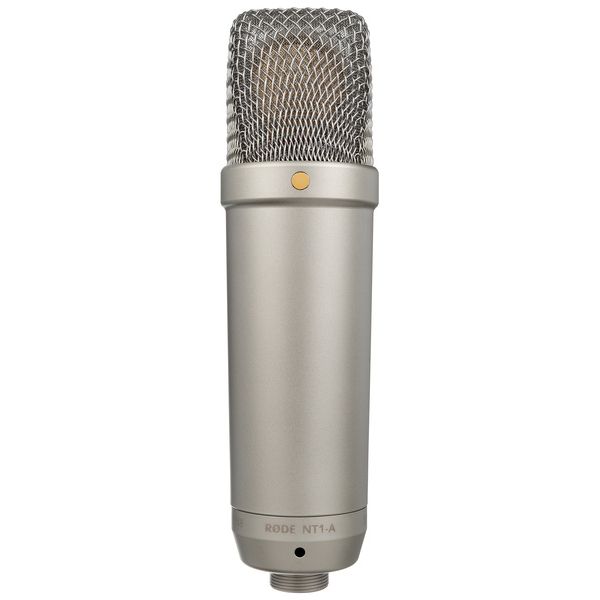

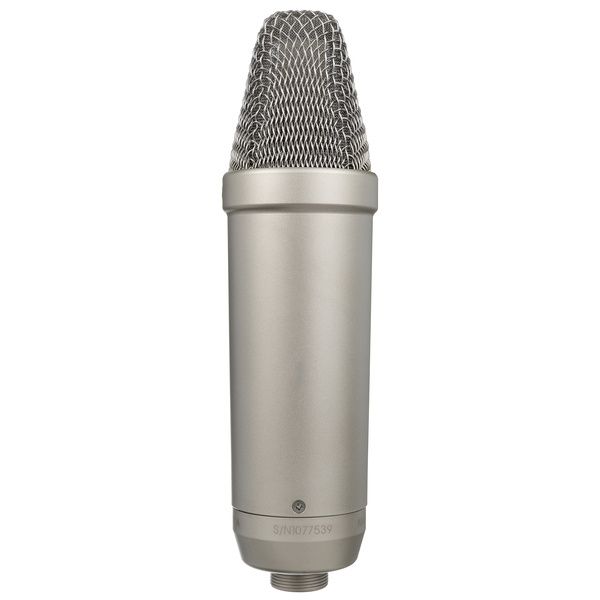

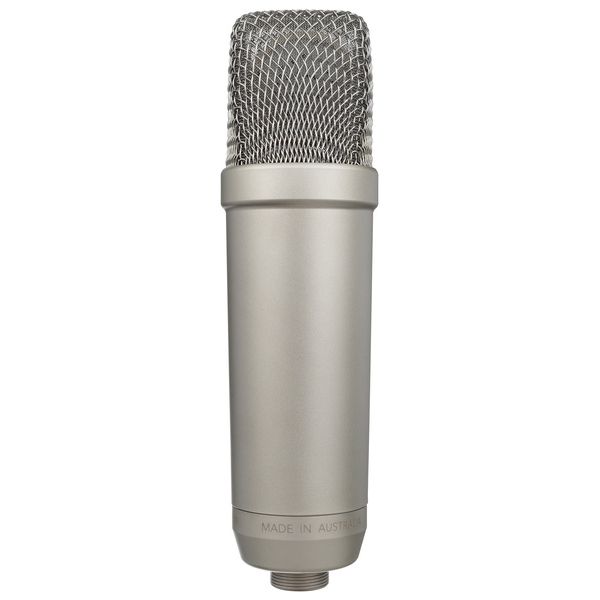

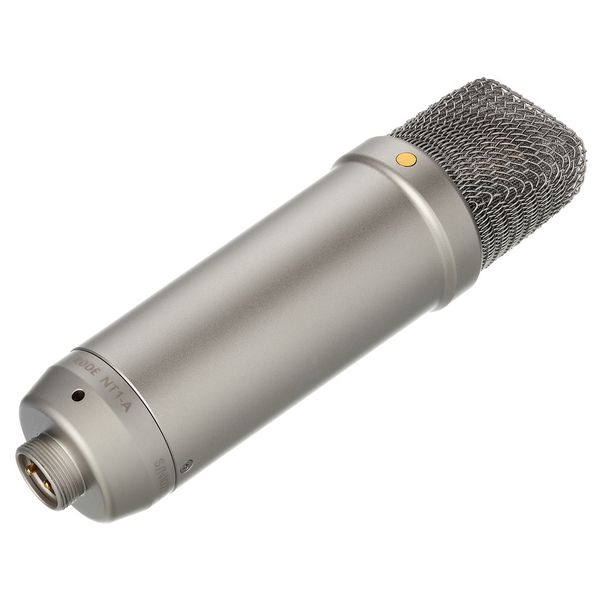

- RØDE NT1-A 1″ large diaphragm condenser microphone

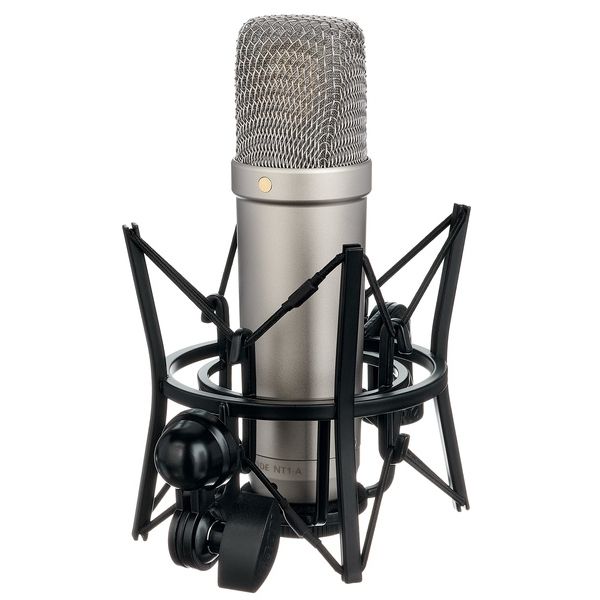

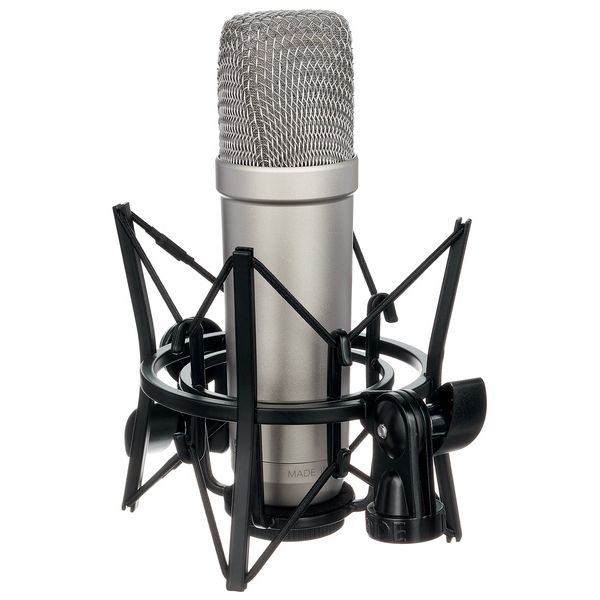

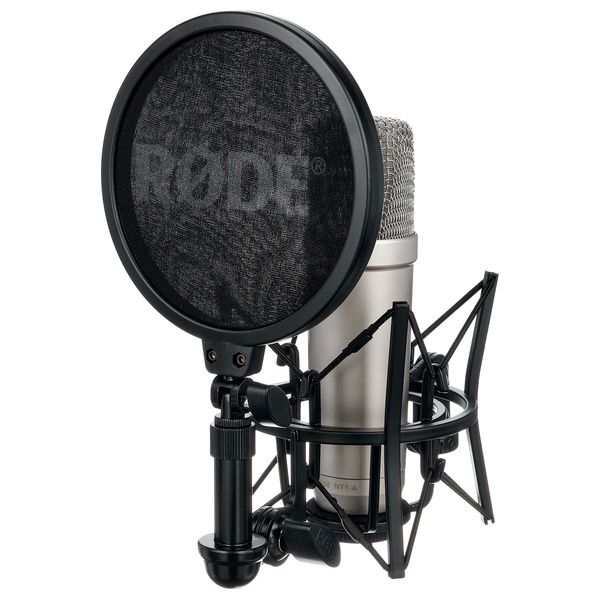

- Deluxe SM6 shock mount with integrated pop filter
- 6 m XLR cable
- Dust cover included
- RØDE NT1-A Technical Specifications
- Polar pattern: cardioid
- Frequency response: 20 Hz – 20 kHz
- Maximum SPL: 137 dB
- Output impedance: 100 Ohm

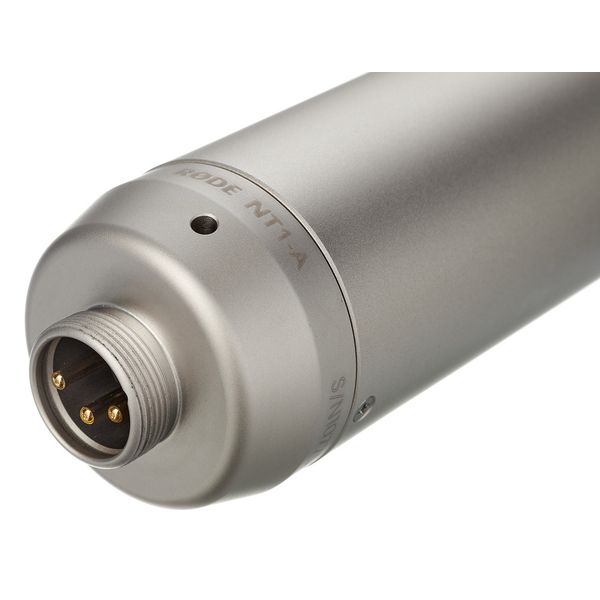

- Gold-plated output contacts
- Dimensions (H × W × D): 190 × 50 × 50 mm
- Weight: 326 g
