Abacus 60-120D Dolifet
Color:
Silver anodized
Features
- Dolifet technology (load-independent output, 0 Ω output impedance)
- 100% negative feedback with controlled speaker drive and diaphragm damping

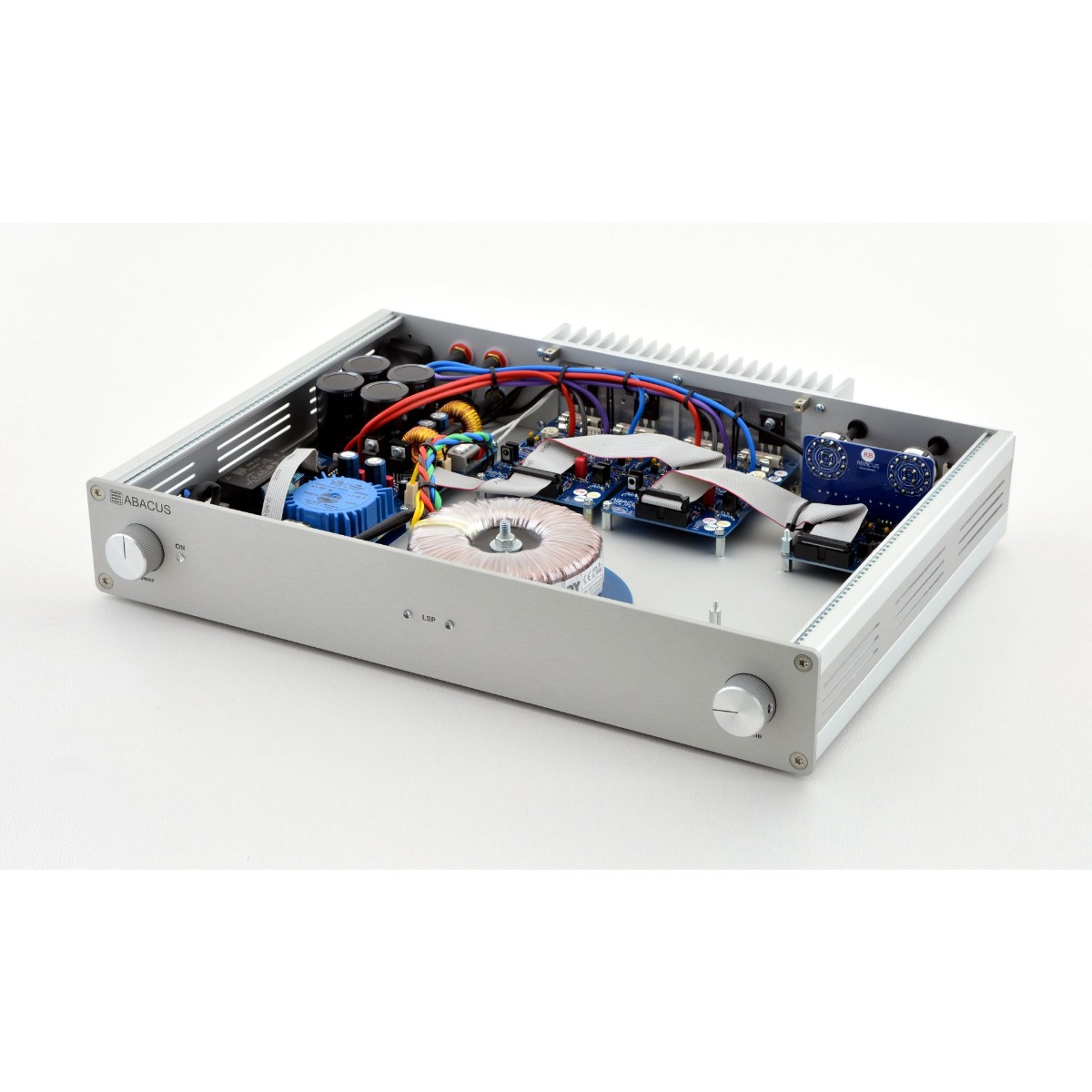

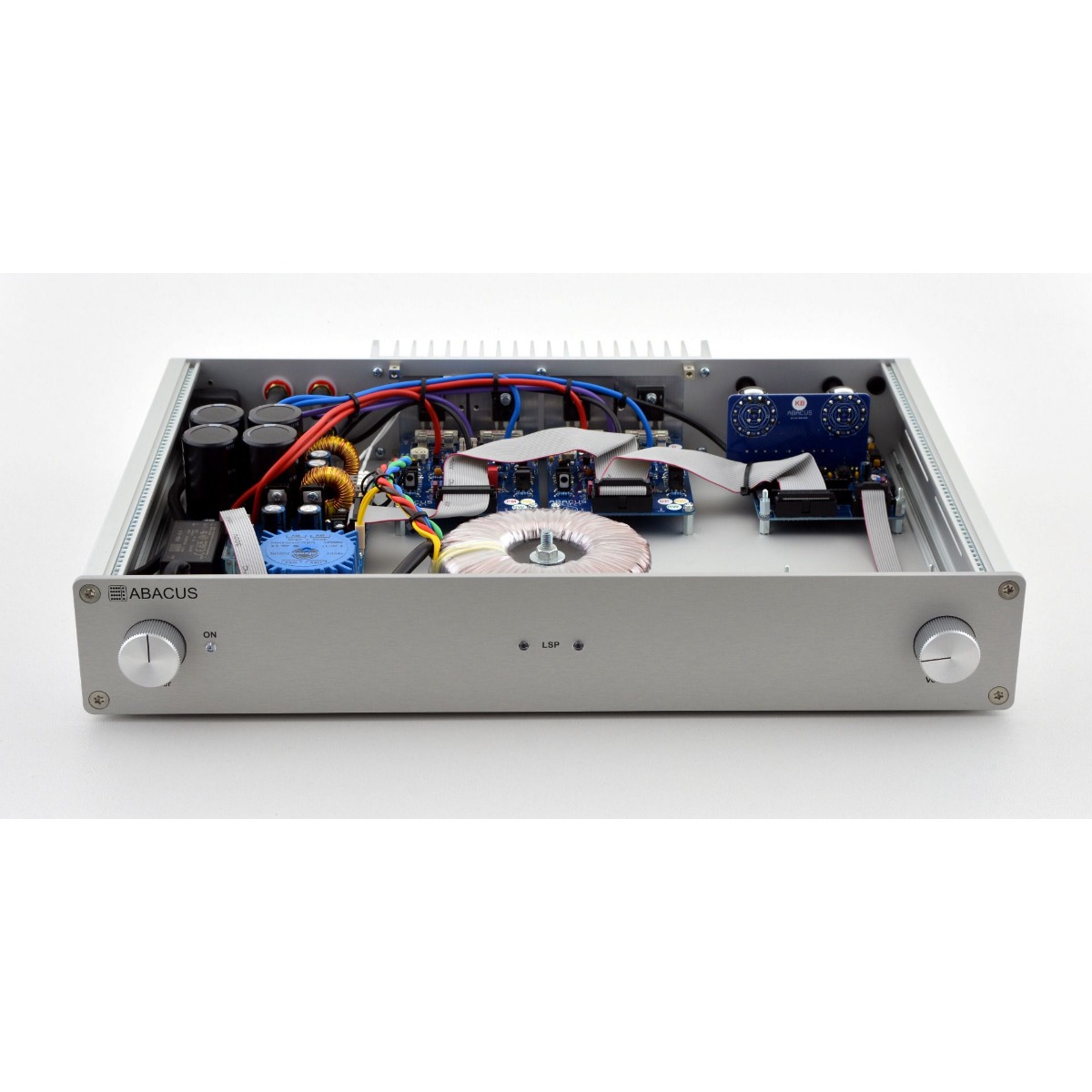

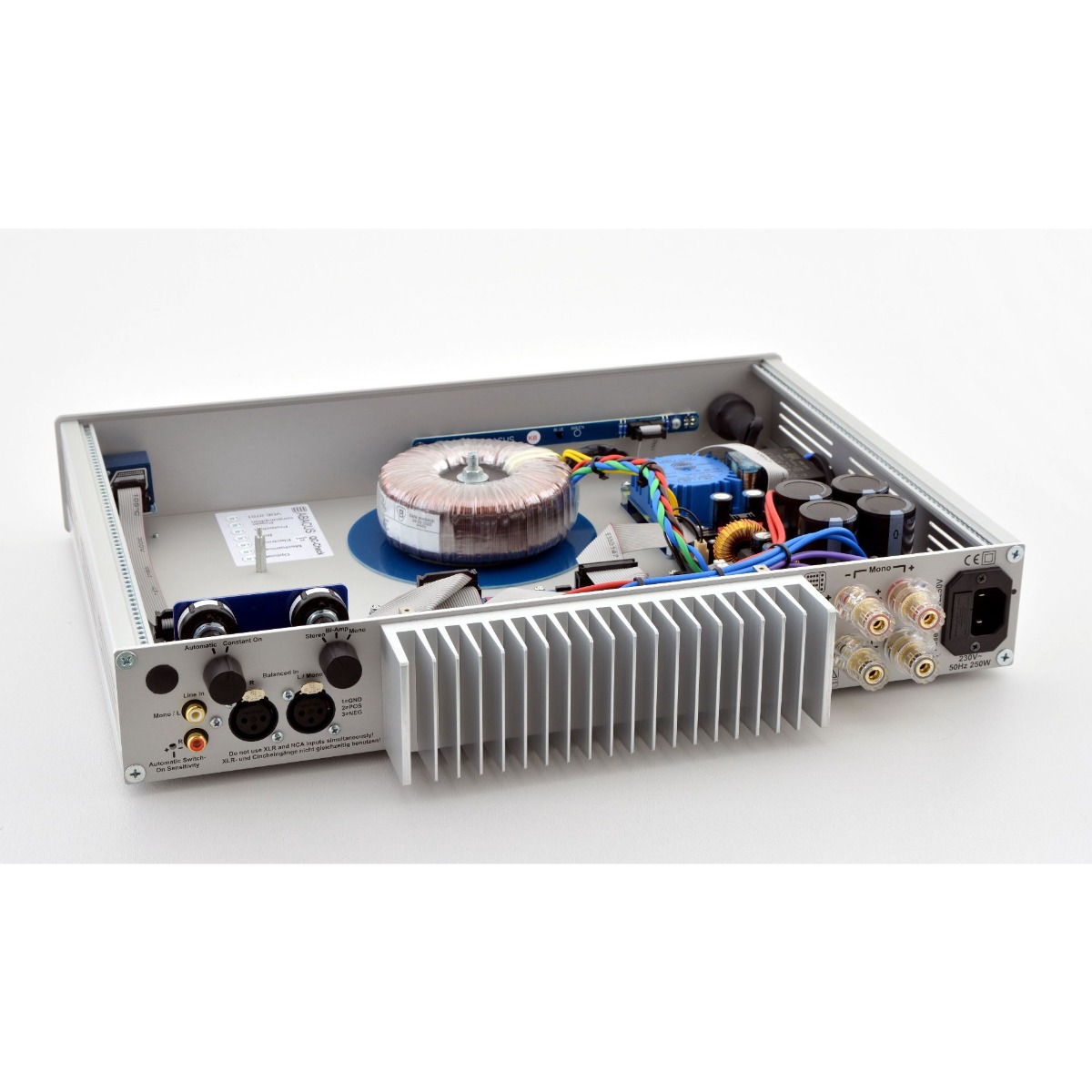

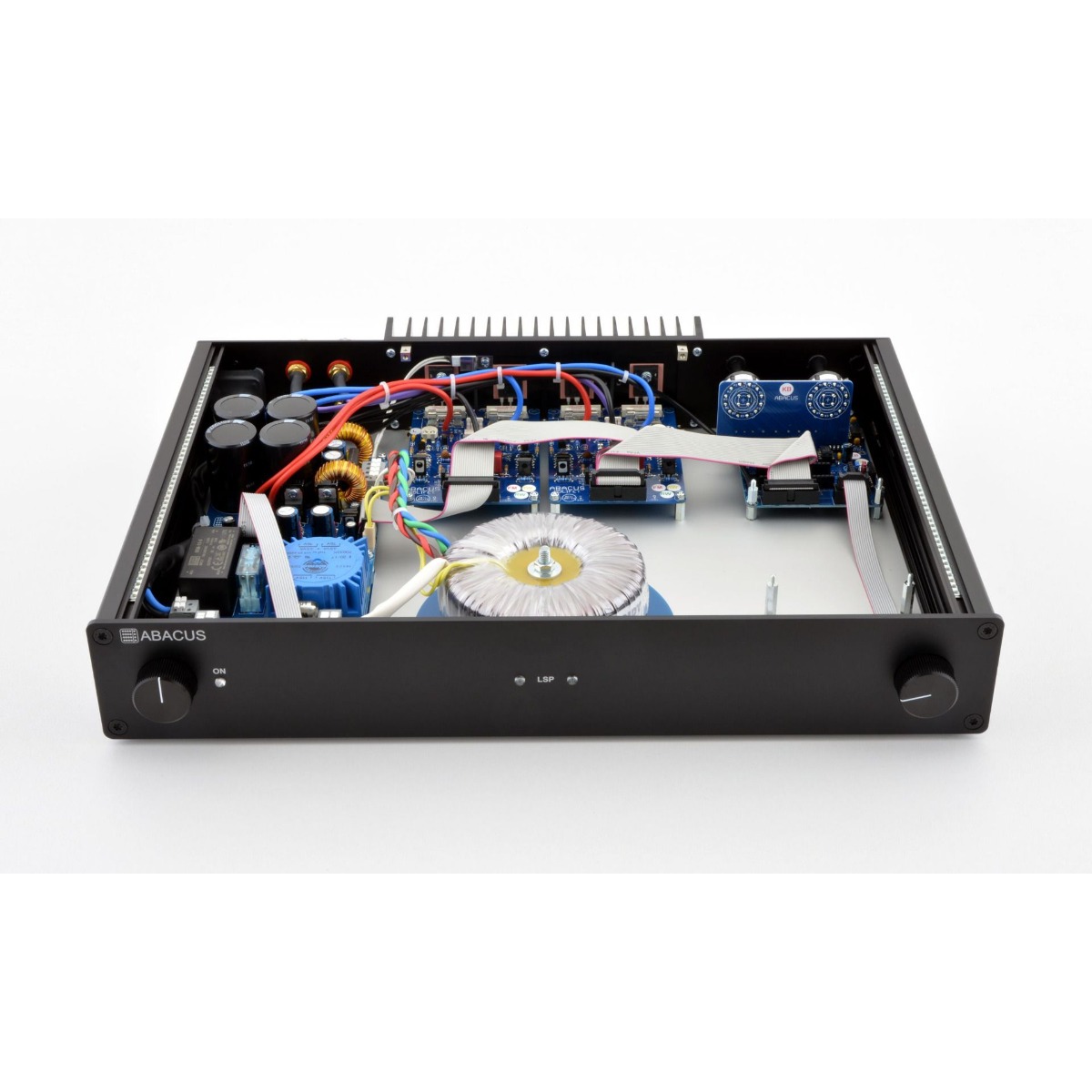

- 3 separate, heavily filtered power supplies including 225 VA toroidal transformer and 40,000 µF capacitance
- switchable Stereo/BiAmp/Mono (Monoblock with double output voltage)
- comprehensive protection and convenience features (overload, temperature, soft-start, automatic power-on)
- very high efficiency with high-quality audio op-amps and precision volume control.
Description
Product information "Abacus 60-120D Dolifet"
With the fourth generation of this traditional model, ABACUS presents the first device featuring Dolifet Technology (Drain-Output Load-Independent Field Effect Transistor). A completely new control system, power supply, and signal processing have been combined with a new version of ABACUS’s proven circuitry and packaged in a redesigned chassis.
The result is an amplifier that is truly in a class of its own, offering even greater control over speakers while delivering increased performance. The automatic power-on function and balanced inputs also make it more versatile and convenient to use.
Safety Warnings
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
Manufacturer information
ABACUS
ABACUS electronics UG
Bahnhofstr. 39a D-26954 Nordenham
+49 (0)4731 5088
info(at)abacus-electronics.de
Tech-Info
| Specification | Value |
|---|---|
| Power Supply | 230 V AC, IEC connector |
| Power Consumption, Auto | approx. 0.4 VA |
| Power Consumption, Idle | approx. 16 VA |
| Power Consumption, Max | approx. 250 VA |
| RMS Power per Channel | approx. 110 W |
| Music Power per Channel | approx. 180 W |
| Capacitance | 2 × 20,000 µF |
| Frequency Response | 4 – 150,000 Hz (-3 dB) |
| Maximum Input Signal | 30 Vss |
| Input Impedance | approx. 50 kΩ |
| Chassis Dimensions (W × D × H) | 435 × 306.5 × 70 mm |
| Overall Dimensions (W × D × H) | 435 × 360 × 75.5 mm |
| Packing Dimensions (W × D × H) | approx. 510 × 440 × 165 mm |
| Weight (each) | 6.80 kg |
| Shipping Weight (each) | 7.80 kg |
| Warranty | 3 years |
