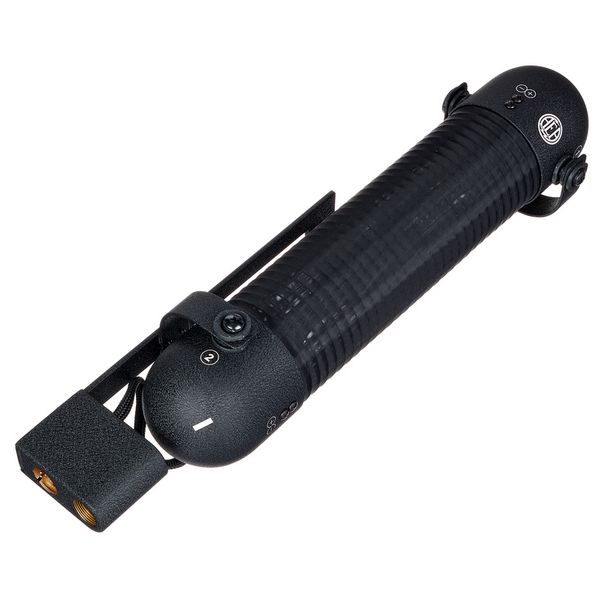

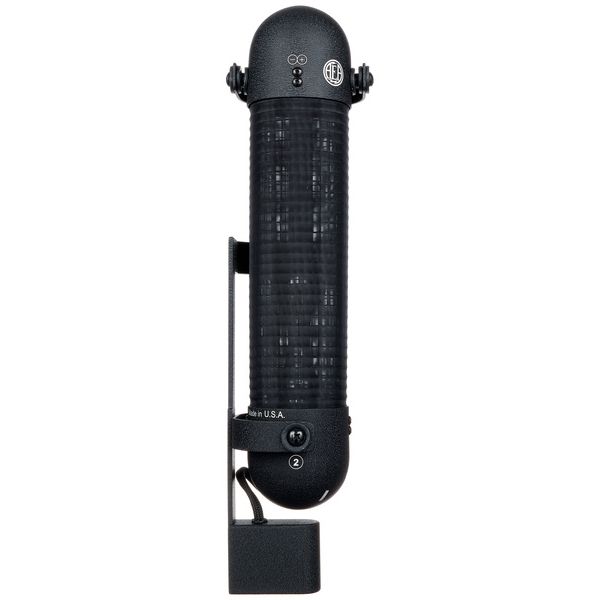

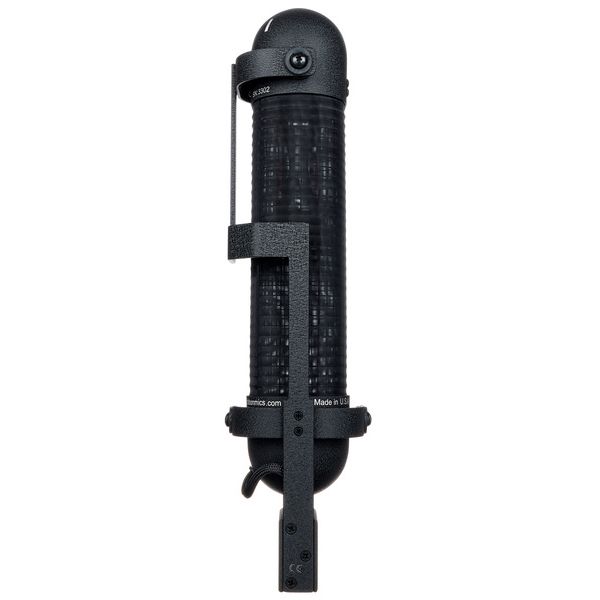

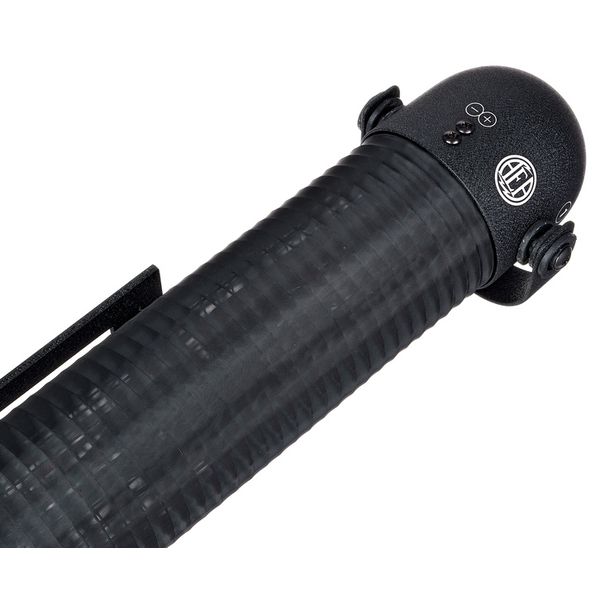

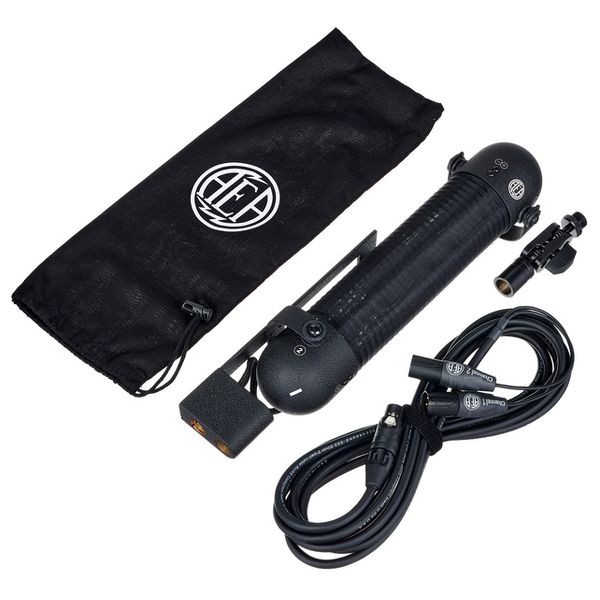

AEA R88 mk2
- 20 Hz – 20 kHz frequency response – full-range audio capture
- Captive 4 m cable – terminated to dual A3M connectors

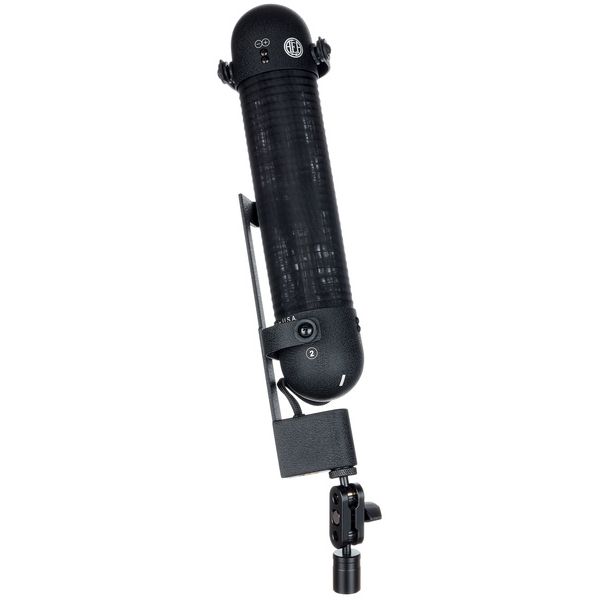

- Locking angle adapter – flexible and secure positioning
- Overhead installation design – ideal for large venue applications
- Weight – approx. 3 lbs plus cable
- Dimensions – 2.5″ diameter × 14″ height
- Black stealth finish – discreet appearance for stage use

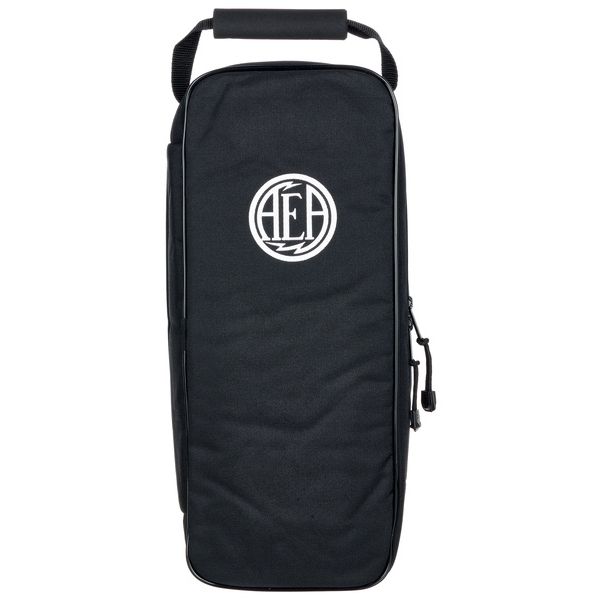

- Zippered case – durable storage and transport solution
Product information "AEA R88 mk2"
The AEA R88 MK2 is a high-performance stereo ribbon microphone that captures the classic “Big Ribbon” sound in a refined and modern design. It effectively combines two matched ribbon elements within a single housing, offering a true stereo recording solution inspired by the sonic character of AEA’s renowned large-format ribbon microphones.
Built on the same large ribbon geometry and acoustic principles found in models like the AEA R44C, the R88 MK2 delivers a powerful low-frequency response down to 20 Hz and a smooth, natural high end. This makes it exceptionally well-suited for capturing complex sound sources such as cymbals, strings, woodwinds, and full ensembles with clarity and depth.
The microphone features two ribbon motors arranged at a precise 90-degree angle, enabling accurate stereo imaging and excellent off-axis response. It is optimized for stereo recording techniques such as Blumlein and Mid-Side (M-S), making it highly versatile for professional studio and location recording applications.
Designed primarily for mid- to far-field use, the R88 MK2 is ideal for chamber music, drum overheads, stereo piano recordings, horn sections, and ensemble capture. Its passive design offers a wide dynamic range with minimal distortion, but it performs best when paired with a high-quality preamp providing at least 60 dB of clean gain and proper impedance matching.
The updated MK2 version includes an improved integrated shockmount for easier positioning and reduced stand-borne vibrations. Finished in a low-reflective stealth black coating, it minimizes visual distraction in live recording environments. For close vocal applications, the use of a pop filter is recommended due to its open design, which prioritizes natural sound over wind protection.
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
AEA
Audio Engineering Associates
1029 N. Allen Ave. Pasadena, CA 91104
info@ribbonmics.com
https://aearibbonmics.com/
- Technical Data:
- Application: suitable for mid-side (M/S) stereo configuration
- Design: two ribbons positioned at 90° with figure-8 polar pattern
- Ribbon: 2 × 1.8 µm thin aluminum (4.7 × 59.7 mm each)
- Frequency range: 20 Hz – 20 kHz
- Maximum SPL: 165 dB
- Sensitivity: 2.5 mV/Pa (-52 dBV)
- Output impedance: 270 Ohm

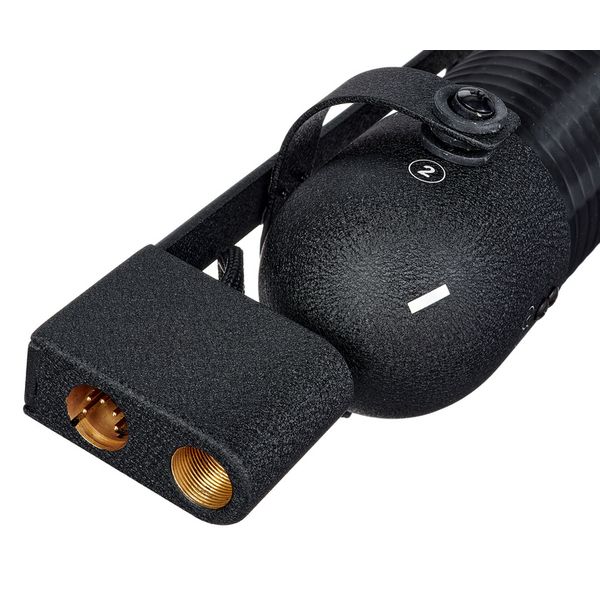

- Connection: XLR-5M connector
- Dimensions (H × D): 381 × 99 mm
- Weight: 2.6 kg

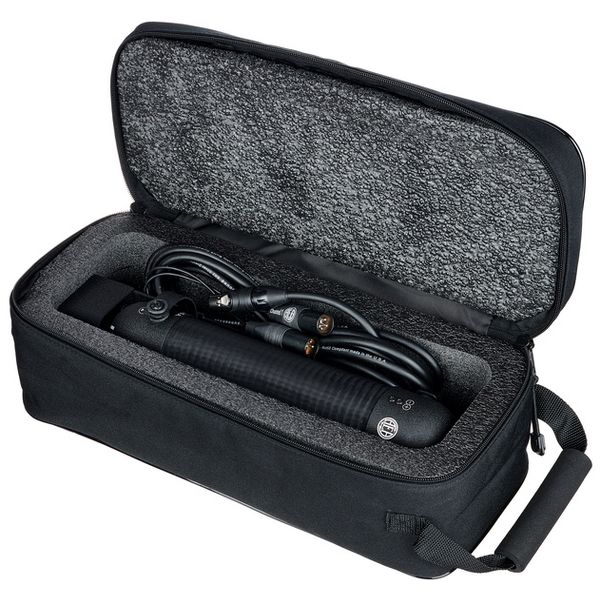

- Included: 4.5 m cable (XLR-5F to 2 × XLR-3M), swivel adapter, protective case, premium transport case
- Handmade in the USA
