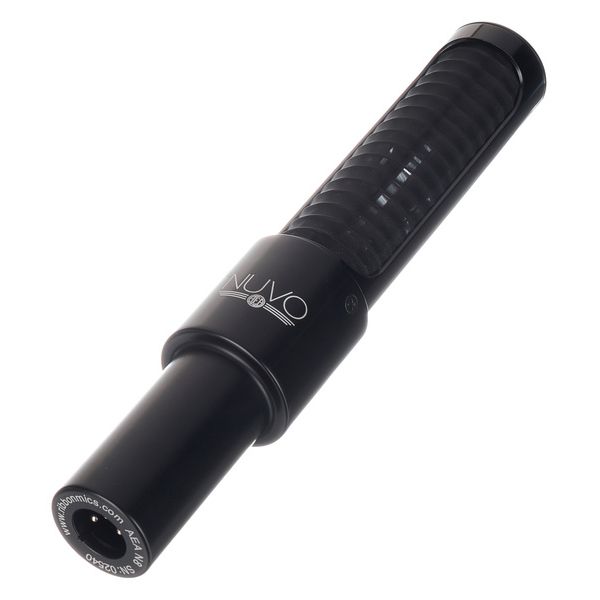

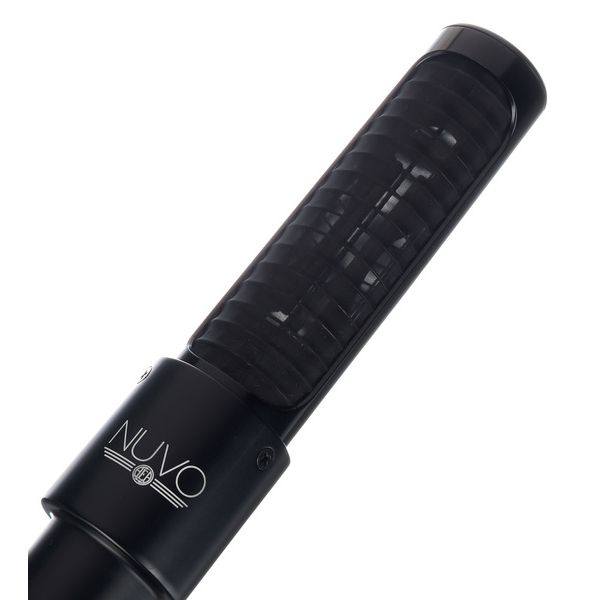

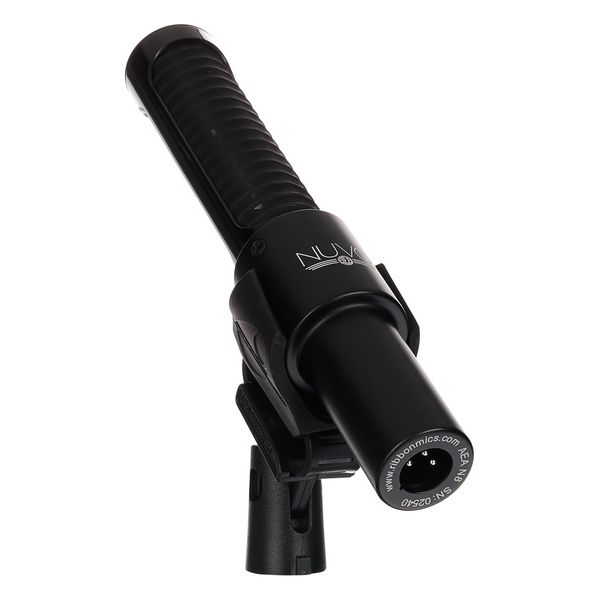

AEA N8 NUVO
- Open and natural sound – transparent audio reproduction with realistic detail
- Far-field ribbon design – retains low and high frequencies even at a distance
- R88-inspired design – follows the same philosophy as the renowned stereo ribbon microphone
- Compact and lightweight – flat design for easy placement and portability
- Active electronics – optimized transformer ensures compatibility with all preamps
- Made in the USA – high-quality craftsmanship and reliable performance
Product information "AEA N8 NUVO"
The AEA NUVO N8 is an active ribbon microphone designed to capture the natural, lifelike sound of instruments and acoustic spaces with exceptional realism. It reproduces subtle details and nuances with precision, delivering a sound that closely reflects the experience of hearing a performance live.
It excels at handling complex sound sources such as drums, string ensembles, piano, and other instruments that produce intricate transients, bright highs, and powerful low frequencies. The N8 maintains a smooth, balanced response without harshness, even in demanding recording situations.
With its wide frequency response and well-controlled low end, the N8 is particularly effective for capturing room ambience and ensemble recordings. It performs exceptionally well when placed further from the source, such as in the rear of a room, as a drum overhead, or above a string section.
Offering one of the widest frequency ranges in AEA’s lineup, the N8 handles complex audio material with ease. Its full potential is best realized in stereo configurations, where it delivers a spacious and highly realistic stereo image.
The microphone is based on the same proven design philosophy as the AEA R88, bringing together depth, clarity, and the classic warmth that defines AEA’s ribbon microphone heritage.
| Safety Warnings: | The specific safety instructions for the product are provided in its user manual. |
|---|
AEA
Audio Engineering Associates
1029 N. Allen Ave. Pasadena, CA 91104
info@ribbonmics.com
https://aearibbonmics.com/
- Technical Data:
- Operating principle: pressure gradient transducer
- Polar pattern: bidirectional (figure-8)
- Frequency range: <20 Hz – >20 kHz
- Maximum SPL: 141 dB SPL (1% THD @ >1 kHz)
- Sensitivity: 8.3 mV/Pa (-41.7 dBV @ 1 kHz, no load)
- Output impedance: 92 Ω (broadband)
- Recommended load impedance: ≥1.0 kΩ
- Phantom power: P48, 7 mA
- Polarity: Pin 2 positive for overpressure at front
- Axial deviation:
- - Horizontal: up to 90 dB attenuation at 90°
- - Vertical: level varies with angle; frequency response remains constant
- Transducer element: corrugated pure aluminum ribbon
- Ribbon thickness: 1.8 µm
- Ribbon dimensions: 4.7 mm × 59.7 mm
- Microphone dimensions: 22.5 × 4.1 × 4.1 cm
- Weight: 335 g
- Shipping weight: 810 g

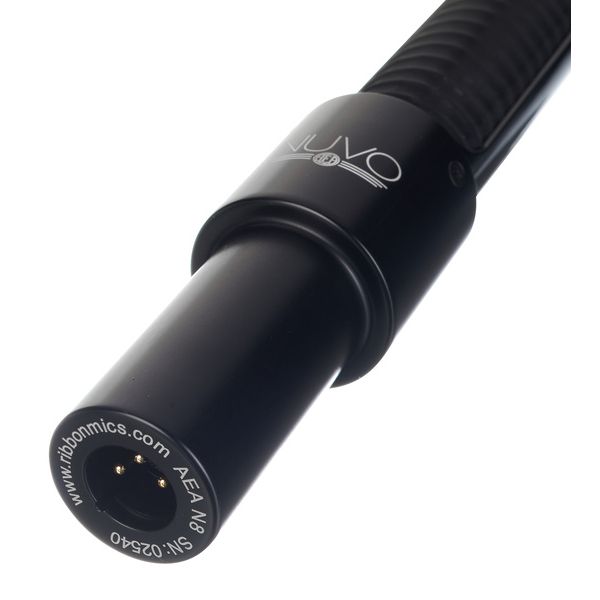

- Connection: XLR-3M

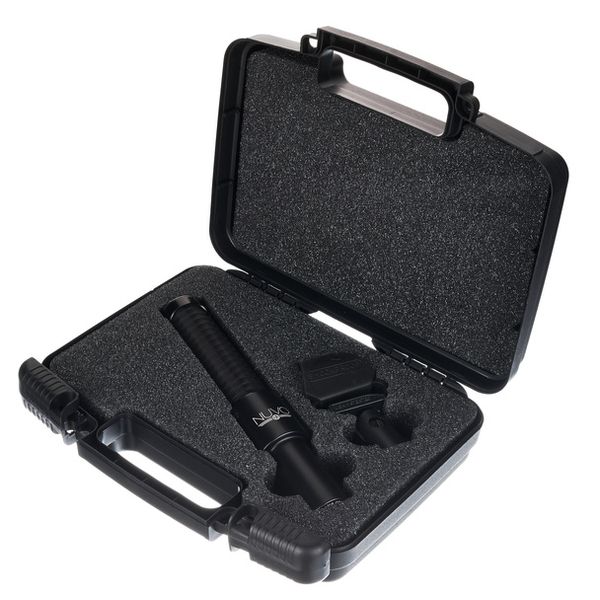

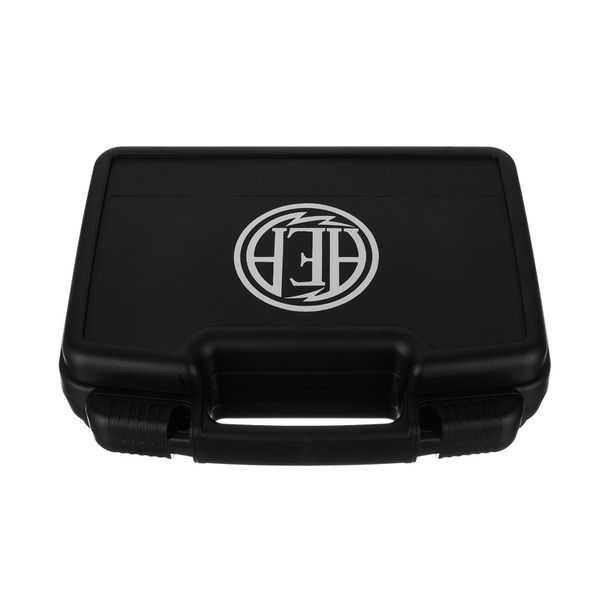

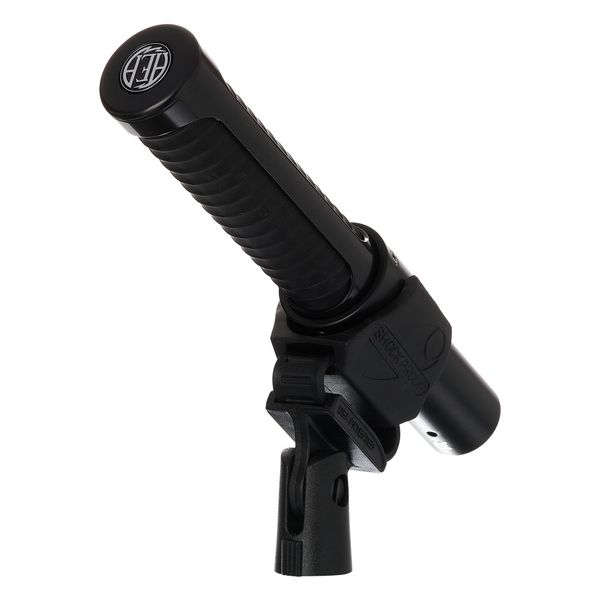

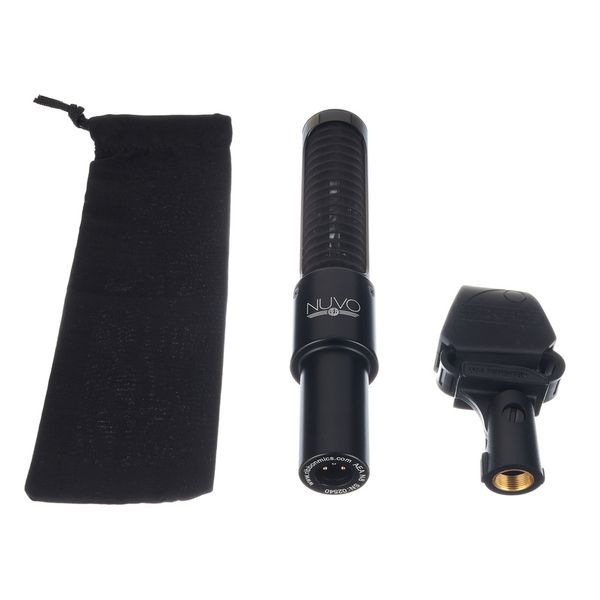

- Included: storage/transport case, mic stand clamp, soft bag, user manual
